Fuel Delivery: Removal

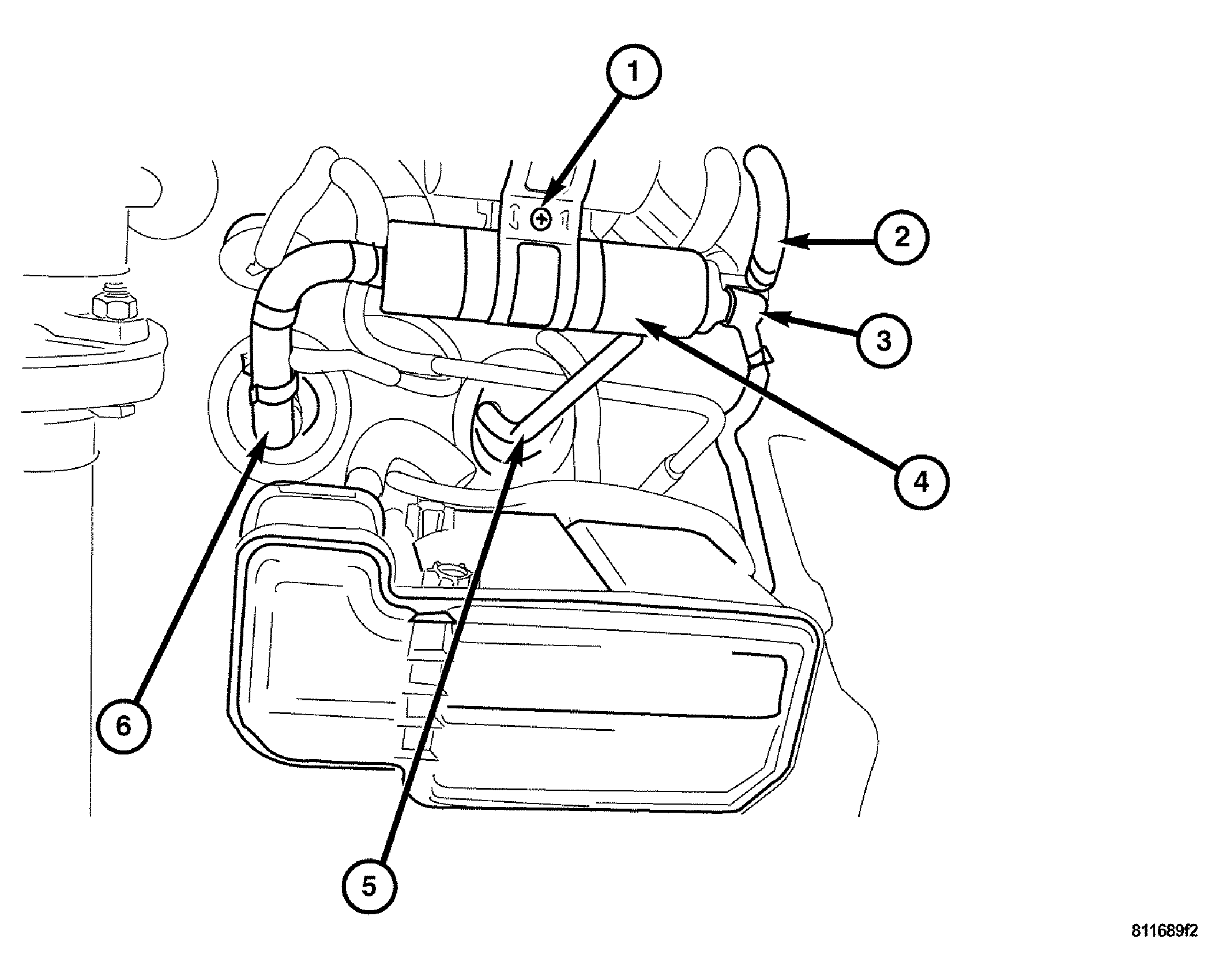

Fig 1: Identifying Fuel Pump Components
GC0032320Courtesy of DAIMLERCHRYSLER CORP.
WARNING: PLACE A SHOP TOWEL AROUND THE FUEL LINES TO CATCH ANY EXCESS FUEL DURING DISASSEMBLY.
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the fuel pump splash shield.
  4. Pinch off the fuel suction hose (6) and the fuel delivery hose (2).
  5. Disconnect the hoses from the fuel pump (4).
  6. Disconnect the fuel pump harness connectors (3).
  7. Remove the clamp retaining screw (1) and remove the fuel pump from the vehicle.
