Installation - SRT

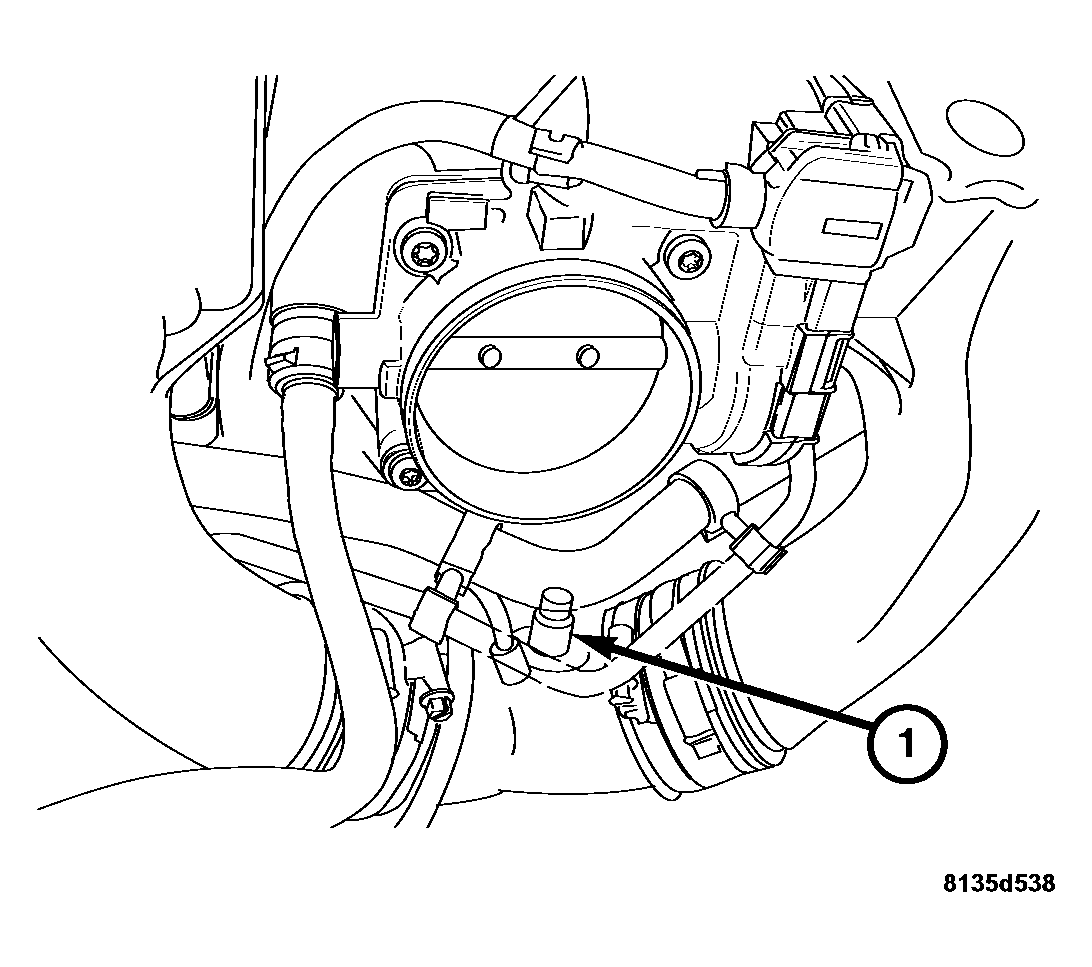

Fig 1: Locating Intake Air Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Install the intake air temperature sensor (1).
Connect the intake air temperature sensor harness connector.

Fig 2: Removing/Installing Upper Air Cleaner Housing
Courtesy of DAIMLERCHRYSLER CORP.
Install the upper air cleaner housing. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .
Install the engine cover. Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.
NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.
Connect the negative battery cable.
