Installation - SRT

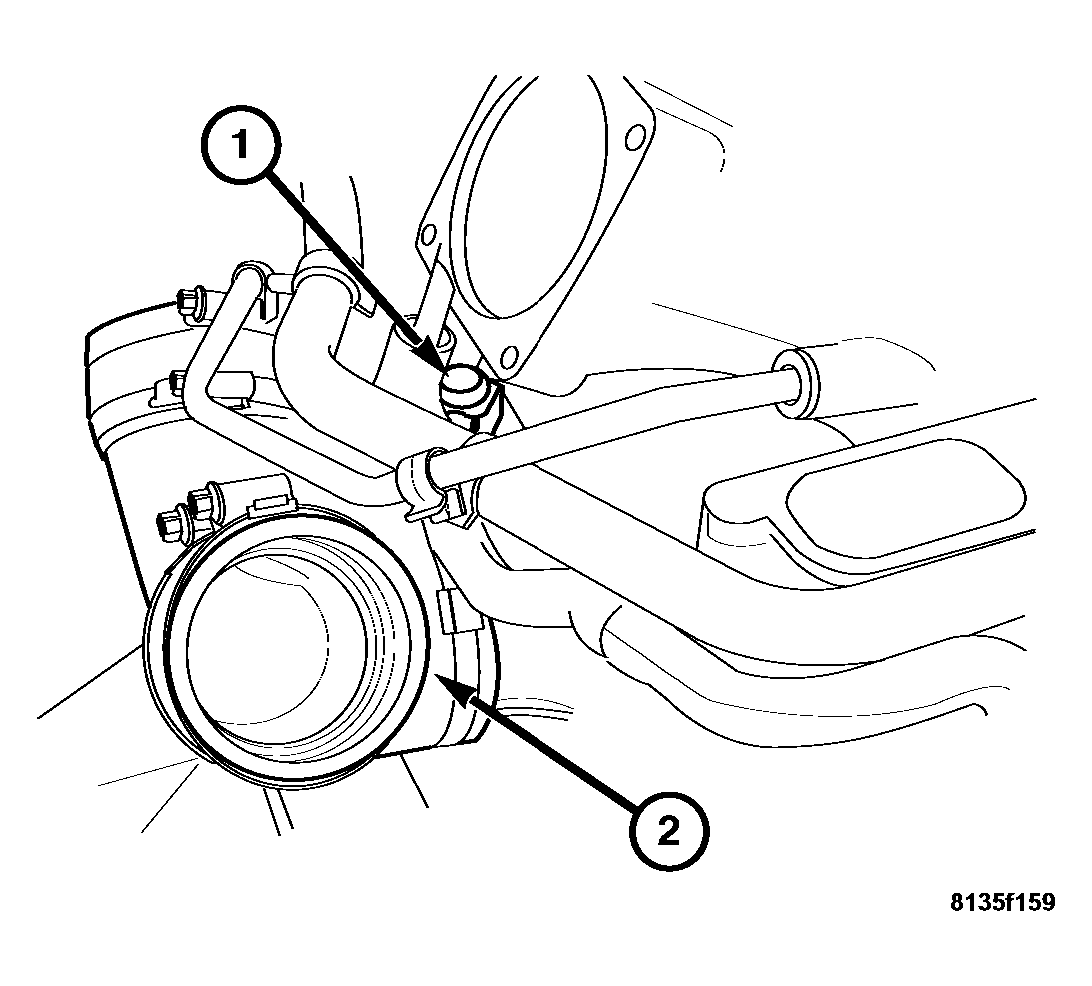

Fig 1: Removing/Installing Manifold Absolute Presure Sensor & Supercharger Outlet Housing

Courtesy of DAIMLERCHRYSLER CORP.

Install the MAP sensor (1).
Install the MAP sensor mounting bolts. Tighten to 4.5 N.m (40 in. lbs.).
Connect the MAP sensor (1) harness connector.
Install the supercharger outlet housing (2). Tighten the supercharger outlet housing hose clamps.

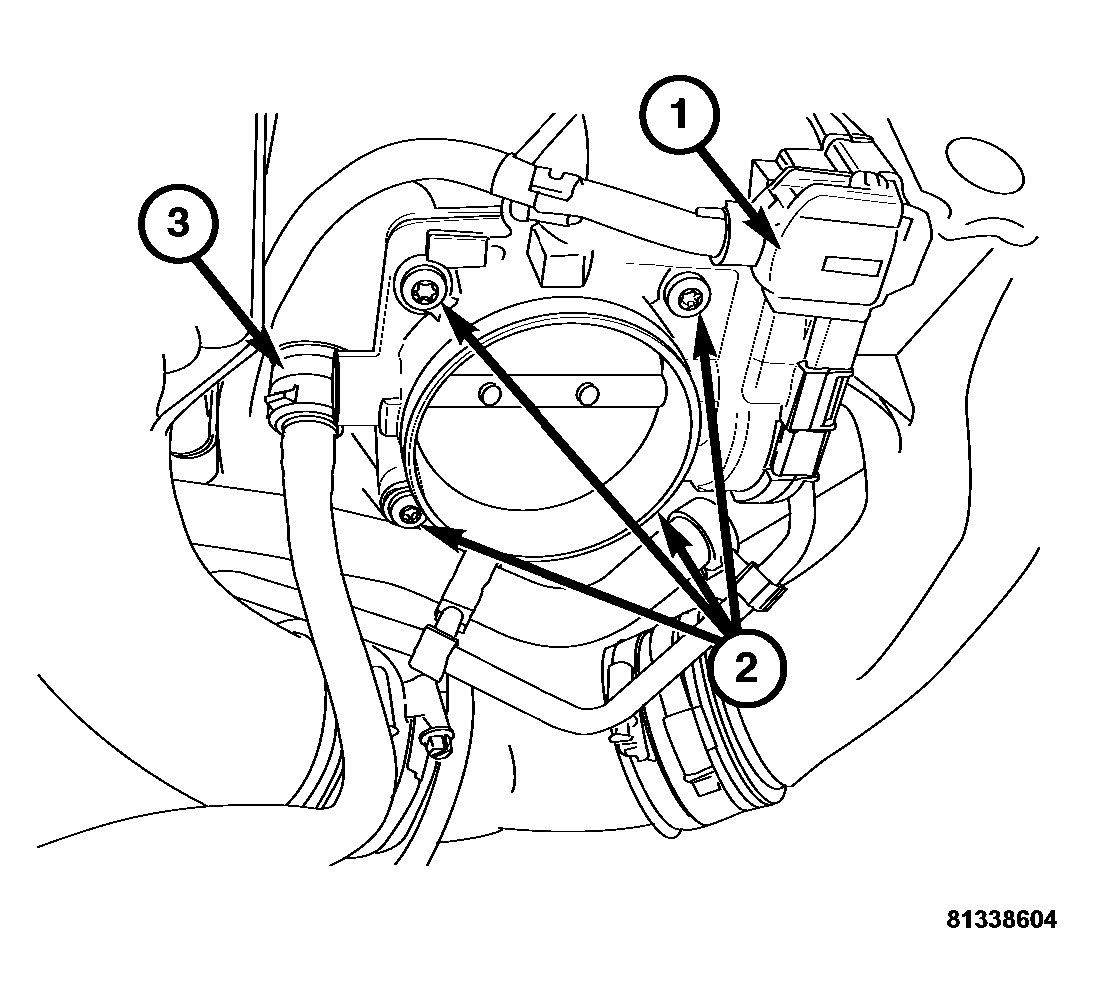

Fig 2: Removing/Installing Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.
Install the throttle body. (Refer to FUEL SYSTEM/FUEL INJECTION/THROTTLE BODY - INSTALLATION) .

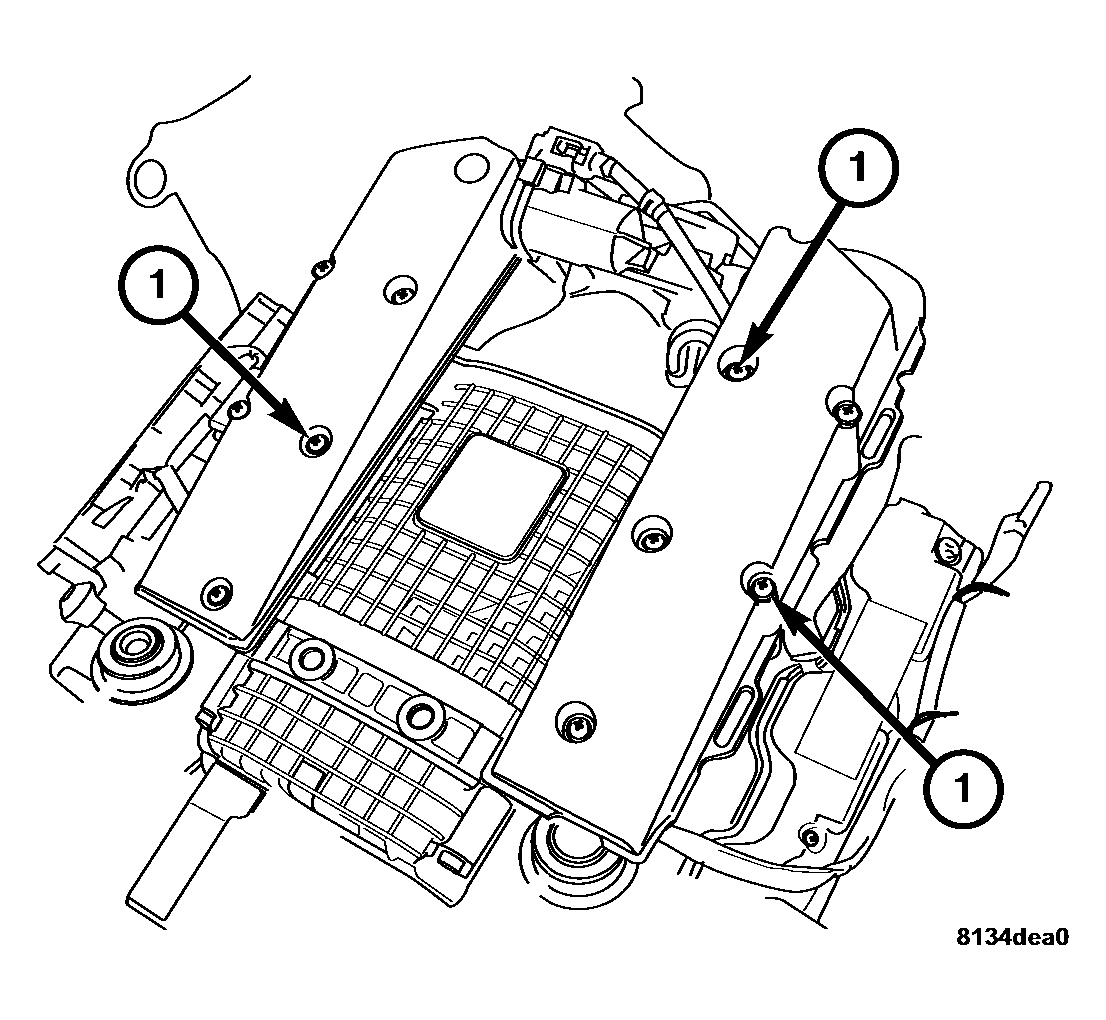

Fig 3: Removing/Installing Intake Plenums
Courtesy of DAIMLERCHRYSLER CORP.
Install both right and left intake plenums. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) .

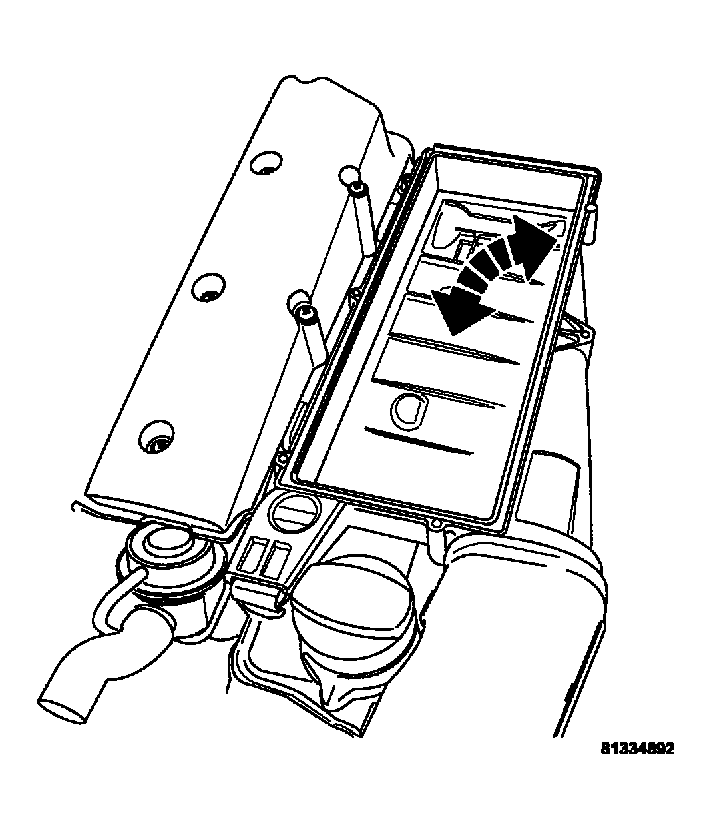

Fig 4: Removing/Installing Lower Air Cleaner Housing
Courtesy of DAIMLERCHRYSLER CORP.
Install both right and left lower air cleaner housings. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .

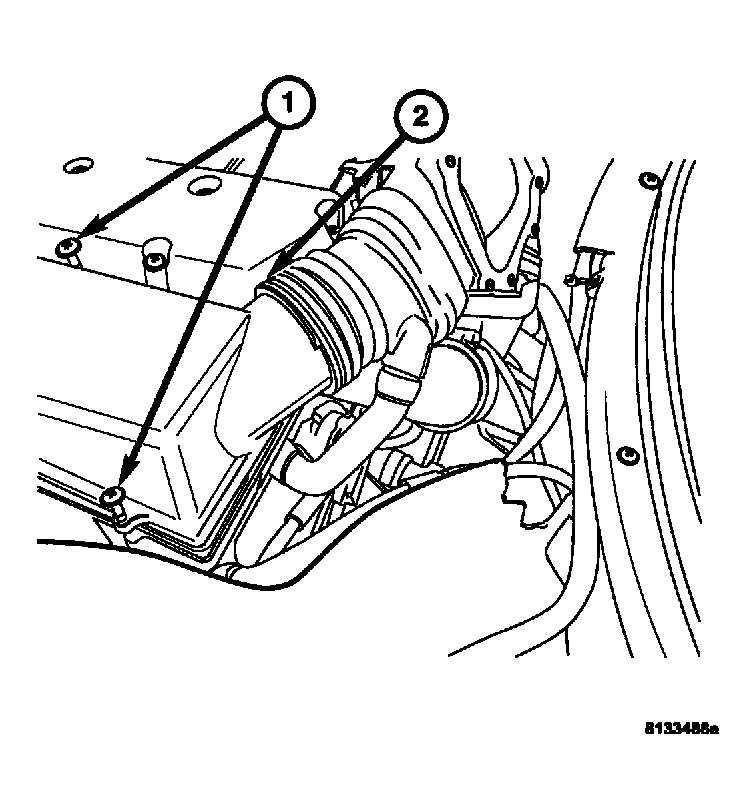

Fig 5: Removing/Installing Upper Air Cleaner Housing
Courtesy of DAIMLERCHRYSLER CORP.
Install the upper air cleaner housings. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .
Install the engine cover. Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.
NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.
Connect the negative battery cable.
