Removal - SRT

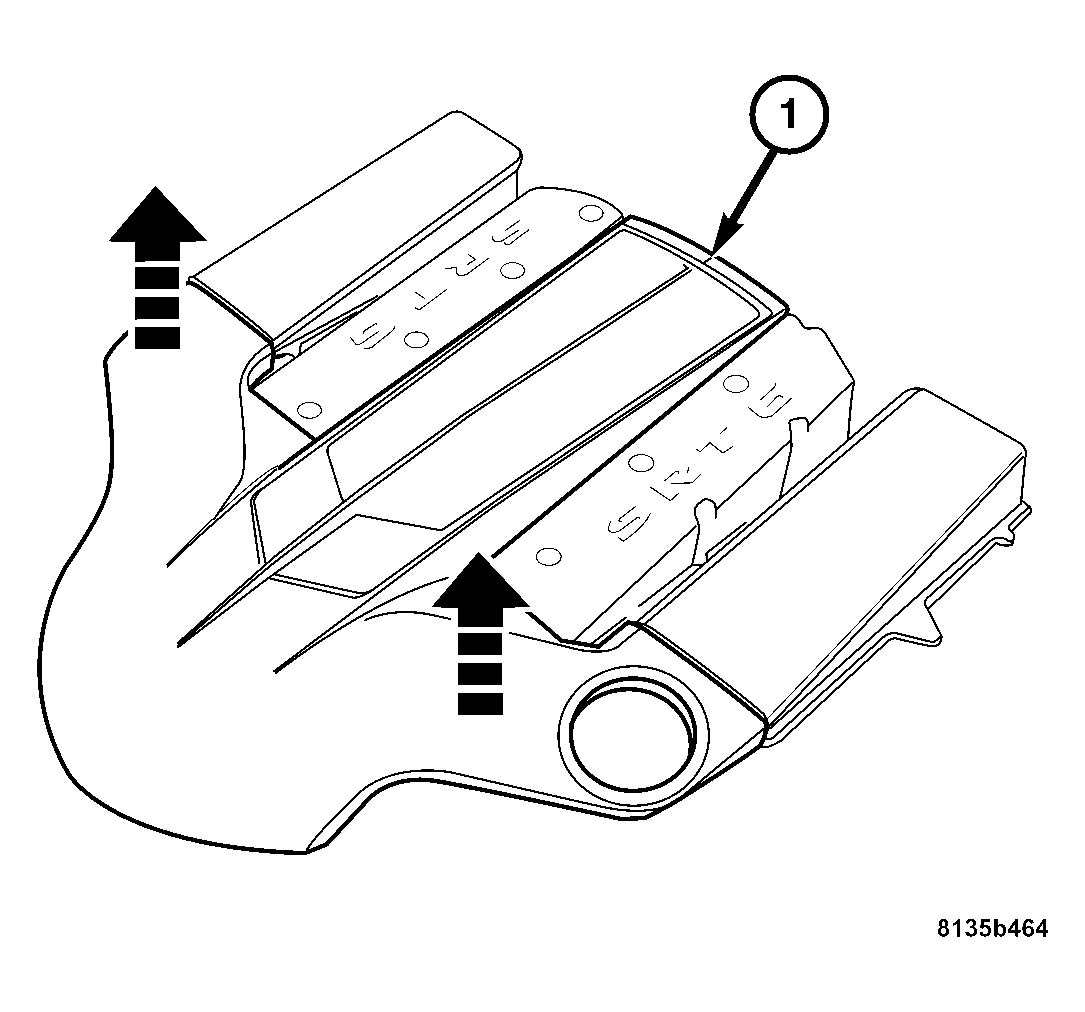

Fig 1: Removing Engine Cover

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable.
Remove the engine cover (1). Grasp both corners of the engine cover, and pull up firmly.

Fig 2: Removing/Installing Upper Air Cleaner Housing
Courtesy of DAIMLERCHRYSLER CORP.
Remove the upper air cleaner housing. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) .

Fig 3: Removing/Installing Lower Air Cleaner Housing
Courtesy of DAIMLERCHRYSLER CORP.
Remove the lower air cleaner housing. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) .

Fig 4: Removing/Installing Intake Plenums
Courtesy of DAIMLERCHRYSLER CORP.
Remove the right and left intake plenums. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL) .

Fig 5: Removing/Installing Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.
Remove the throttle body. (Refer to FUEL SYSTEM/FUEL INJECTION/THROTTLE BODY - REMOVAL) .

Fig 6: Removing/Installing Manifold Absolute Presure Sensor & Supercharger Outlet Housing
Courtesy of DAIMLERCHRYSLER CORP.
Remove the supercharger outlet housing (2) by removing the supercharger outlet housing hose clamps.
Disconnect the MAP sensor (1) harness connector.
Remove the MAP sensor mounting bolts.
Remove the MAP sensor (1).
