Fuel Tank Filler Tube Housing: Notes

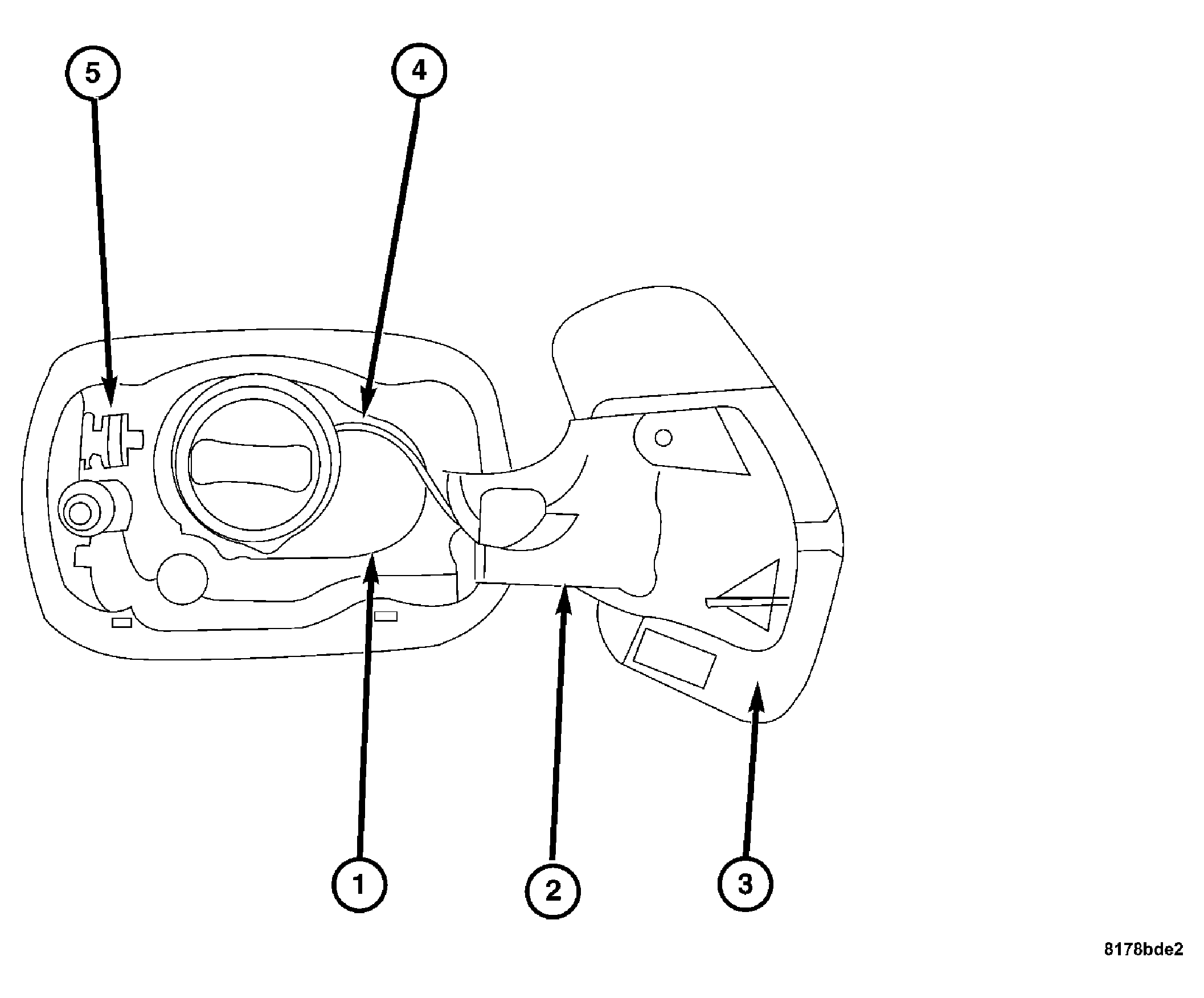

| 1 - Fuel Tank Filler Tube Housing |
| 2 - Fuel Fill Door Arm |
| 3 - Fuel Fill Door Cover |
| 4 - Fuel Filler Cap and Band |
| 5 - Fuel Door Actuator/Latch Assembly |
The fuel tank filler tube housing (1) mounts in the right rear fender and supports the fuel filler tube. The housing also contains the fuel door lock actuator/latch assembly (5), fuel spill/overfill return hose, and the fuel fill door arm (2) and cover (3). The fuel cap band (4) attaches to the housing.
