Ignition Coil: Removal: Notes

Fig 1: Disconnecting/Connecting Negative Battery Cable

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable (2).

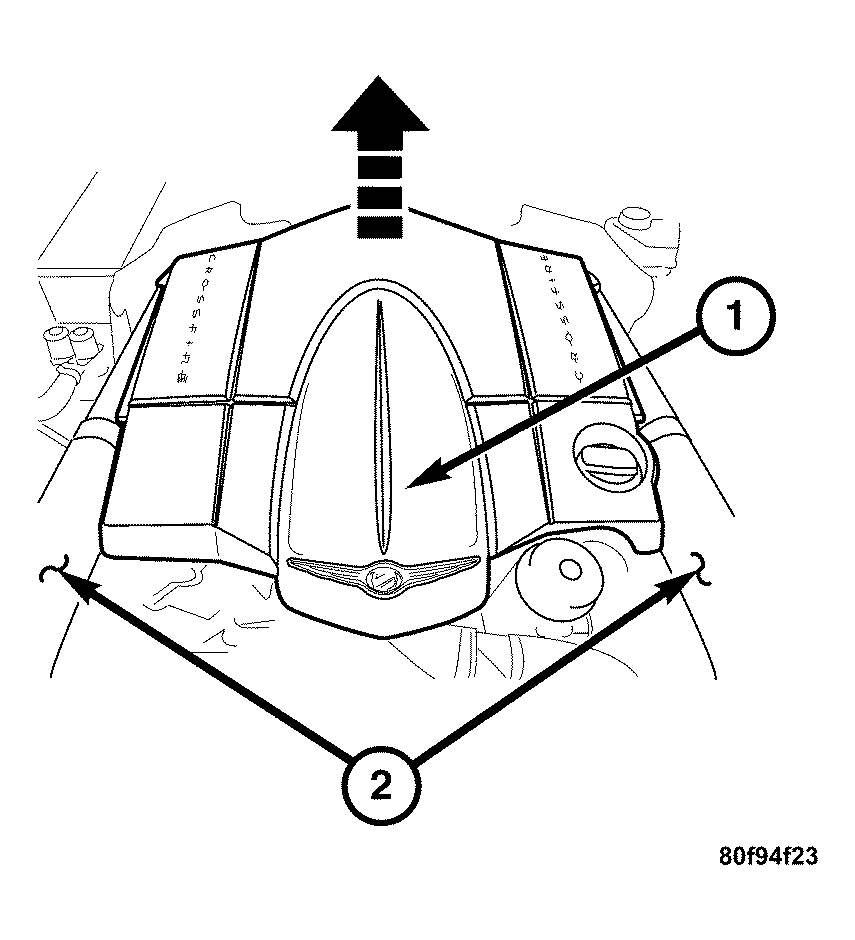

Fig 2: Identifying Engine Appearance Cover
Courtesy of DAIMLERCHRYSLER CORP.
Remove the air cleaner inlet tubes (2).
Remove the engine cover (1). Grasp both corners of the engine cover, and pull up firmly.

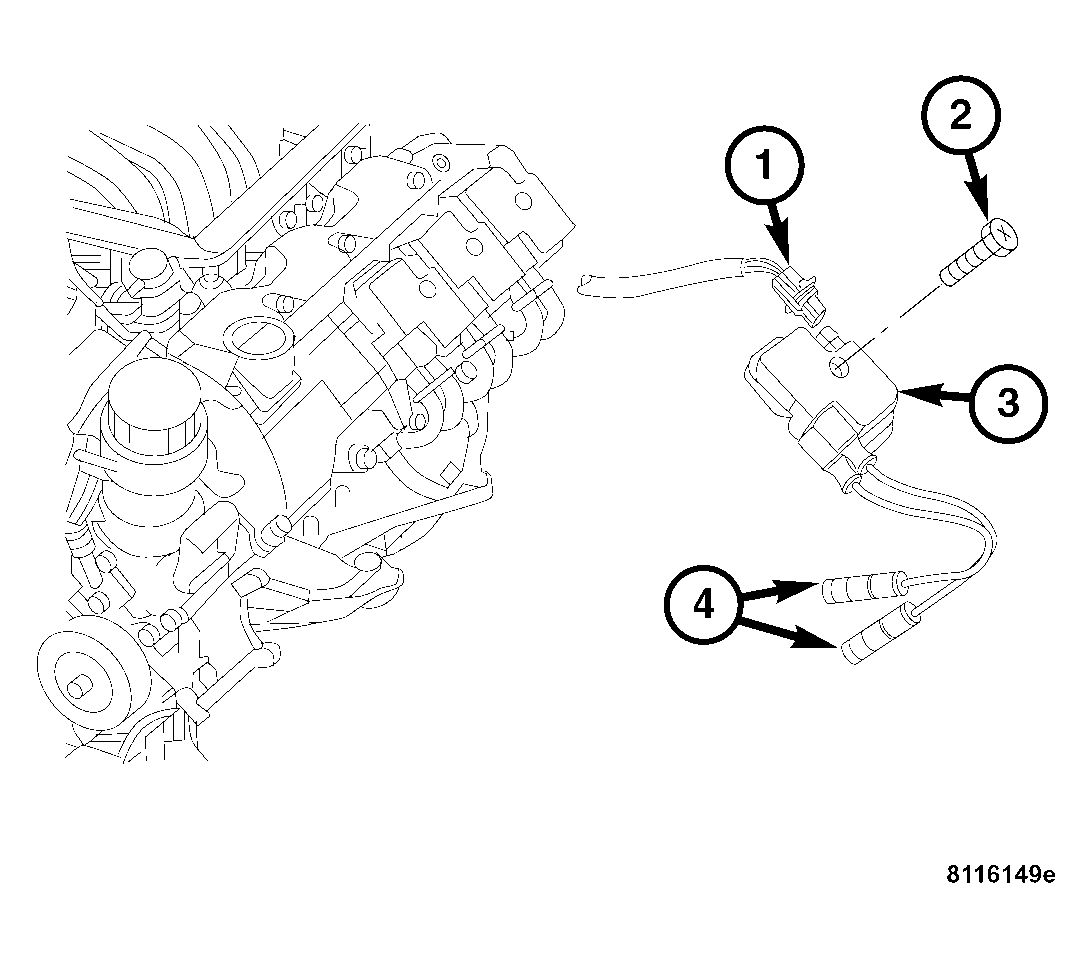

Fig 3: Removing/Connecting Ignition Coil From Cylinder Head Cover
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the ignition coil wire harness connector (1).
Disconnect the spark plug cables (4) from the spark plugs.
Remove the ignition coil retaining bolt (2).
Remove the ignition coil (3) from the cylinder head cover.
