Installation - SRT

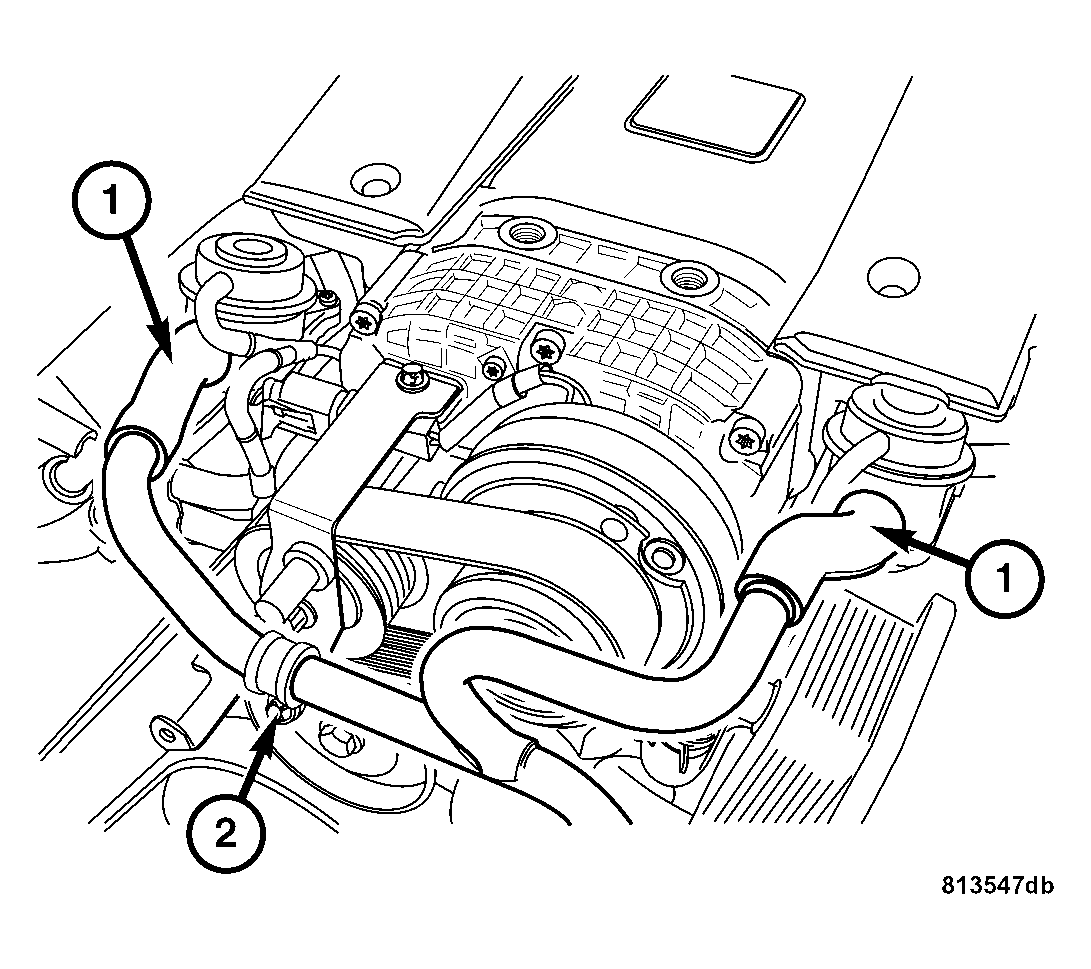

- Install the air pump tube assembly (1) to the engine.
- Connect the air pump tubes (1) to the air pump and the switchover valves.
- Install the air pump tube assembly retaining bolts (2). Tighten the bolts to 10 N.m (89 in. lbs.).
- Install the engine cover. Realign the engine cover retaining clips to the mounting brackets and push down firmly to connect the engine cover to the mounting brackets.
