Integrated Power Module & Relay Locations

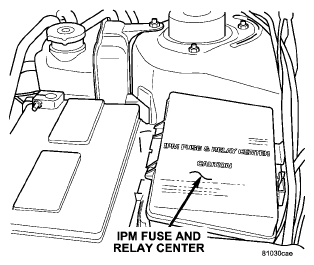

Fig 1: Identifying IPM Fuse And Relay Center
G04762124Courtesy of DAIMLERCHRYSLER CORPORATION

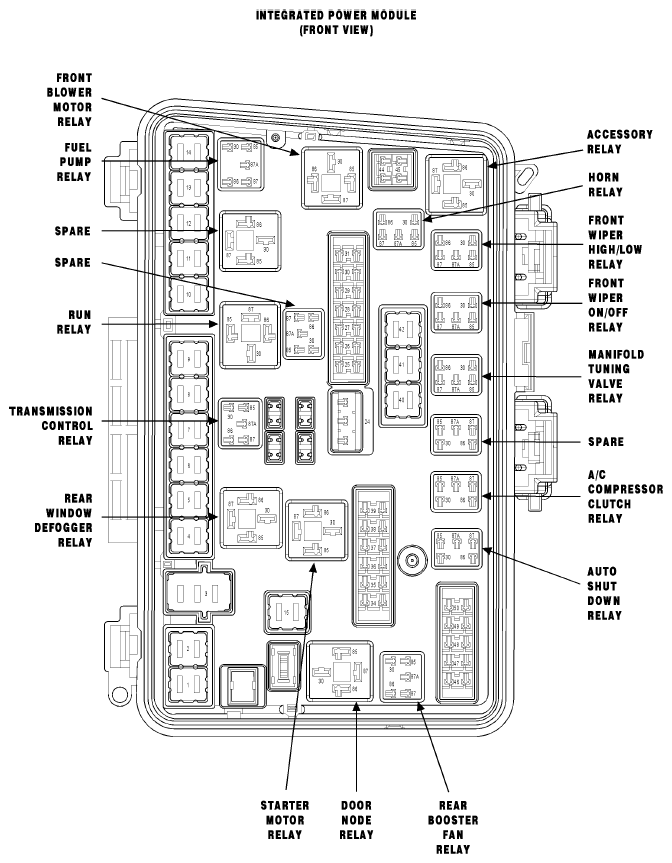

Fig 2: Identifying Integrated Power Module
G04762175Courtesy of DAIMLERCHRYSLER CORPORATION

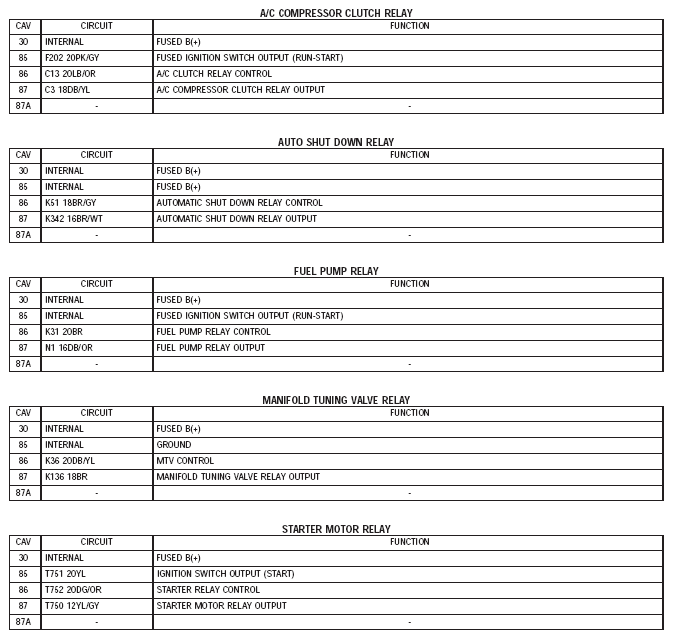

Fig 3: Relay Chart
G04762176Courtesy of DAIMLERCHRYSLER CORPORATION
