Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

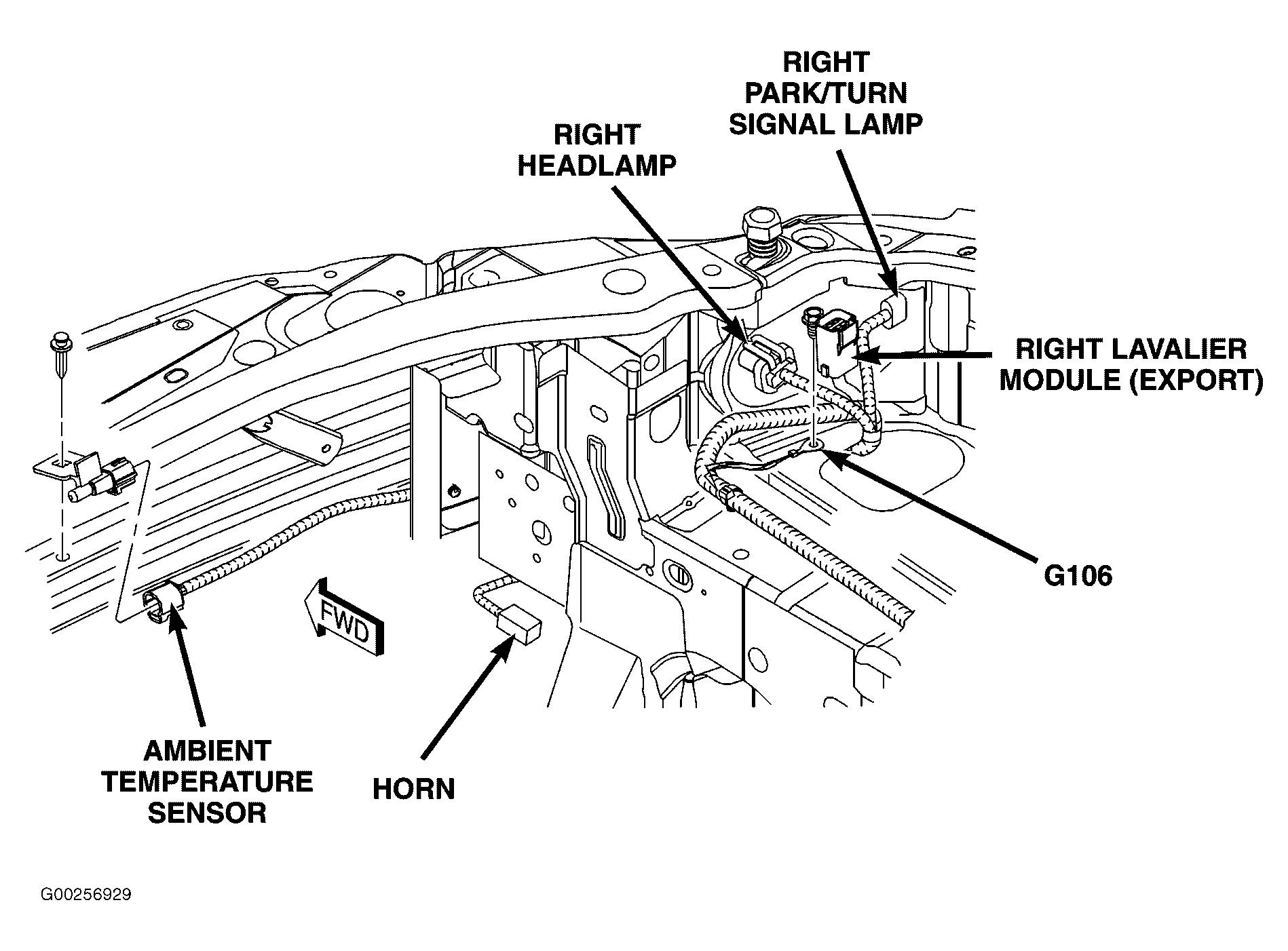

Fig 1: Right Front Of Engine Compartment

G00256929

Courtesy of DAIMLERCHRYSLER CORP.

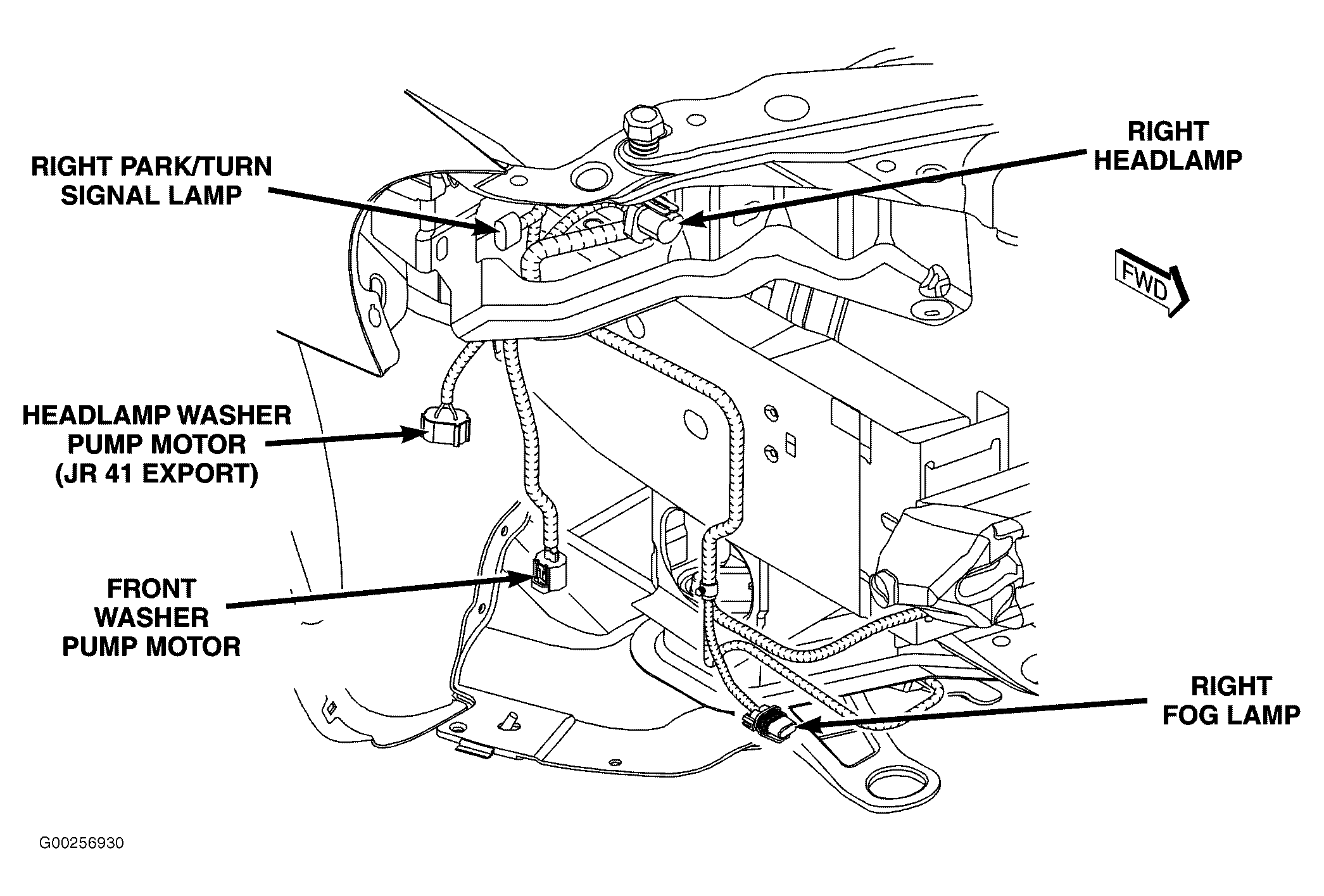

Fig 2: Right Front Of Engine Compartment

G00256930

Courtesy of DAIMLERCHRYSLER CORP.

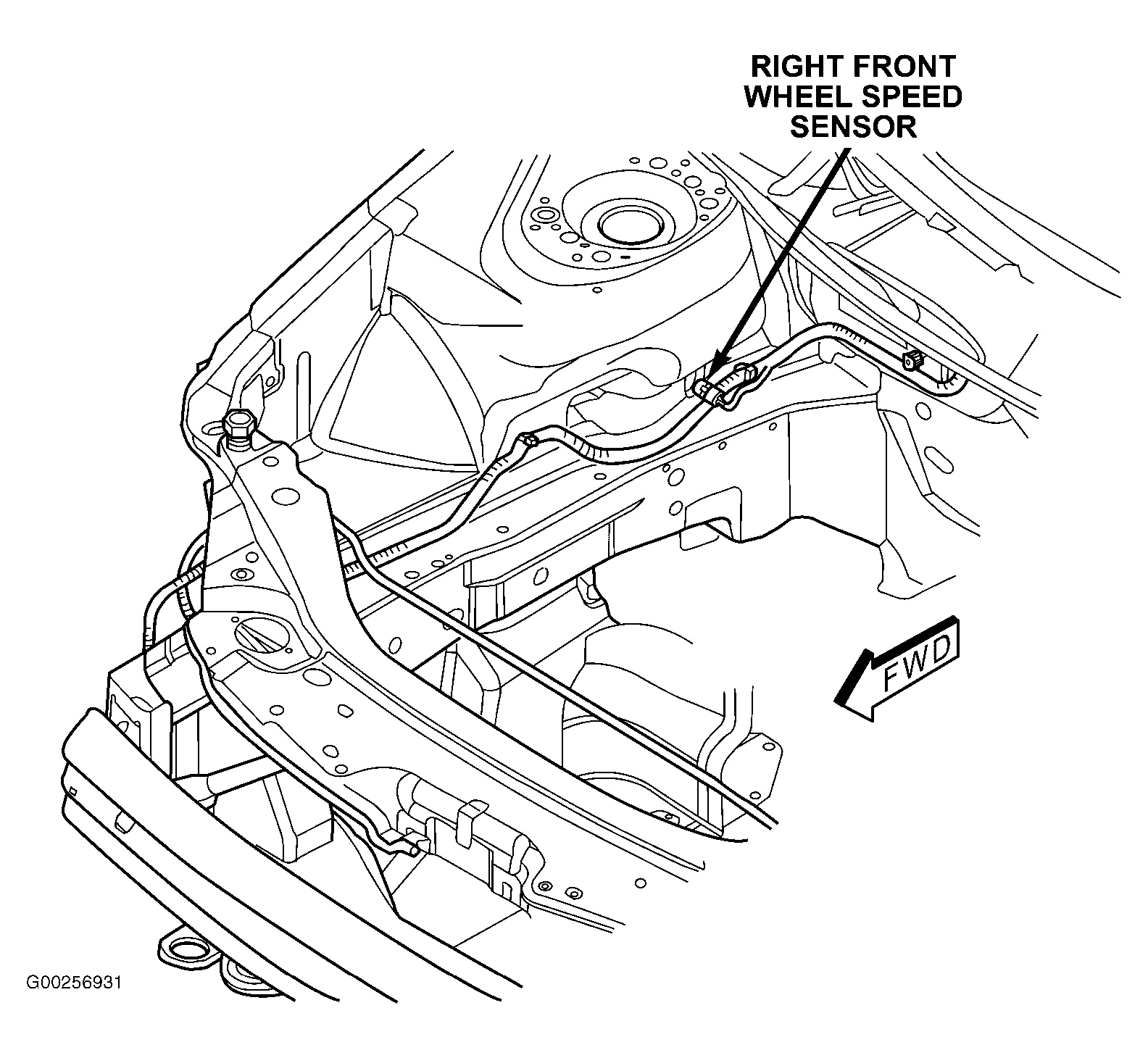

Fig 3: Right Side Of Engine Compartment

G00256931

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Left Front Of Engine Compartment

G00262233

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Left Side Of Engine Compartment

G00262234

Courtesy of DAIMLERCHRYSLER CORP.

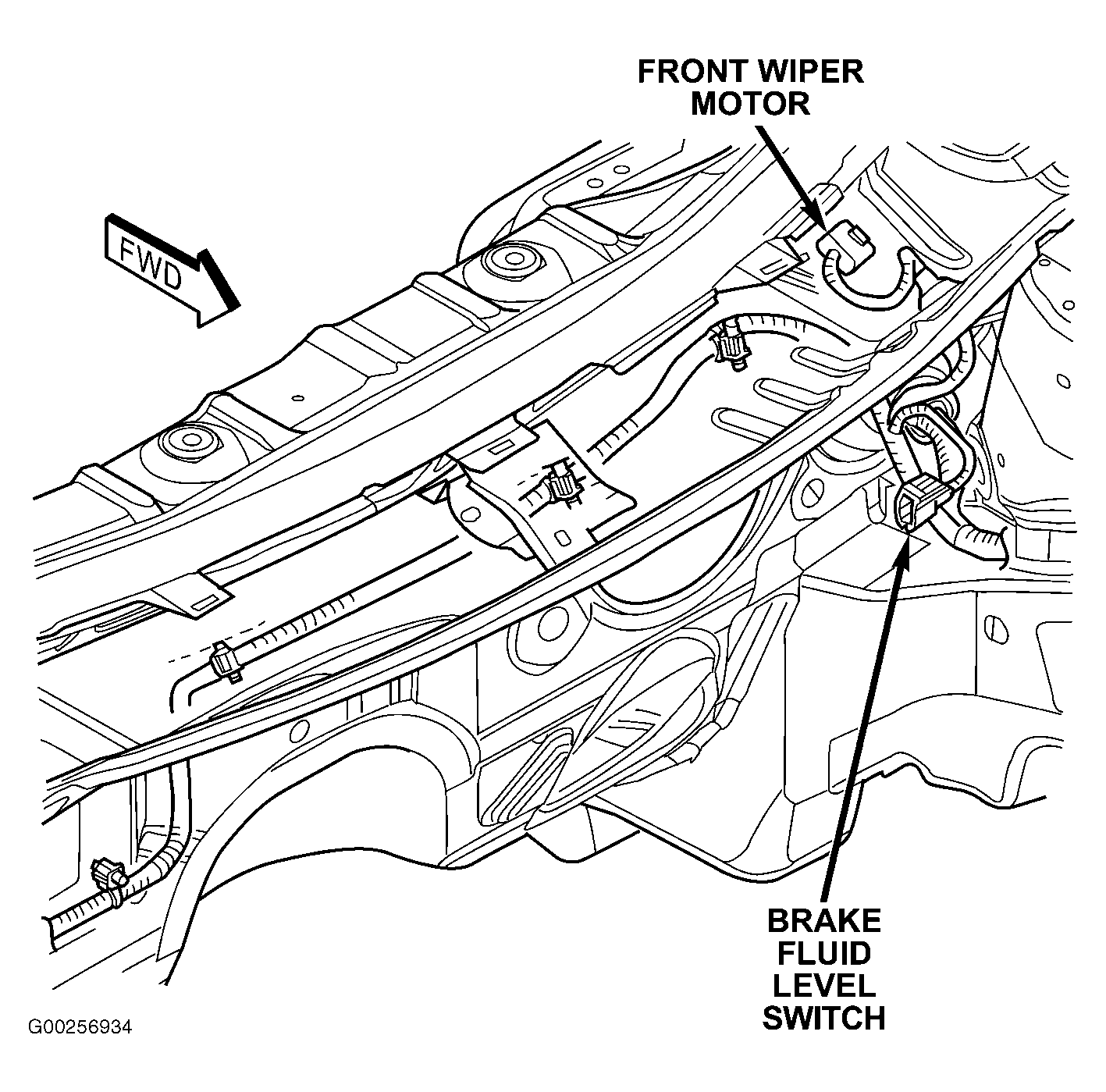

Fig 6: Left Rear Of Engine Compartment

G00256934

Courtesy of DAIMLERCHRYSLER CORP.

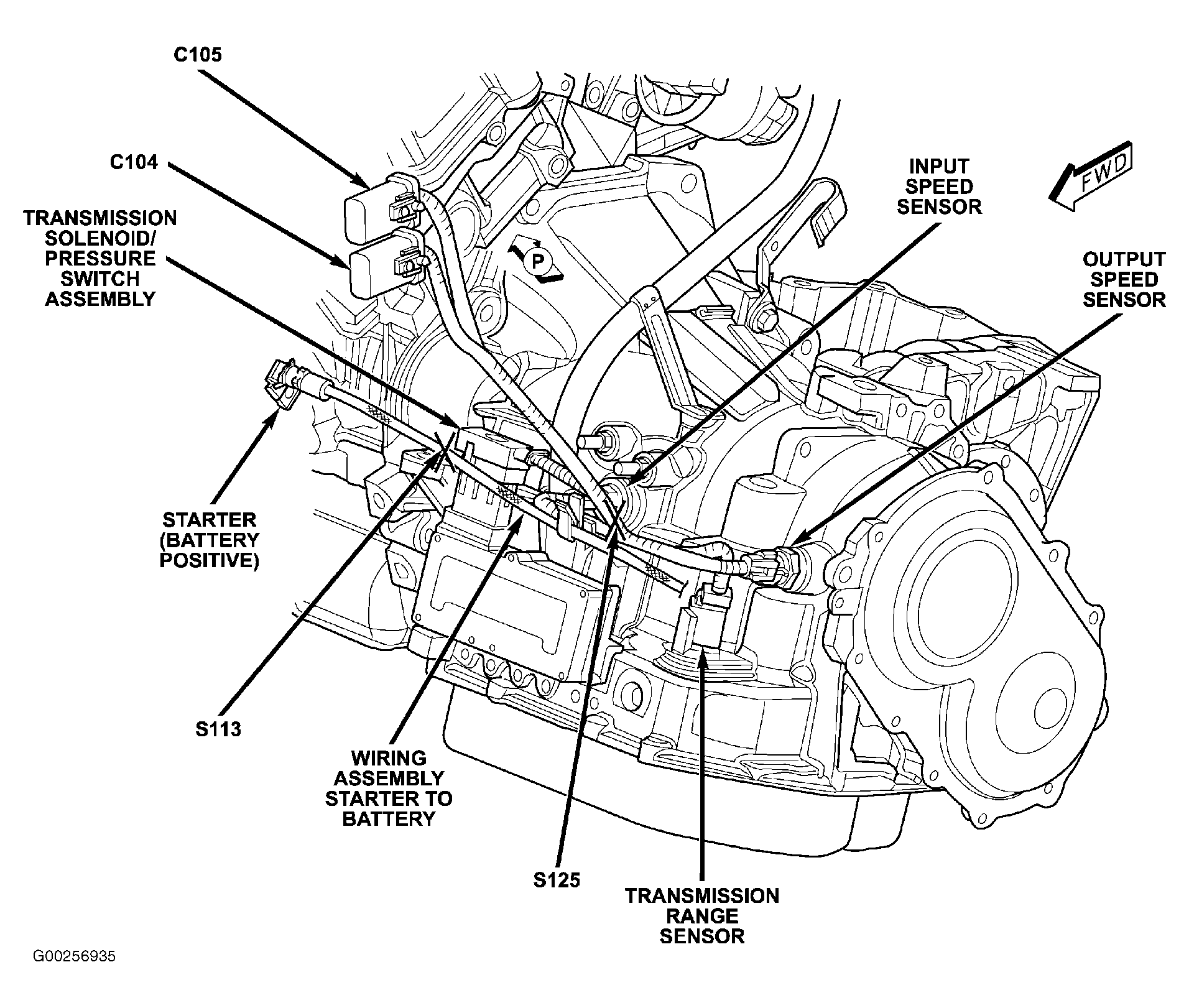

Fig 7: Left Side Of Transmission (A/T)

G00256935

Courtesy of DAIMLERCHRYSLER CORP.

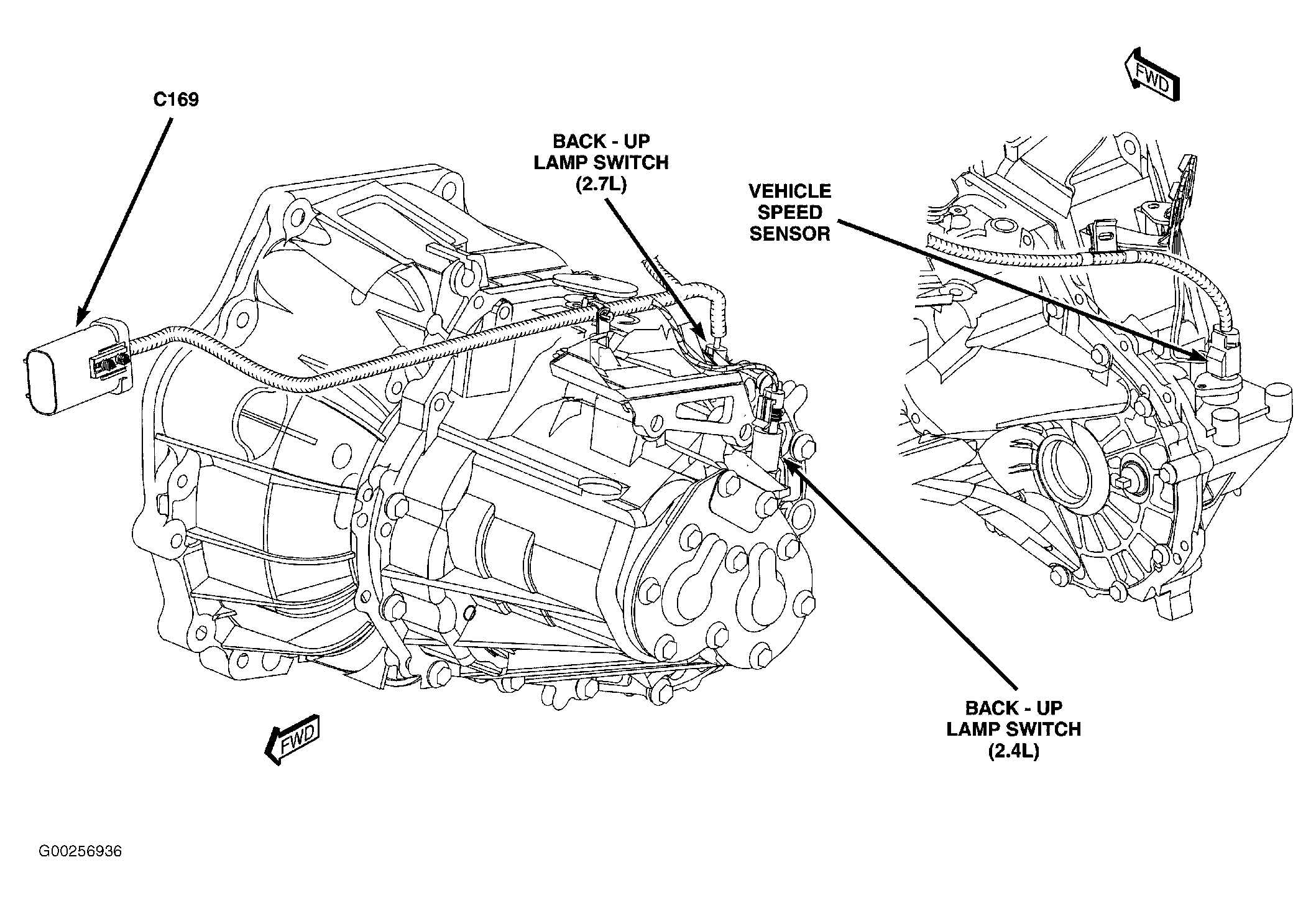

Fig 8: Left Side Of Transmission (M/T)

G00256936

Courtesy of DAIMLERCHRYSLER CORP.

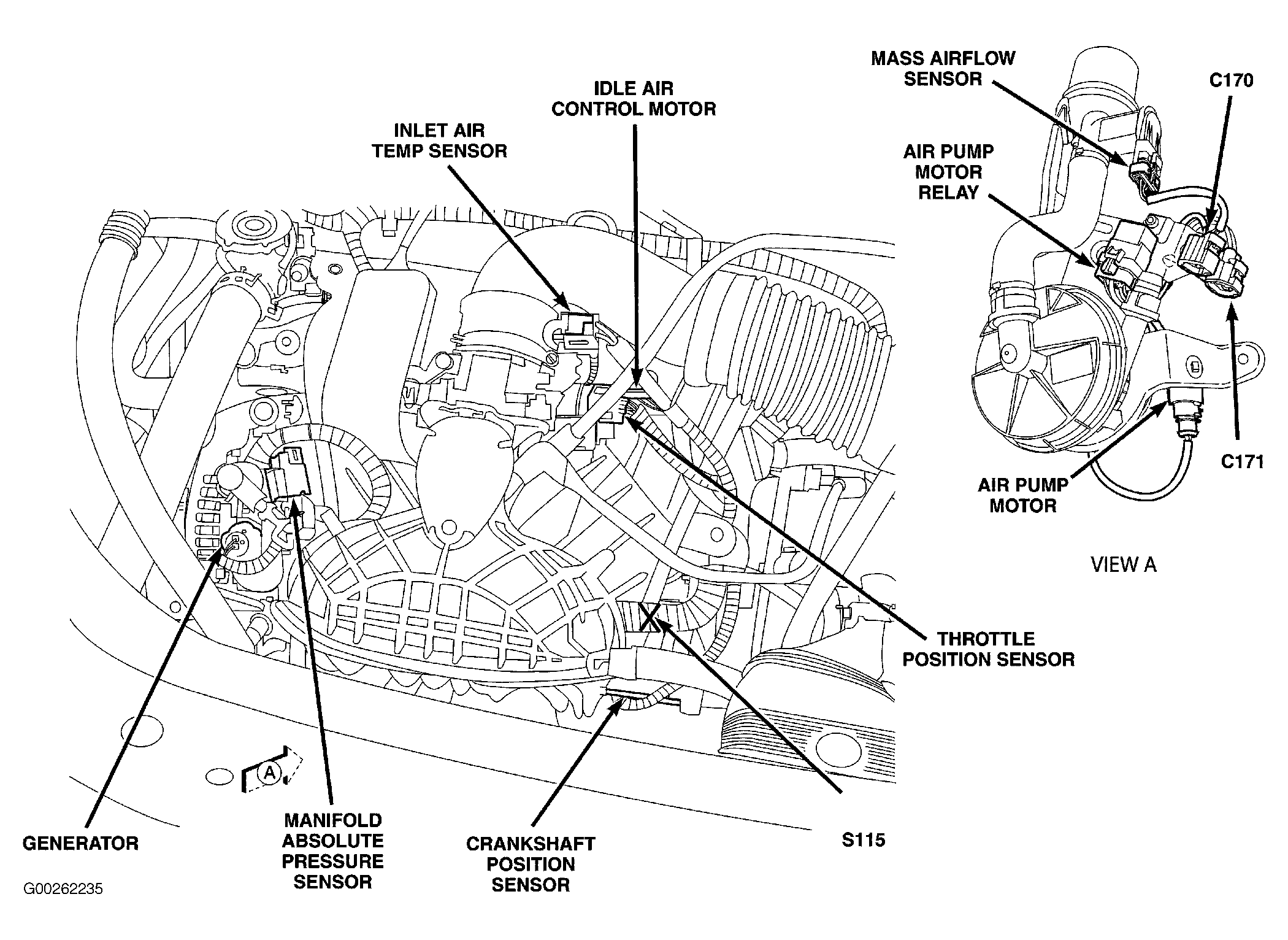

Fig 9: Front Of Engine (2.0L/2.4L)

G00262235

Courtesy of DAIMLERCHRYSLER CORP.

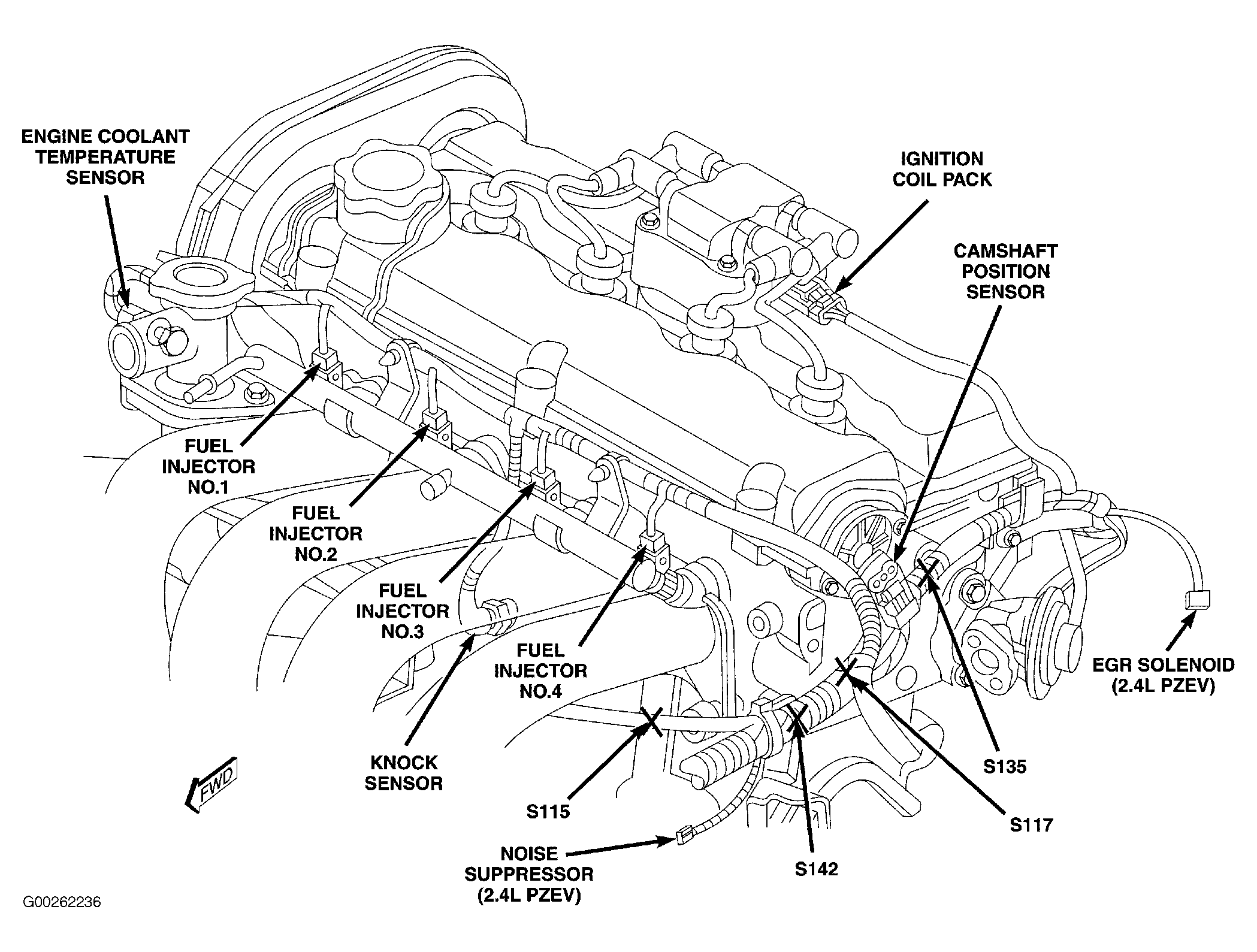

Fig 10: Left Side Of Engine (2.0L/2.4L)

G00262236

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Top Of Engine (2.7L)

G00262237

Courtesy of DAIMLERCHRYSLER CORP.

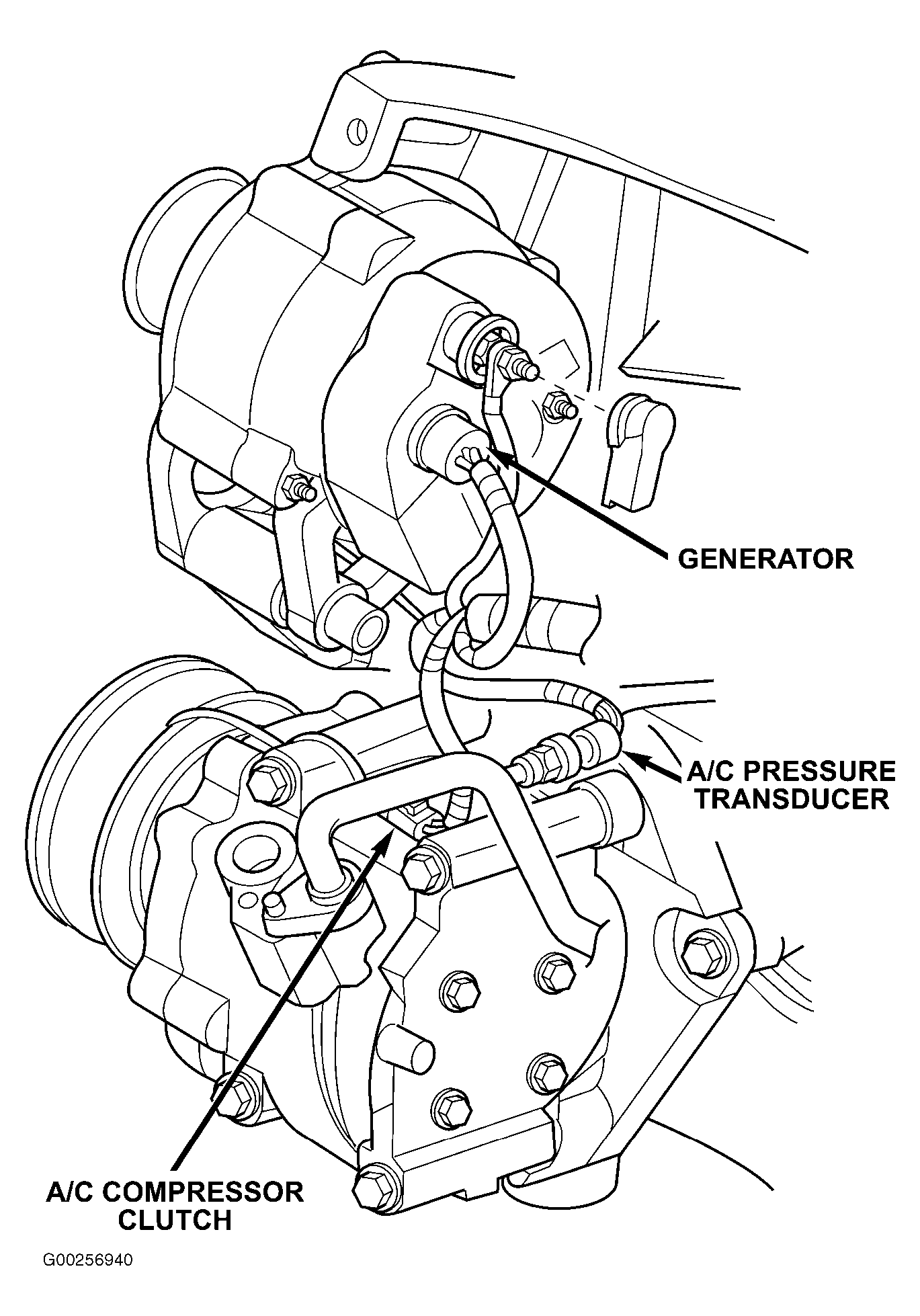

Fig 12: Lower Left Of Engine (2.4L)

G00256940

Courtesy of DAIMLERCHRYSLER CORP.

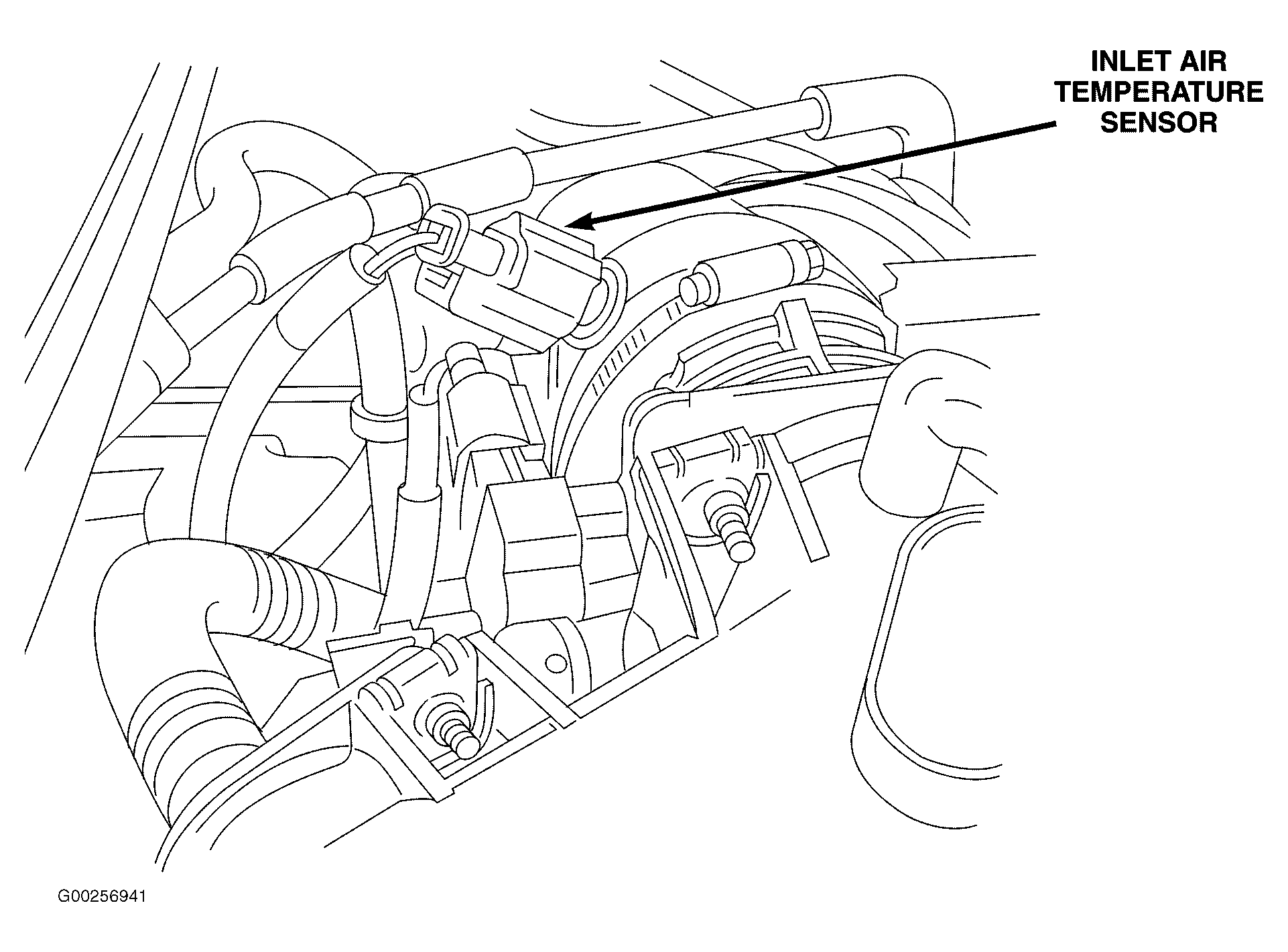

Fig 13: Top Of Engine (2.7L)

G00256941

Courtesy of DAIMLERCHRYSLER CORP.

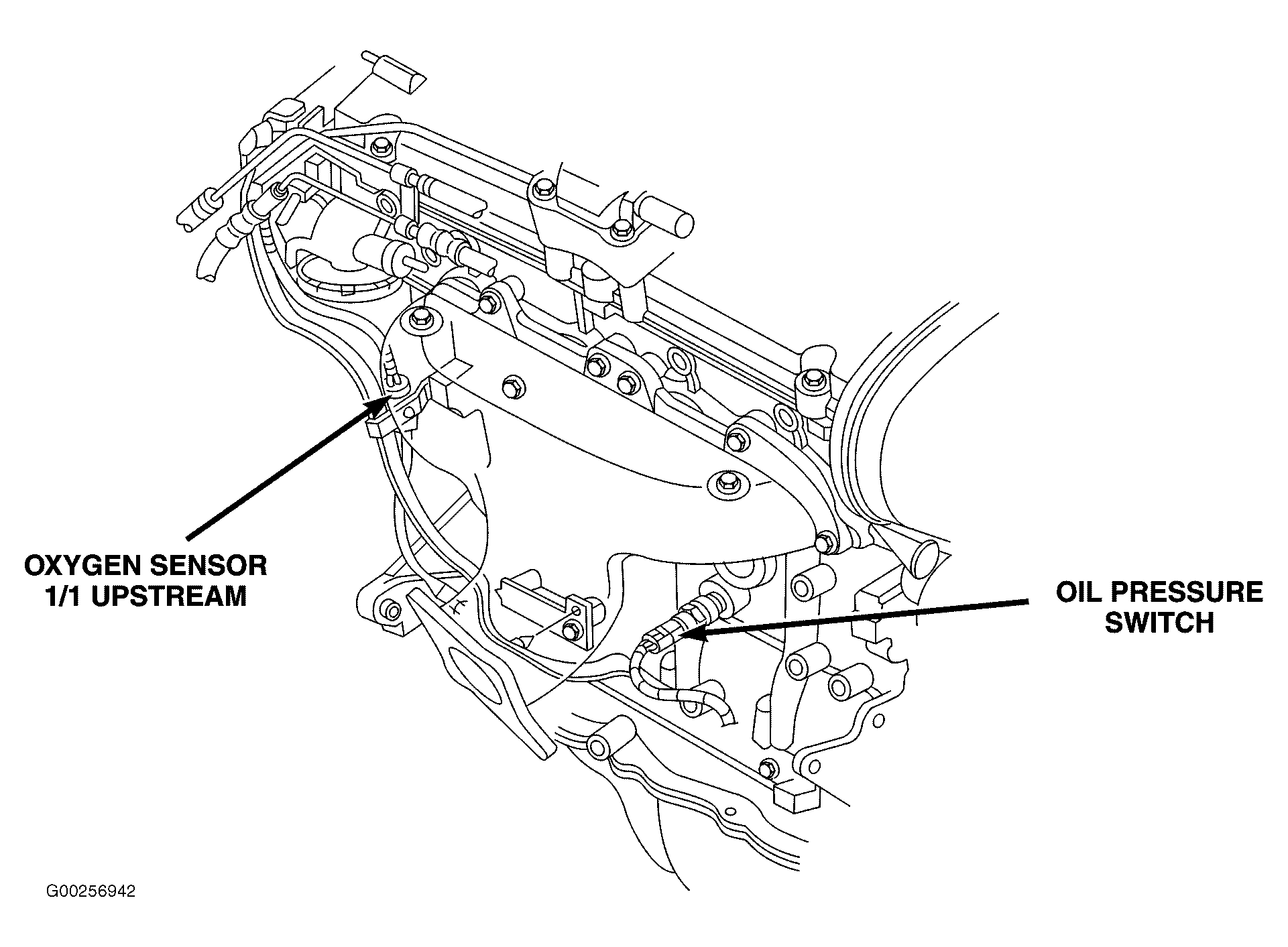

Fig 14: Right Side Of Engine (2.0L/2.4L)

G00256942

Courtesy of DAIMLERCHRYSLER CORP.

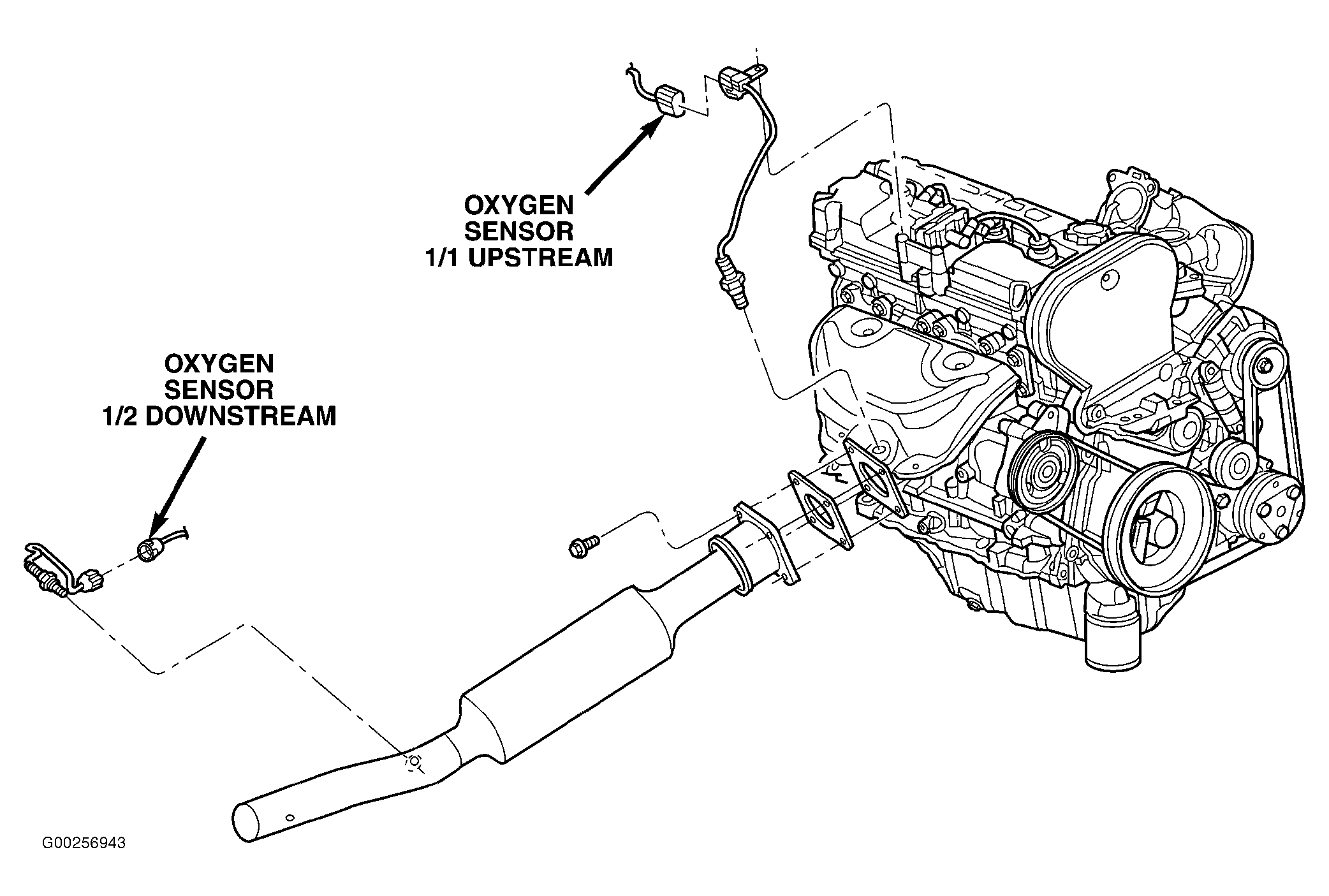

Fig 15: Right Side Of Engine (2.0L/2.4L)

G00256943

Courtesy of DAIMLERCHRYSLER CORP.

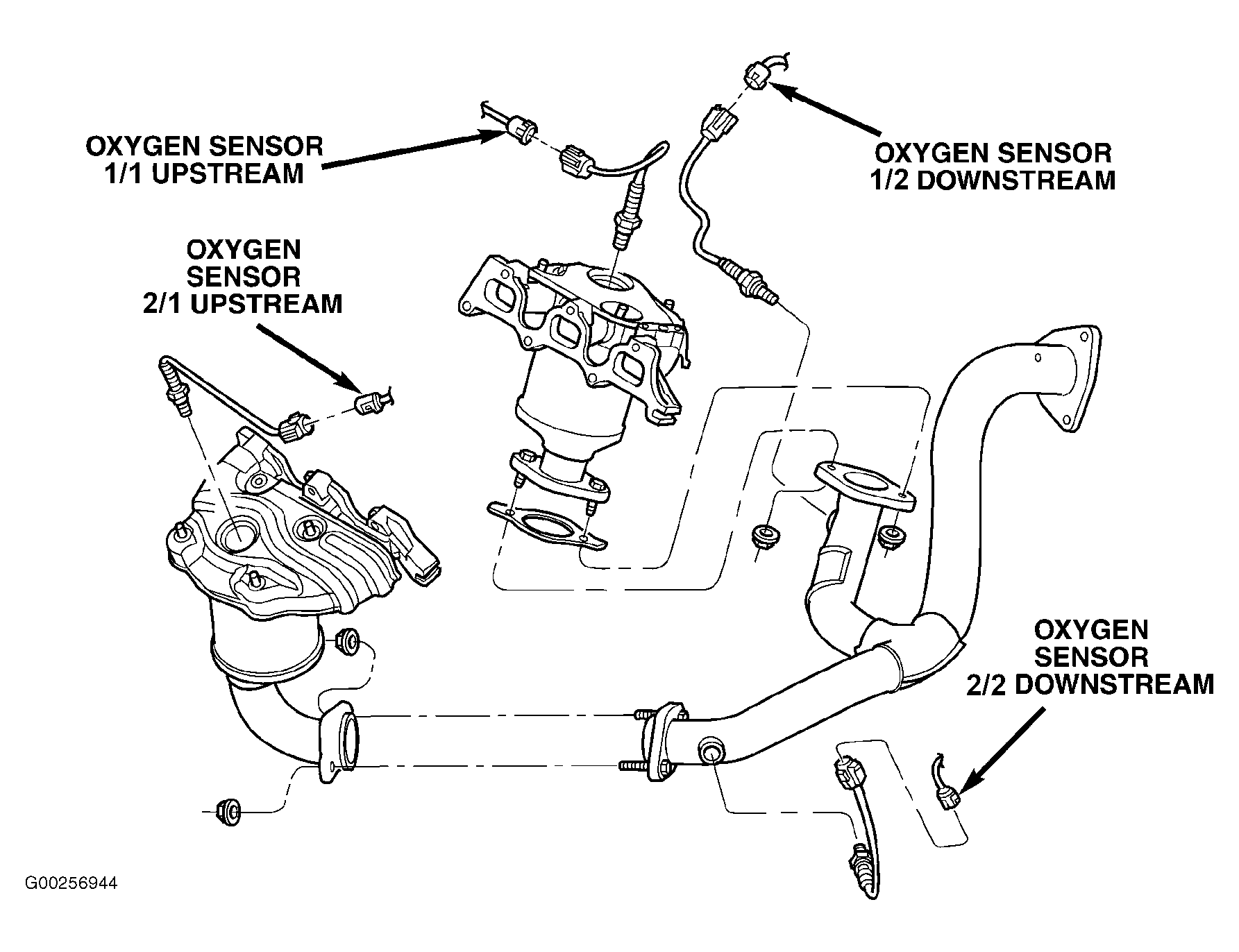

Fig 16: Exhaust System (2.7L)

G00256944

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Dash & Console

G00262238

Courtesy of DAIMLERCHRYSLER CORP.

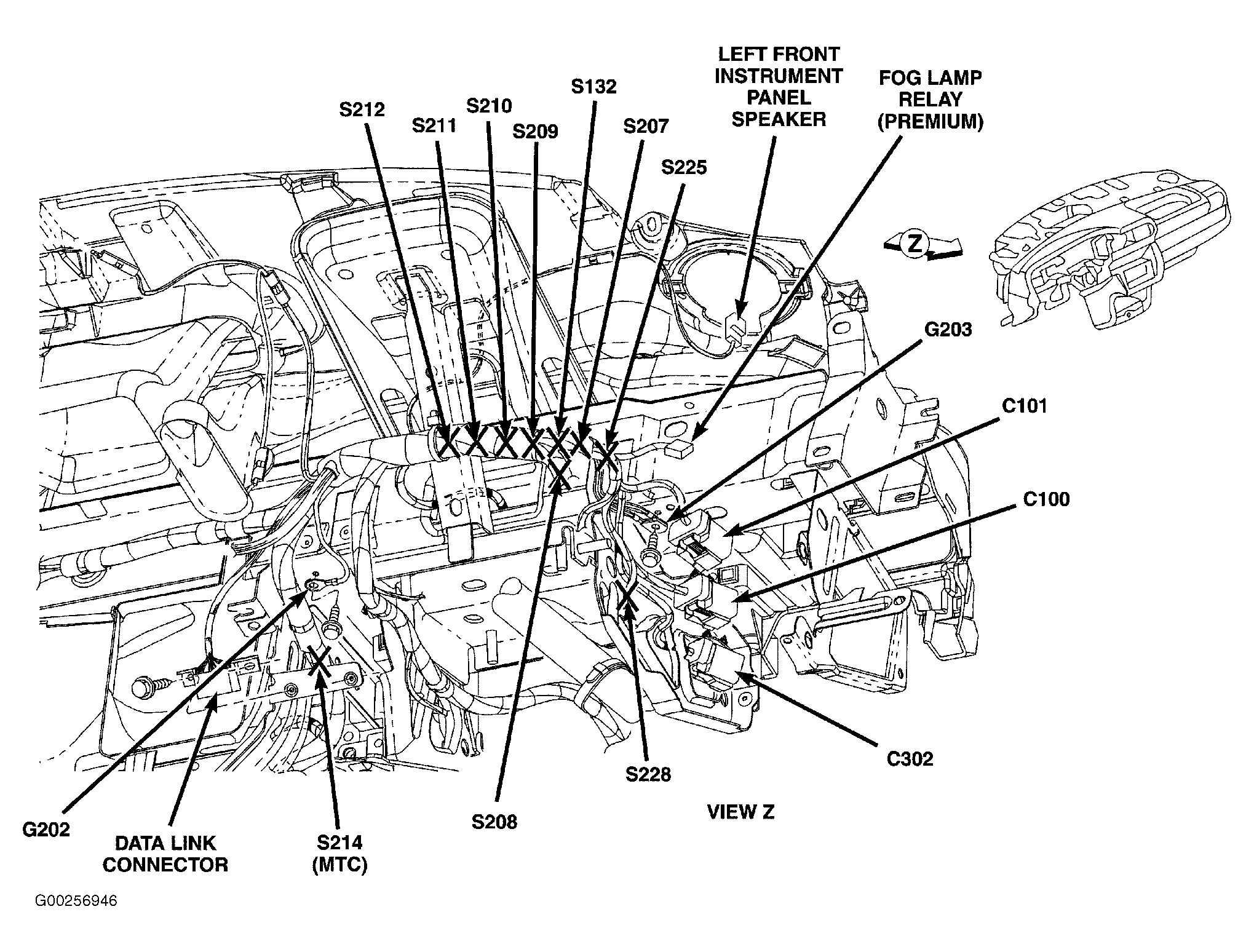

Fig 18: Left Side Of Dash

G00256946

Courtesy of DAIMLERCHRYSLER CORP.

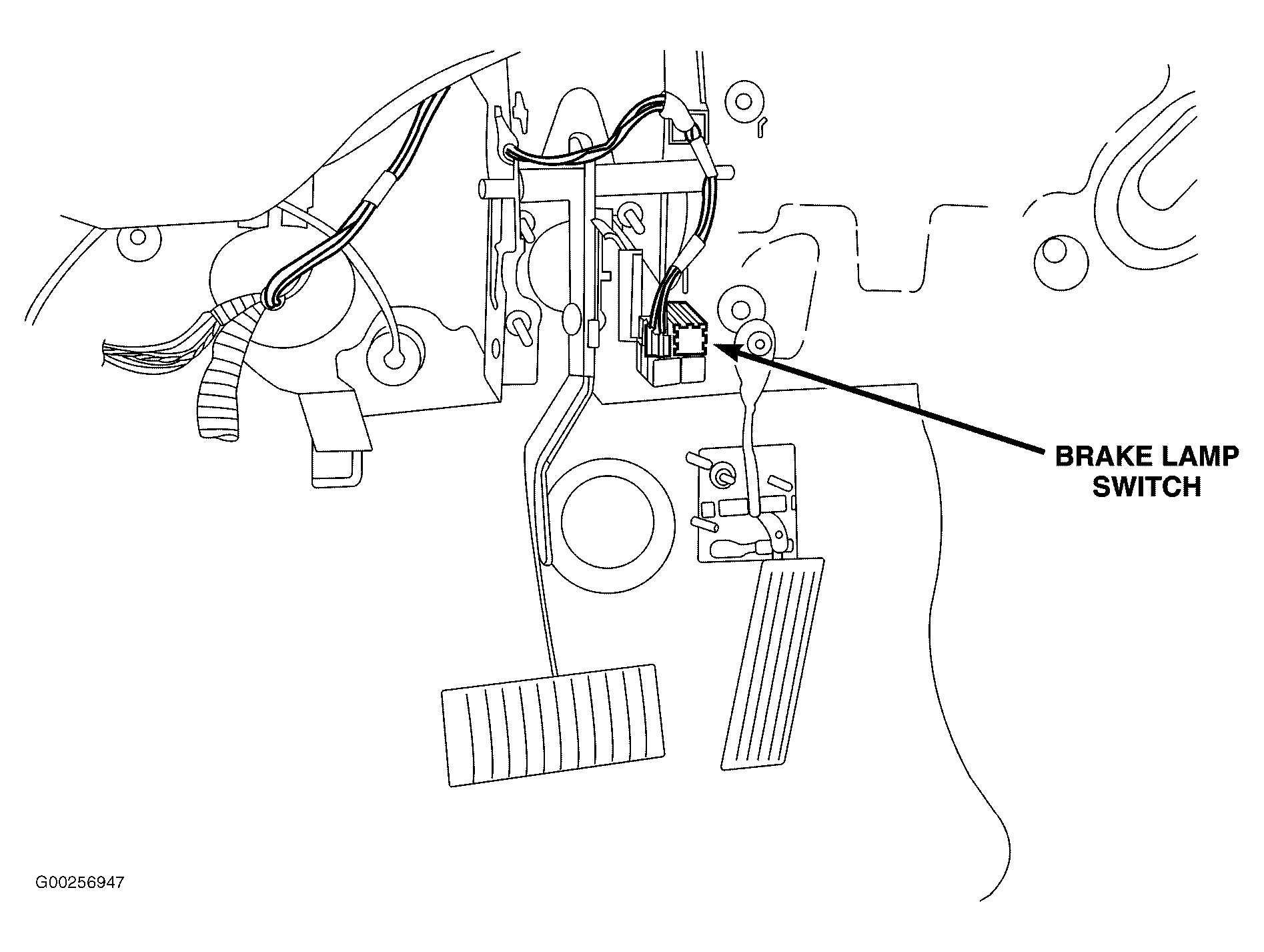

Fig 19: Under Left Side Of Dash

G00256947

Courtesy of DAIMLERCHRYSLER CORP.

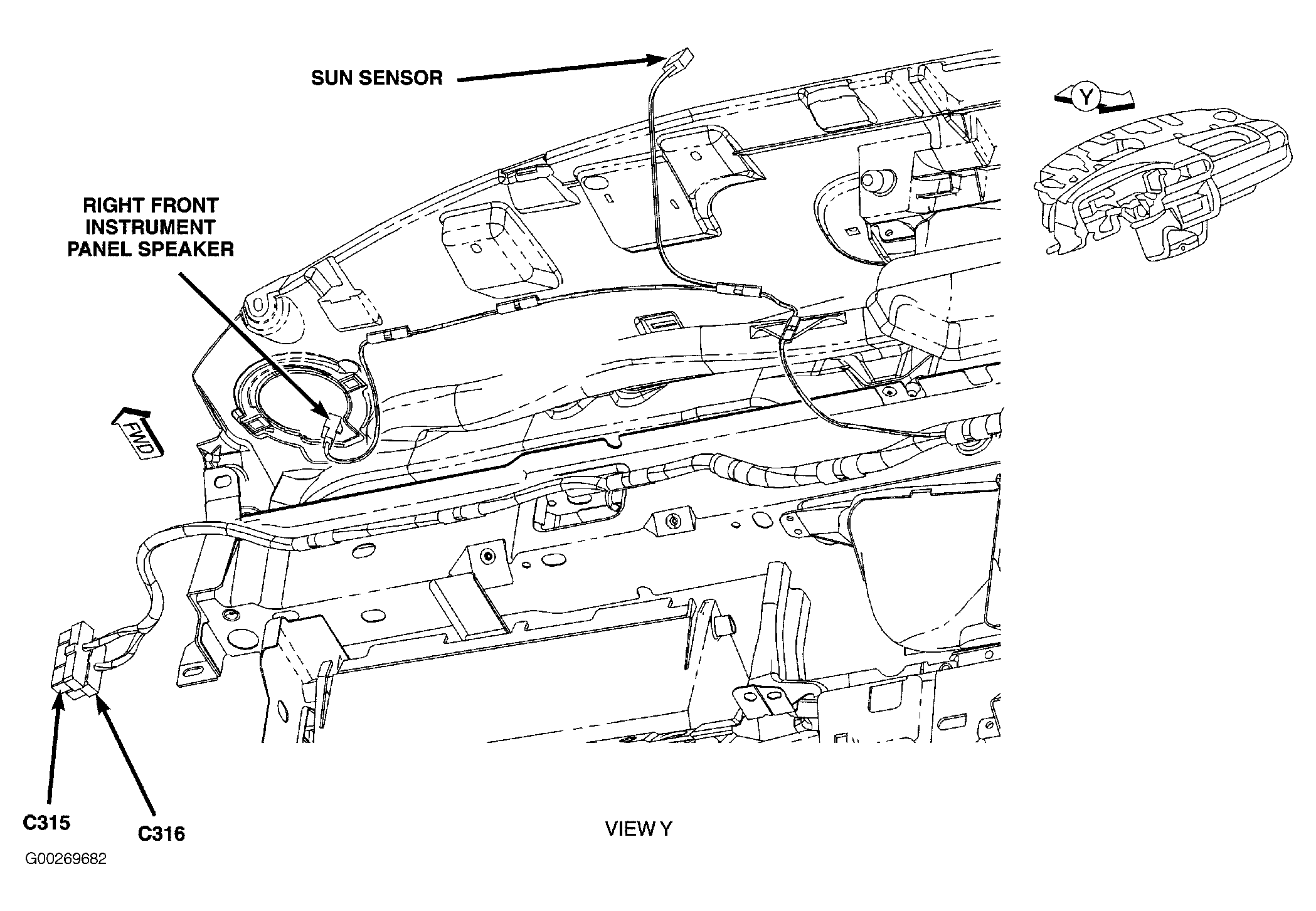

Fig 20: Right Side Of Dash

G00269682

Courtesy of DAIMLERCHRYSLER CORP.

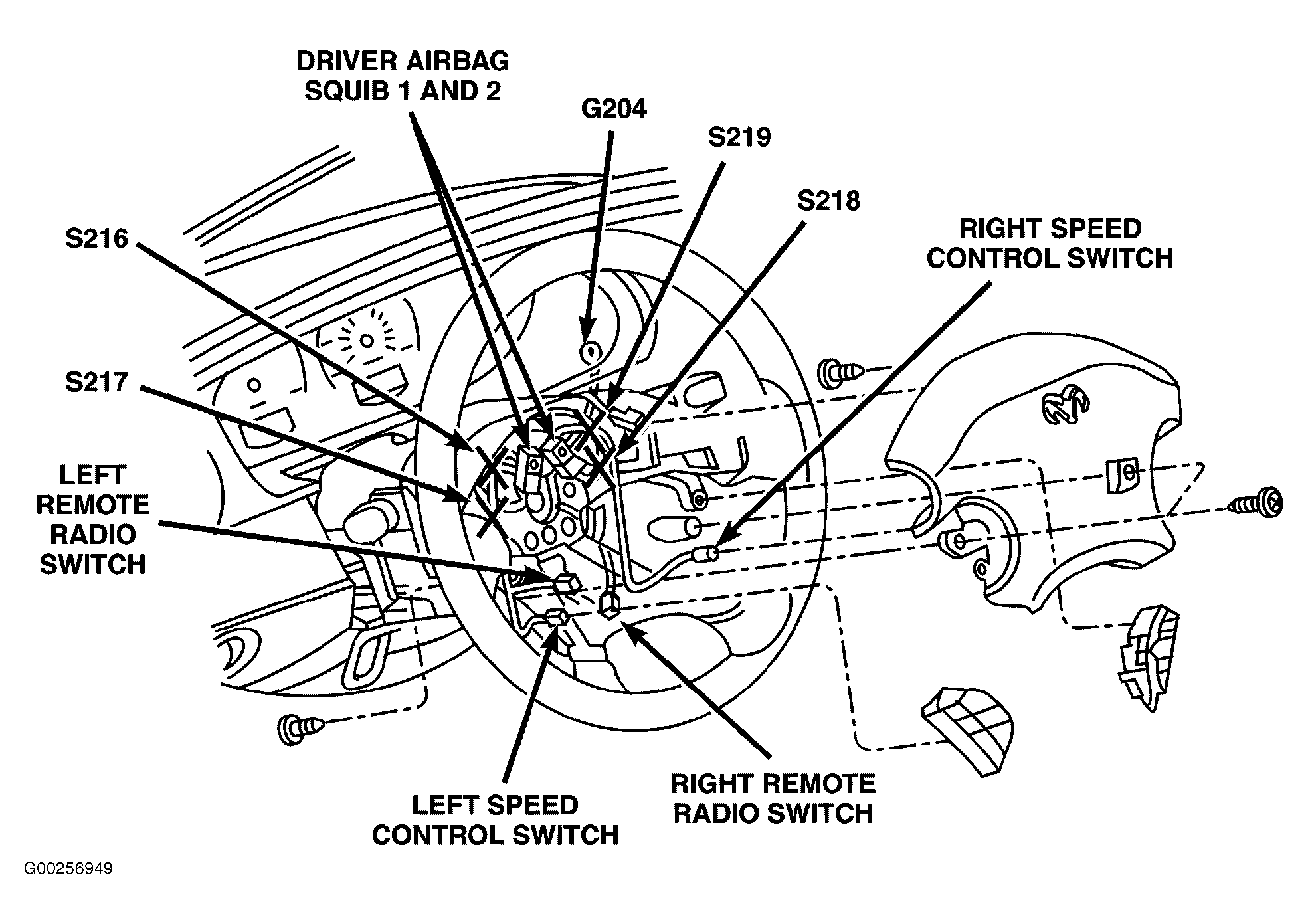

Fig 21: Steering Column

G00256949

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Under Left Side Of Dash

G00256950

Courtesy of DAIMLERCHRYSLER CORP.

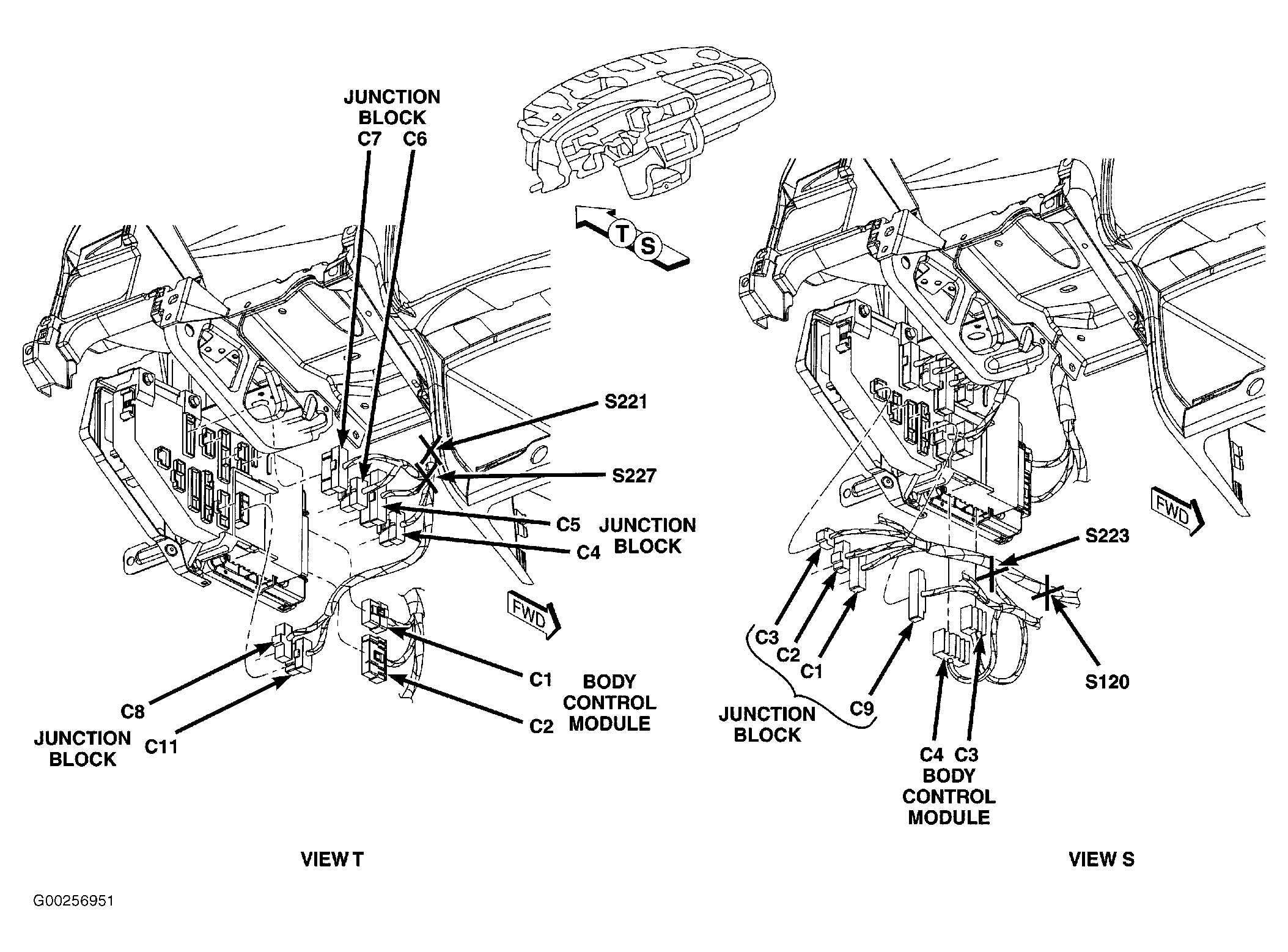

Fig 23: Left Kick Panel

G00256951

Courtesy of DAIMLERCHRYSLER CORP.

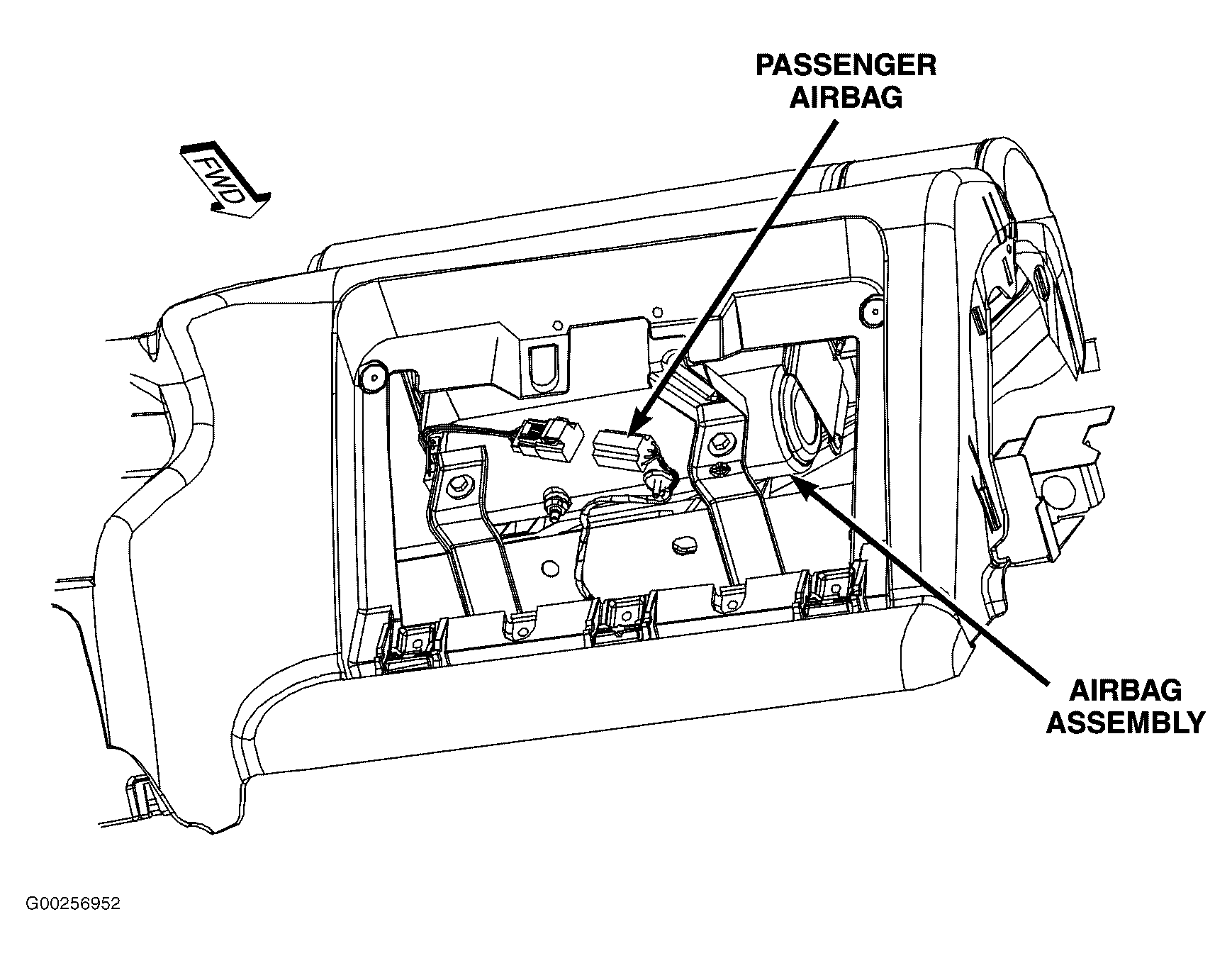

Fig 24: Right Side Of Dash

G00256952

Courtesy of DAIMLERCHRYSLER CORP.

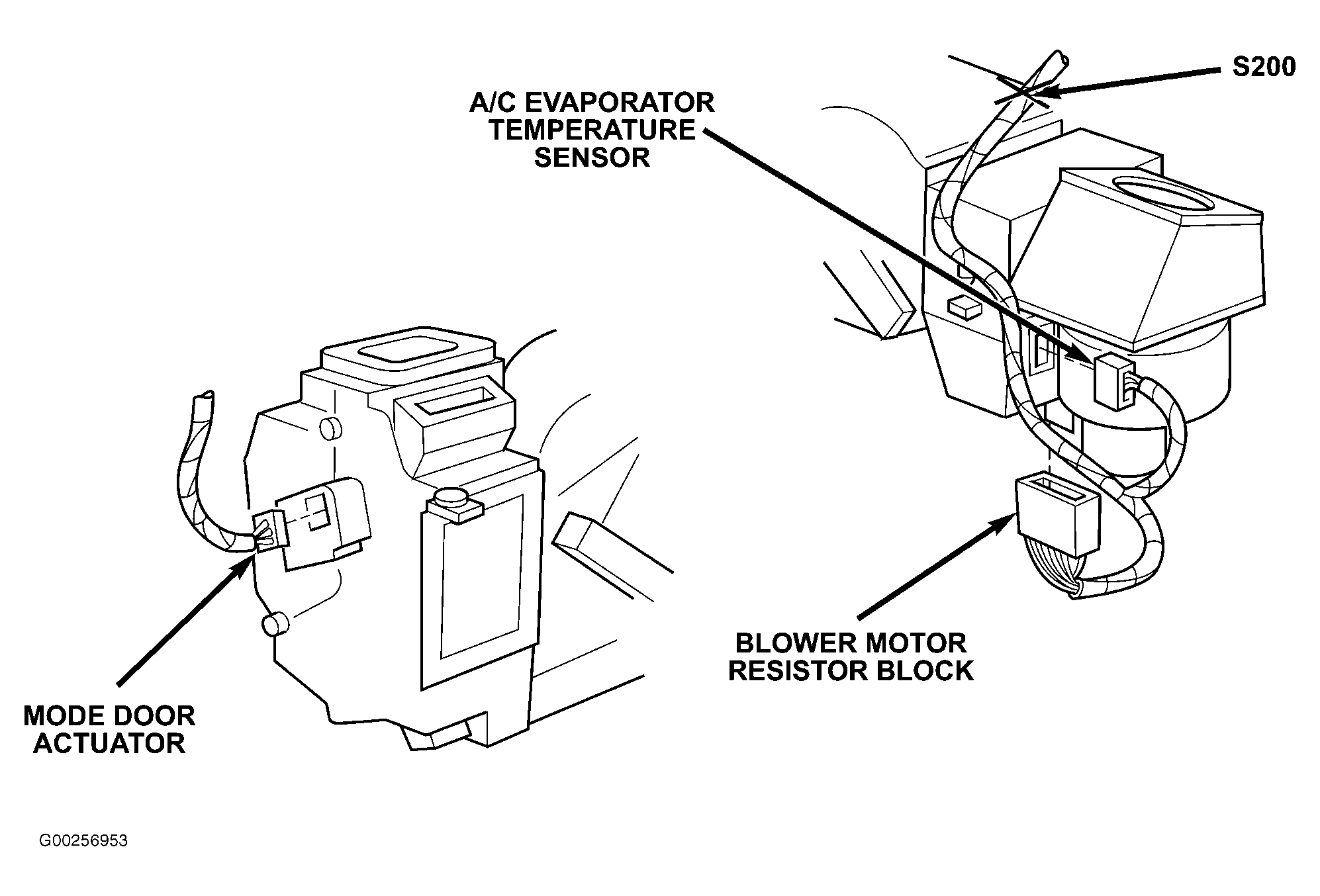

Fig 25: HVAC

G00256953

Courtesy of DAIMLERCHRYSLER CORP.

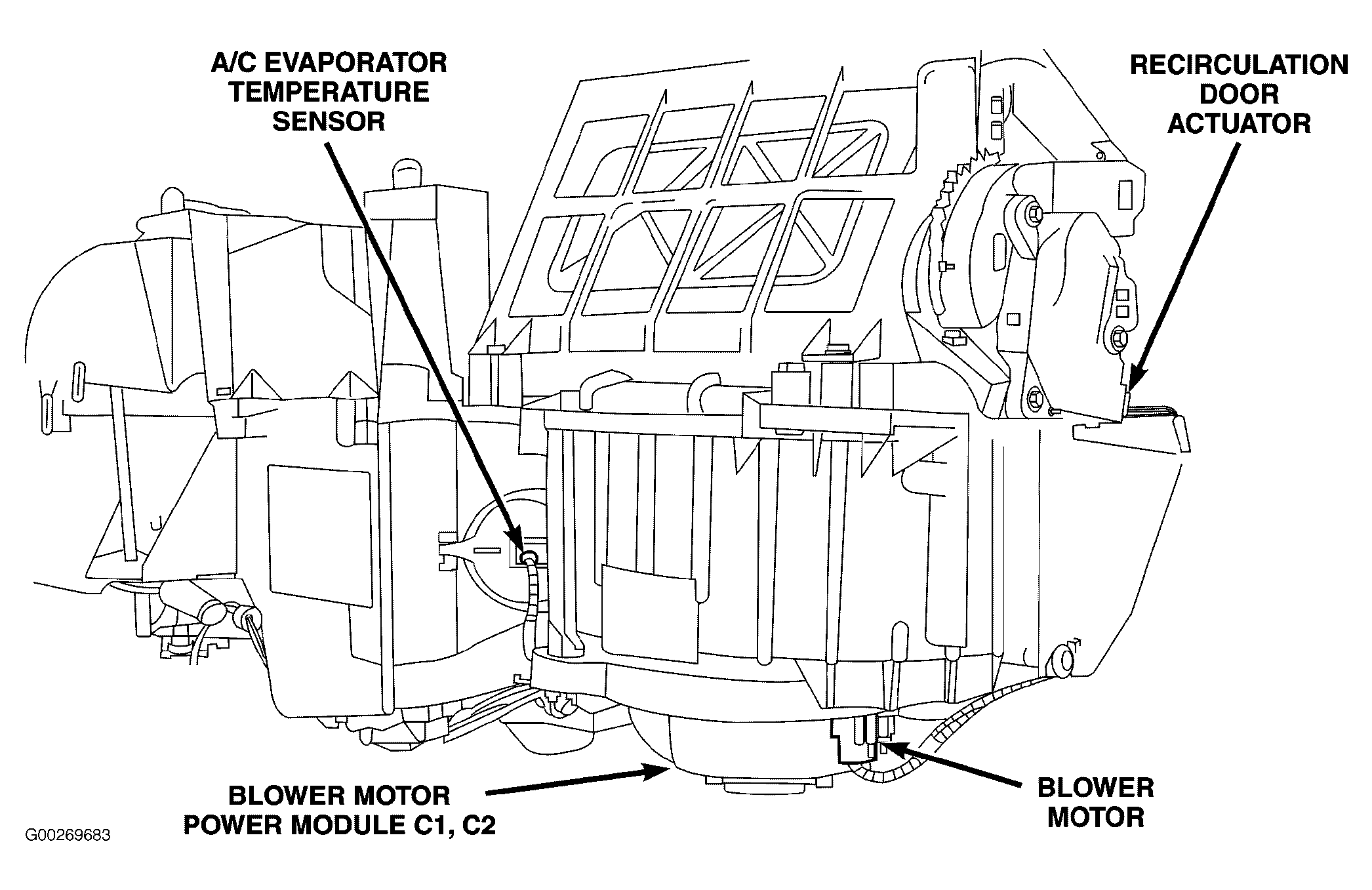

Fig 26: Right Side Of HVAC (ATC)

G00269683

Courtesy of DAIMLERCHRYSLER CORP.

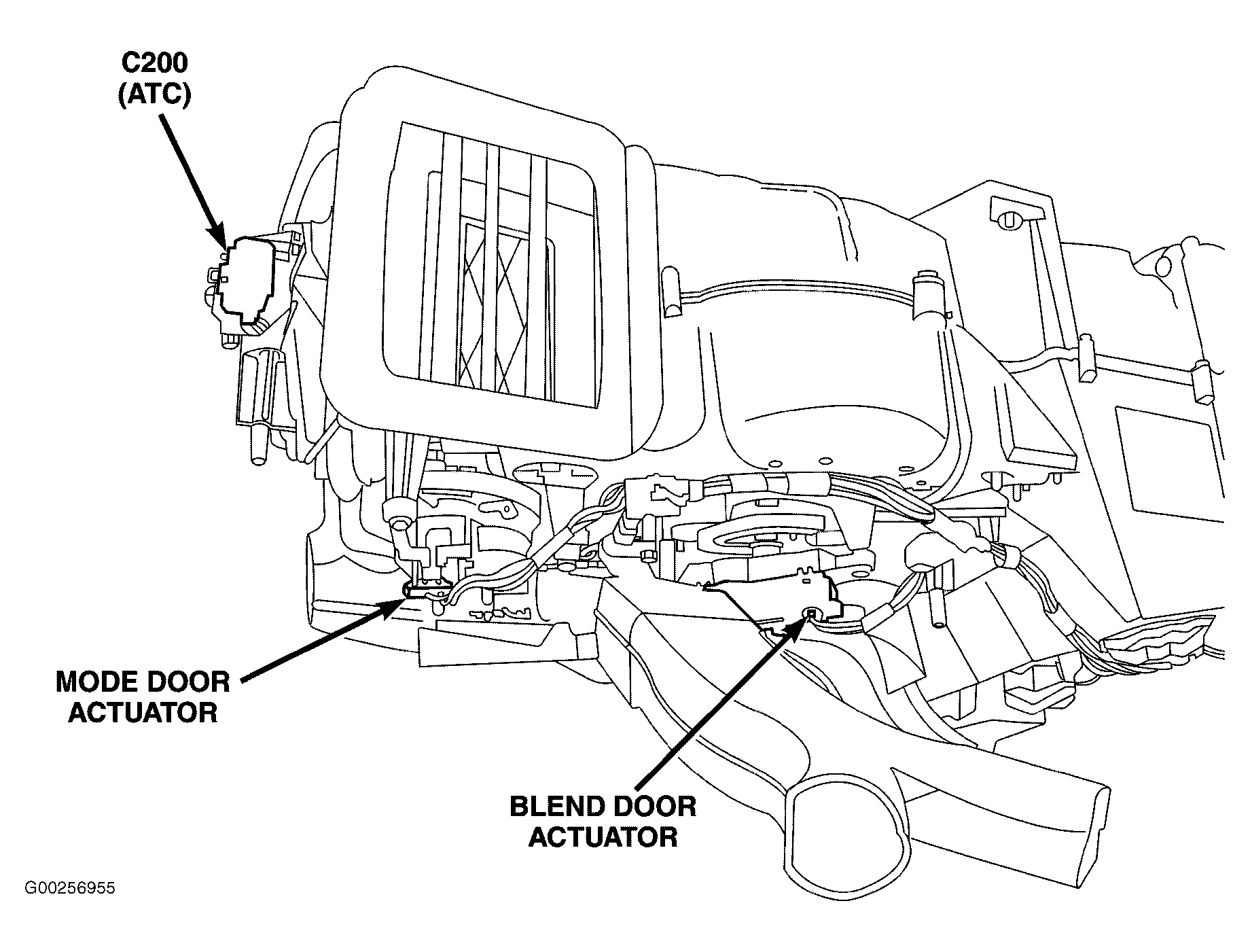

Fig 27: Left Side Of HVAC (ATC)

G00256955

Courtesy of DAIMLERCHRYSLER CORP.

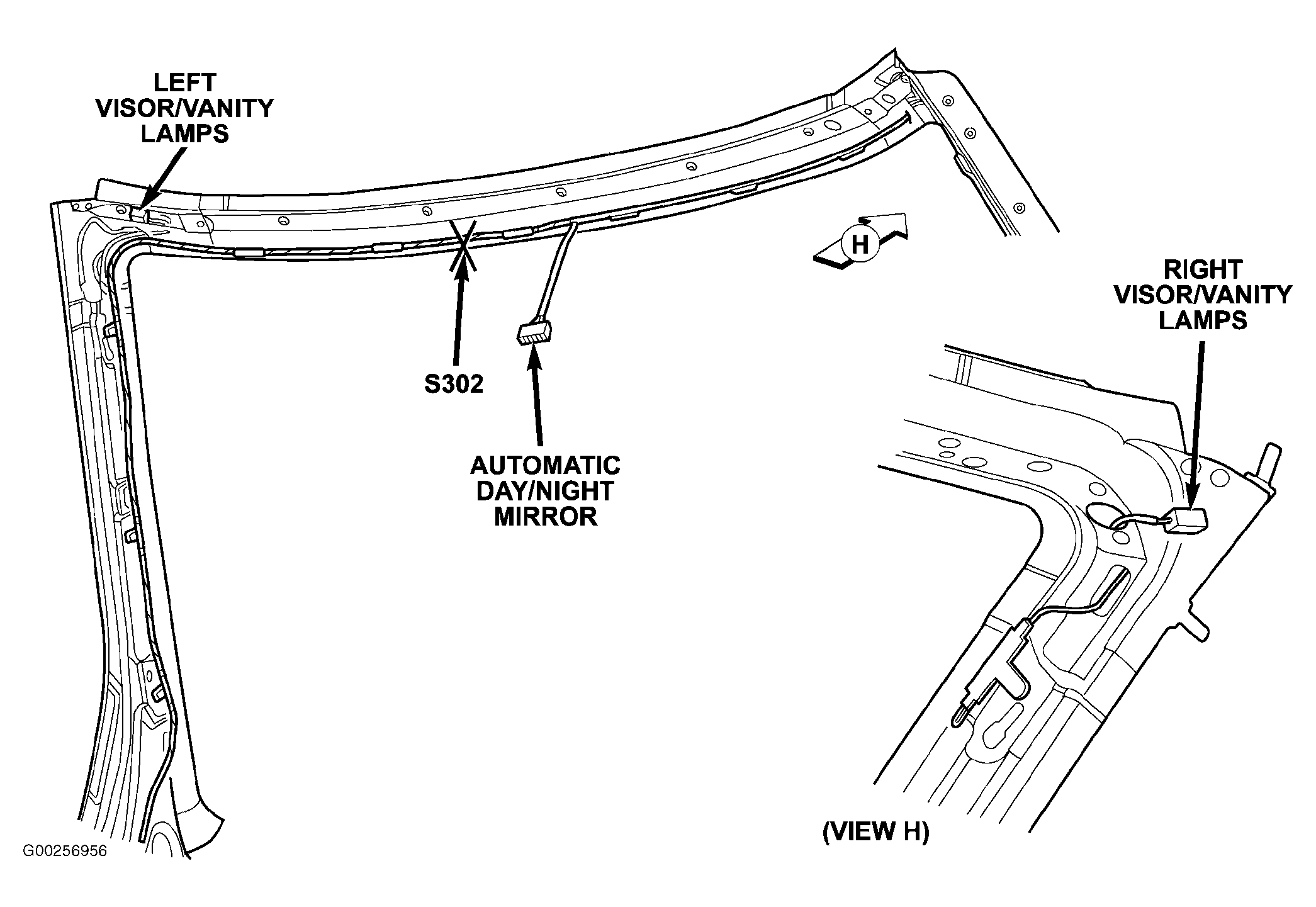

Fig 28: Front Windshield Headliner

G00256956

Courtesy of DAIMLERCHRYSLER CORP.

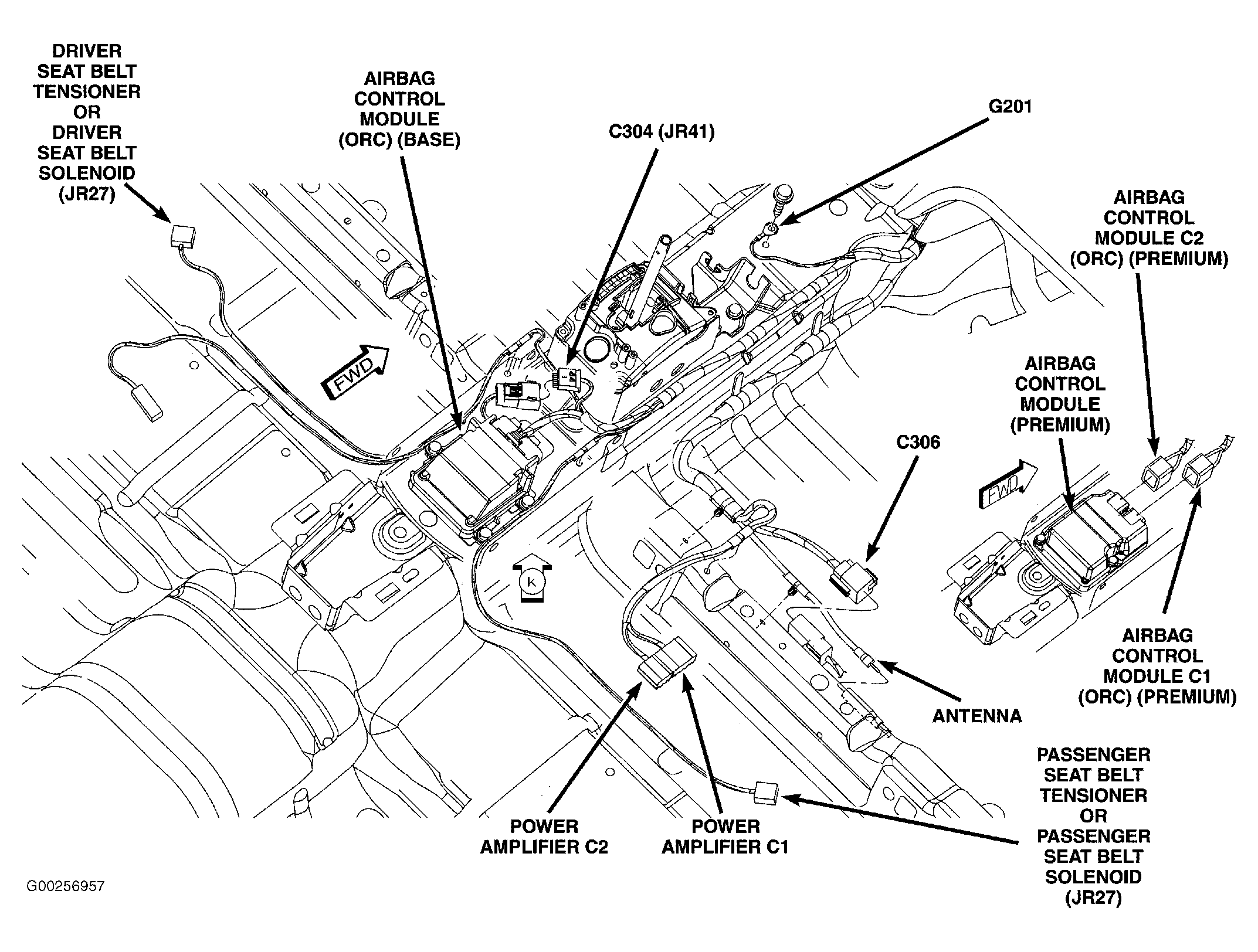

Fig 29: Center Vehicle Floor

G00256957

Courtesy of DAIMLERCHRYSLER CORP.

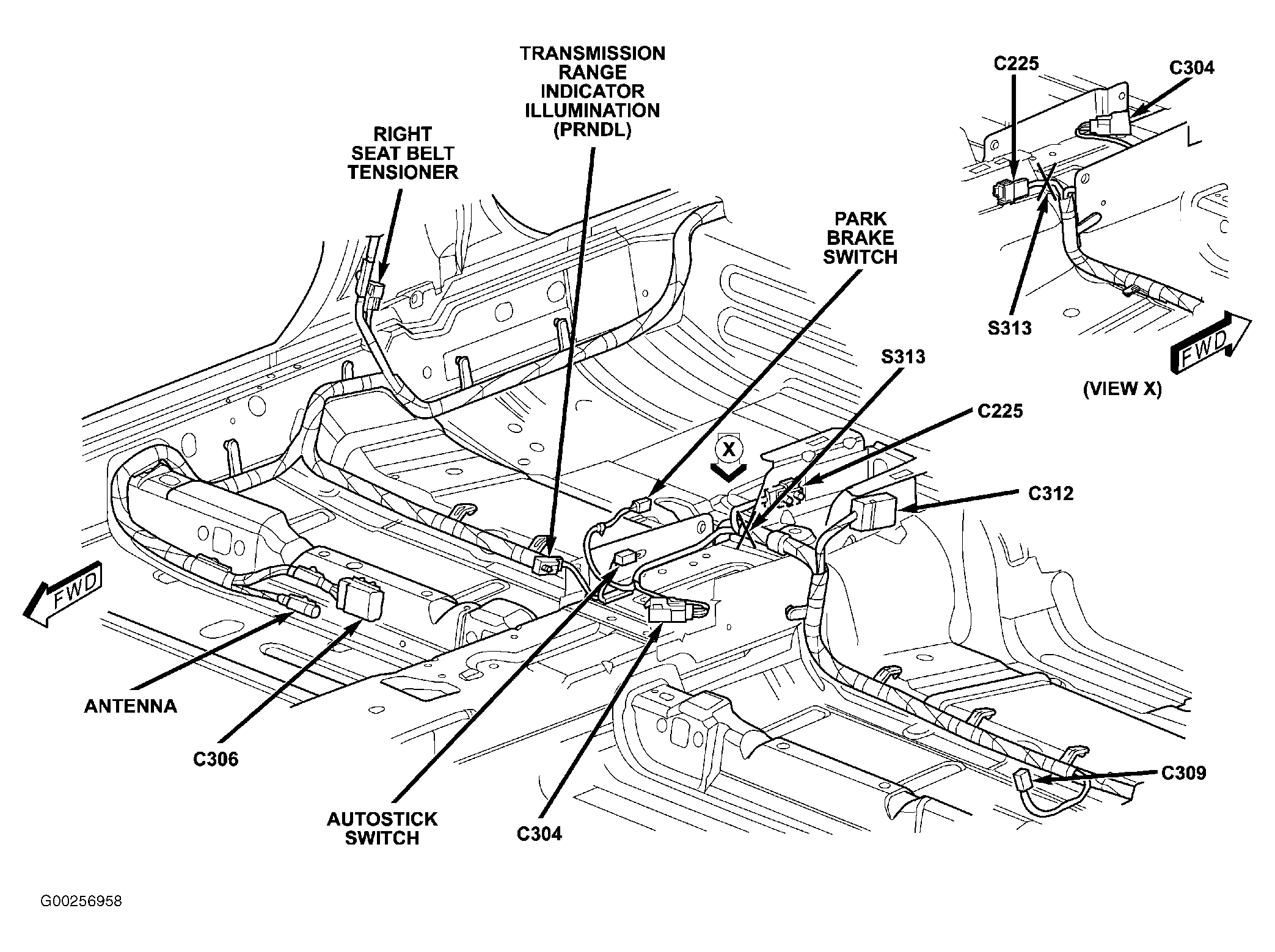

Fig 30: Center Vehicle Floor

G00256958

Courtesy of DAIMLERCHRYSLER CORP.

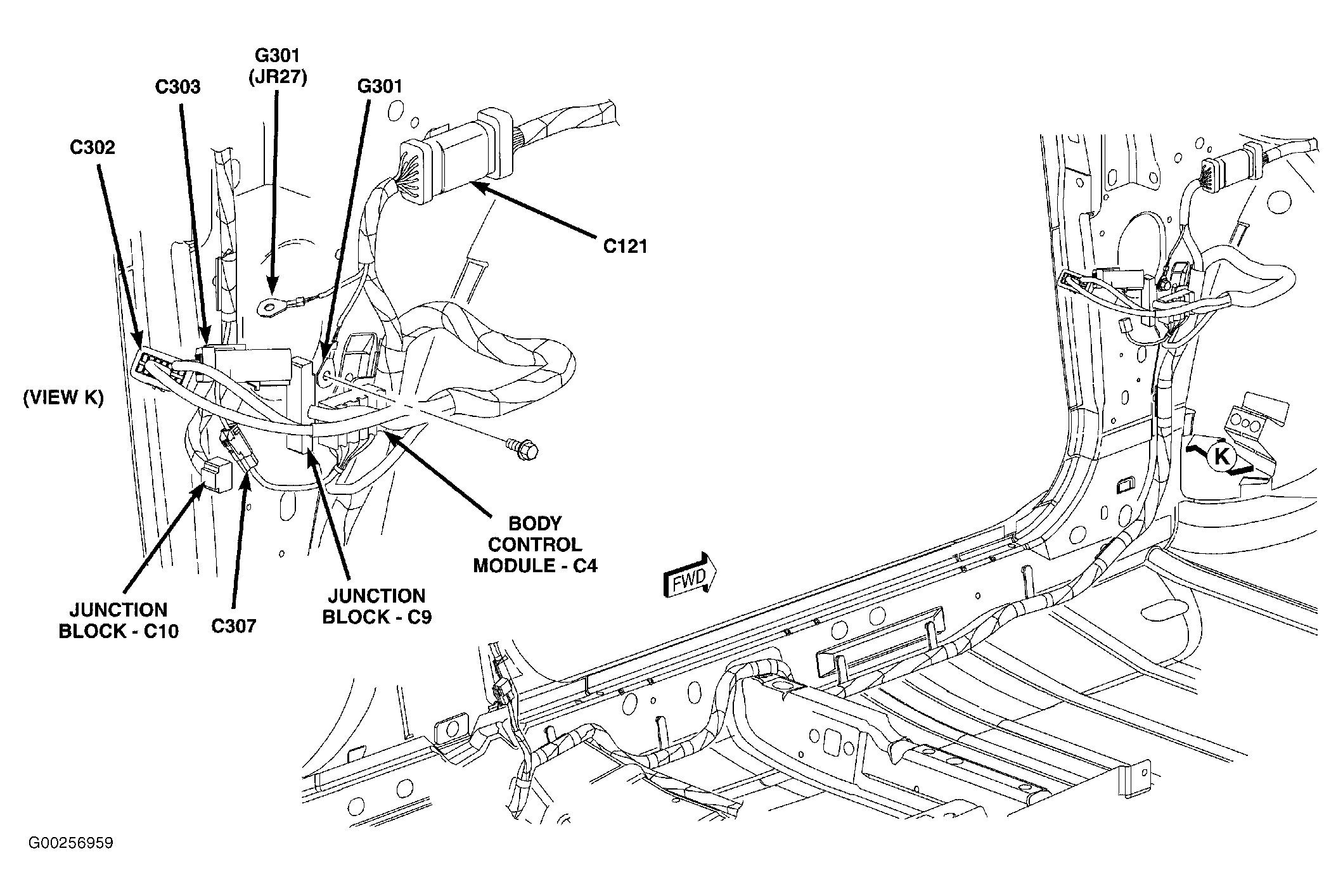

Fig 31: Left Kick Panel

G00256959

Courtesy of DAIMLERCHRYSLER CORP.

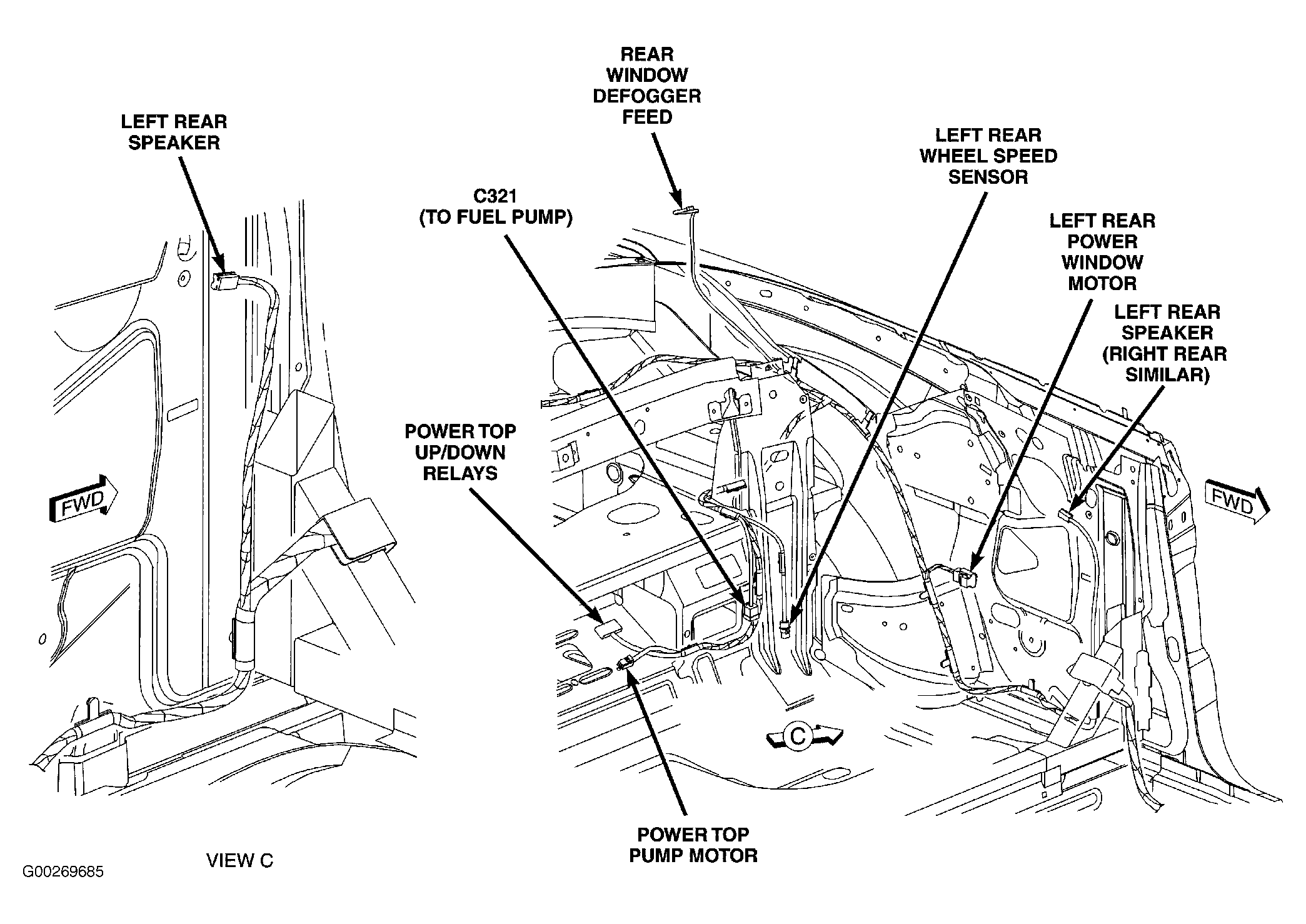

Fig 32: Left Rear Of Passenger Compartment (Convertible)

G00269685

Courtesy of DAIMLERCHRYSLER CORP.

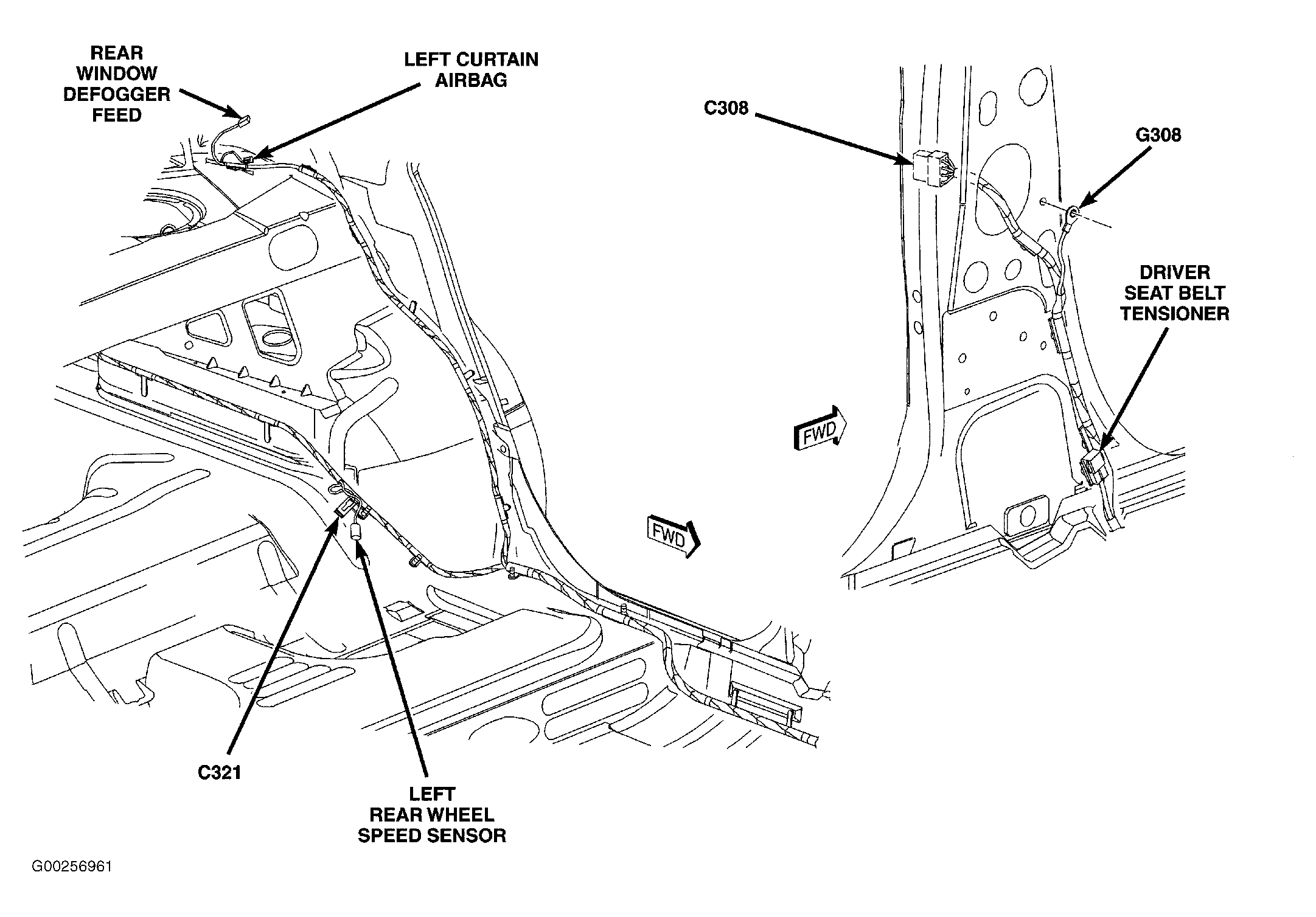

Fig 33: Left Rear Of Passenger Compartment (Sedan)

G00256961

Courtesy of DAIMLERCHRYSLER CORP.

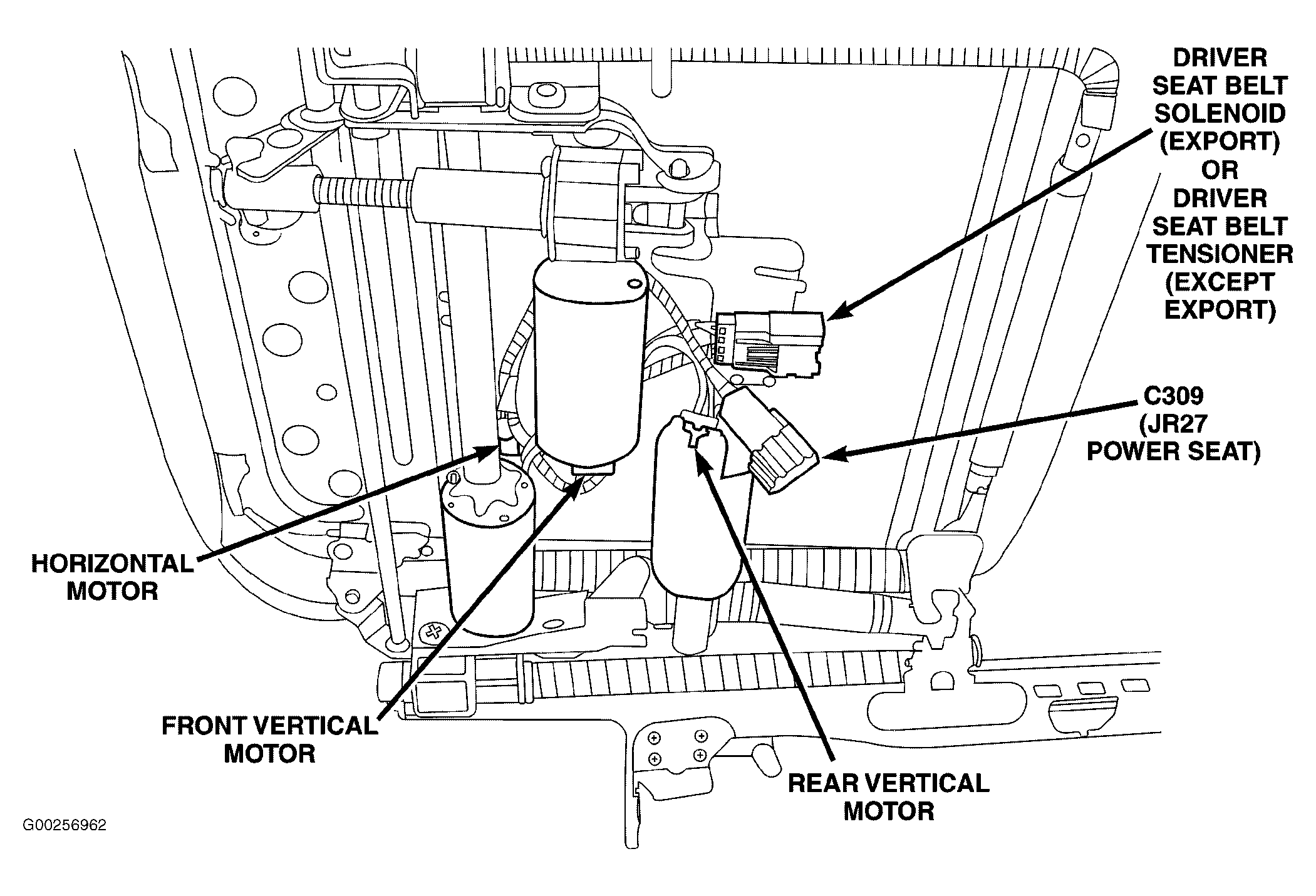

Fig 34: Below Driver Seat

G00256962

Courtesy of DAIMLERCHRYSLER CORP.

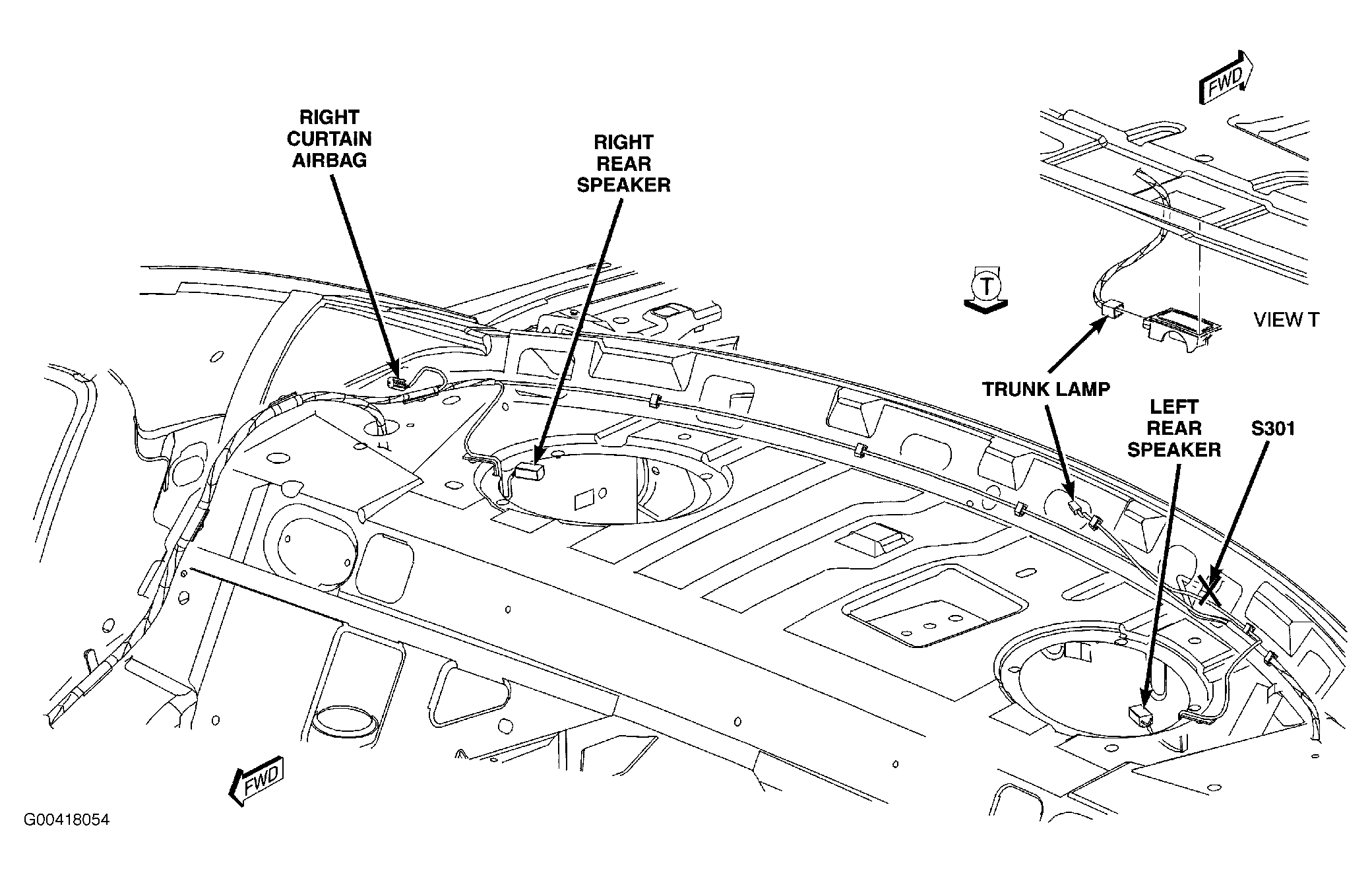

Fig 35: Rear Shelf (Sedan)

G00418054

Courtesy of DAIMLERCHRYSLER CORP.

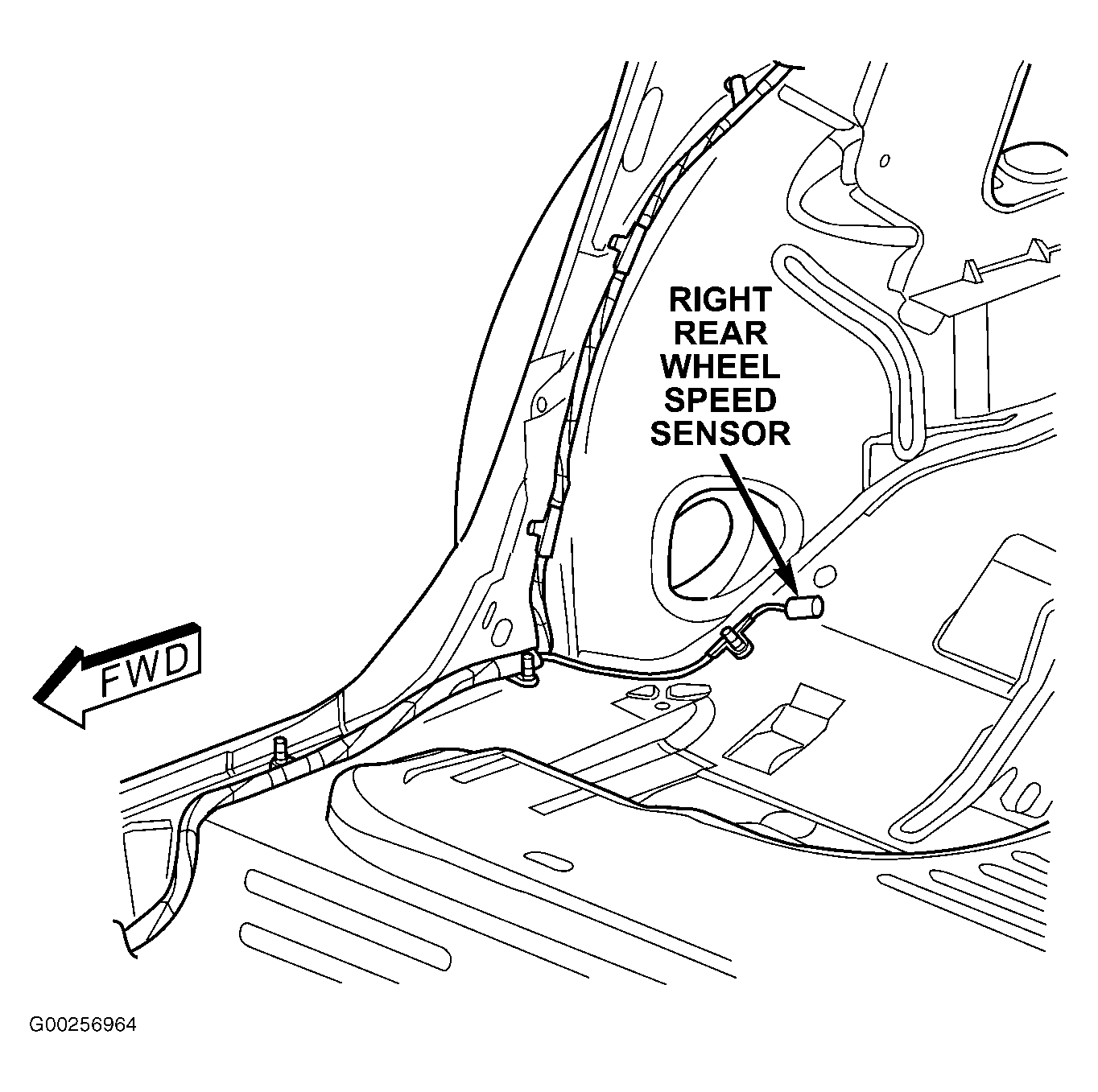

Fig 36: Right Rear Quarterpanel

G00256964

Courtesy of DAIMLERCHRYSLER CORP.

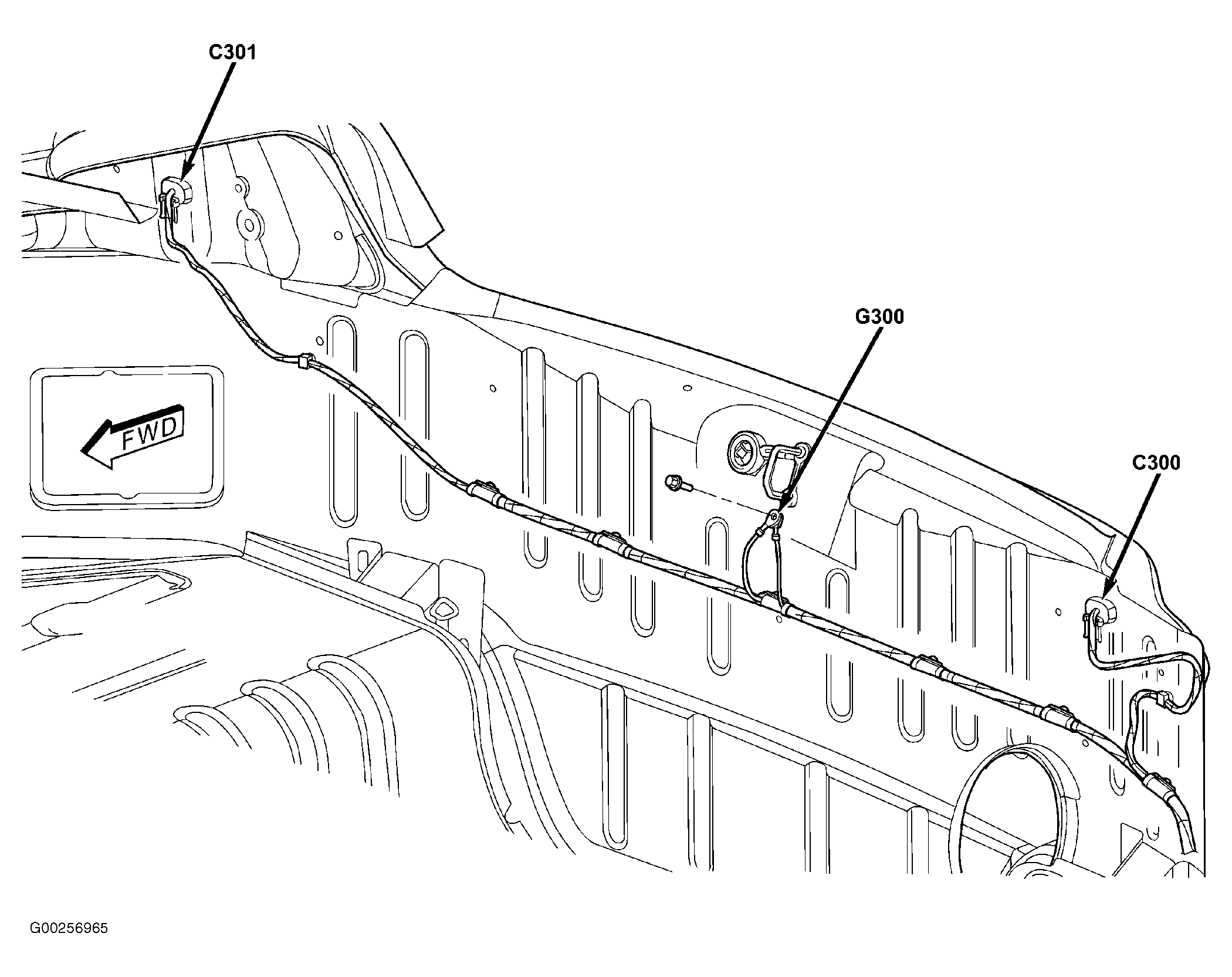

Fig 37: Rear Of Trunk

G00256965

Courtesy of DAIMLERCHRYSLER CORP.

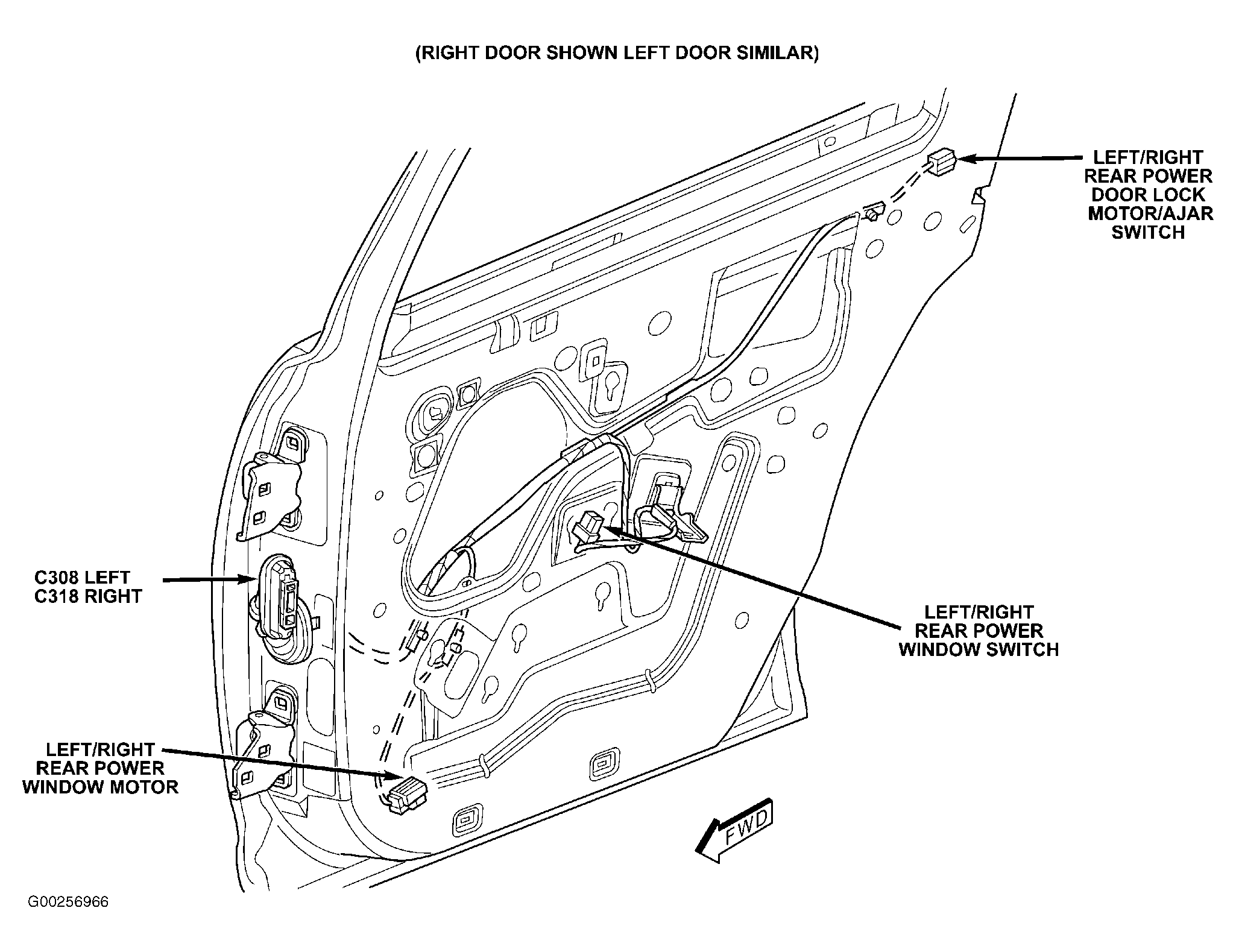

Fig 38: Right Rear Door (Left Rear Door Similar)

G00256966

Courtesy of DAIMLERCHRYSLER CORP.

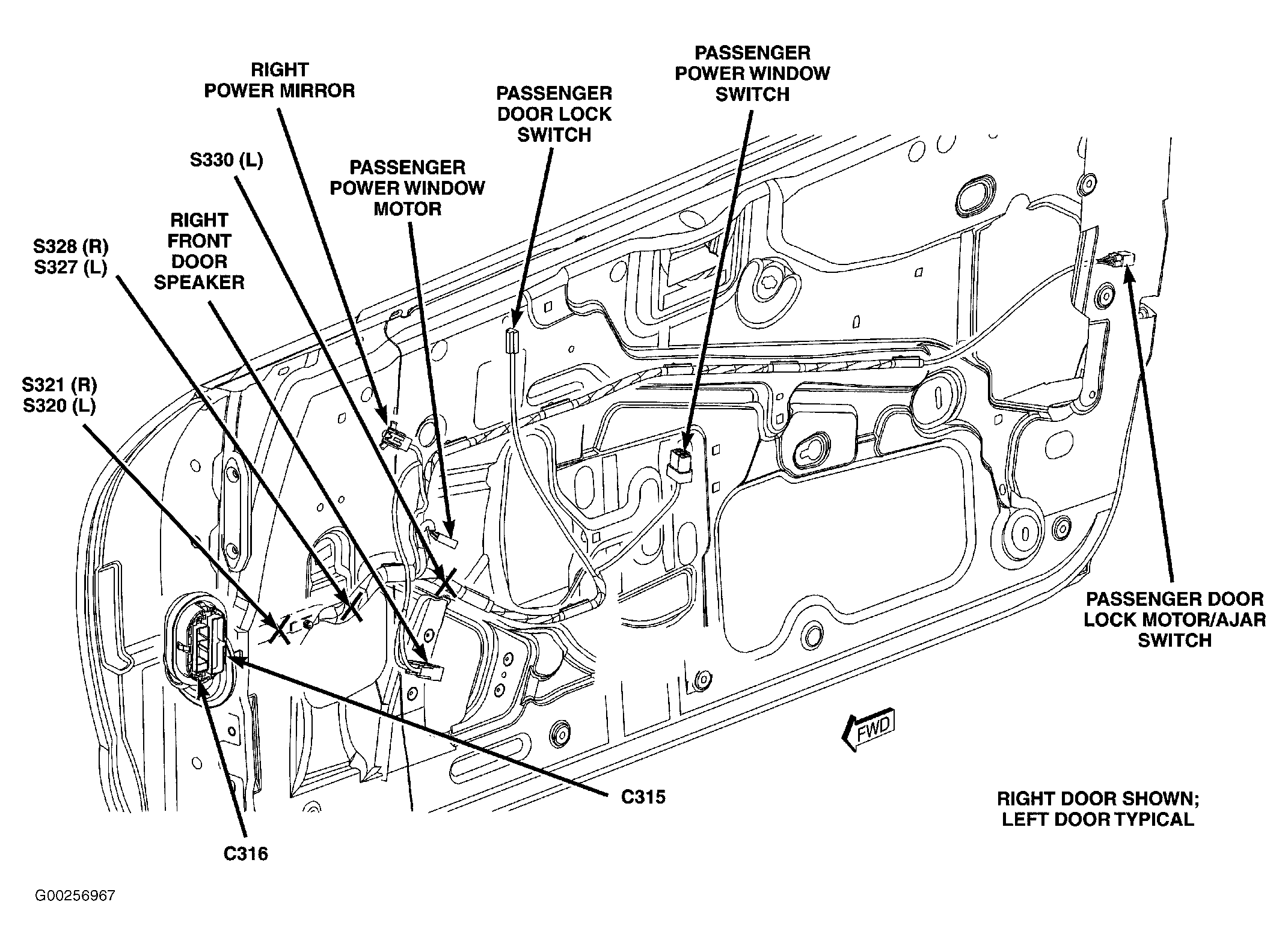

Fig 39: Front Passenger Door (Driver's Door Similar)

G00256967

Courtesy of DAIMLERCHRYSLER CORP.

Fig 40: Roof (Sedan)

G00256968

Courtesy of DAIMLERCHRYSLER CORP.

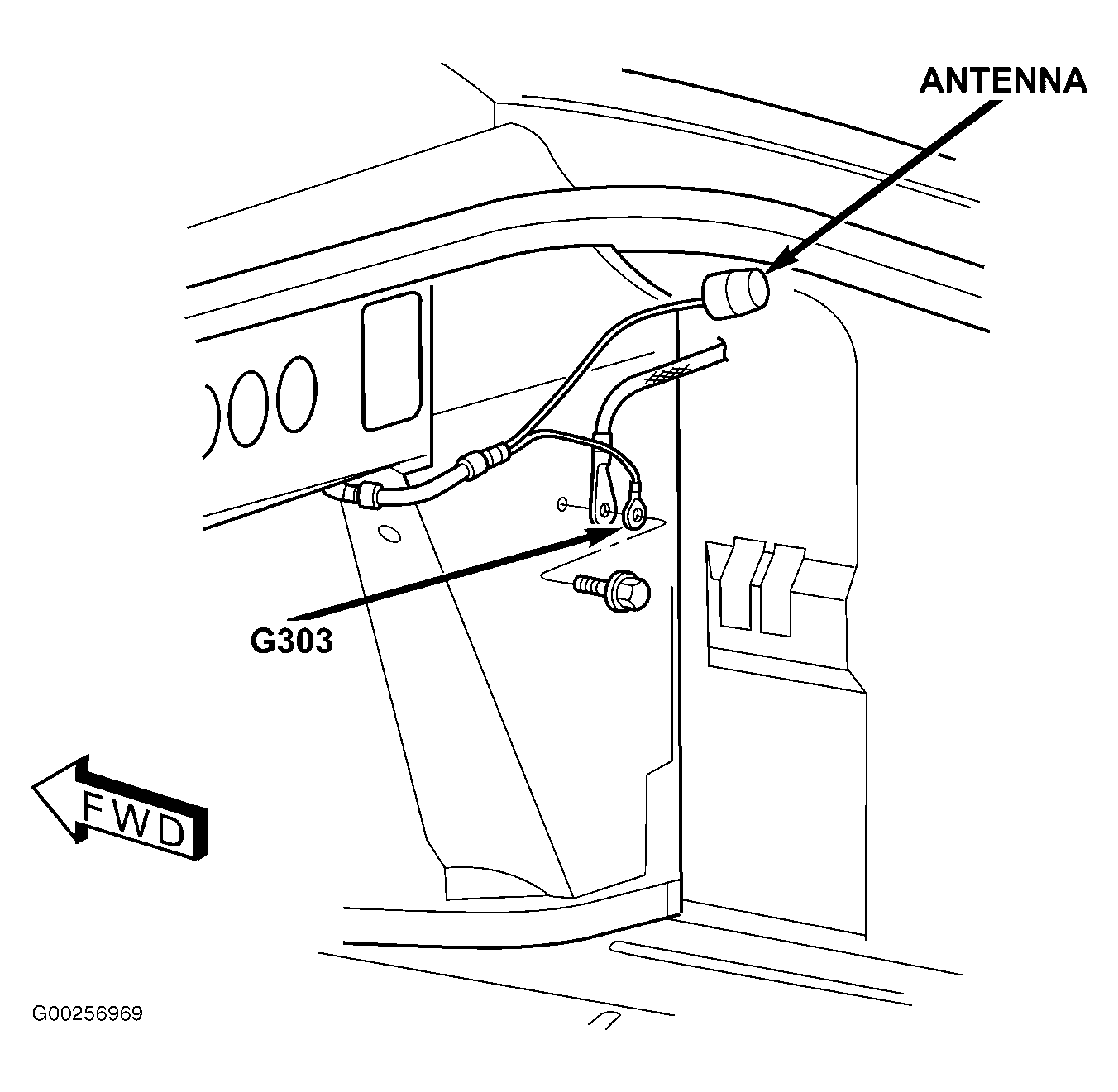

Fig 41: Right Front Of Trunk (Convertible)

G00256969

Courtesy of DAIMLERCHRYSLER CORP.

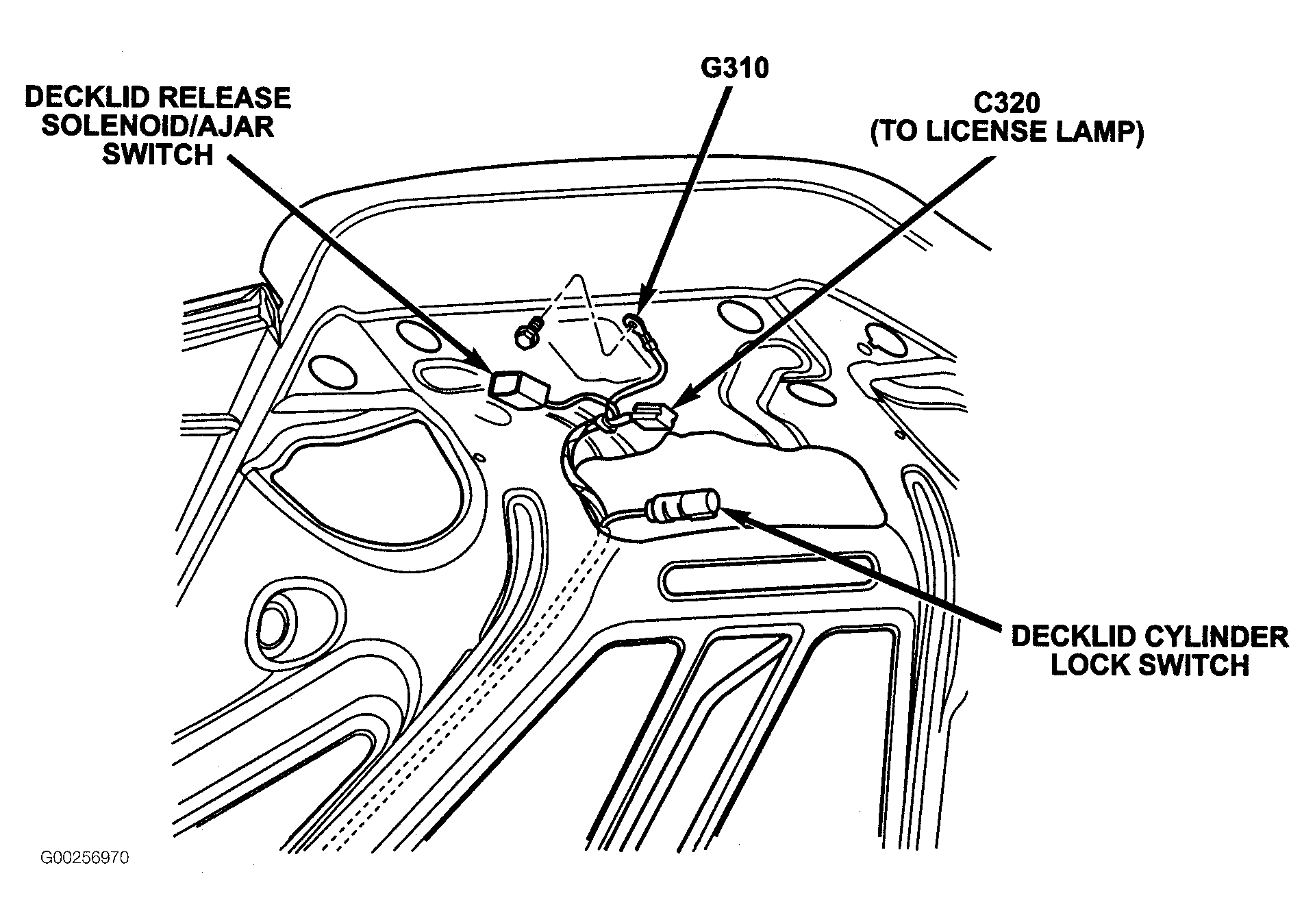

Fig 42: Deck Lid (Convertible)

G00256970

Courtesy of DAIMLERCHRYSLER CORP.

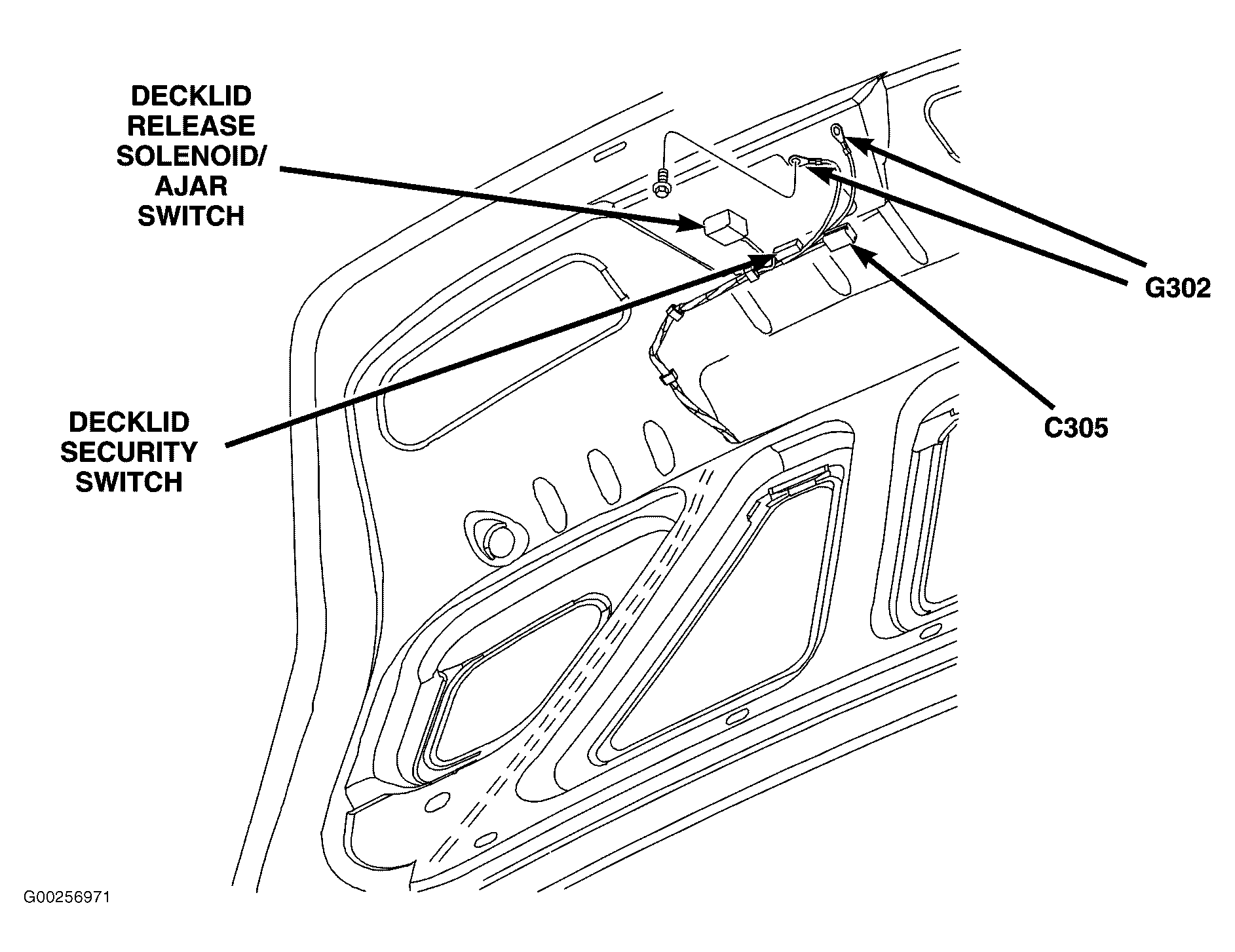

Fig 43: Deck Lid (Sedan)

G00256971

Courtesy of DAIMLERCHRYSLER CORP.

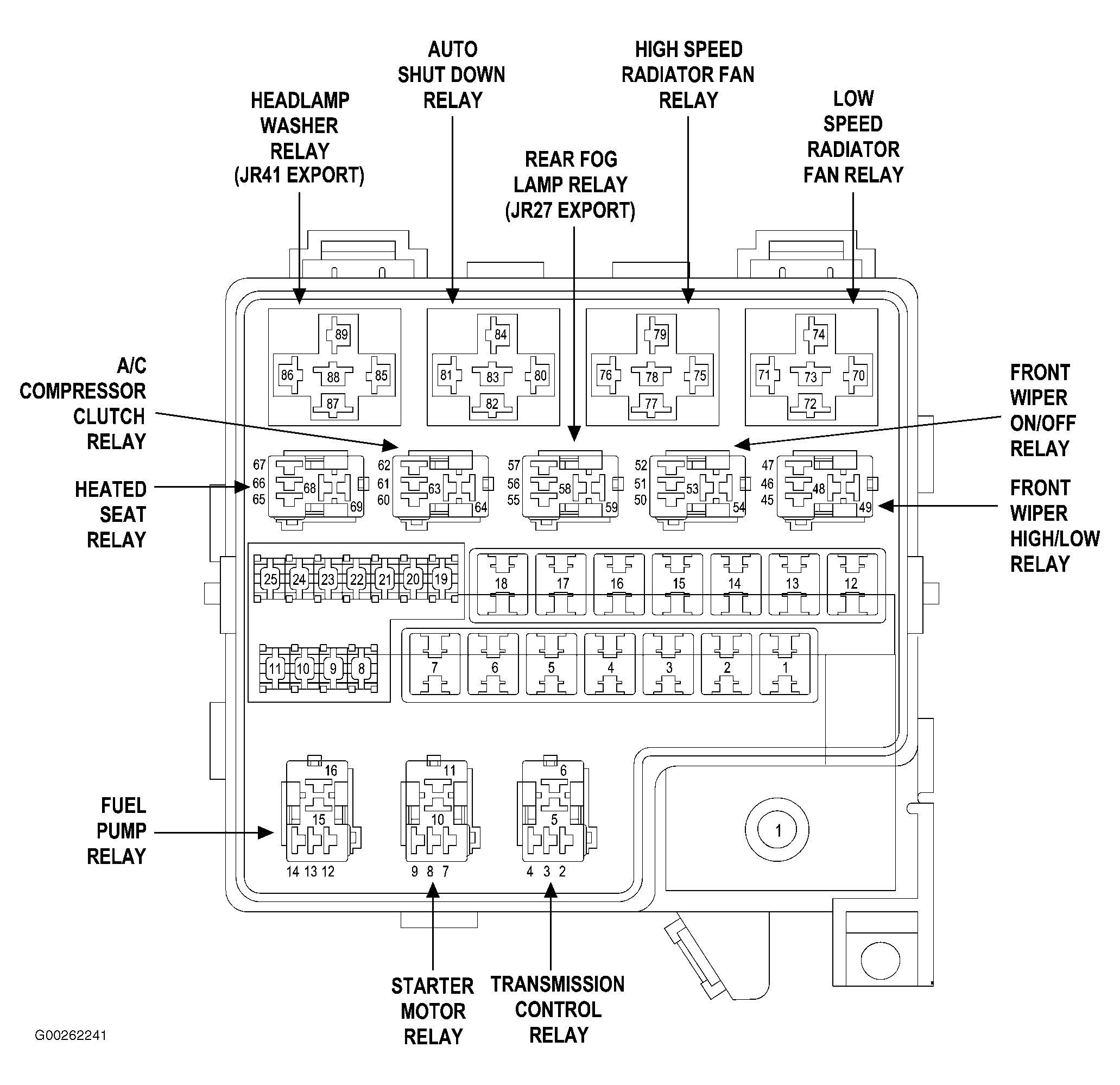

Fig 44: Power Distribution Center

G00262241

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: Right Side Of HVAC (ATC)

G00269684

Courtesy of DAIMLERCHRYSLER CORP.

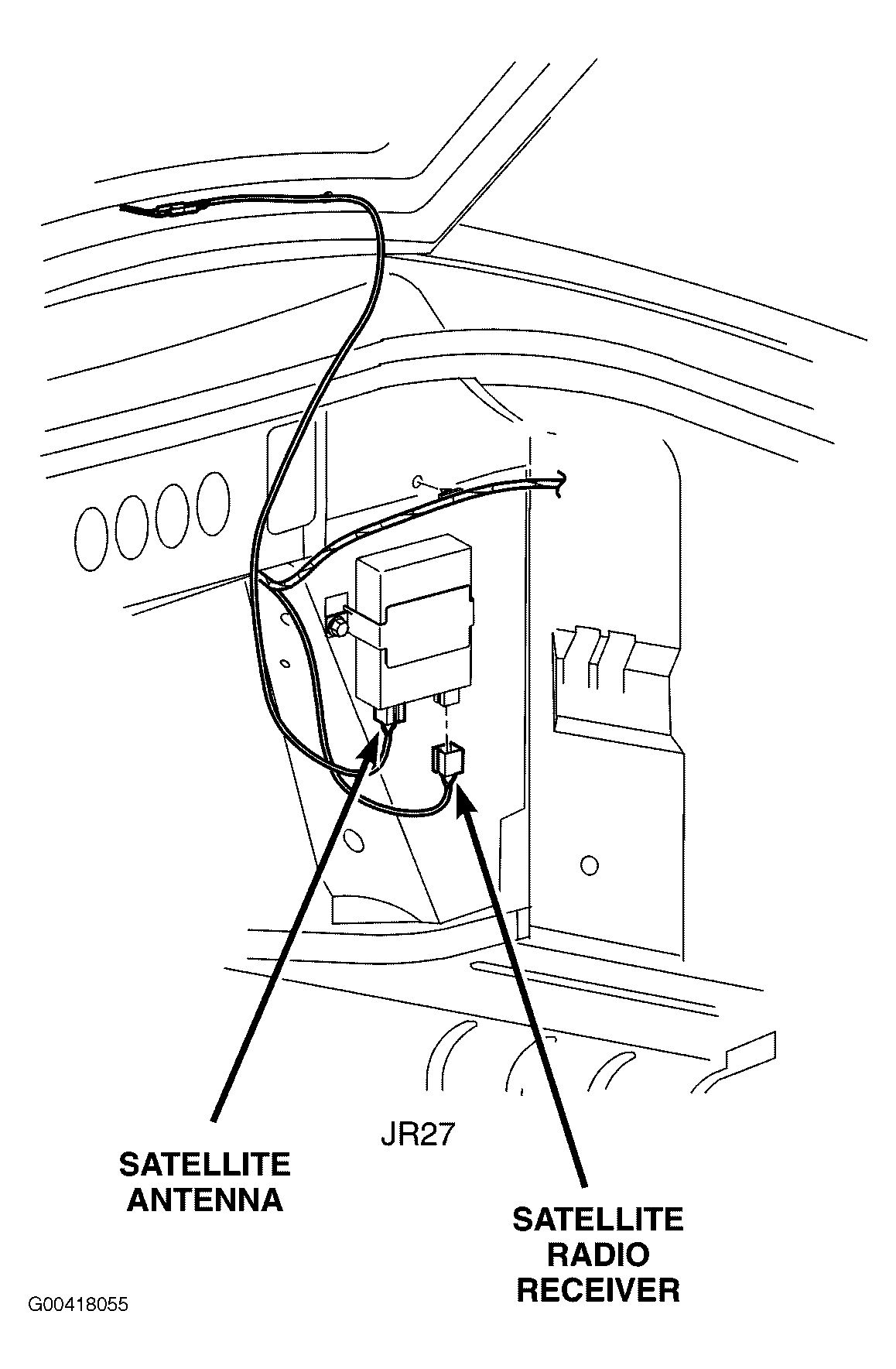

Fig 46: Trunk (Convertible)

G00418055

Courtesy of DAIMLERCHRYSLER CORP.

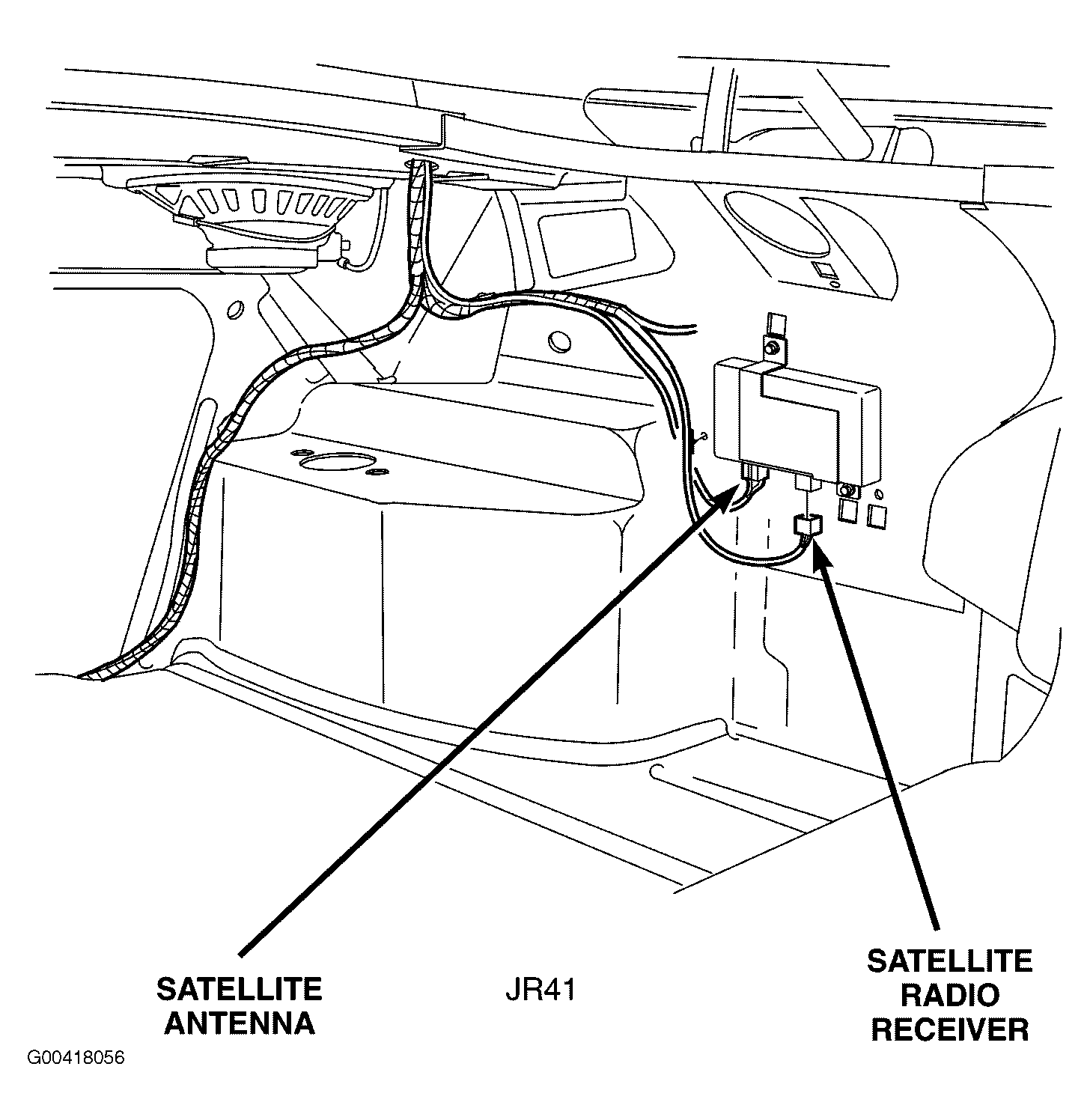

Fig 47: Trunk (Sedan)

G00418056

Courtesy of DAIMLERCHRYSLER CORP.
