Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module (ORC) (Base) | Center of floor, near shifter assembly. See Figure . |
| Air Bag Control Module (Premium) | Center of floor, near shifter. See Figure . |

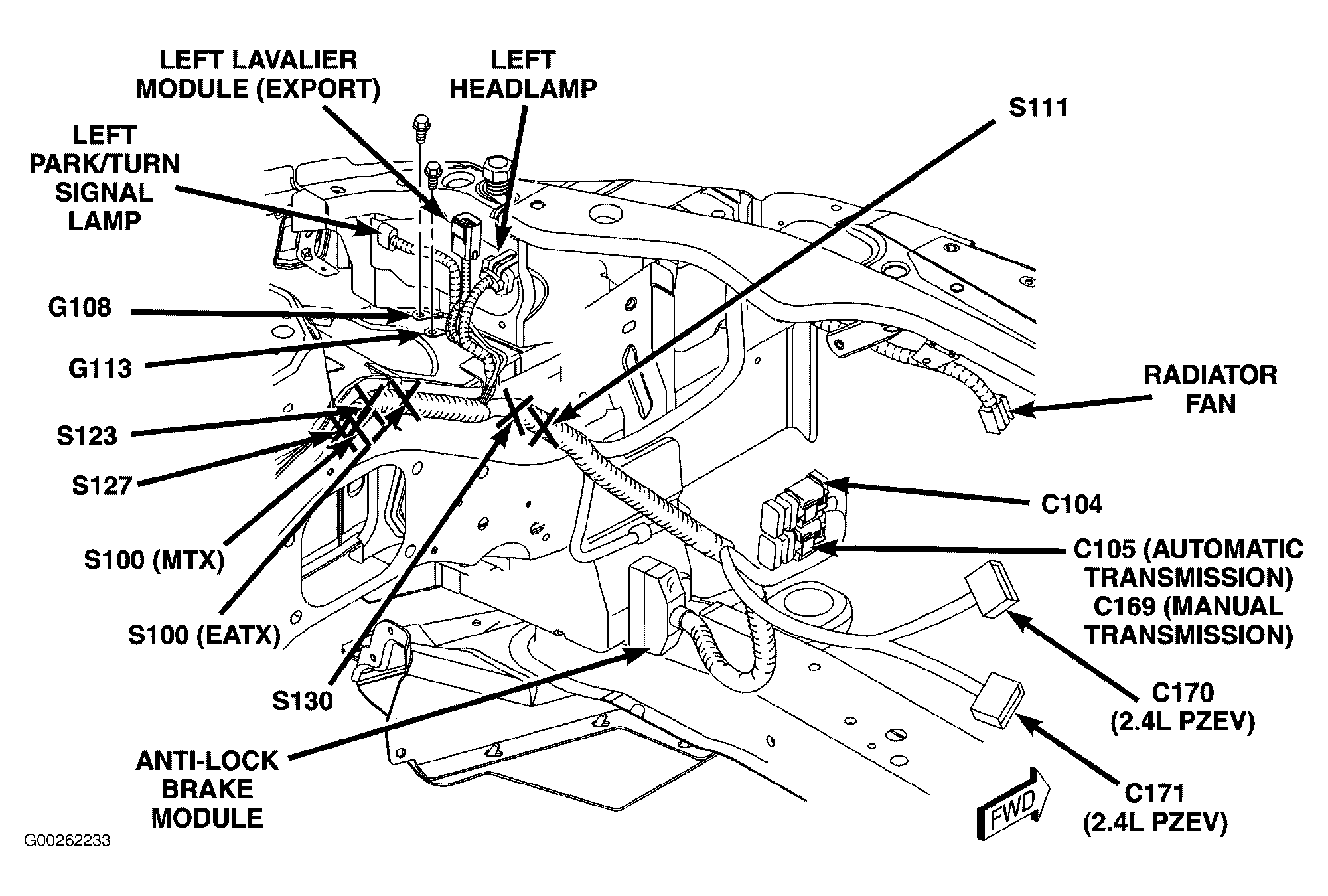

| Anti-Lock Brake Module | At lower left front of engine compartment. See Figure . |

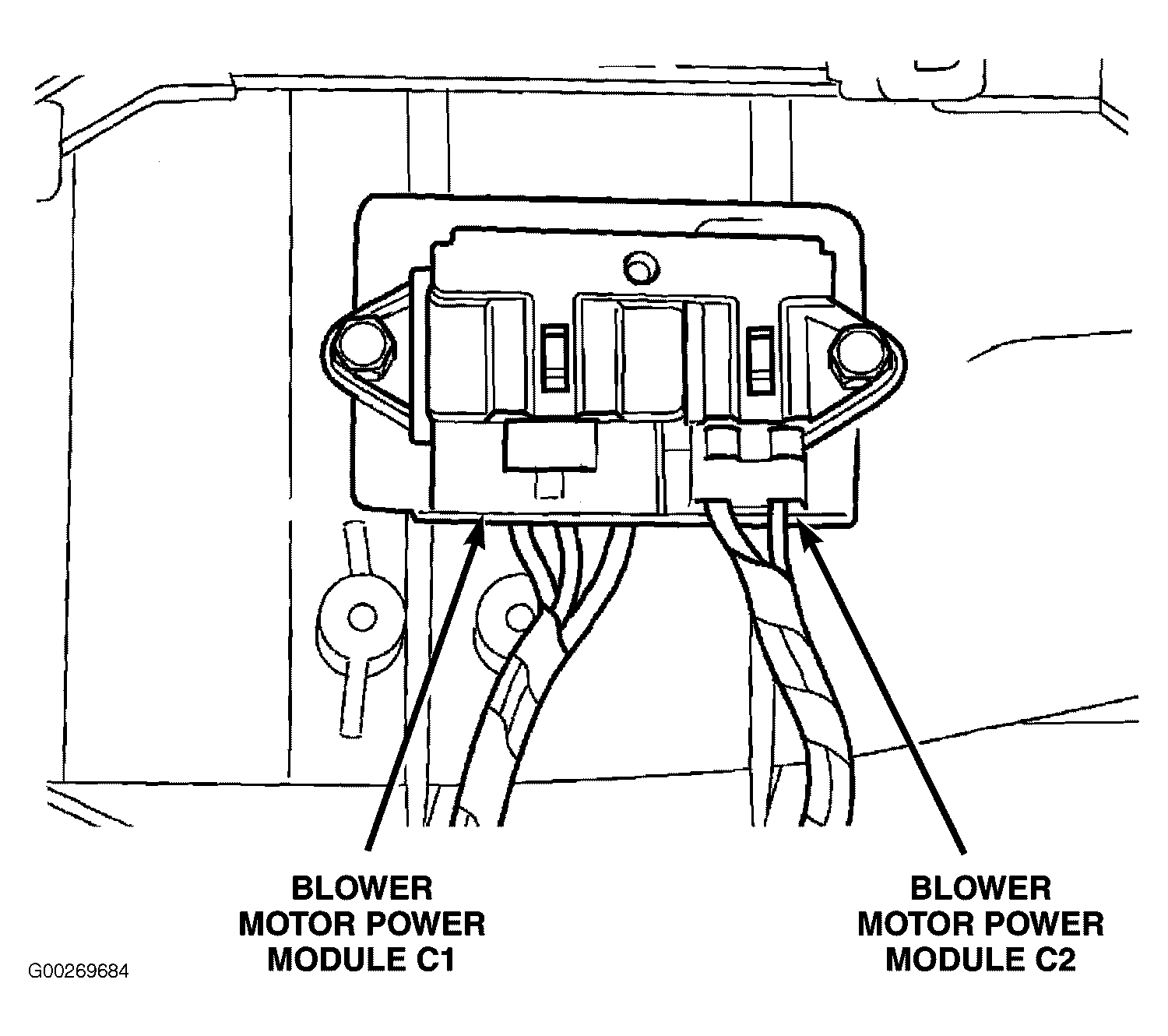

| Blower Motor Power Module (ATC) | At right end of HVAC. See Figure . |

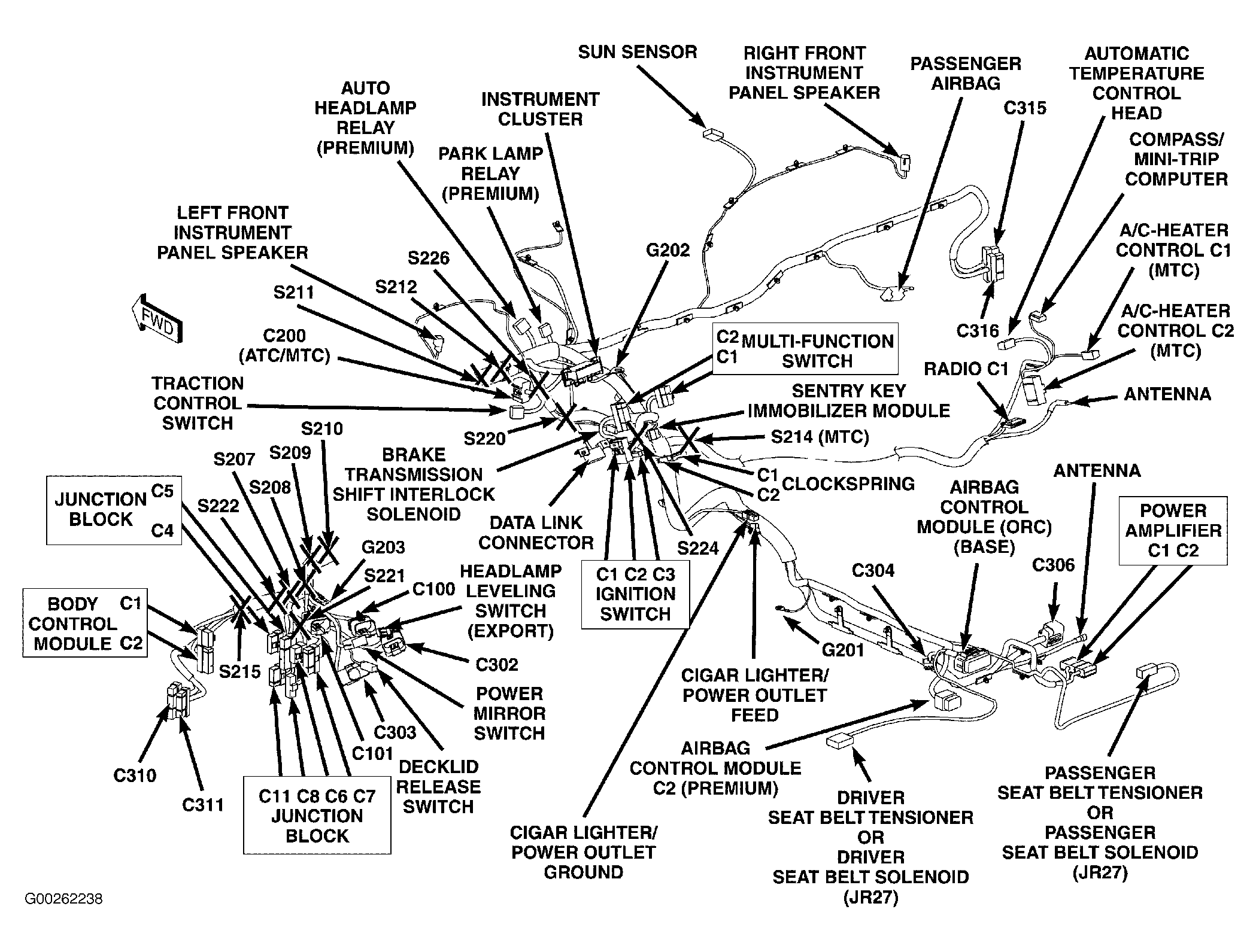

| Body Control Module | At left kick panel. See Figure . |
| Daytime Running Lamp Module | On junction block. See Figure . |
| Fuel Pump Module | On top of fuel tank. |
| Mode Door Actuator | At left end of HVAC housing. |
| Occupant Restraint Controller | Under floor console, behind transaxle gear selector. |
| Passenger Heated Seat Module | Under passenger seat. |
| Powertrain Control Module | Left front of engine compartment. See Figure . |
| Remote Keyless Entry Receiver | On junction block. |
| Sentry Key Immobilizer Module | On steering column. See Figure . |

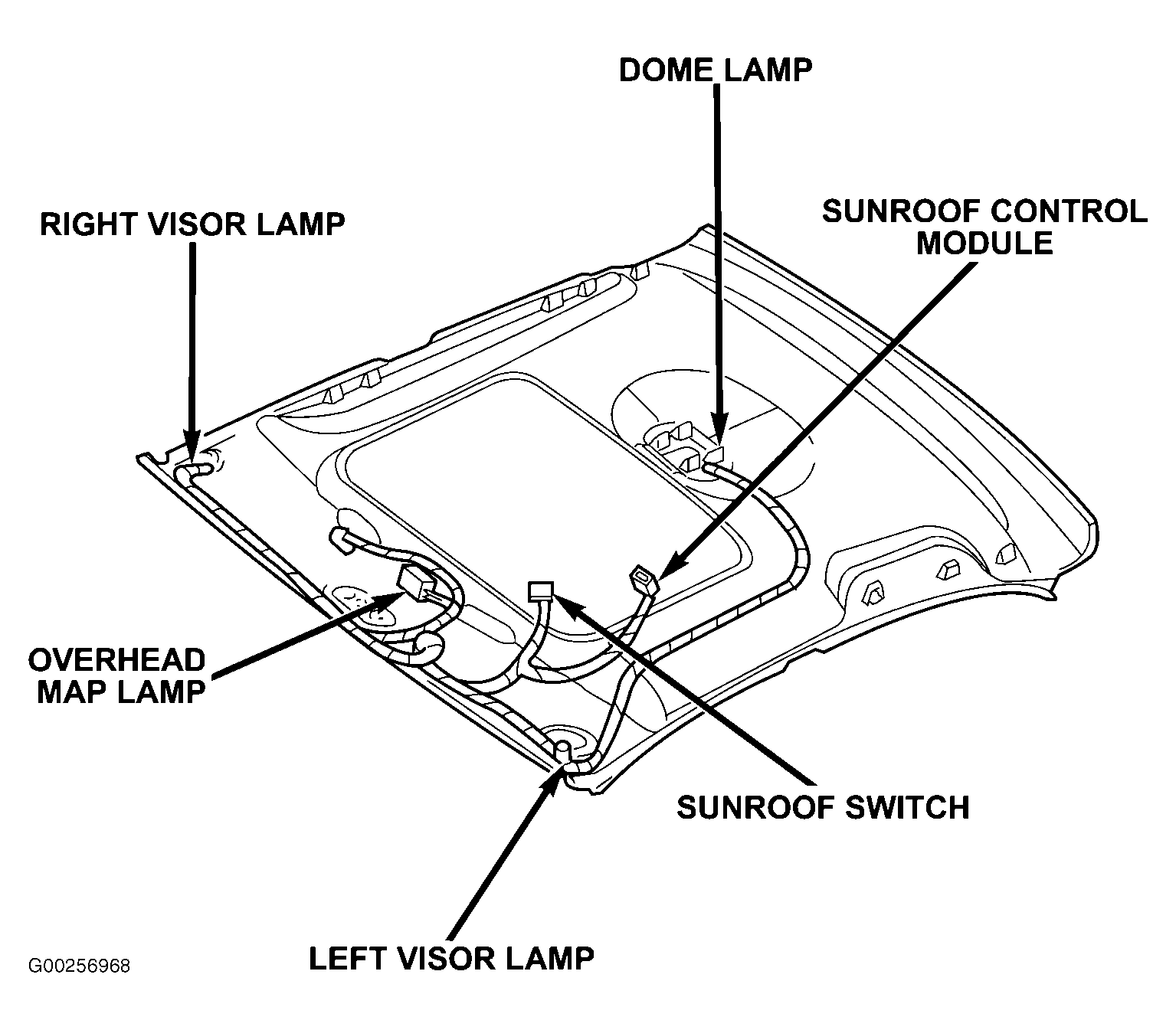

| Sun Roof Control Module | In left headliner. See Figure . |
