Fuel Pump Module: Description

The fuel pump module contains the fuel pump, fuel reservoir, level sensor, inlet strainer, fuel pressure regulator, and fuel filter. See Fig 1.

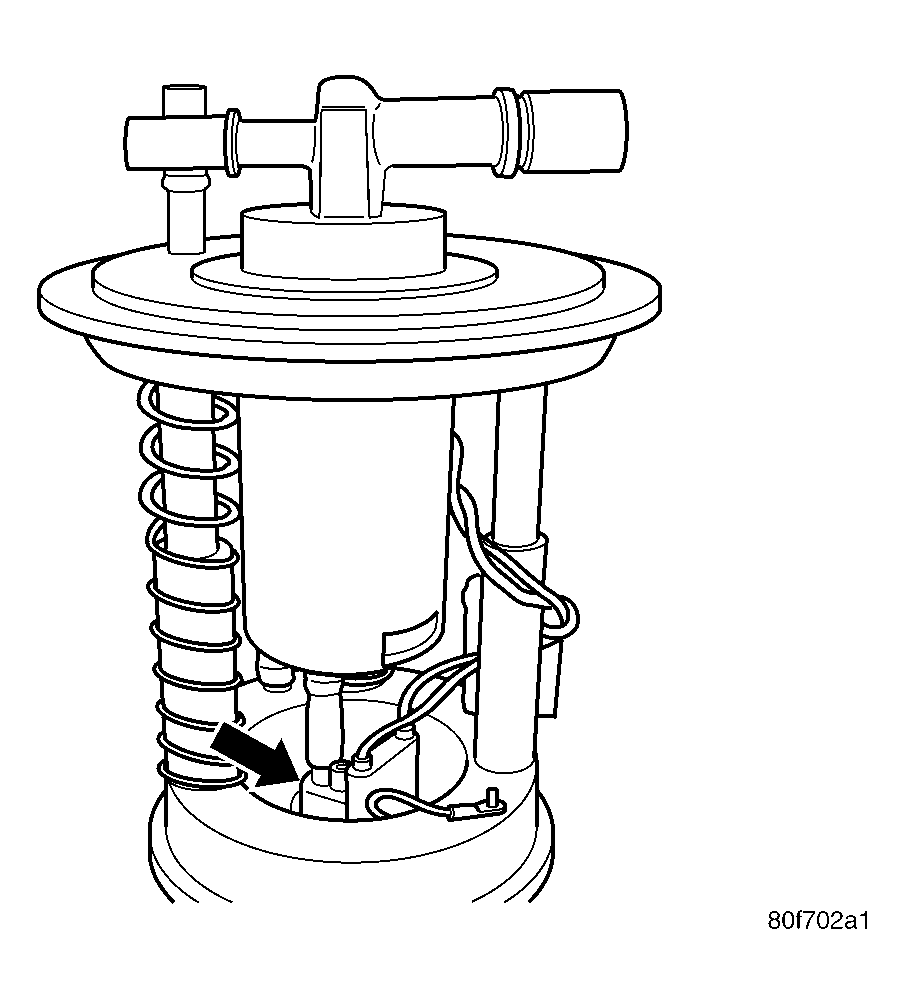

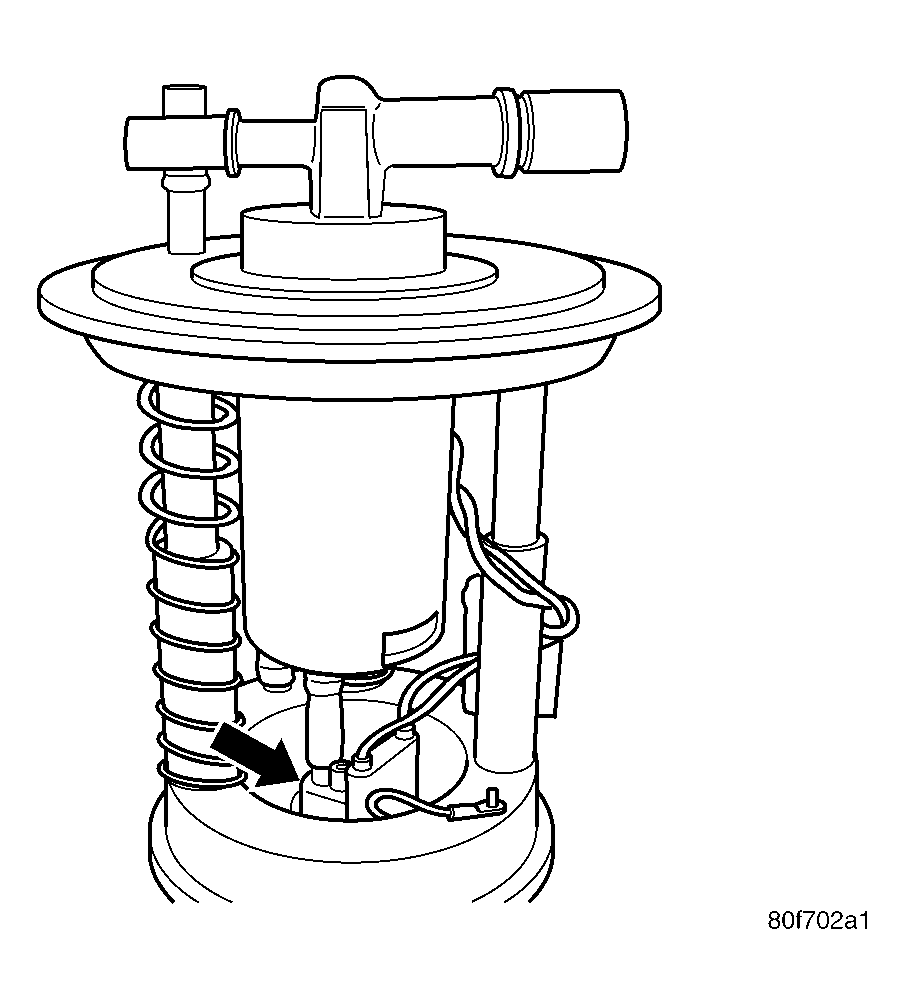

Fig 1: FUEL PUMP LOCATION

Courtesy of DAIMLERCHRYSLER CORP.
