Installation - 2.7L

  1. The sensor mounts onto intake manifold plenum. See Fig 1. Tighten screws to 4.5 N.m (40 in. lbs.) torque.
    Fig 1: MAP Sensor O-Ring
    GC0000459Courtesy of DAIMLERCHRYSLER CORP.

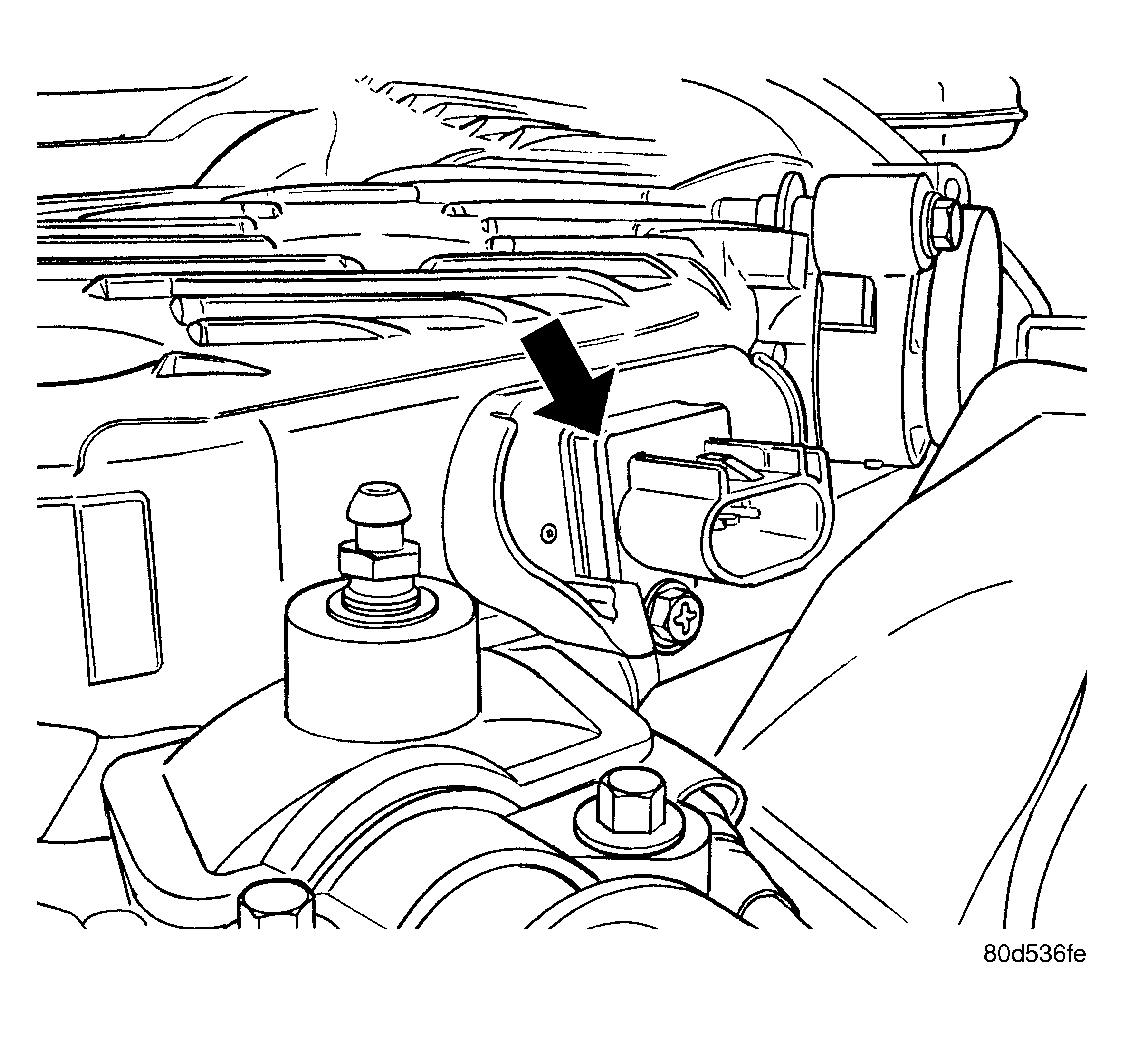

  2. Attach electrical connector to sensor. See Figure.
  3. Install the negative battery cable.
