Special Tools: Fuel

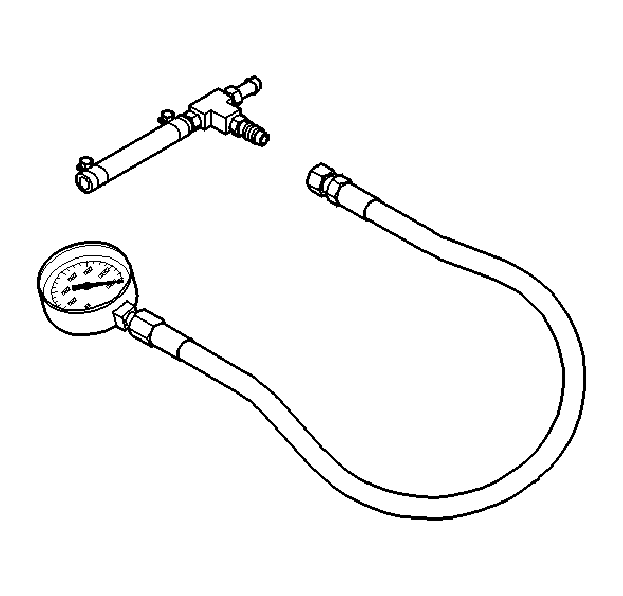

Fig 1: Pressure Gauge Assembly C-4799-B

GC0019401

Courtesy of DAIMLERCHRYSLER CORP.

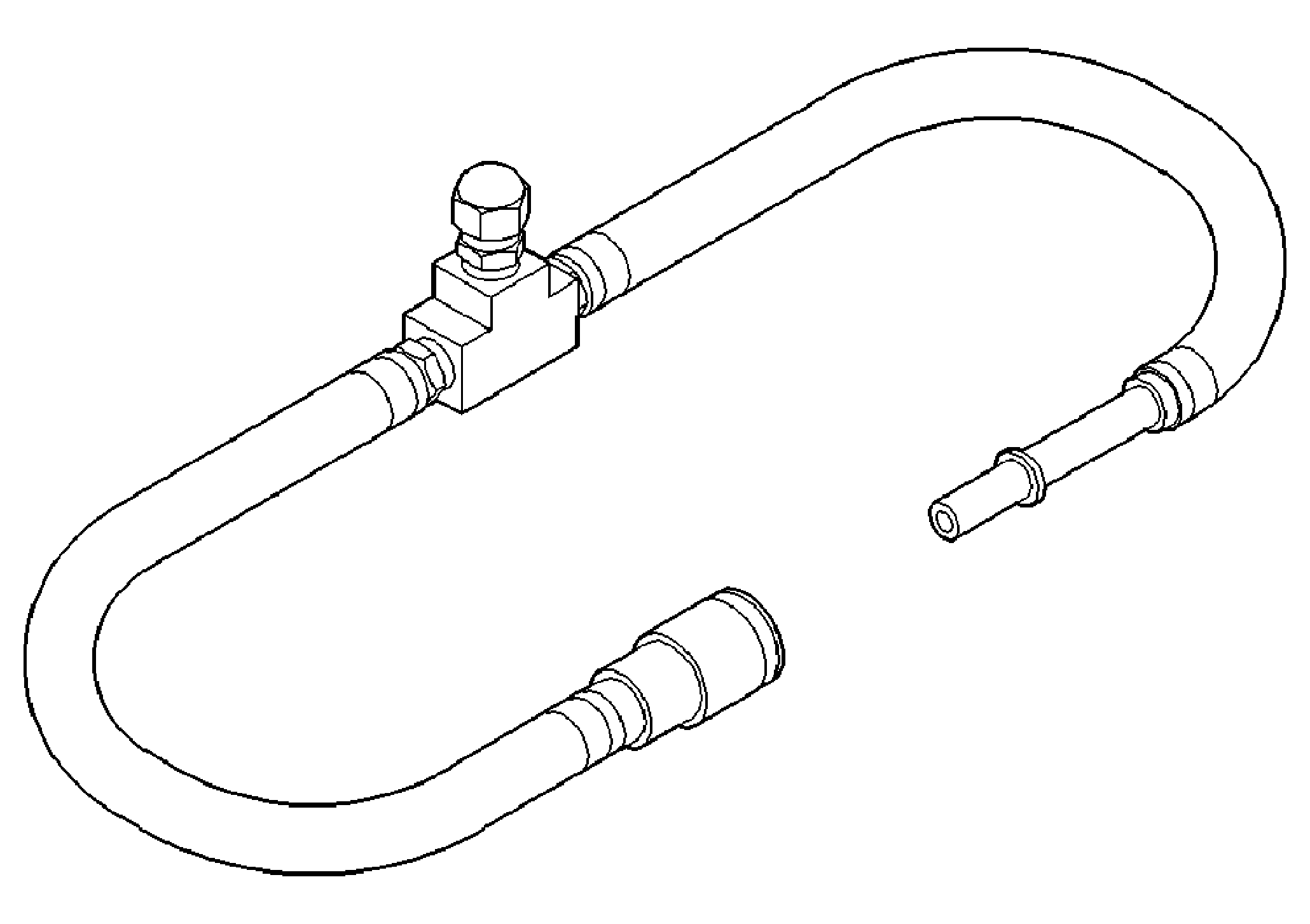

Fig 2: Fuel Pressure Test Adapter 6539

GC0019402

Courtesy of DAIMLERCHRYSLER CORP.

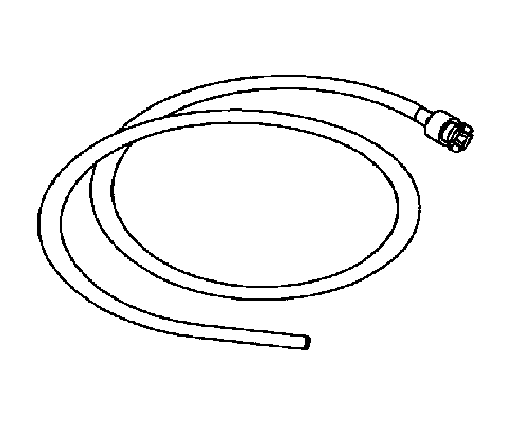

Fig 3: Fuel Line Adapter 1/4

GC0019405

Courtesy of DAIMLERCHRYSLER CORP.

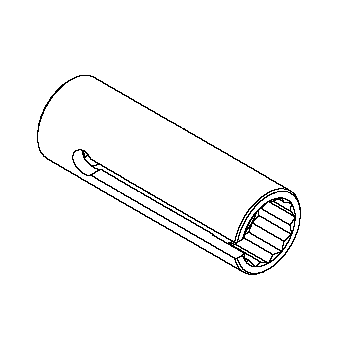

Fig 4: Oxygen Sensor Remover/Installer - C-4907

GC0019406

Courtesy of DAIMLERCHRYSLER CORP.

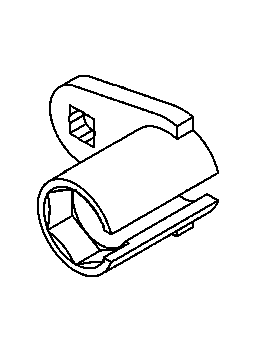

Fig 5: Oxygen Sensor Remover/Installer - 8439

GC0019400

Courtesy of DAIMLERCHRYSLER CORP.
