Installation - 4 Cylinder

The target magnet has locating dowels that fit into machined locating holes in the end of the camshaft. See Fig 1.

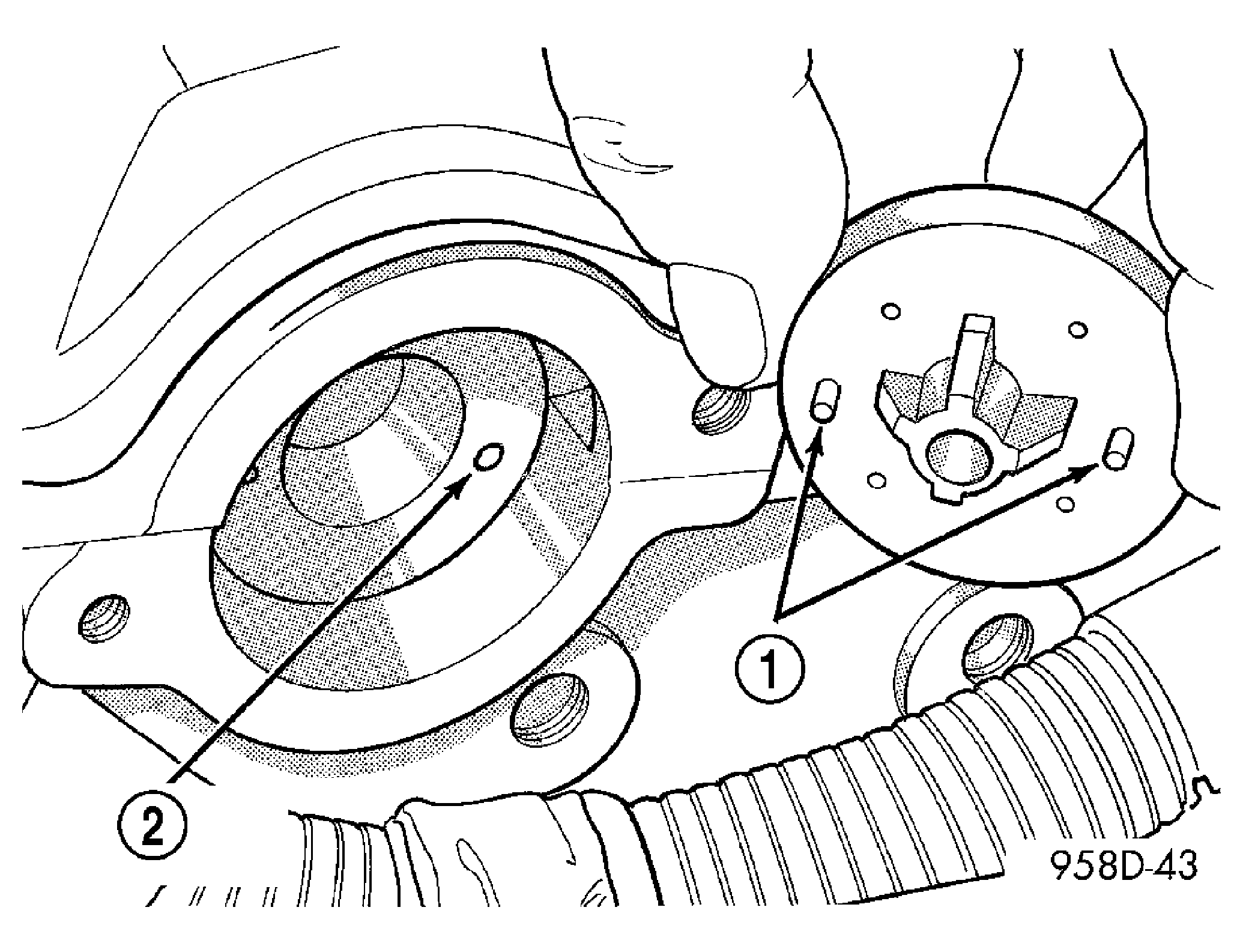

Fig 1: Target Magnet Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOCATING DOWELS

2 - LOCATING HOLES (2)

Install target magnet in end of camshaft. Tighten mounting screw to 3 N.m (30 in. lbs.) torque. Over torquing could cause cracks in magnet. If magnet cracks replace it.
Install camshaft position sensor. Tighten sensor mounting screws to 13 N.m (115 in. lbs.) torque.
Carefully attach electrical connector to camshaft position sensor. Installation at an angle may damage the sensor pins.
Connect the PCV Valve hose.
Connect the negative battery cable.
