Removal - 4 Cylinder

The camshaft position sensor is mounted to the end of the cylinder head.

1. Remove the negative battery cable.
2. Disconnect the PCV hose and reposition.
3. Disconnect electrical connectors from the camshaft position sensor. See Fig 1.
   Fig 1: Cam Sensor/EGR Valve/PCV Valve

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - Camshaft Position Sensor

   2 - PCV Valve

   3 - EGR Valve and Transducer (if equipped)

4. Remove camshaft position sensor mounting screws. Remove sensor.
5. Loosen screw attaching target magnet to rear of camshaft and remove magnet. See Fig 2.

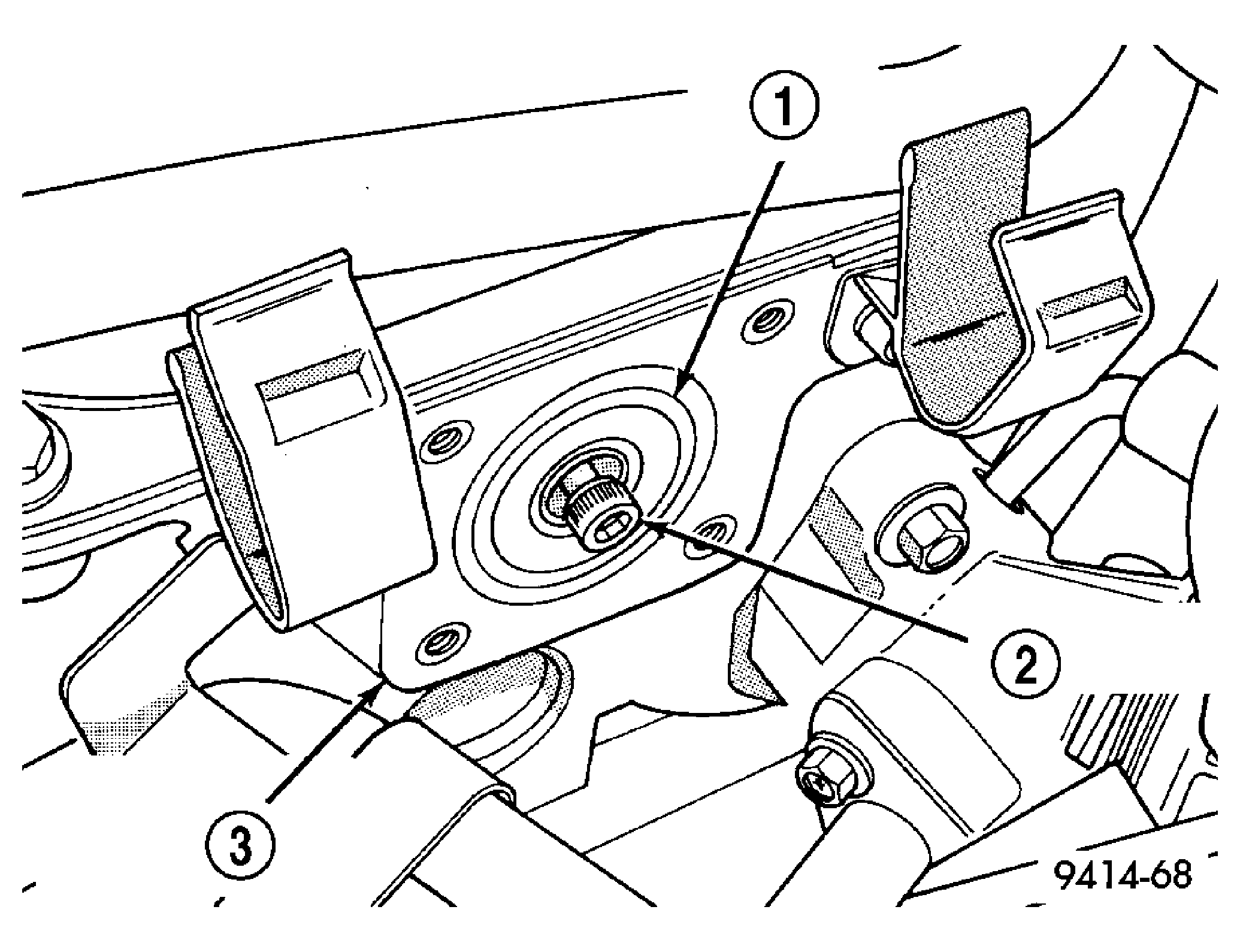

Fig 2: Target Magnet Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.
