Ignition Coil: Removal: 2.7L

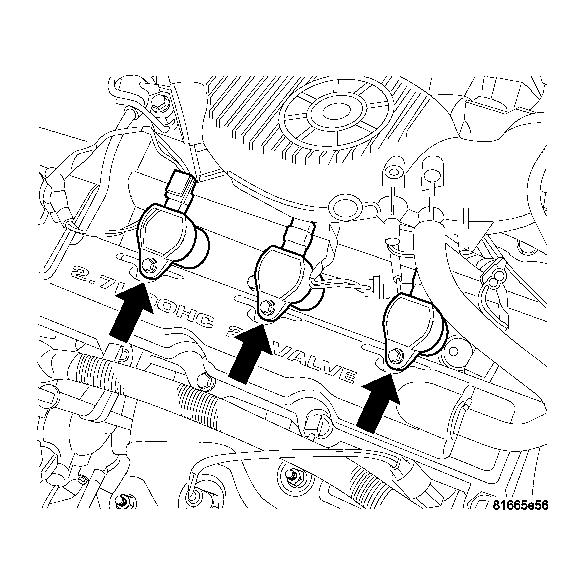

Fig 1: Ignition Coils, Coil Capacitor

Courtesy of DAIMLERCHRYSLER CORP.

Prior to removing the ignition coils, spray compressed air around the coil area and spark plug. See Fig 1.
Remove the air cleaner box. For 2.4L, (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) . For 2.7L, (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) .

Fig 2: Transmission Mount
Courtesy of DAIMLERCHRYSLER CORP.
Put floor jack under engine for support.
Loosen the transmission mount, do not remove bolts. See Fig 2.

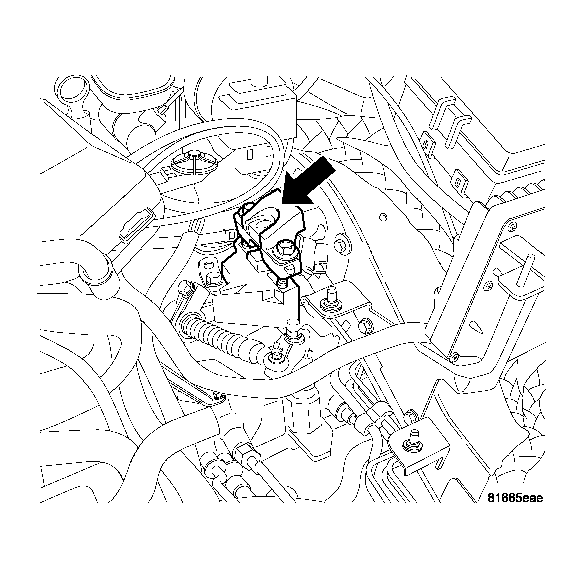

Fig 3: Loosened Transmission Mount
Courtesy of DAIMLERCHRYSLER CORP.
Lower engine and transmission. See Fig 3.

Fig 4: Removing Coil Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove 1 fastener from each ignition coil assembly, driver, center and passenger side coils. See Fig 4.

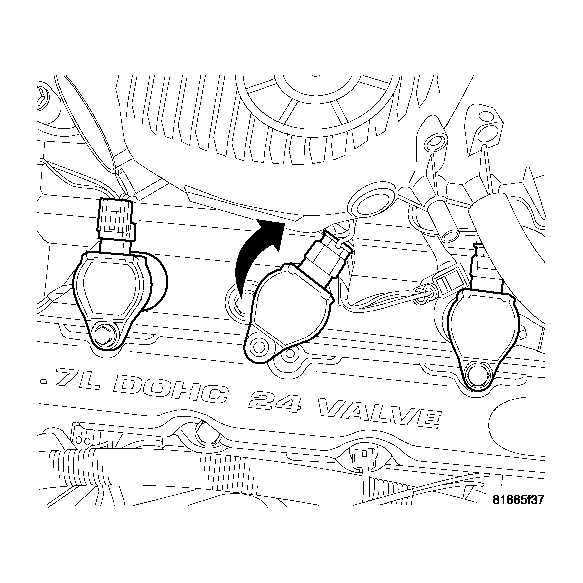

Fig 5: Rotating Center Coil
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connector from the passenger and driver side coils.
The center ignition coils will have to be rotated to remove the electrical connector. See Fig 5.

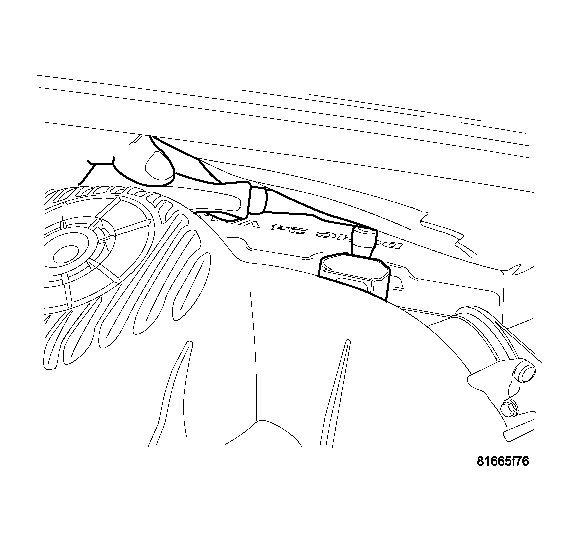

Fig 6: Locating Rear Driver Side Coil
Courtesy of DAIMLERCHRYSLER CORP.
Twist driver side coil assembly. See Fig 6.

Fig 7: Twisting Rear Driver Side Ignition Coil
Courtesy of DAIMLERCHRYSLER CORP.
Pull up and toward rear of vehicle. See Fig 7.

Fig 8: Removal Of Rear Driver Side Coil
Courtesy of DAIMLERCHRYSLER CORP.
Lift and remove from vehicle. See Fig 8.

Fig 9: Locating Rear Center Ignition Coil
Courtesy of DAIMLERCHRYSLER CORP.
Twist center coil assembly and pull straight up. See Fig 9.

Fig 10: Rear Center Coils Removal/Install
Courtesy of DAIMLERCHRYSLER CORP.
Tip center coil assembly toward driver side of vehicle and remove from vehicle. See Fig 10.

Fig 11: Locating Rear Passenger Side Coil
Courtesy of DAIMLERCHRYSLER CORP.
Twist passenger side coil assembly and pull straight up and out of vehicle. See Fig 11.
