Installation - 2.7L

The sensors screws into the cylinder block, directly below the intake manifold.

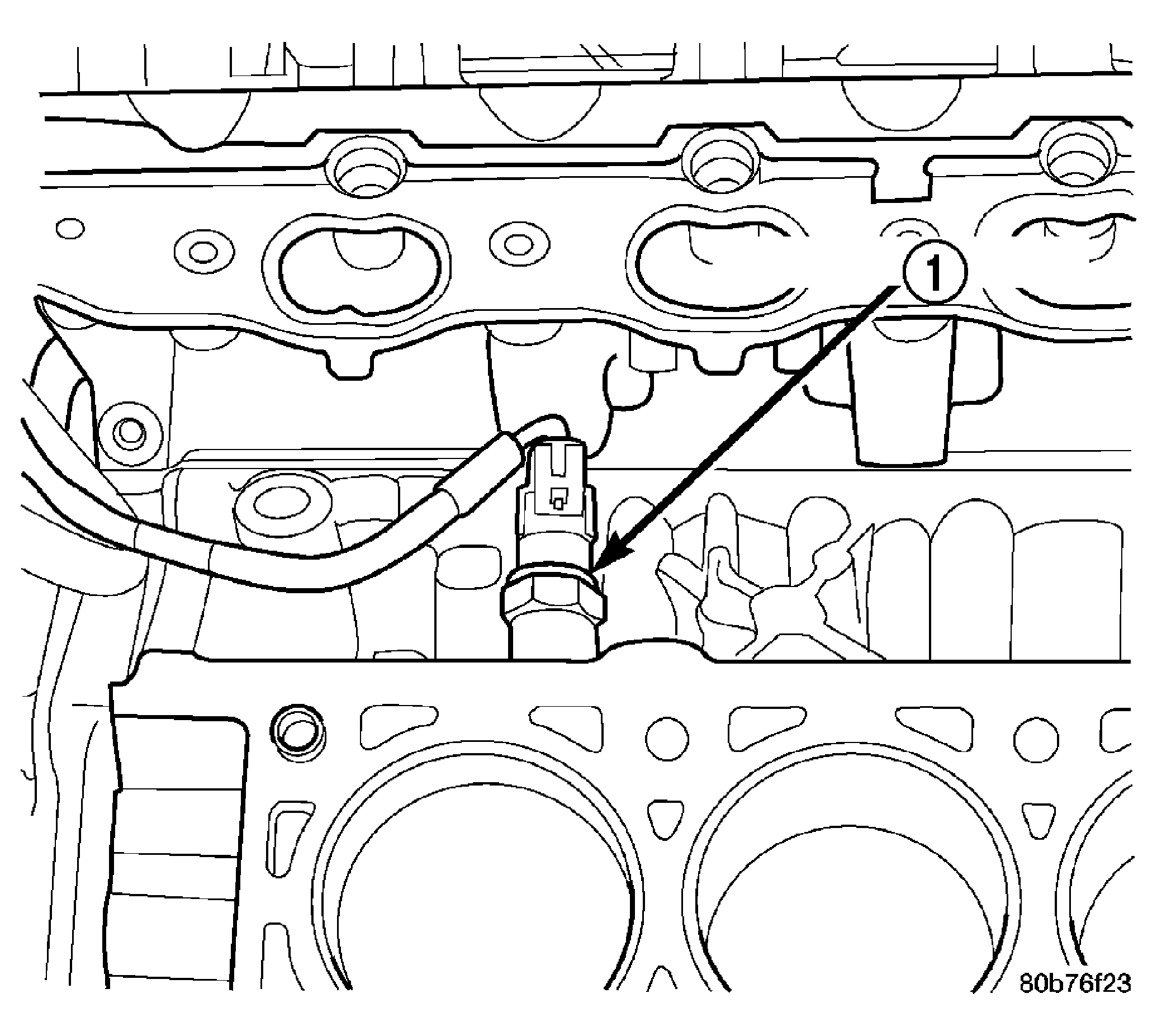

1. Install knock sensor. See Figure. Tighten knock sensor to 10 N.m (7 ft. lbs.) torque. Over or under tightening effects knock sensor performance resulting in possible improper spark control.
2. Install the passenger side cylinder head, refer to 2.7L DOHC - OVERHAUL article.
3. Attach electrical connector to knock sensor.
4. Install intake manifold plenum. Refer to 2.7L DOHC - OVERHAUL article.
