Connecting Tube: Removal

Remove air inlet duct to air cleaner box. See Fig 1.
Squeeze the quick connect on the tube to release it. See Fig 2.
Disconnect connector tube at air pump and one way check valve. See Fig 3 and Fig 4.
Remove connector tube, note routing of tube.

Fig 1: Air Cleaner Inlet Tube

Courtesy of DAIMLERCHRYSLER CORP.

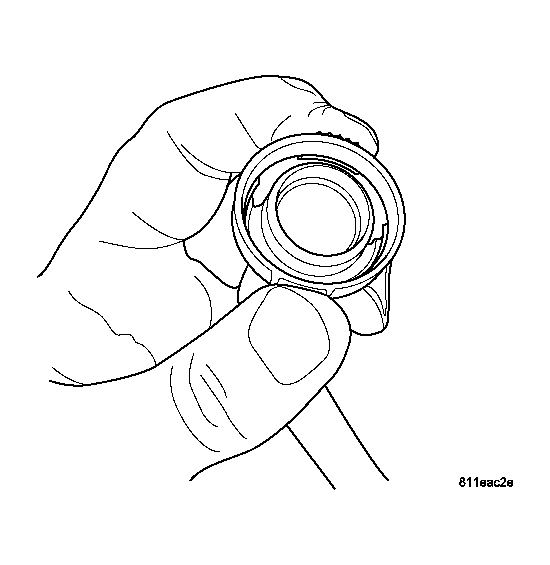

Fig 2: Connector Tube Quick Connect

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Air Pump Tube Connection

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Valve And Connector Hose

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Connector Tube Routing (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Connector Tube Routing (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Connector Tube Routing (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
