Mass Air Flow Sensor: Installation

Install the rubber mounting to MAF sensor.
Twist the MAF sideways and install to bracket. See Figure.

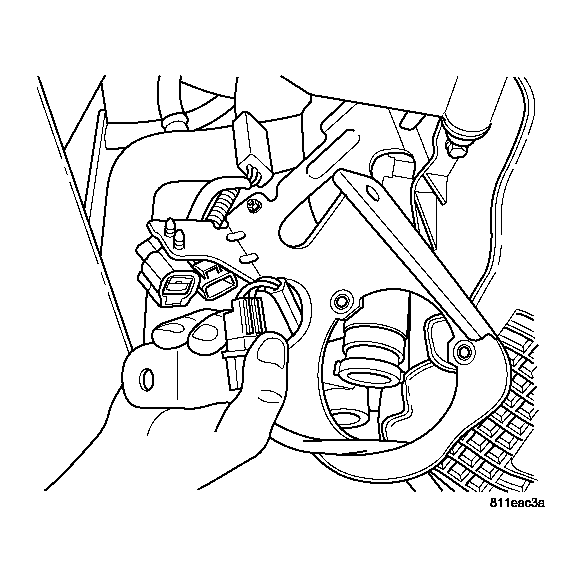

Fig 1: Removing/Installing Sensor From Bracket
Courtesy of DAIMLERCHRYSLER CORP.

Connect the electrical connector to MAF. See Figure.

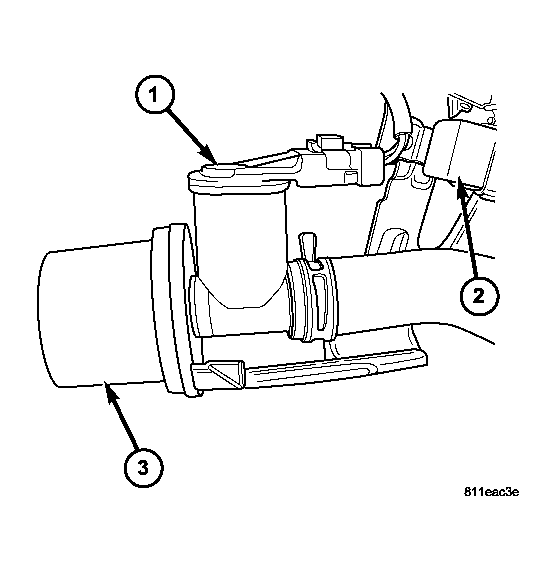

Fig 2: Mass Air Flow Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - Mass Air flow Sensor (MAF)

2 - Relay

2 - Inlet Filter

Install the bracket assembly. See Figure.

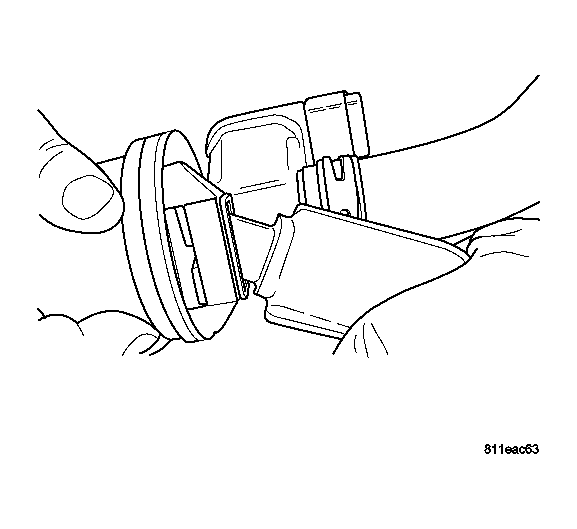

Fig 3: Remove/Install Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Install 2 bracket mounting bolts. See Figure.

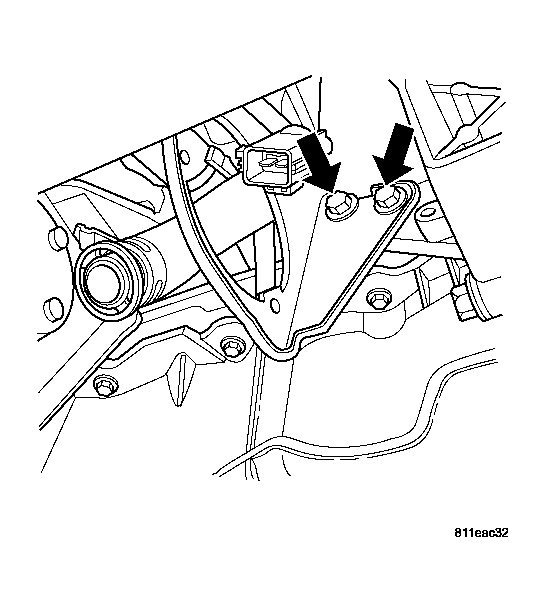

Fig 4: Mounting Bracket Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the air pump assembly, (Refer to EMISSIONS CONTROL/AIR INJECTION/PUMP - INSTALLATION)
Connect negative battery cable.
