One Way Check Valve: Removal

Location of One Way Check Valve and connector hose. See Fig 1.

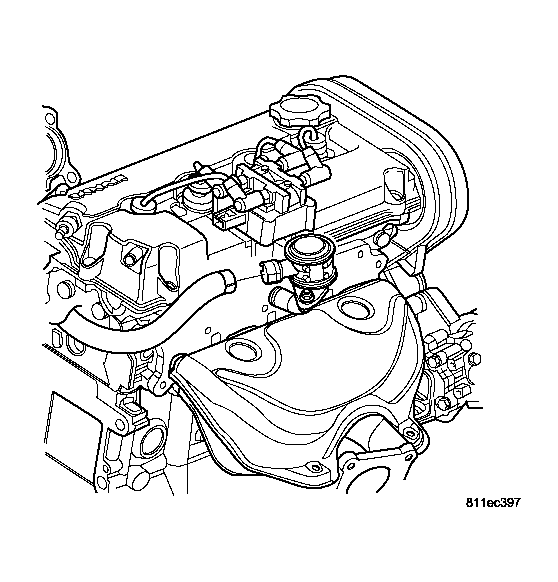

Fig 1: Valve And Connector Hose

Courtesy of DAIMLERCHRYSLER CORP.

1. Squeeze quick connector on the connecting tube and pull from check valve. See Fig 2.

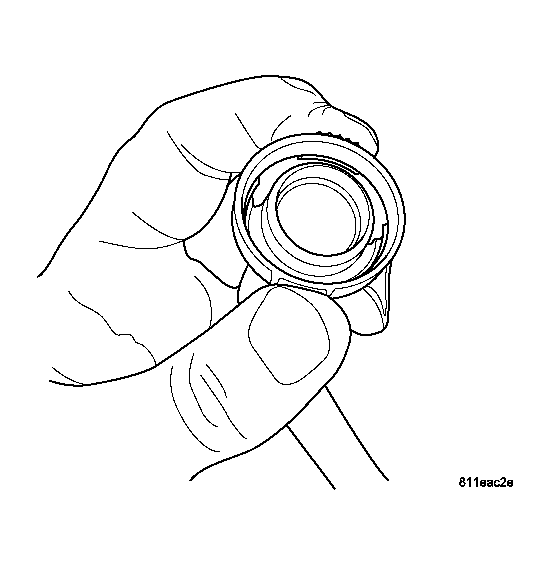

   Fig 2: Quick Connector Operation

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove the 2 check valve retaining screws.
3. Remove check valve from exhaust manifold.
