Air Injection: Pump: Description

The air pump assembly consist of a pump, mass air flow sensor (MAF), relay, bracket, and inlet filter. See Fig 1.

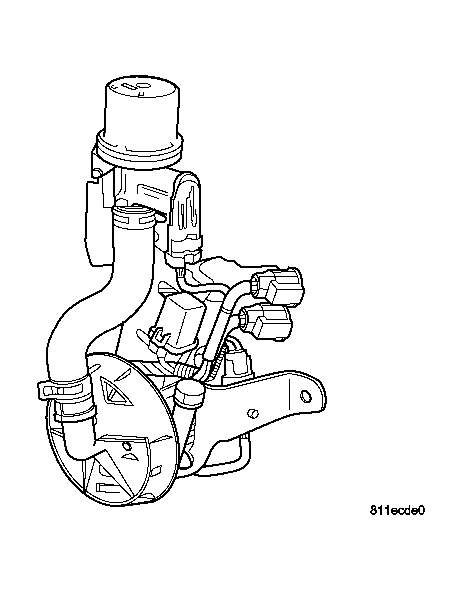

Fig 1: Pump Assembly
GC0031922Courtesy of DAIMLERCHRYSLER CORP.
