Air Injection: Pump: Installation

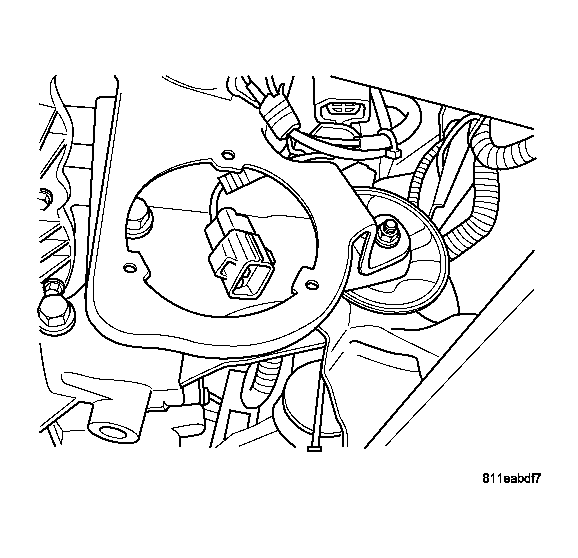

- Install air pump to vehicle. See Figure.
- Connect quick connect hose to inlet of air pump.

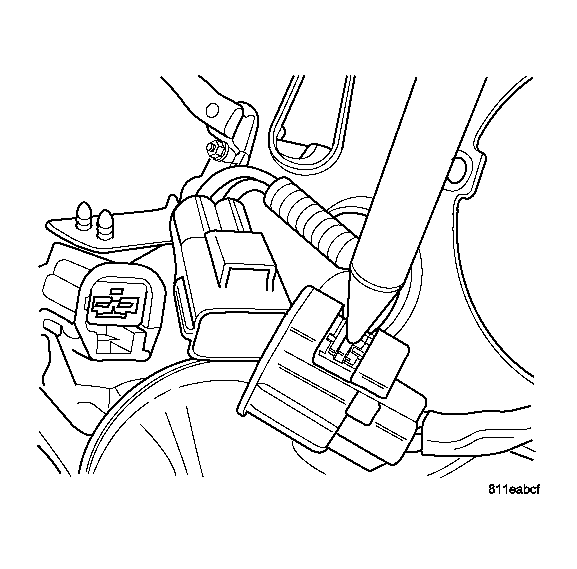

- Connect electrical connector. See Figure.

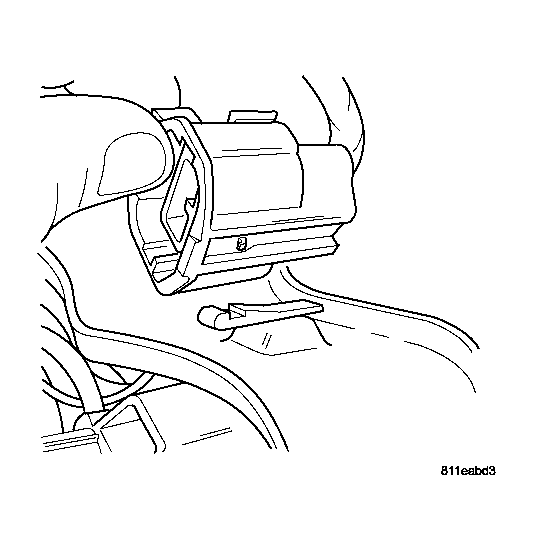

- Clip electrical connector to mounting bracket. See Figure.

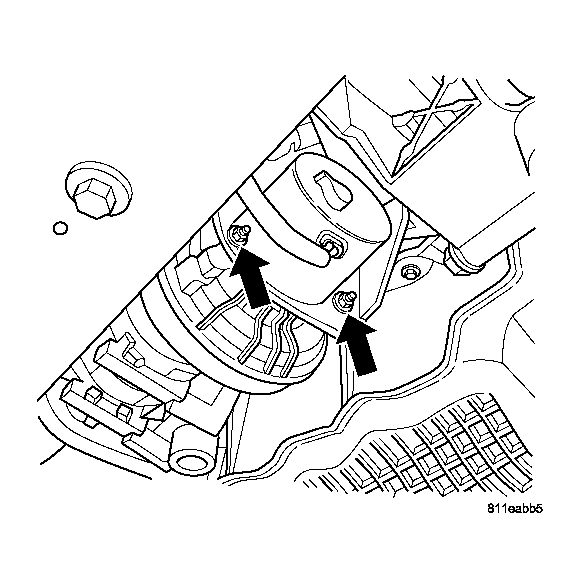

- Install 3 mounting nuts and tighten. See Figure.
- Lower vehicle.
- Connect quick connect hose to the top of air pump.
- Install air inlet tube for the air cleaner box.
- Connect negative battery cable.
