Air Injection: Pump: Removal

  1. Disconnect negative battery cable.
  2. Remove air inlet tube for the air cleaner box.
  3. Disconnect quick connect hose from the top of the air pump.
  4. Raise vehicle and support.
  5. Remove 3 mounting nuts. See Fig 1.
    Fig 1: Air Pump Mounting
    GC0031925Courtesy of DAIMLERCHRYSLER CORP.
  6. Unlock electrical connector. See Fig 2.

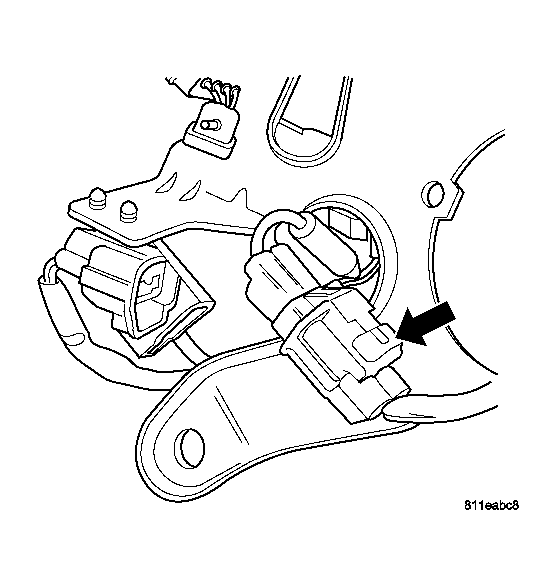

    Fig 2: Electrical Connector Locking Tab
    GC0031928Courtesy of DAIMLERCHRYSLER CORP.
  7. Unclip electrical connector from mounting bracket. See Fig 3.
    Fig 3: Connector Retaining Clip
    GC0031930Courtesy of DAIMLERCHRYSLER CORP.
  8. Press tab and disconnect electrical connector. See Fig 4.
    Fig 4: Depress Tab On Connector
    GC0031929Courtesy of DAIMLERCHRYSLER CORP.
  9. Disconnect quick connect hose from inlet of the air pump.
  10. Remove air pump from vehicle. See Fig 5.
Fig 5: Air Pump Removed
GC0031931Courtesy of DAIMLERCHRYSLER CORP.
