1/1 O2 Sensor Location Location (2.0L/2.4L)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1/1 O2 Sensor Location Location (2.0L/2.4L)

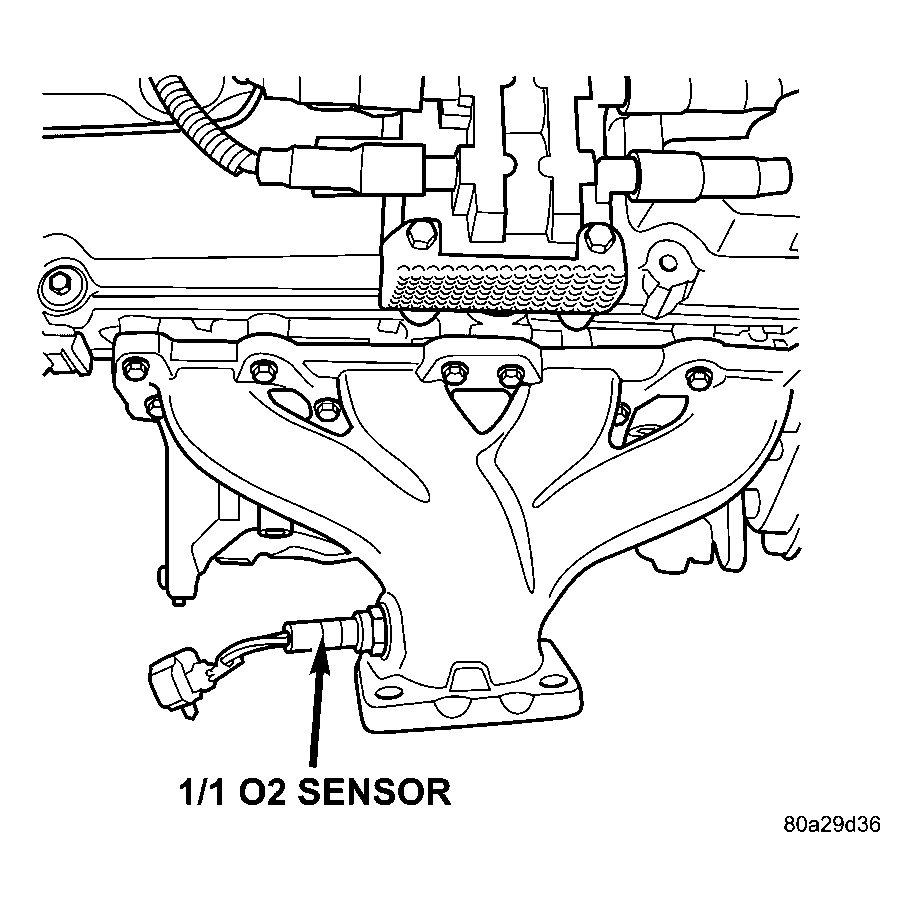

Fig 1: Identifying 1/1 O2 Sensor (2.0L/2.4L)
