Power Distribution Center

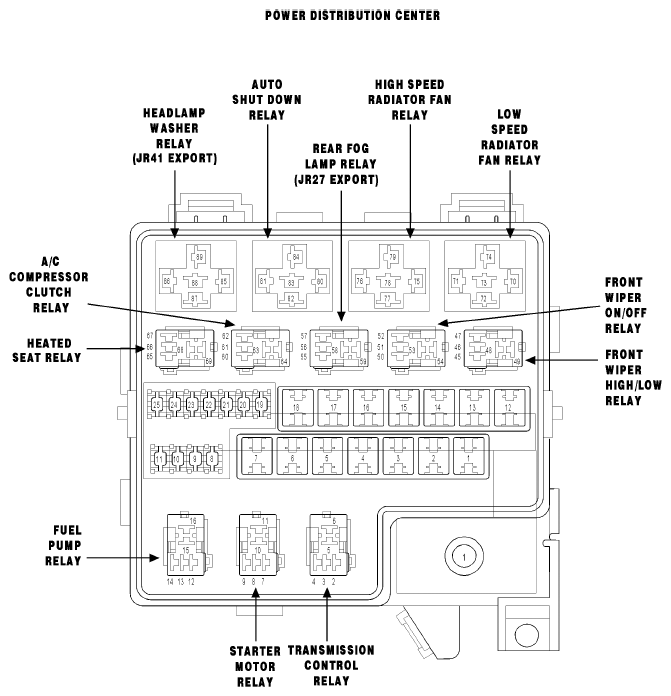

Fig 1: Power Distribution Center

G04762592

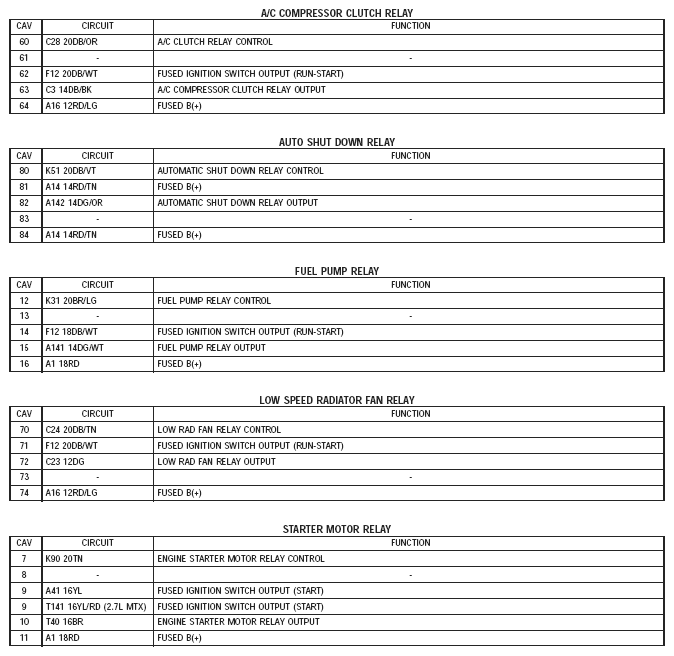

Fig 2: Identifying Connector Pinouts - Power Distribution Center Relays

G04762593
