Integrated Power Module

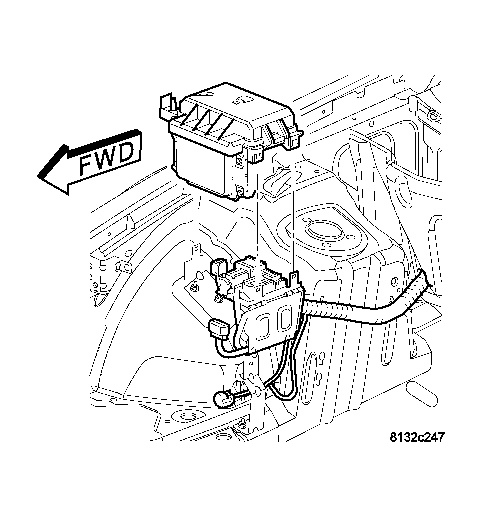

Fig 1: IPM Retaining Clips
GC0016848Courtesy of CHRYSLER LLC
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to STANDARD PROCEDURE .
  1. Position Integrated Power Module (IPM) to vehicle. Engage the three retaining clips.

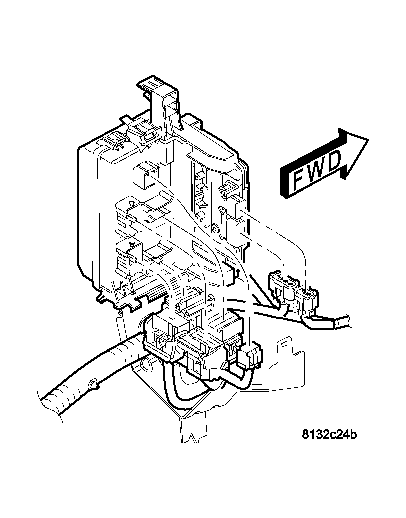

    Fig 2: Integrated Power Module
    GC0016849Courtesy of CHRYSLER LLC
  2. Disengage the outboard retaining clip and rotate the IPM to access wire harness connectors.
  3. Connect electrical harness connectors to IPM.

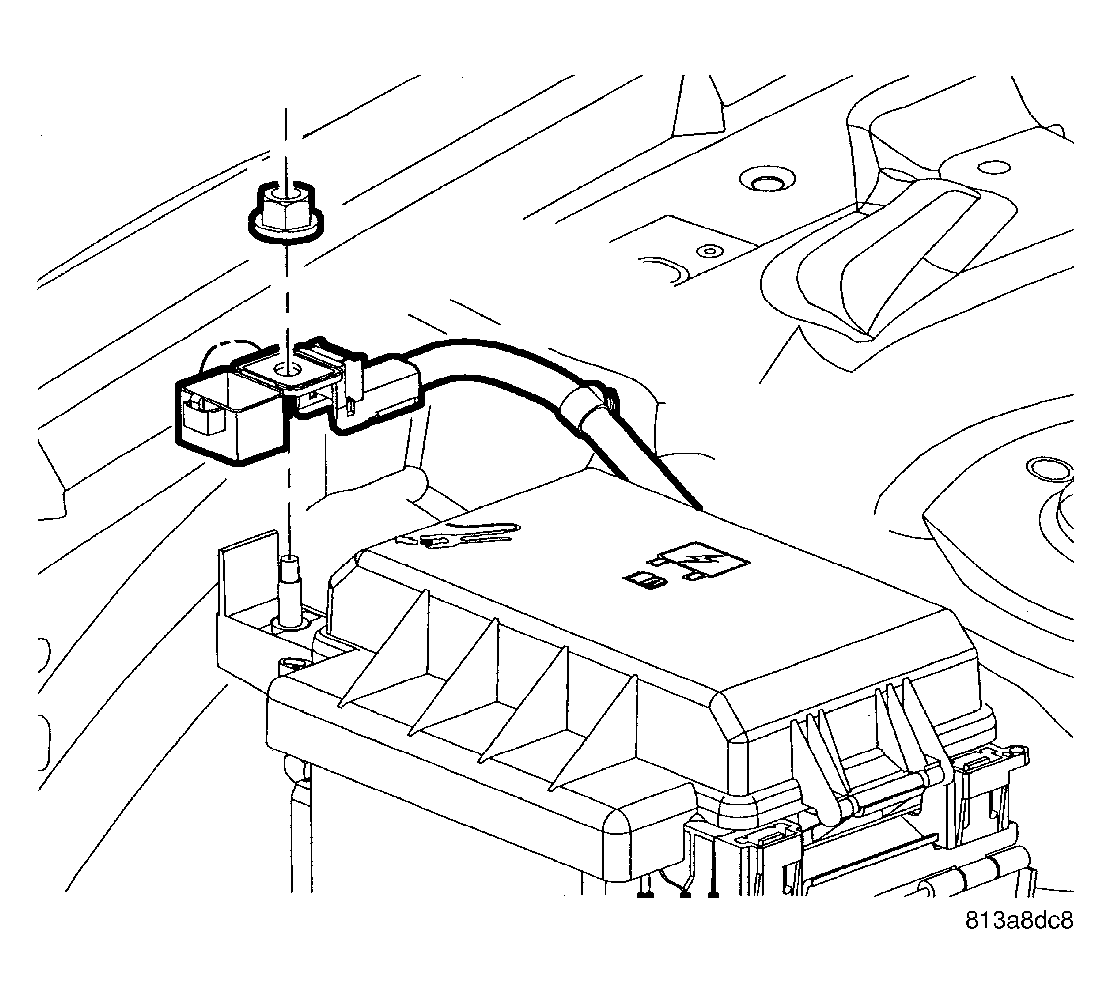

    Fig 3: Disconnecting/Connecting Negative Battery Cable
    GC0016847Courtesy of CHRYSLER LLC
  4. Connect battery cable to IPM.
  5. Install and tighten retaining nut.
  6. Close the battery cable nut cover.

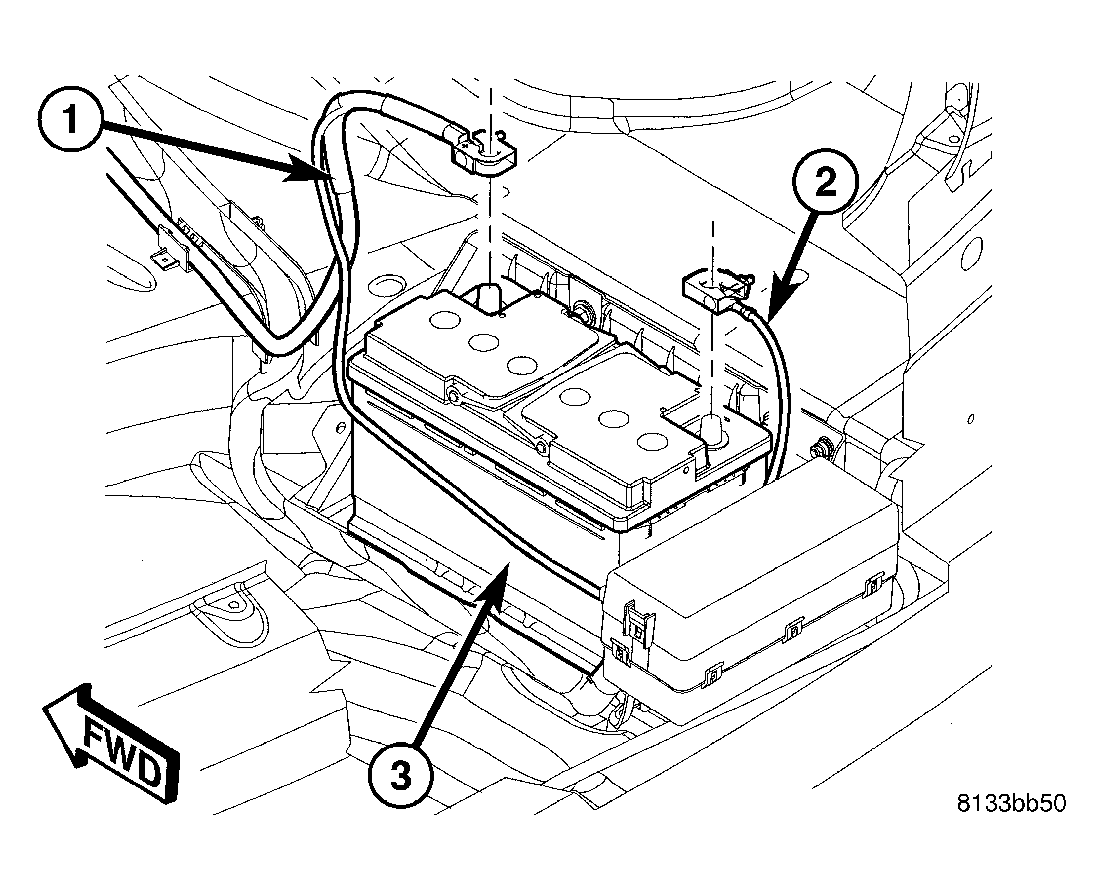

    Fig 4: Battery & Cables
    GC0016851Courtesy of CHRYSLER LLC
  7. Connect battery negative cable (2).
