Integrated Power Module

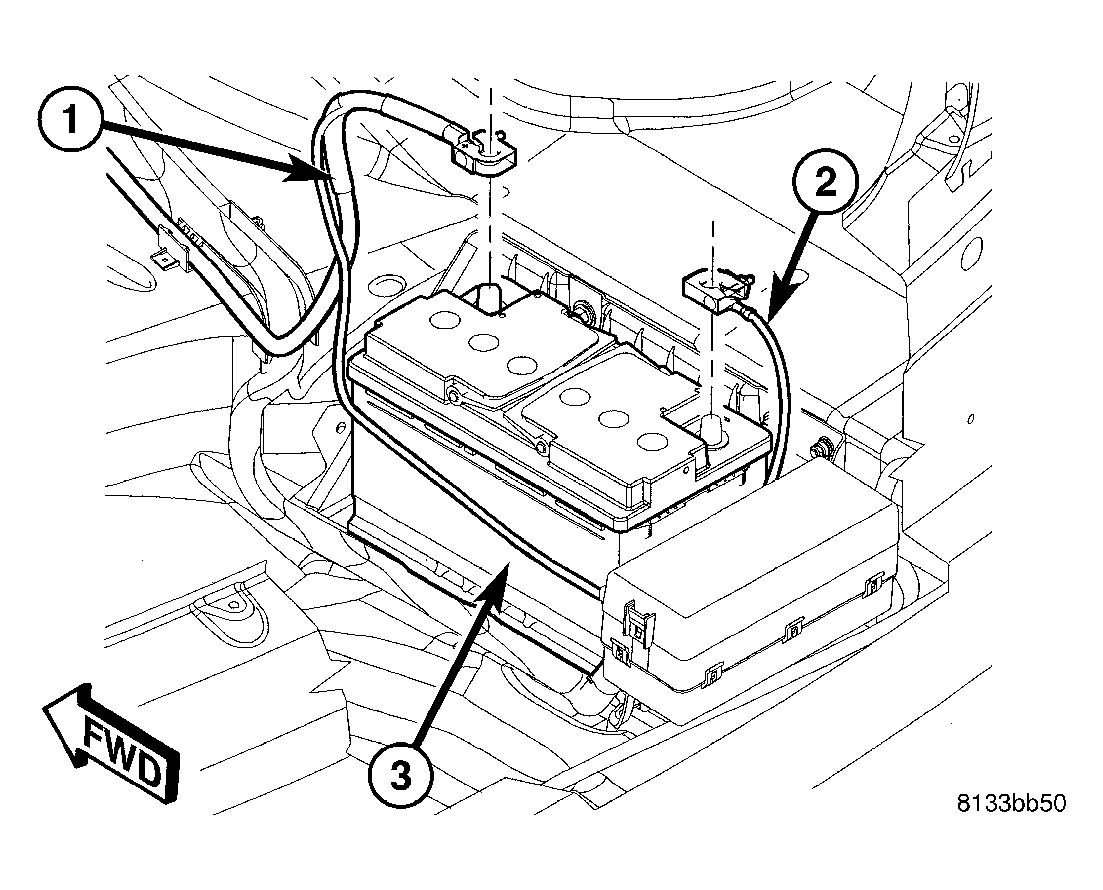

Fig 1: Battery & Cables
GC0016846Courtesy of CHRYSLER LLC
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to STANDARD PROCEDURE .
  1. Disconnect and isolate the battery negative cable (2).
    Fig 2: Disconnecting/Connecting Negative Battery Cable
    GC0016847Courtesy of CHRYSLER LLC
  2. Open the battery cable nut cover to expose nut.
  3. Remove battery cable nut and battery cable from the Integrated Power Module (IPM).

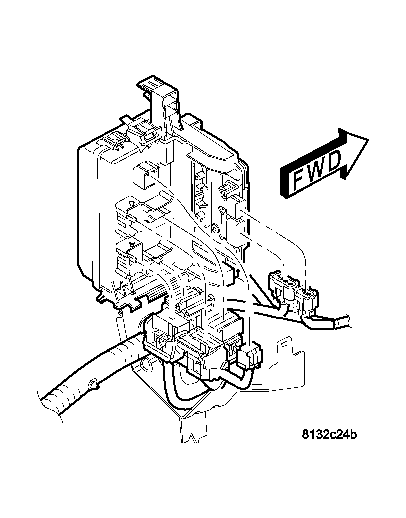

    Fig 3: Integrated Power Module
    GC0016844Courtesy of CHRYSLER LLC
  4. Disengage the outboard retaining clip, and rotate the IPM to access wire harness connectors.
  5. Disconnect wire harness connectors from IPM.
  6. Disengage the two inboard retaining clips.

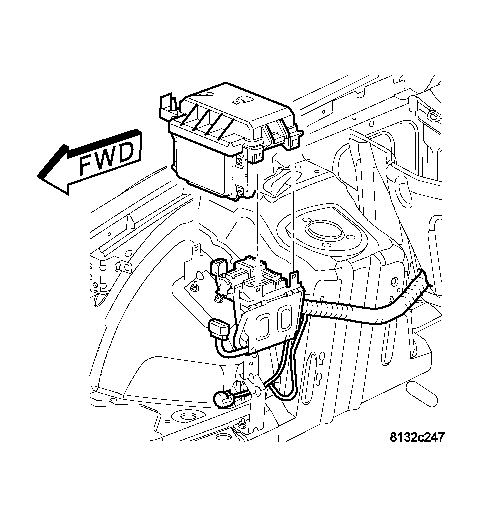

    Fig 4: IPM Retaining Clips
    GC0016843Courtesy of CHRYSLER LLC
  7. Remove IPM from vehicle.
