Generator - 3.5L

  1. Disconnect negative battery cable.
  2. Remove generator drive belt. Refer to ACCESSORY DRIVE .

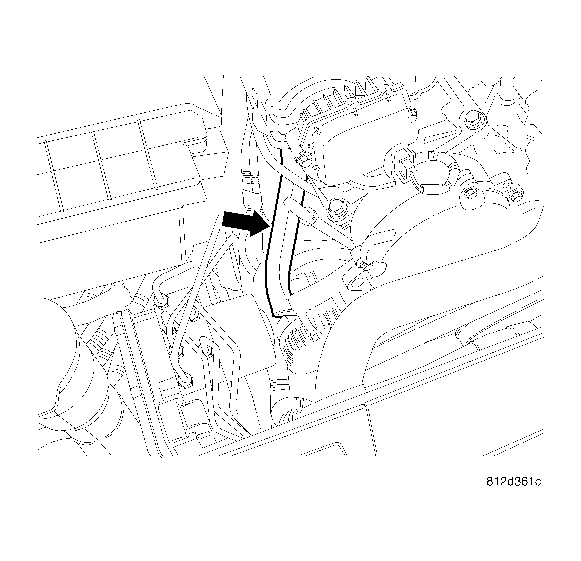

    Fig 1: Upper Bracket
    GC0015636Courtesy of CHRYSLER LLC
  3. Remove bracket bolts.
  4. Remove upper mounting bolt.
  5. Raise and support vehicle.
  6. Remove middle splash pan.
    Fig 2: Battery Connection
    GC0015635Courtesy of CHRYSLER LLC
  7. Disconnect generator field circuit plug.
  8. Remove B+ terminal nut and wire.

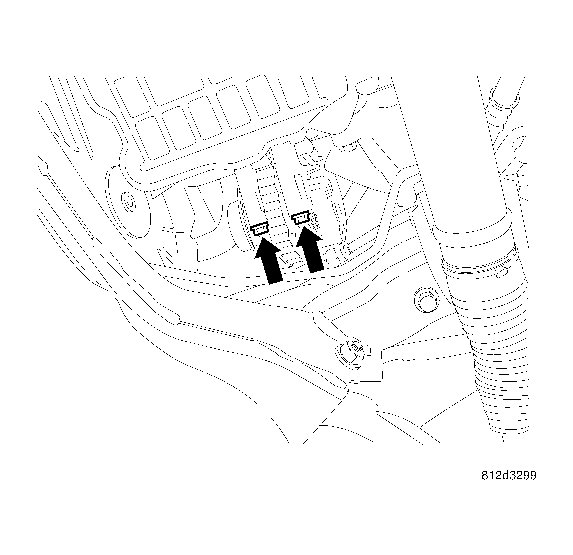

    Fig 3: Generator
    GC0015634Courtesy of CHRYSLER LLC
  9. Remove lower mounting bolts.
    Fig 4: Removing/Installing Starter
    GC0015633Courtesy of CHRYSLER LLC
  10. Remove generator.
