Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

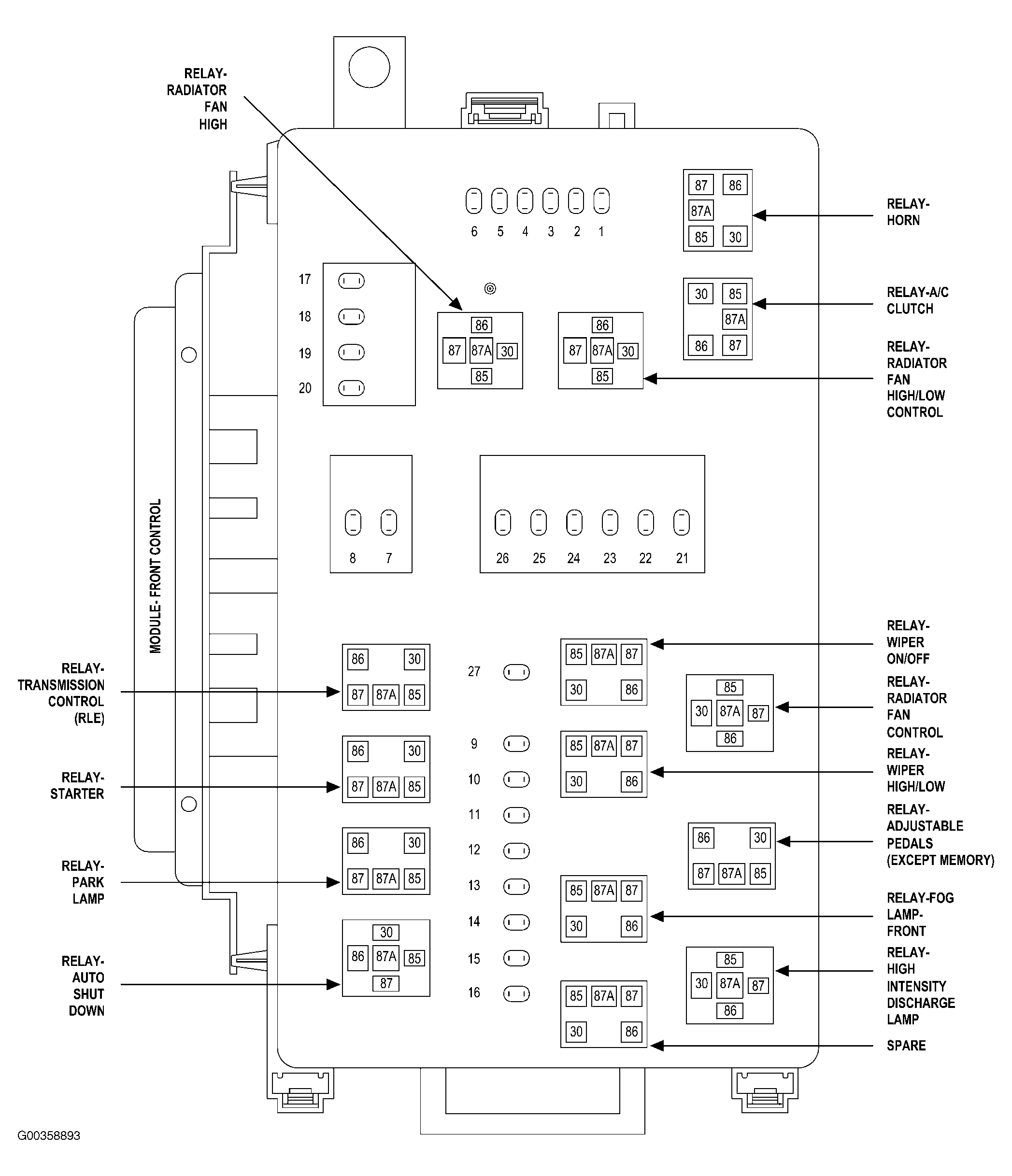

Fig 1: Integrated Power Module

G00358893

Courtesy of DAIMLERCHRYSLER CORP.

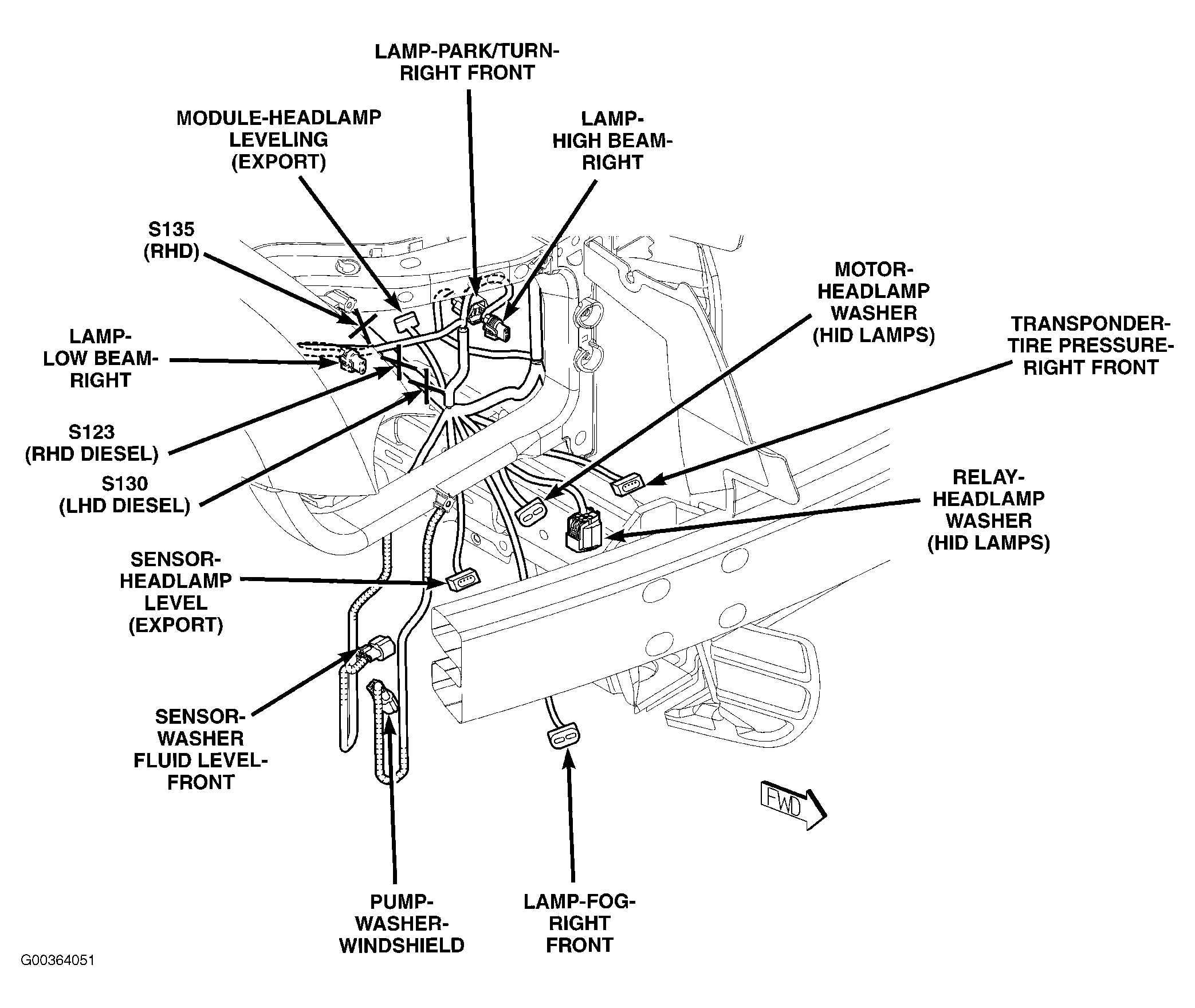

Fig 2: Right Front Of Engine Compartment

G00364051

Courtesy of DAIMLERCHRYSLER CORP.

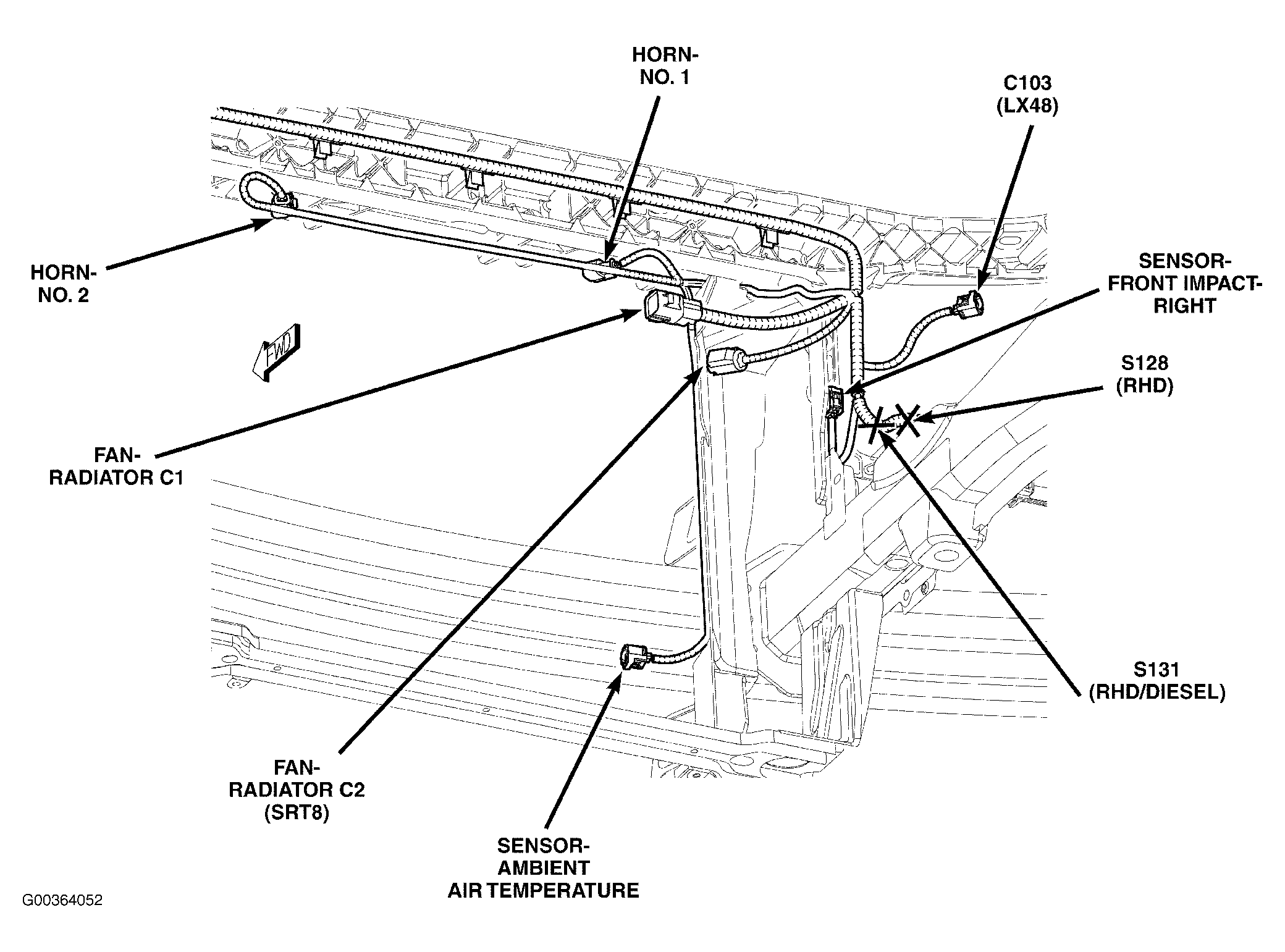

Fig 3: Right Front Of Engine Compartment

G00364052

Courtesy of DAIMLERCHRYSLER CORP.

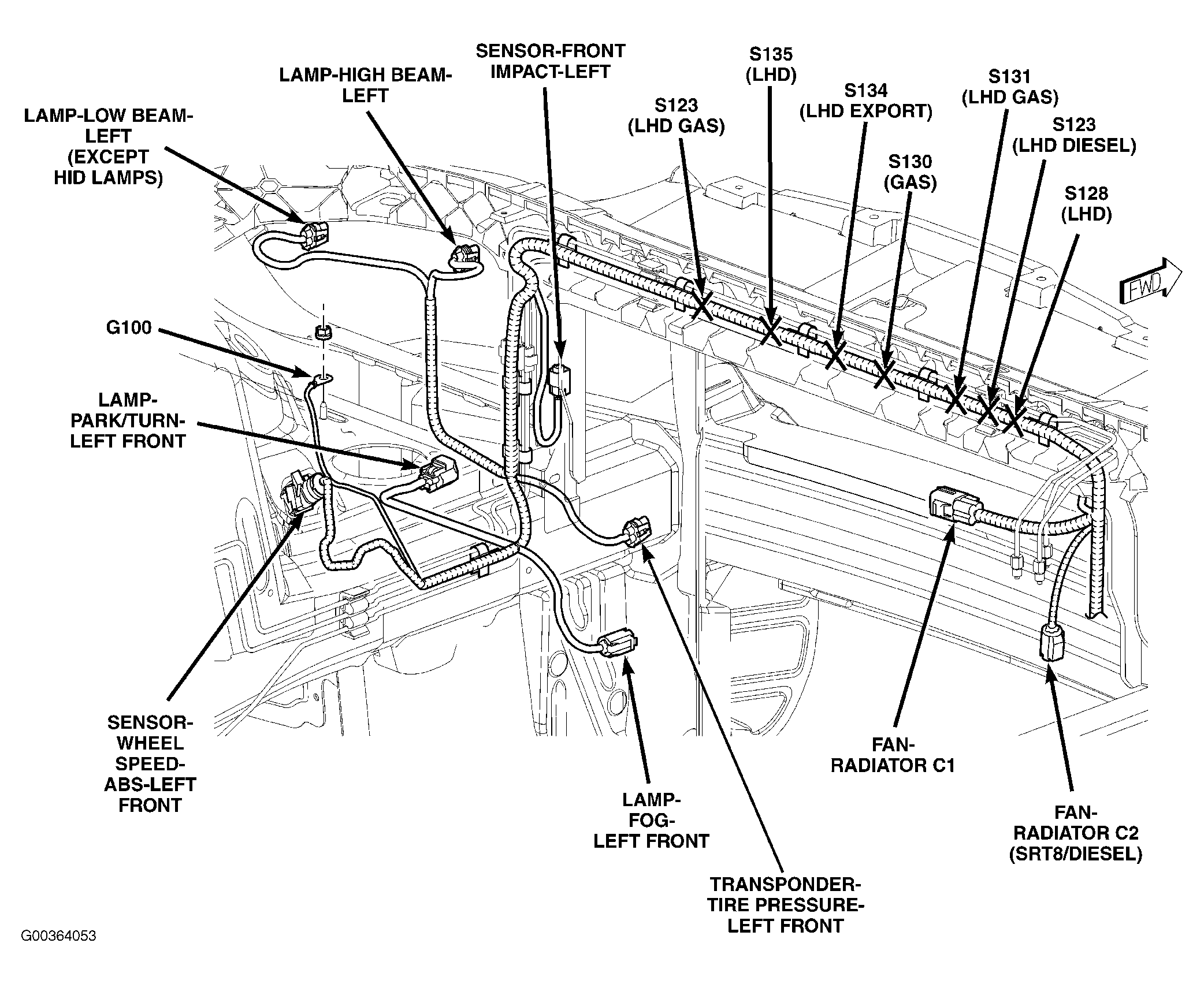

Fig 4: Front Of Engine Compartment

G00364053

Courtesy of DAIMLERCHRYSLER CORP.

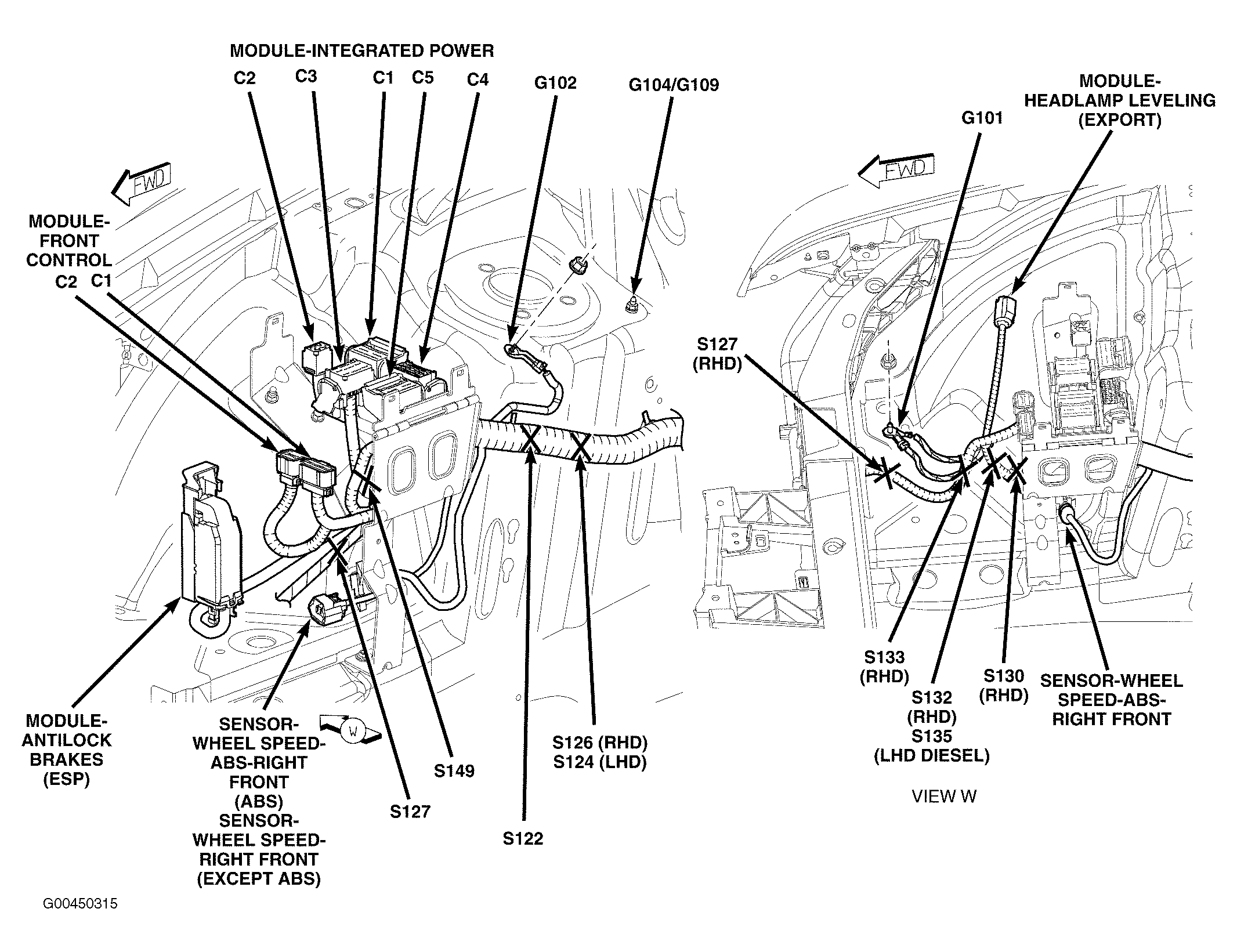

Fig 5: Right Side Of Engine Compartment

G00450315

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Right Inner Fender Shield

G00450324

Courtesy of DAIMLERCHRYSLER CORP.

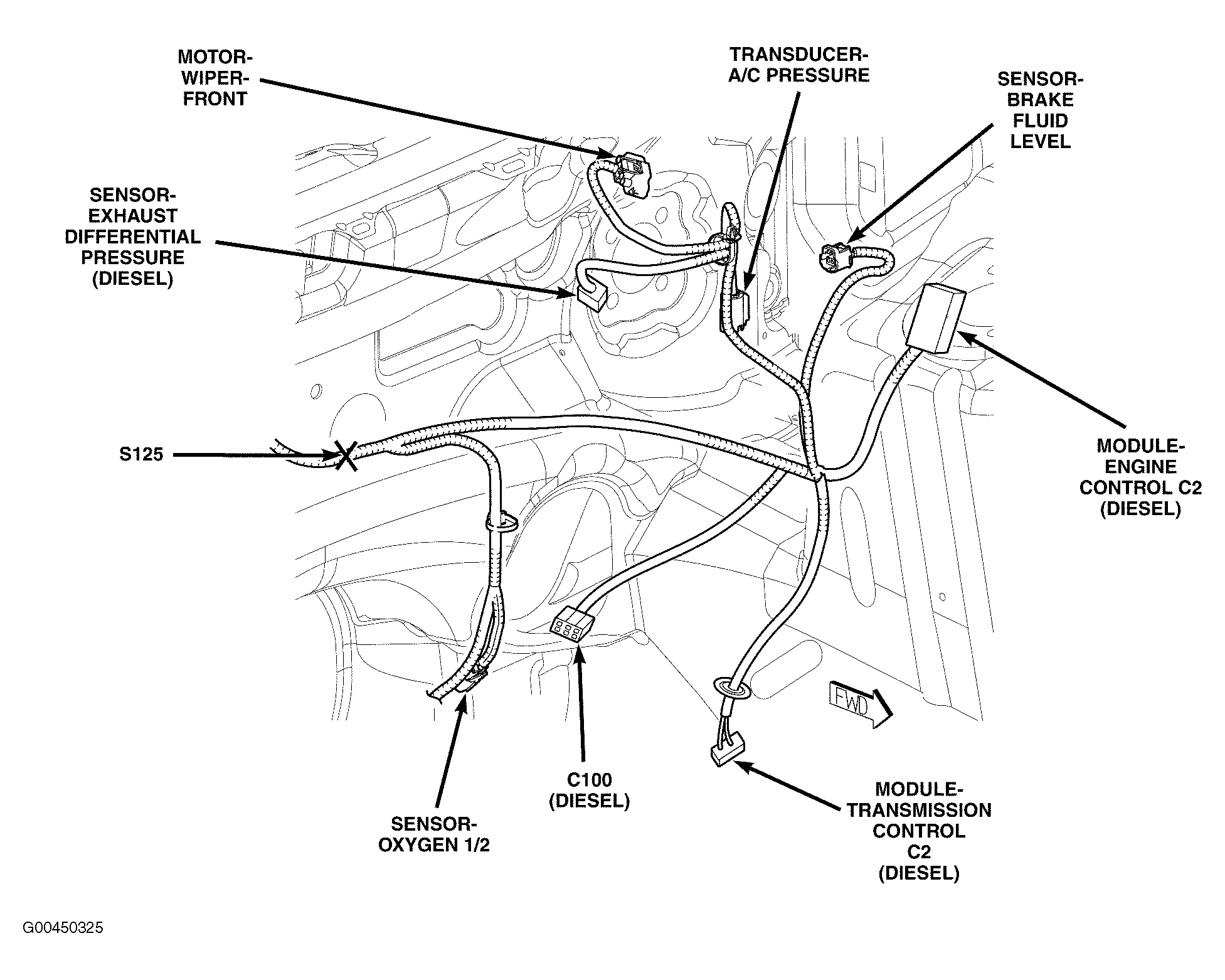

Fig 7: Left Rear Of Engine Compartment

G00450325

Courtesy of DAIMLERCHRYSLER CORP.

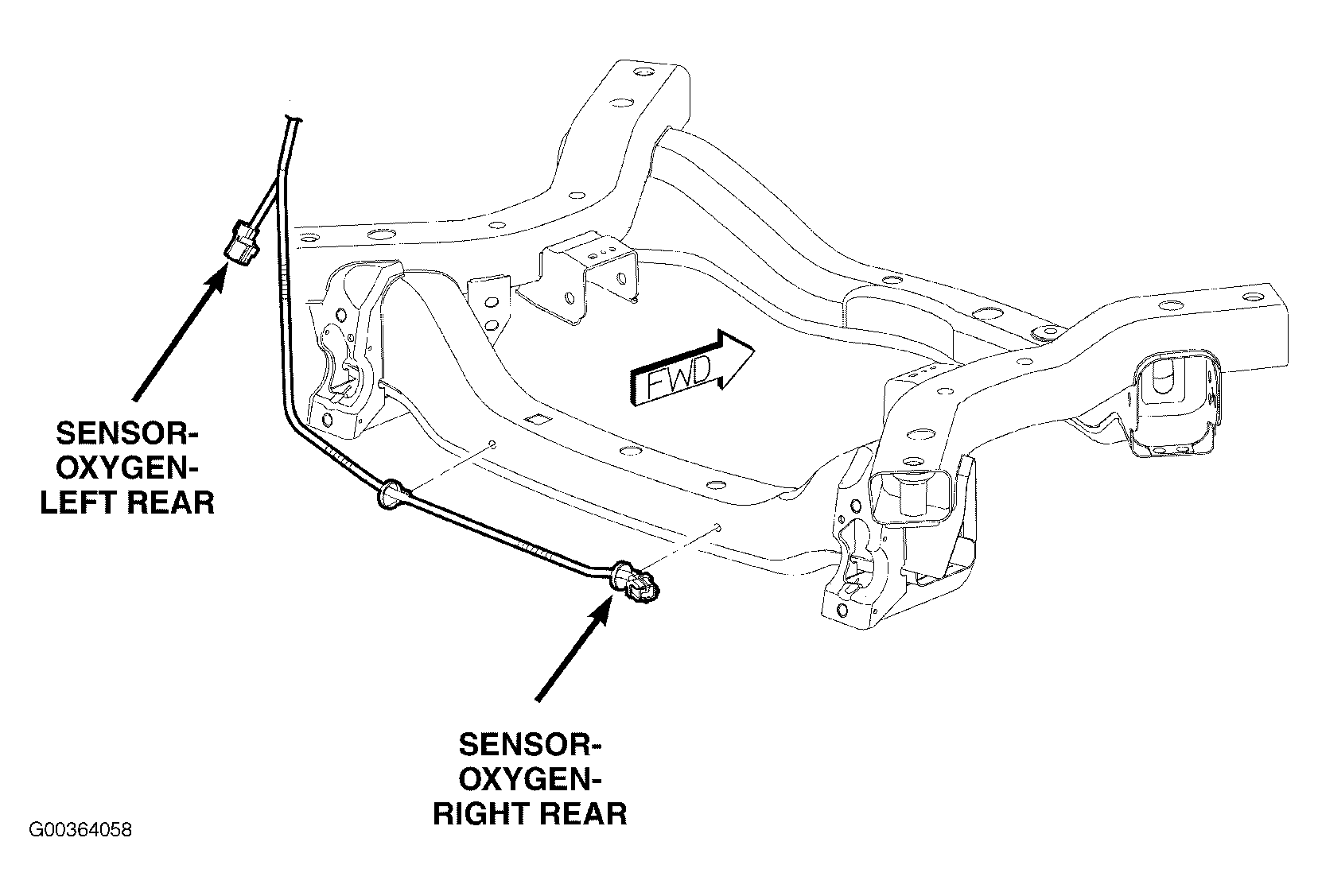

Fig 8: Rear Of Engine Compartment (V8)

G00364058

Courtesy of DAIMLERCHRYSLER CORP.

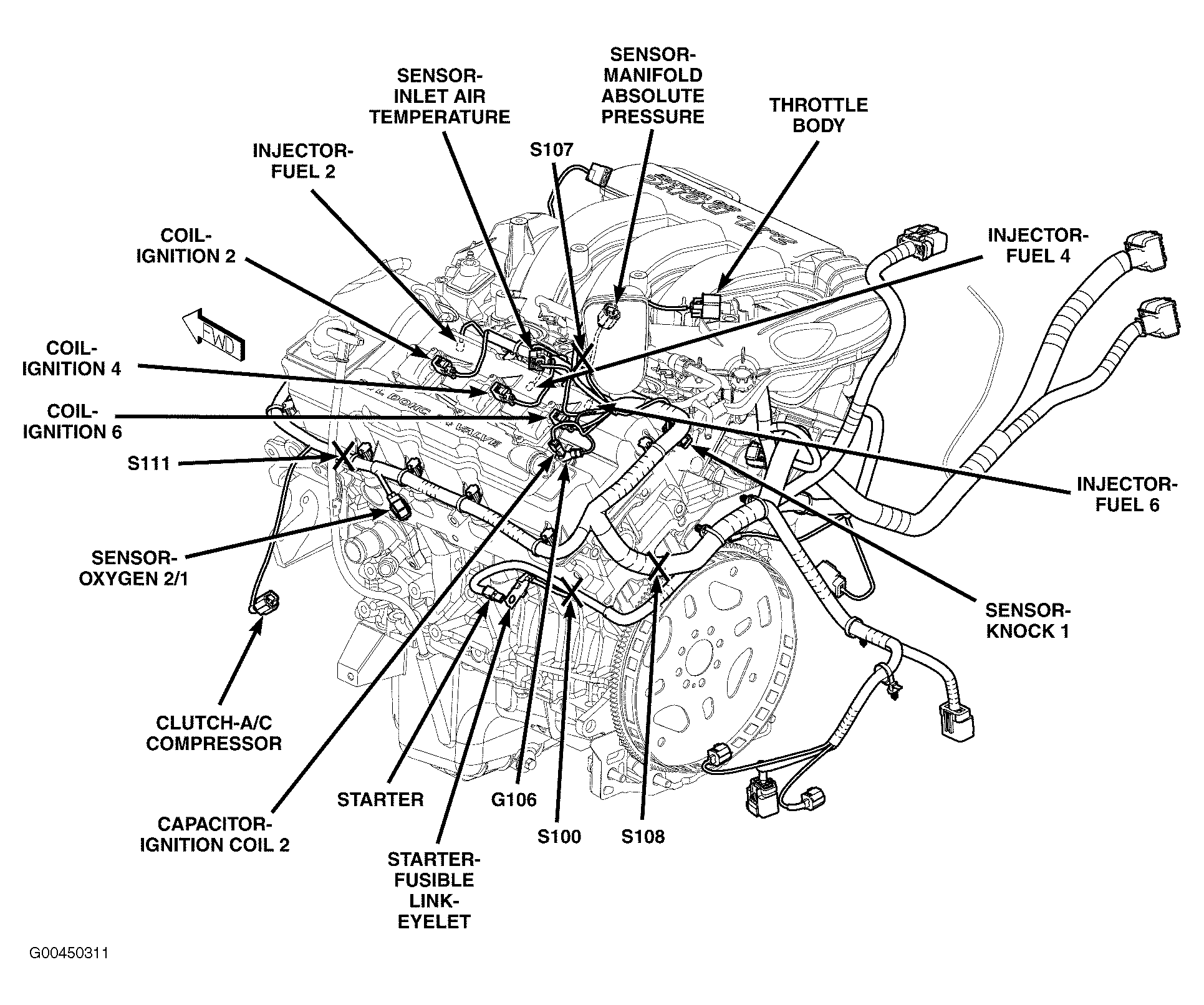

Fig 9: Right Rear Of Engine (2.7L)

G00450311

Courtesy of DAIMLERCHRYSLER CORP.

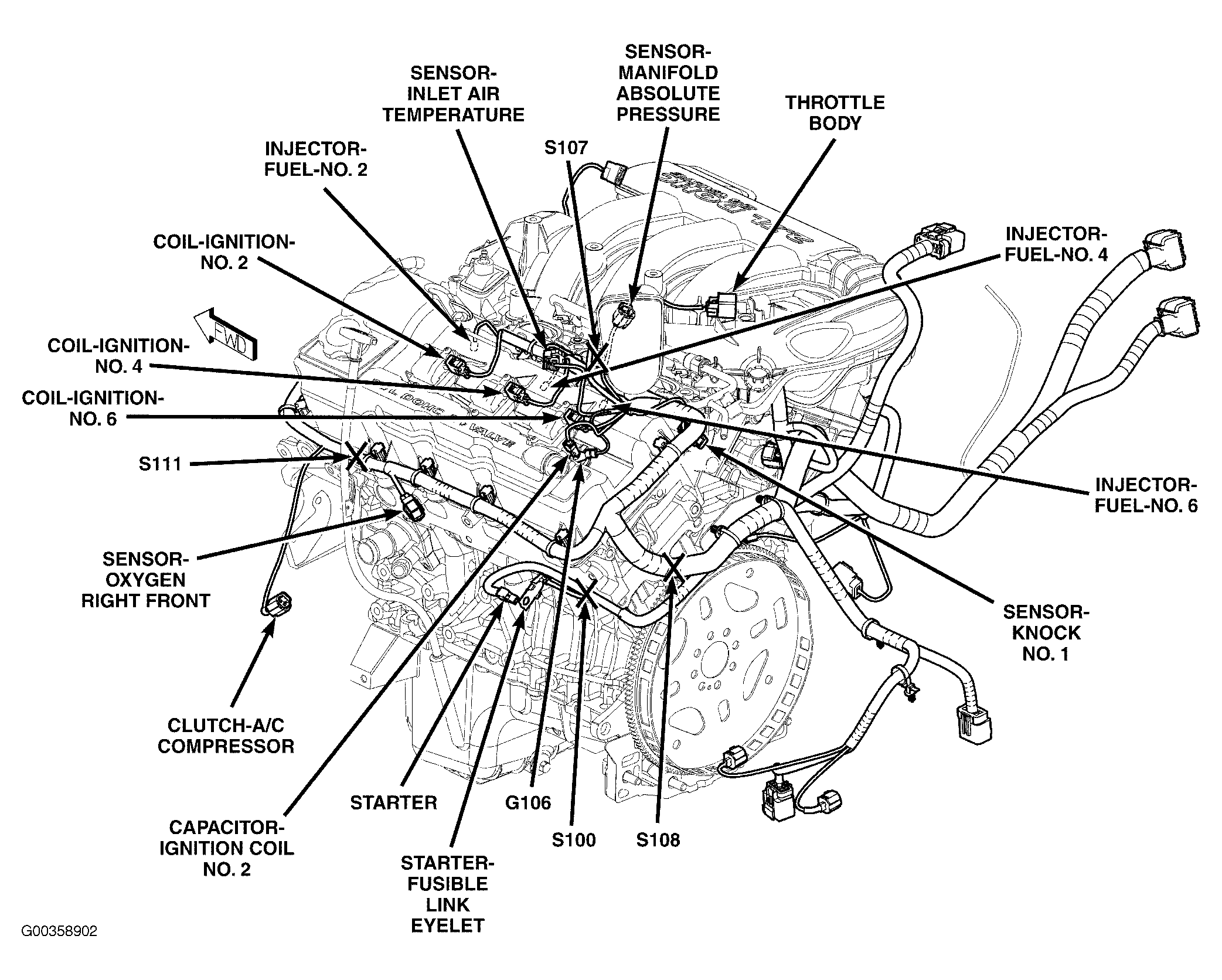

Fig 10: Left Rear Of Engine (2.7L)

G00358902

Courtesy of DAIMLERCHRYSLER CORP.

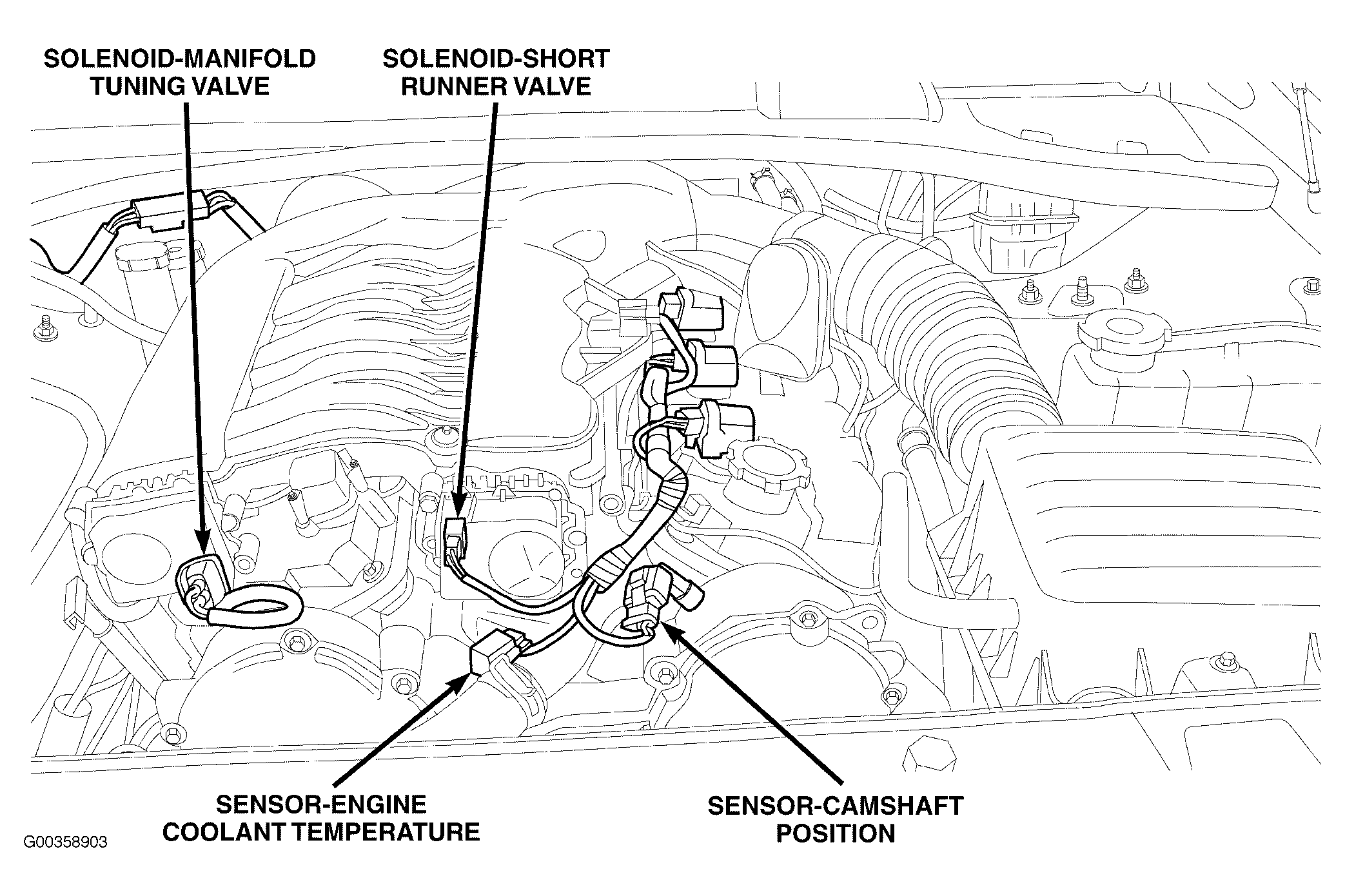

Fig 11: Front Of Engine (3.5L)

G00358903

Courtesy of DAIMLERCHRYSLER CORP.

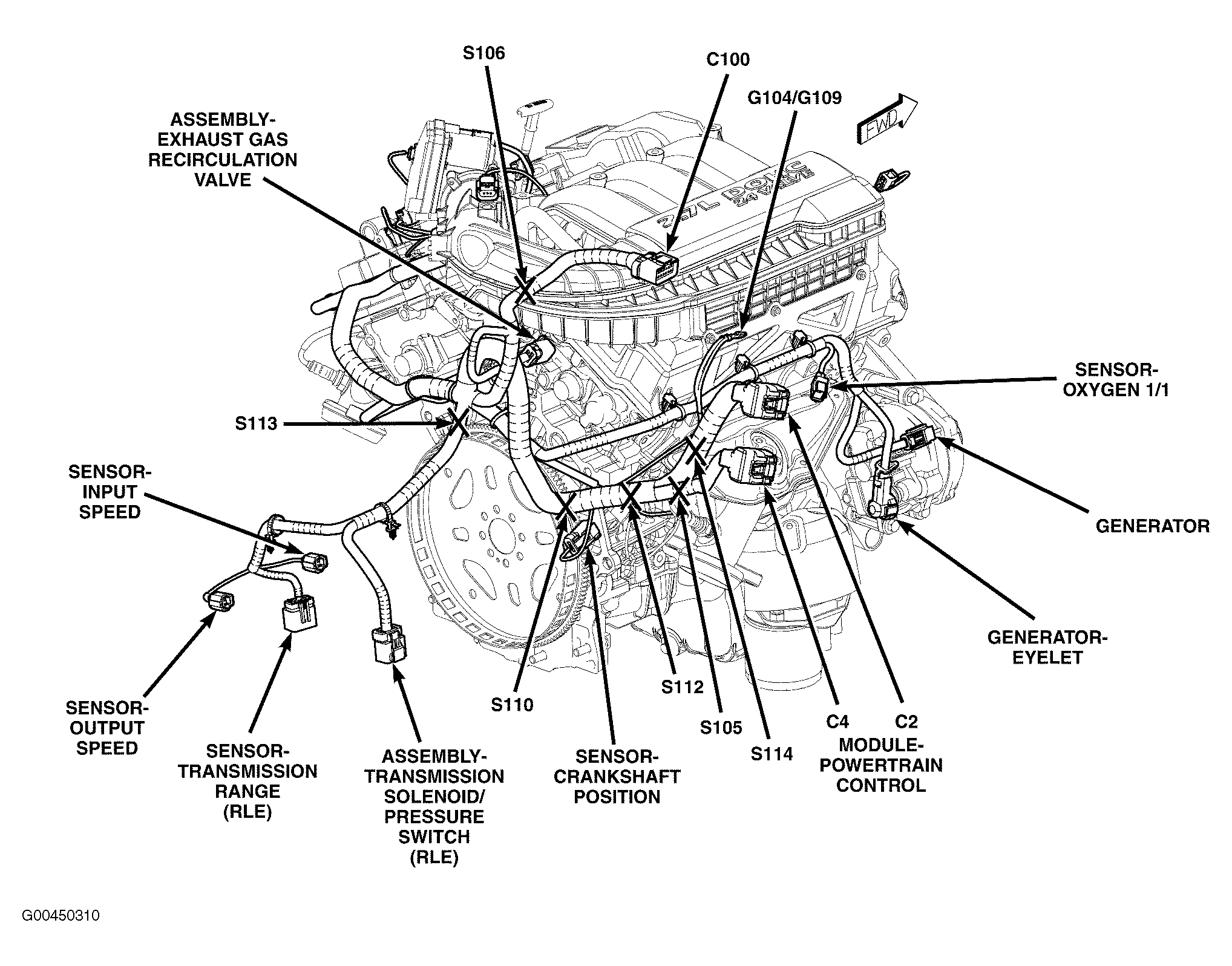

Fig 12: Right Rear Of Engine (3.5L)

G00450310

Courtesy of DAIMLERCHRYSLER CORP.

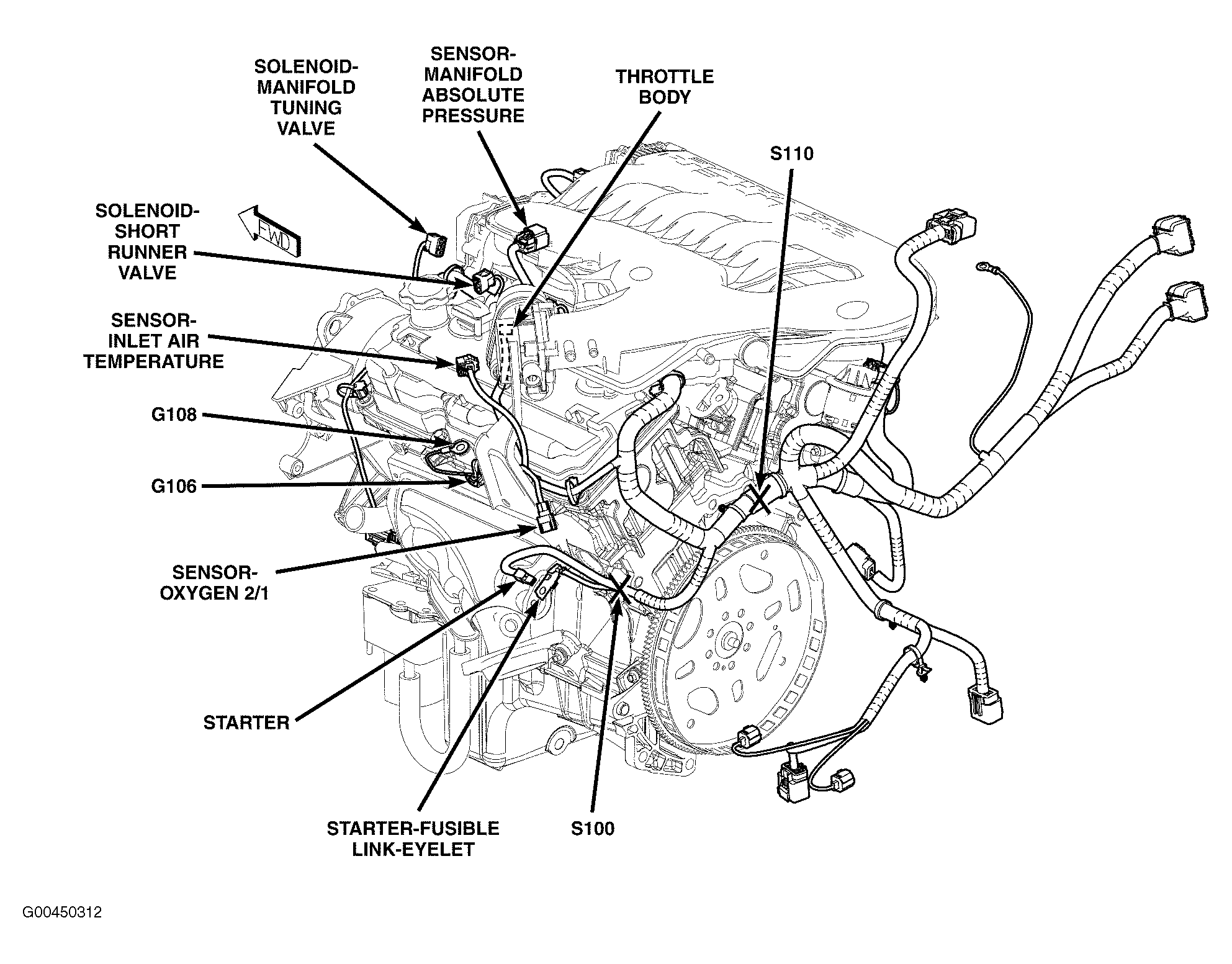

Fig 13: Left Rear Of Engine (3.5L)

G00450312

Courtesy of DAIMLERCHRYSLER CORP.

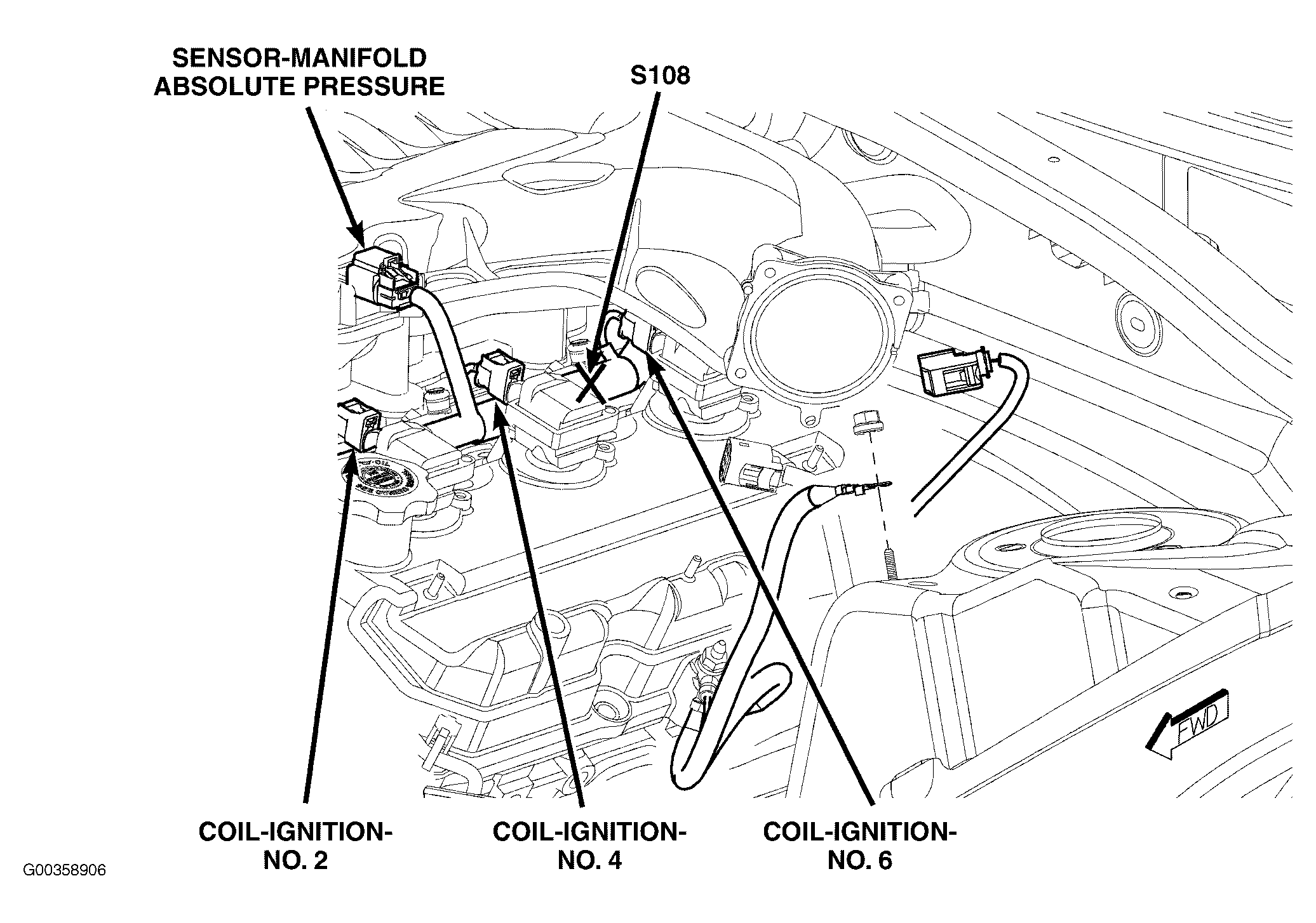

Fig 14: Left Side Of Engine (3.5L)

G00358906

Courtesy of DAIMLERCHRYSLER CORP.

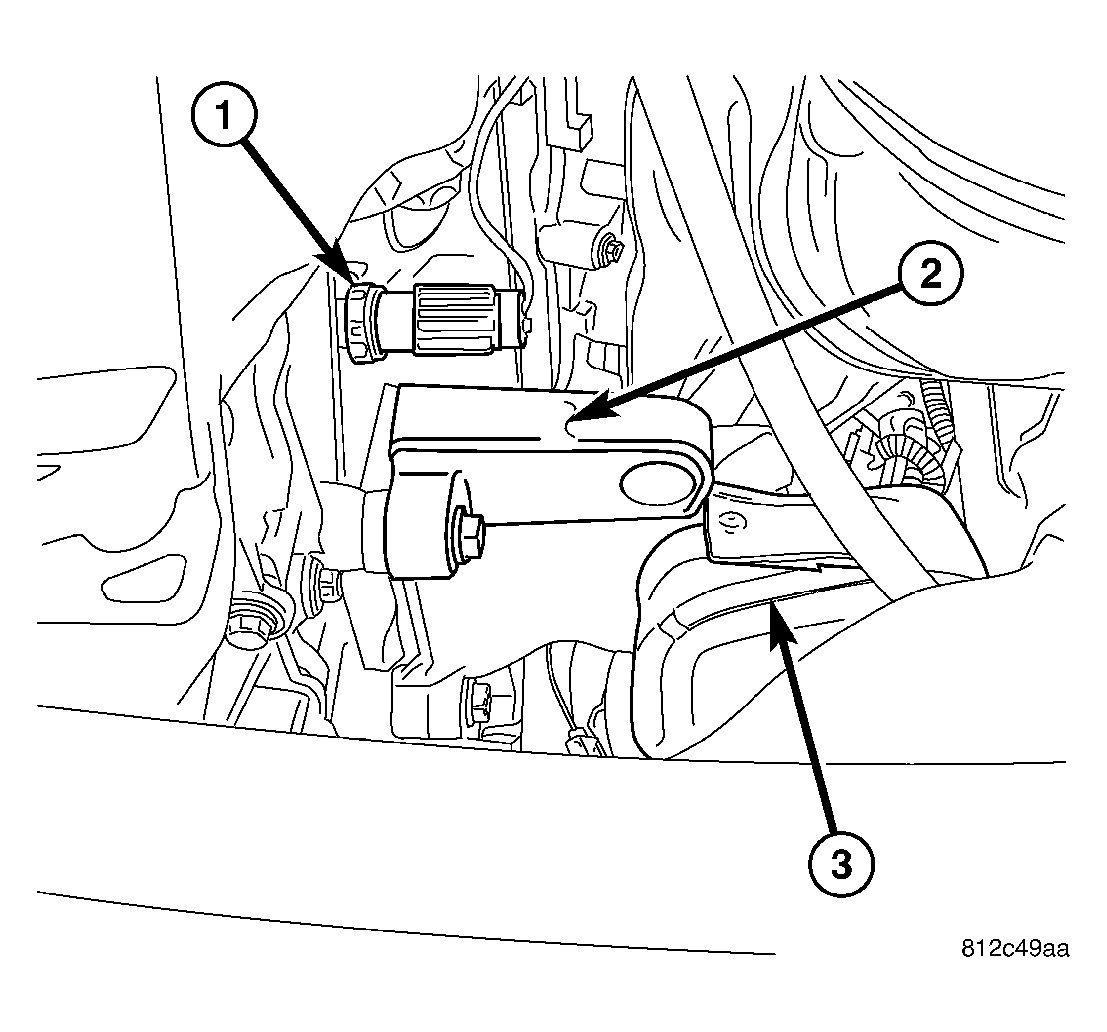

Fig 15: Locating Oil Pressure Switch (2.7L)

GC0015225

Courtesy of CHRYSLER LLC

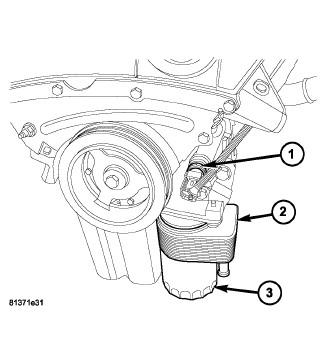

Fig 16: Oil Pressure Switch (3.5L)

GC0081729

Courtesy of DAIMLERCHRYSLER CORP.

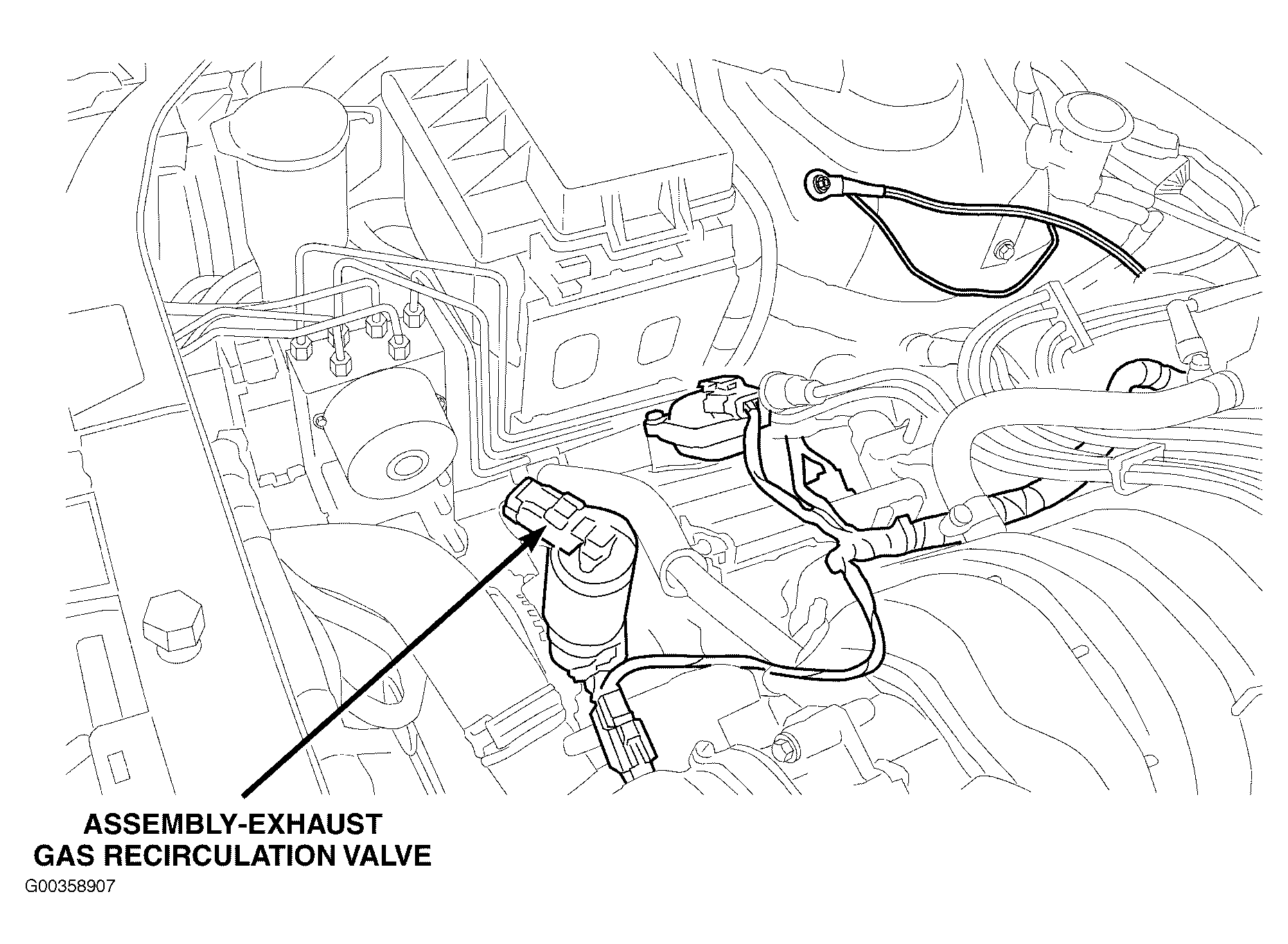

Fig 17: Right Front Of Engine (5.7L)

G00358907

Courtesy of DAIMLERCHRYSLER CORP.

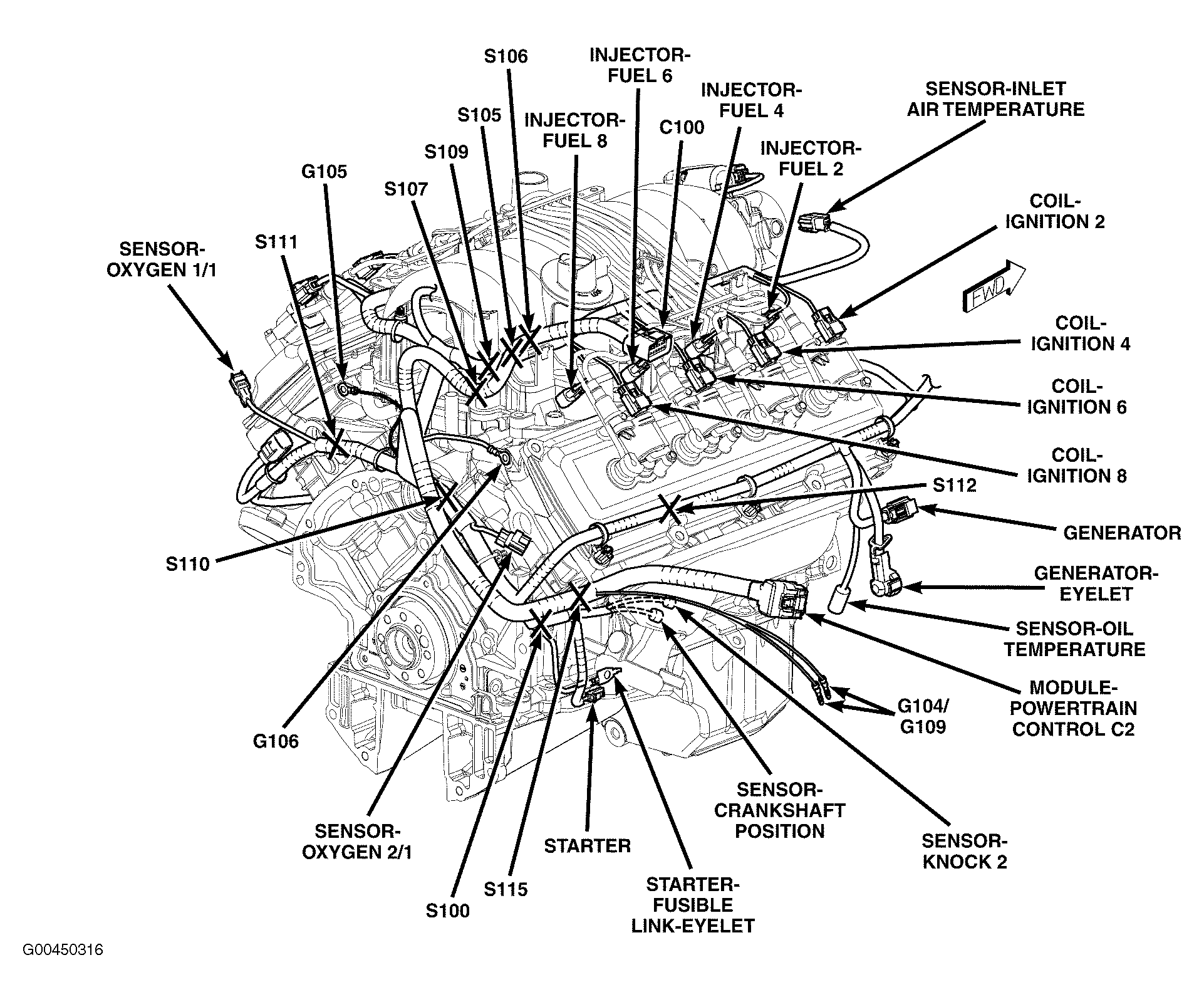

Fig 18: Right Rear Of Engine (5.7L)

G00450316

Courtesy of DAIMLERCHRYSLER CORP.

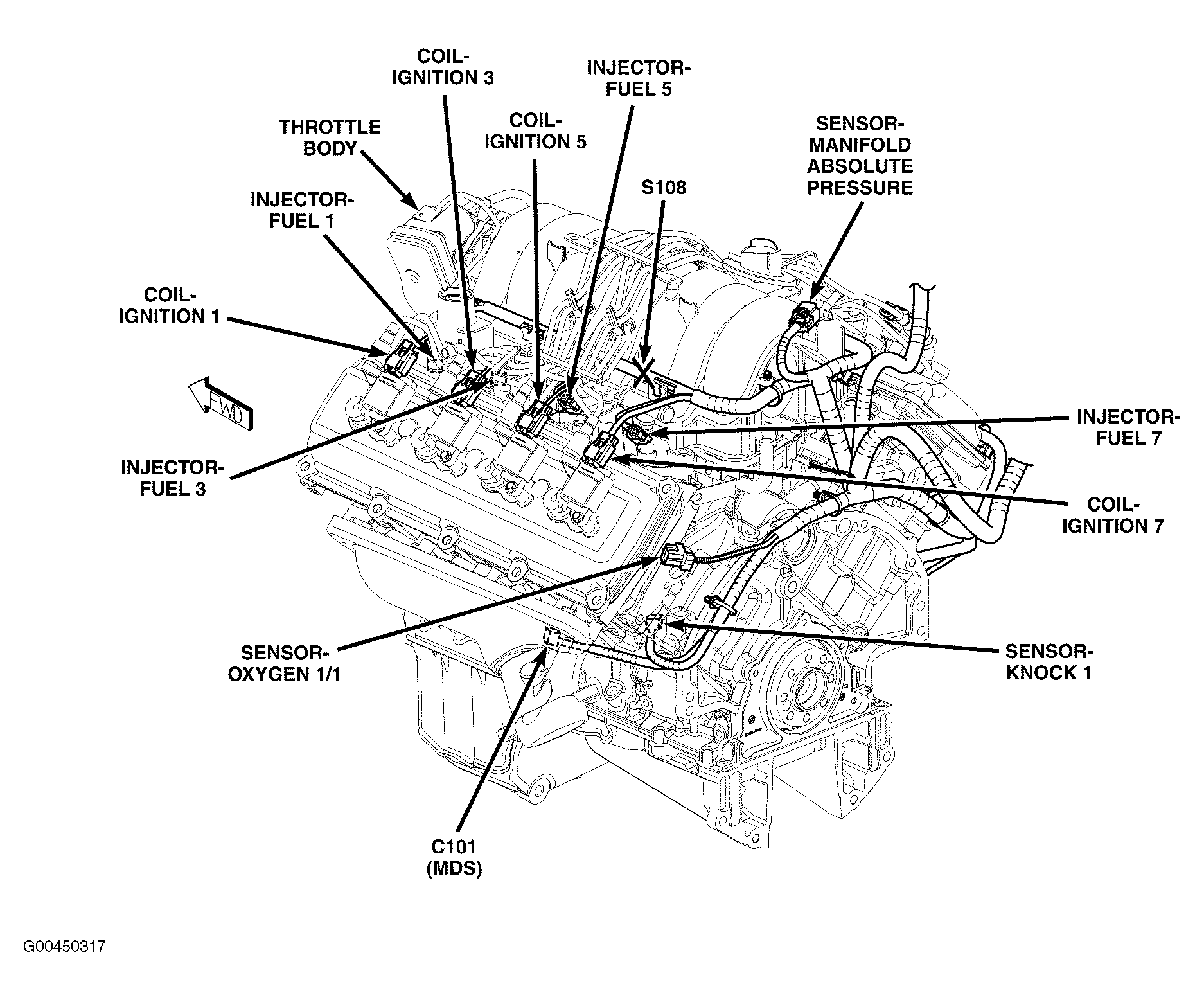

Fig 19: Left Rear Of Engine (5.7L)

G00450317

Courtesy of DAIMLERCHRYSLER CORP.

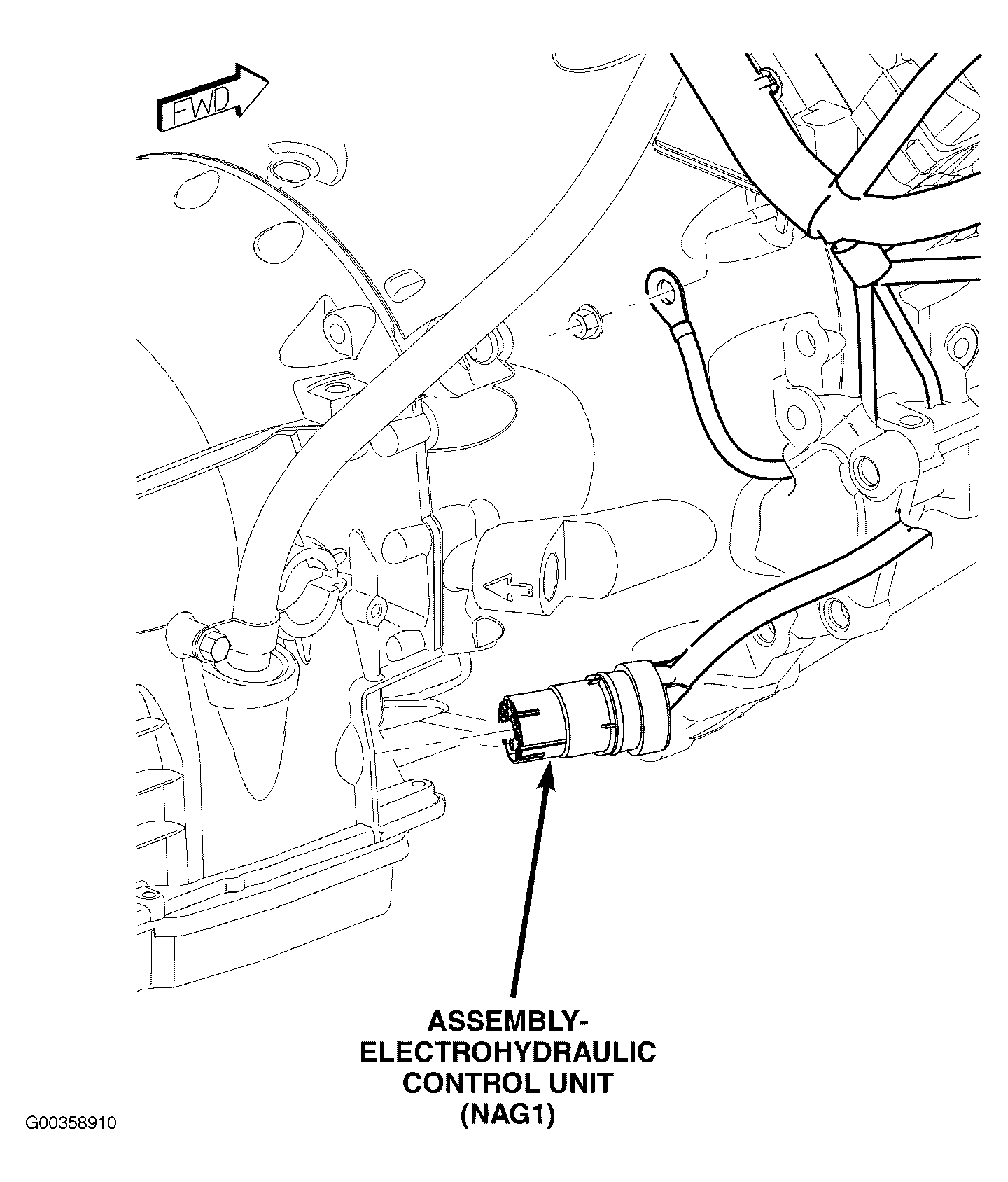

Fig 20: Transmission

G00358910

Courtesy of DAIMLERCHRYSLER CORP.

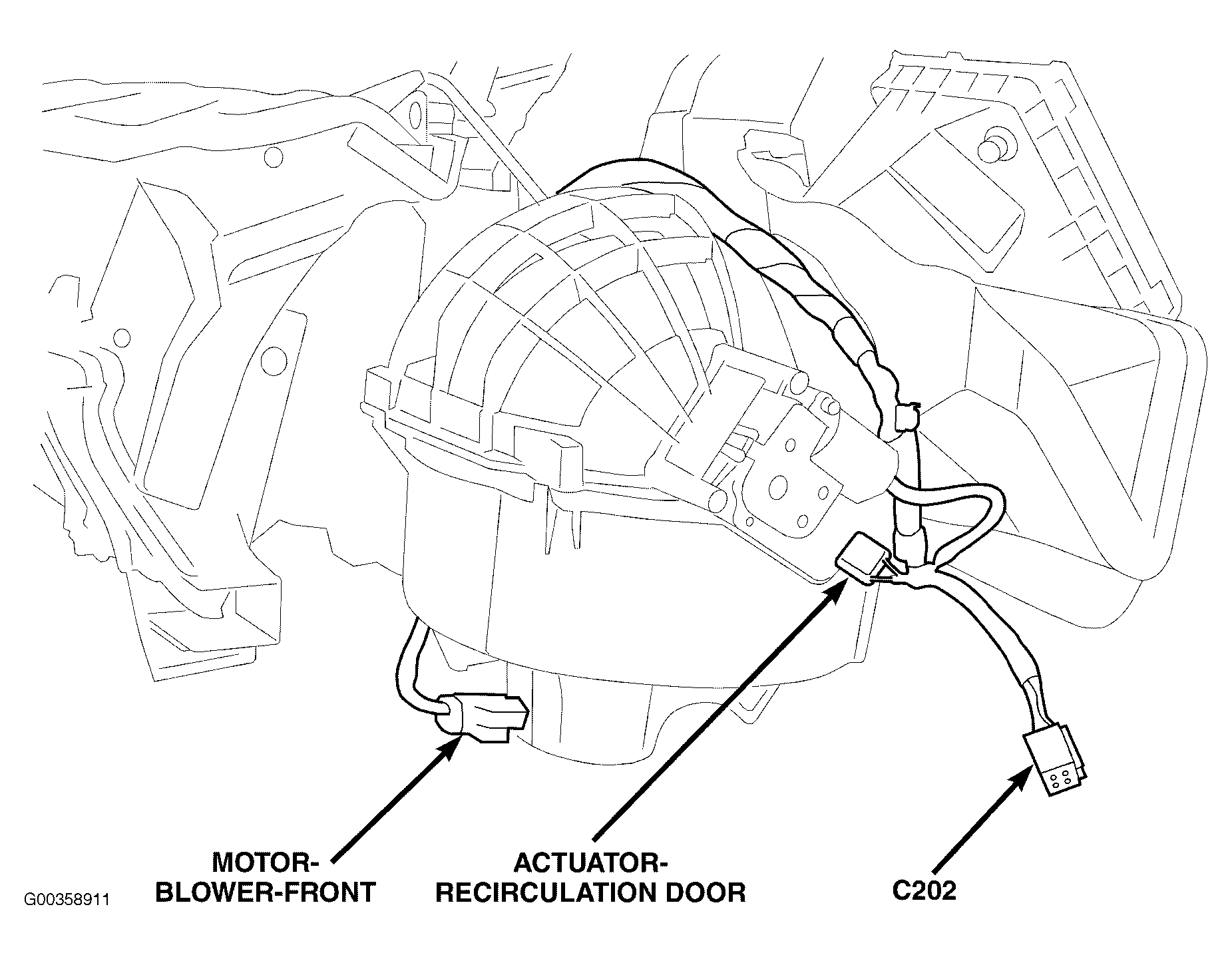

Fig 21: HVAC Unit

G00358911

Courtesy of DAIMLERCHRYSLER CORP.

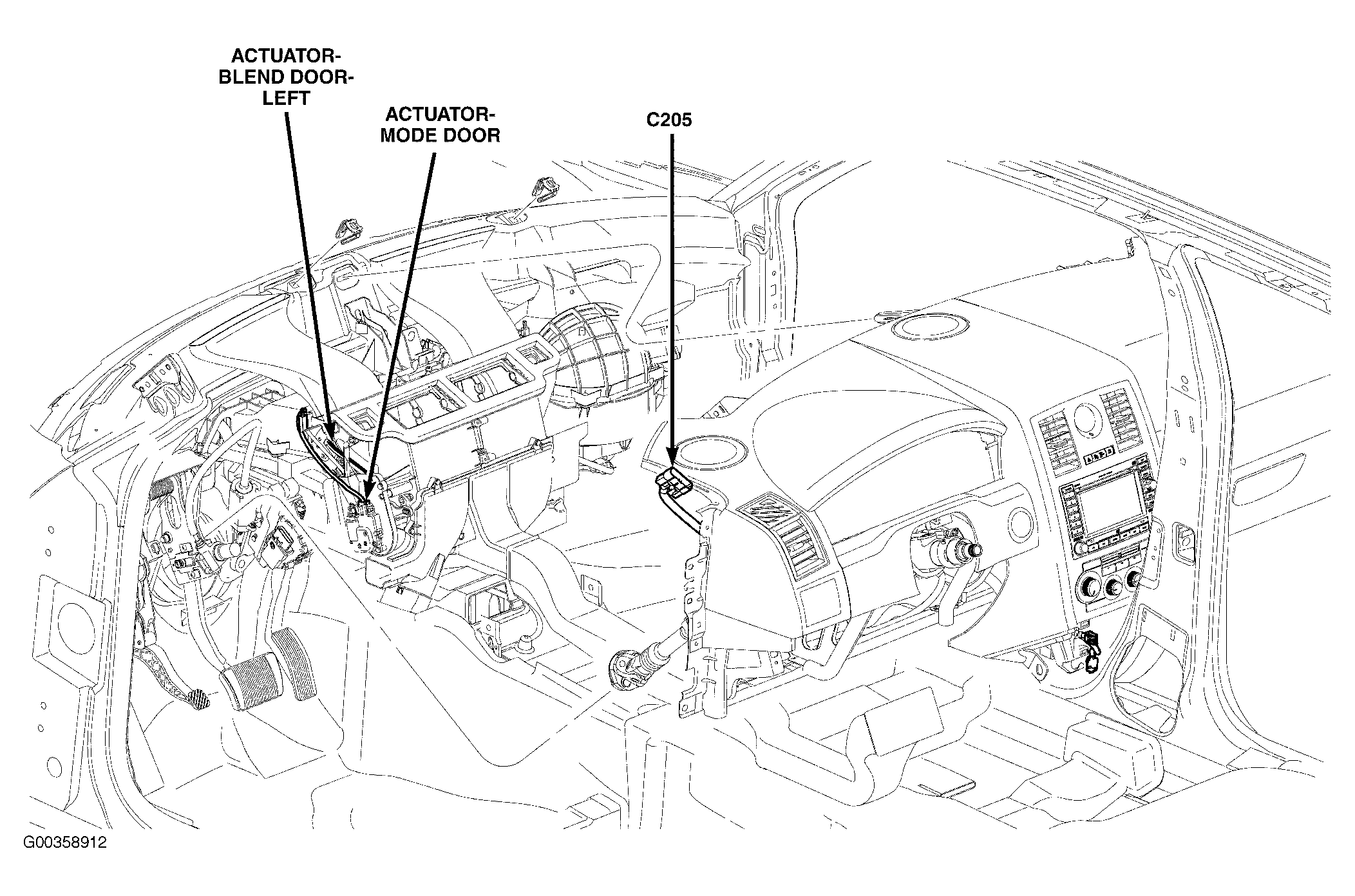

Fig 22: Instrument Panel

G00358912

Courtesy of DAIMLERCHRYSLER CORP.

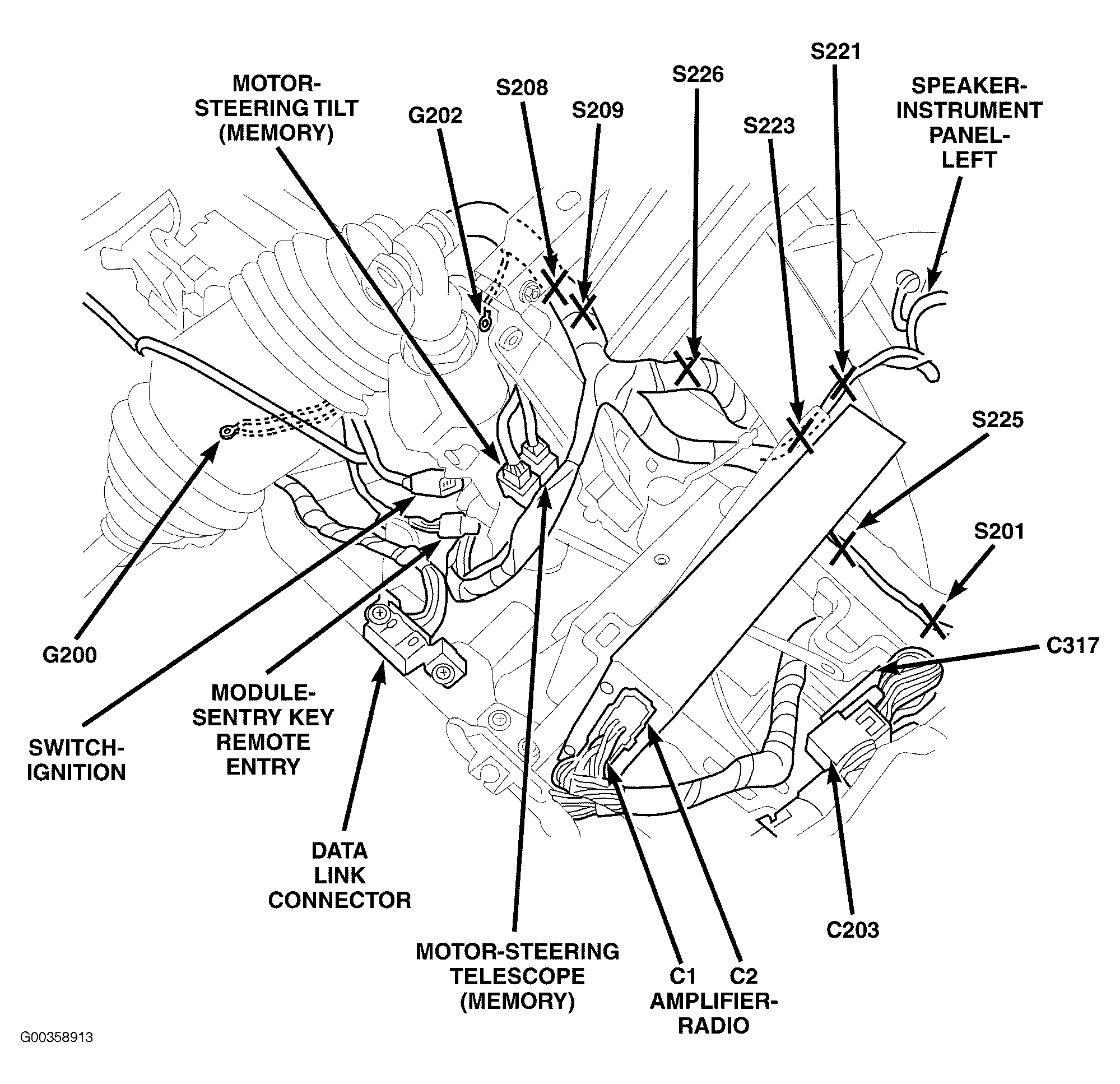

Fig 23: Left Side Of Dash

G00358913

Courtesy of DAIMLERCHRYSLER CORP.

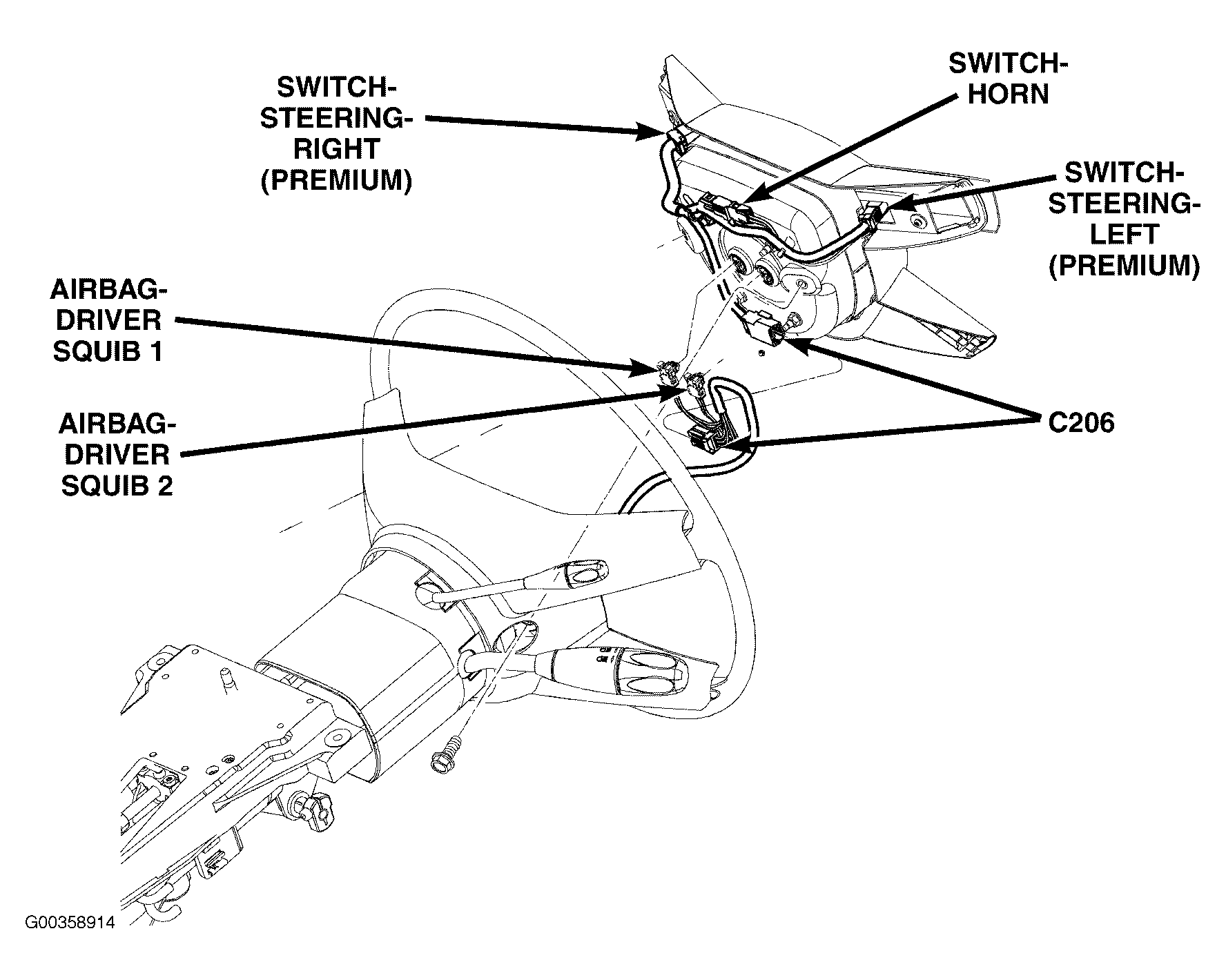

Fig 24: Steering Column

G00358914

Courtesy of DAIMLERCHRYSLER CORP.

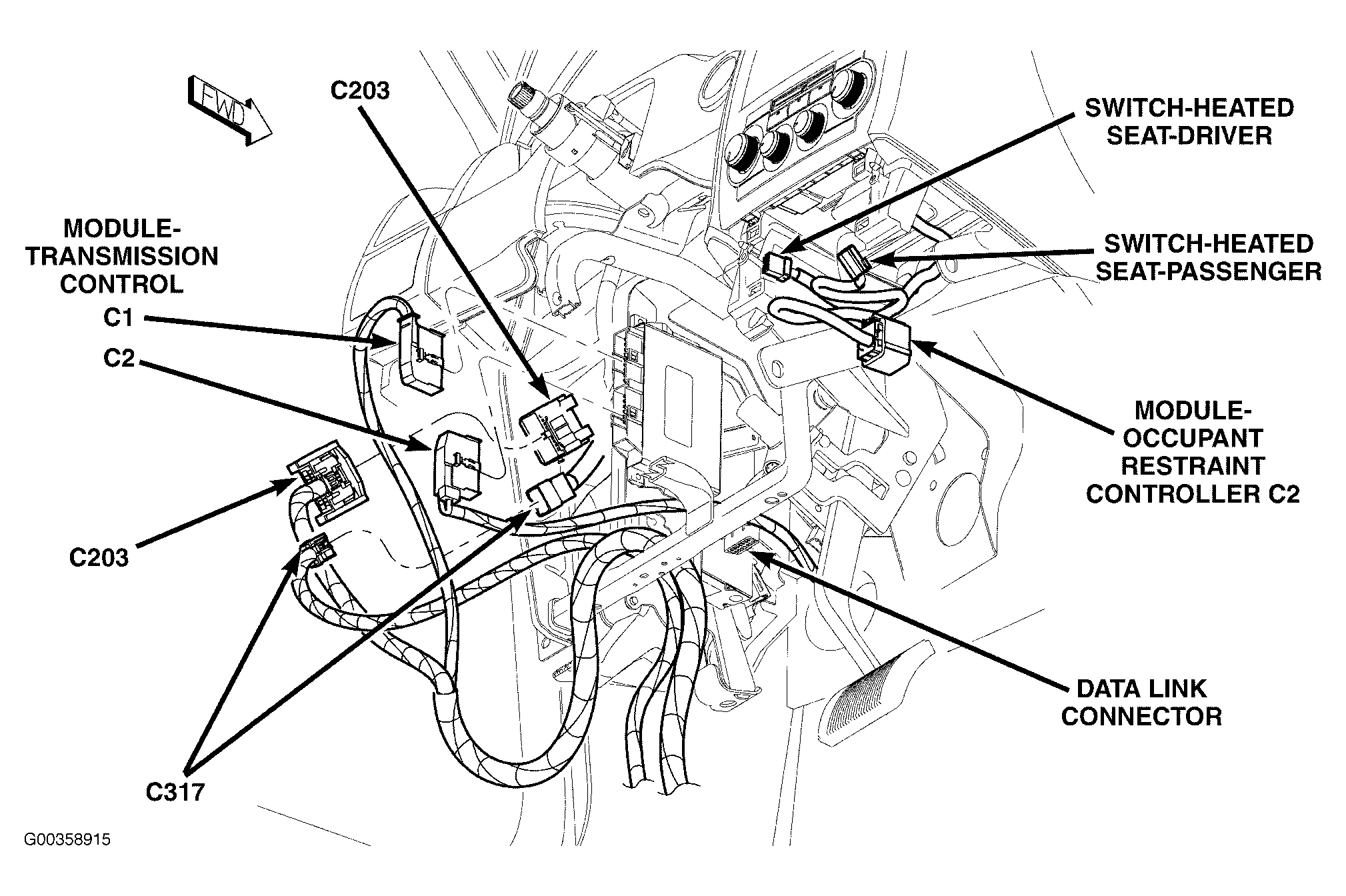

Fig 25: Left Side Of Dash

G00358915

Courtesy of DAIMLERCHRYSLER CORP.

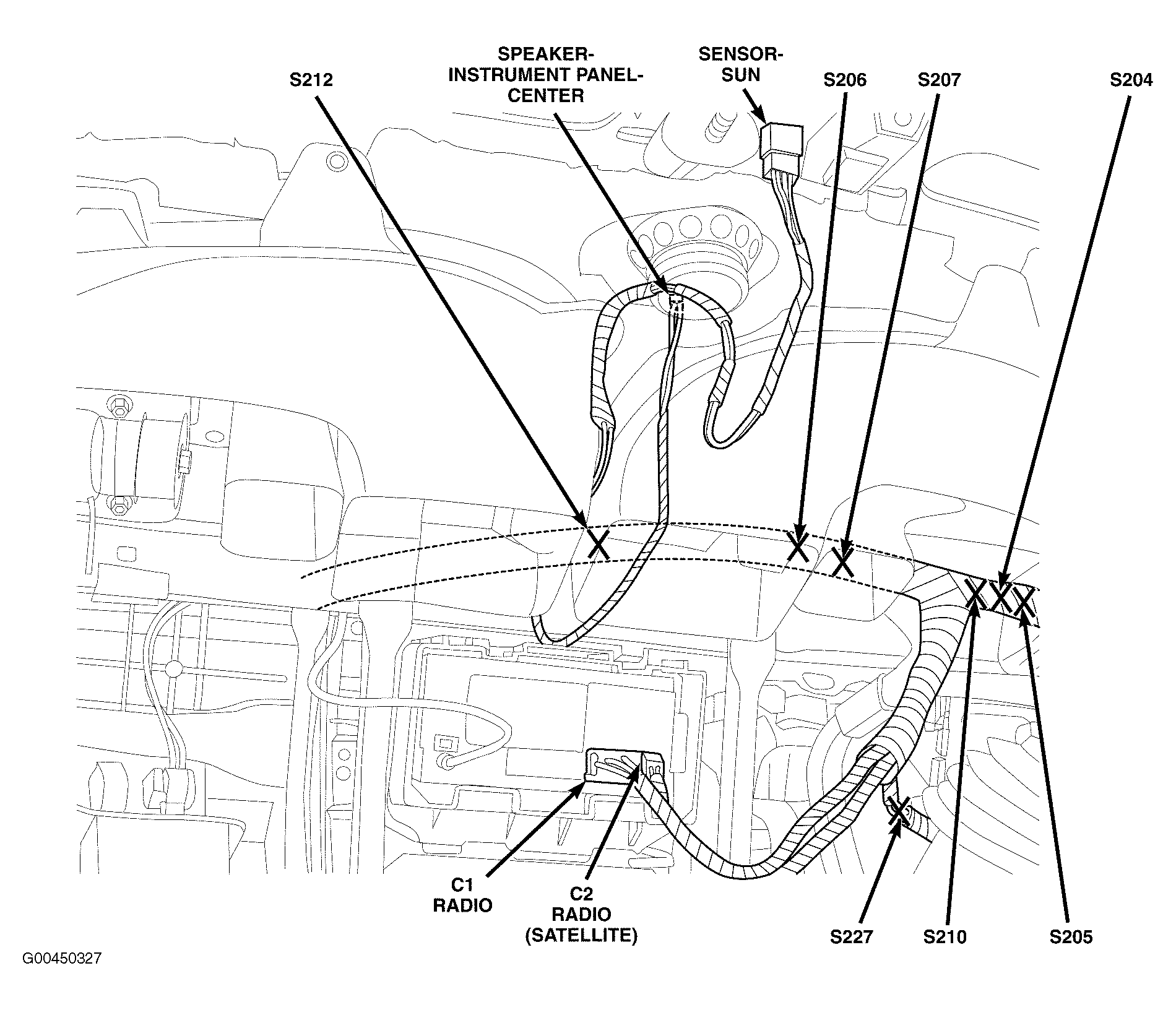

Fig 26: Center/Left Side Of Dash

G00450327

Courtesy of DAIMLERCHRYSLER CORP.

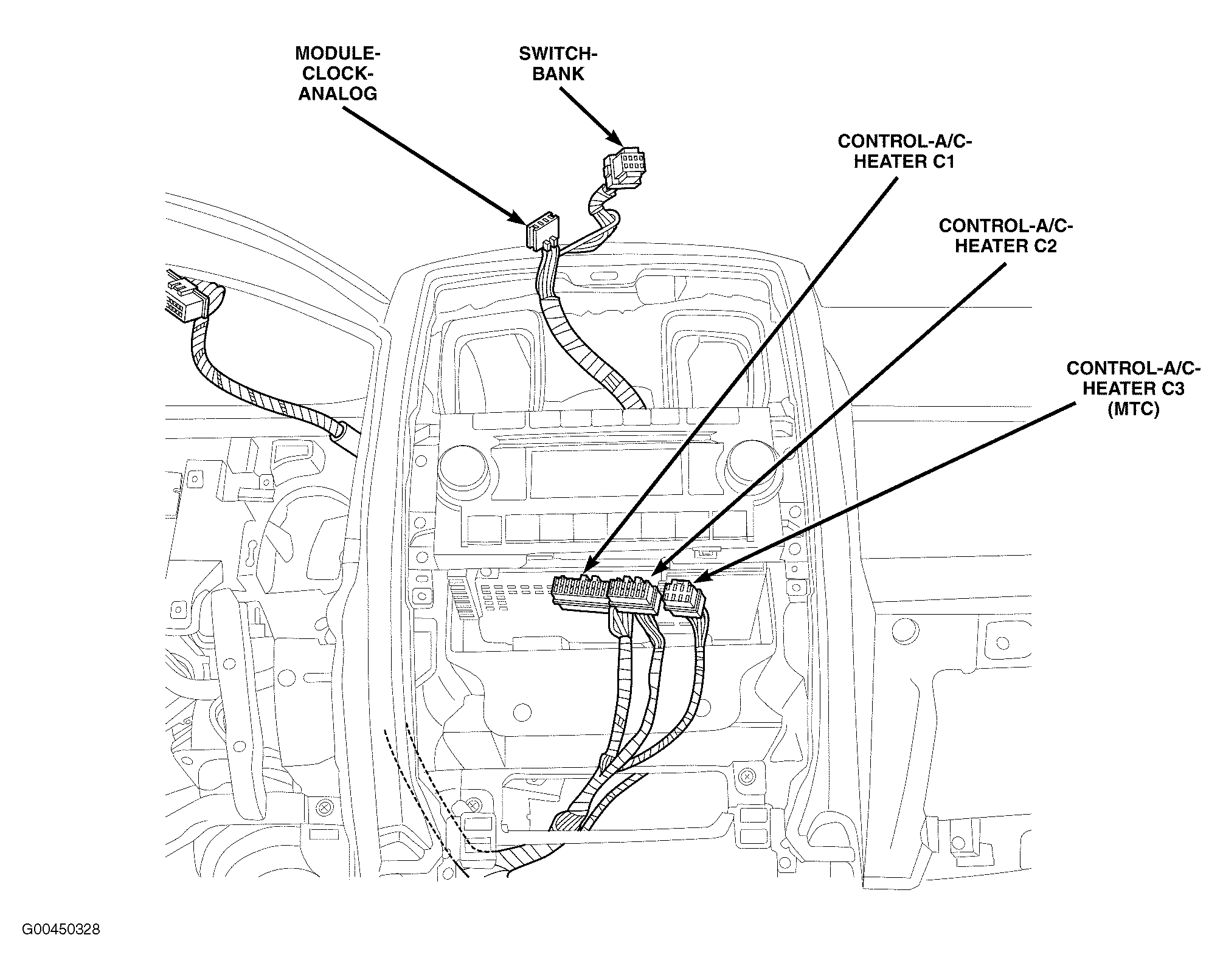

Fig 27: Center Of Dash

G00450328

Courtesy of DAIMLERCHRYSLER CORP.

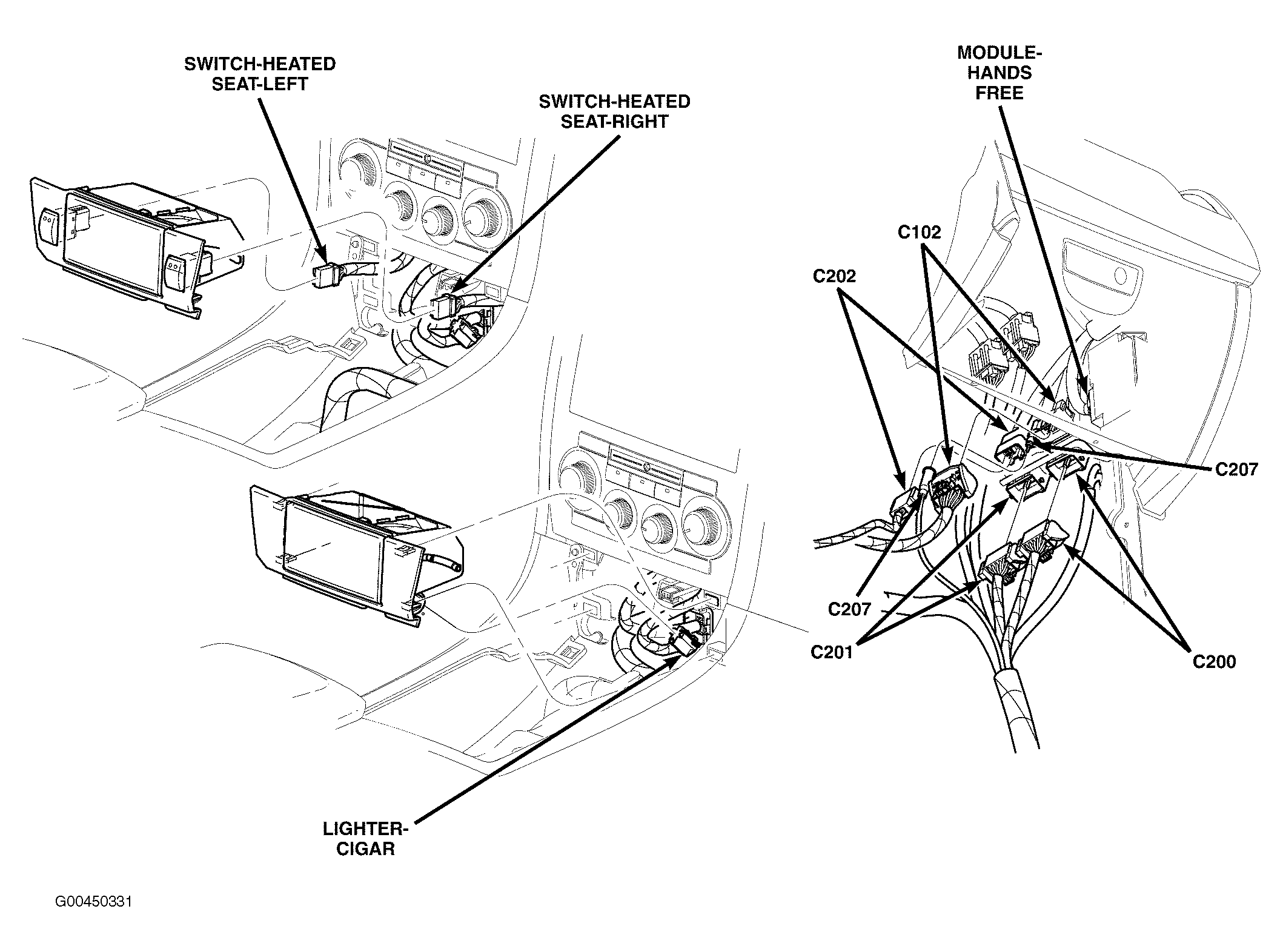

Fig 28: Center/Right Side Of Dash

G00450331

Courtesy of DAIMLERCHRYSLER CORP.

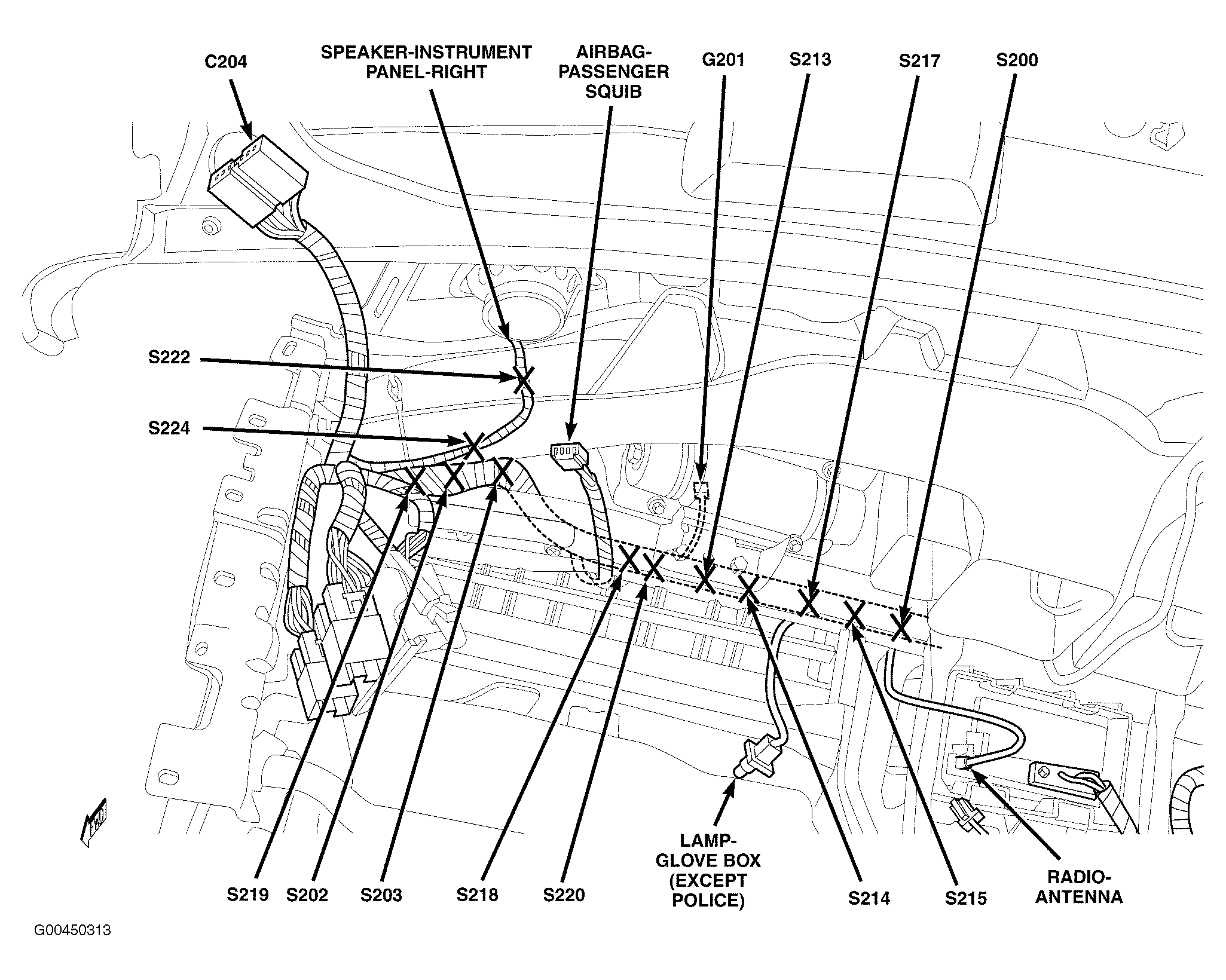

Fig 29: Right Side Of Dash

G00450313

Courtesy of DAIMLERCHRYSLER CORP.

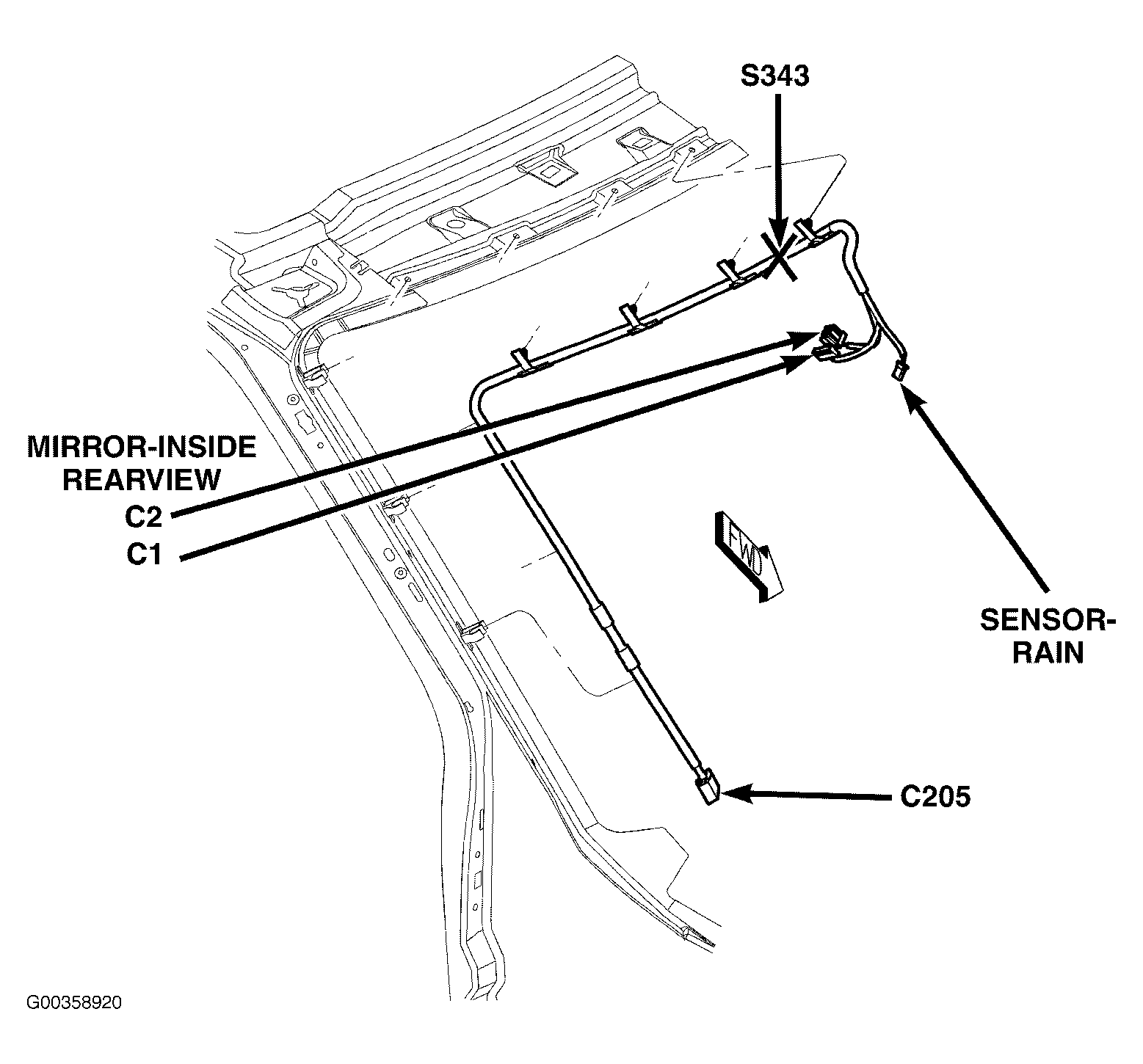

Fig 30: Left "A" Pillar

G00358920

Courtesy of DAIMLERCHRYSLER CORP.

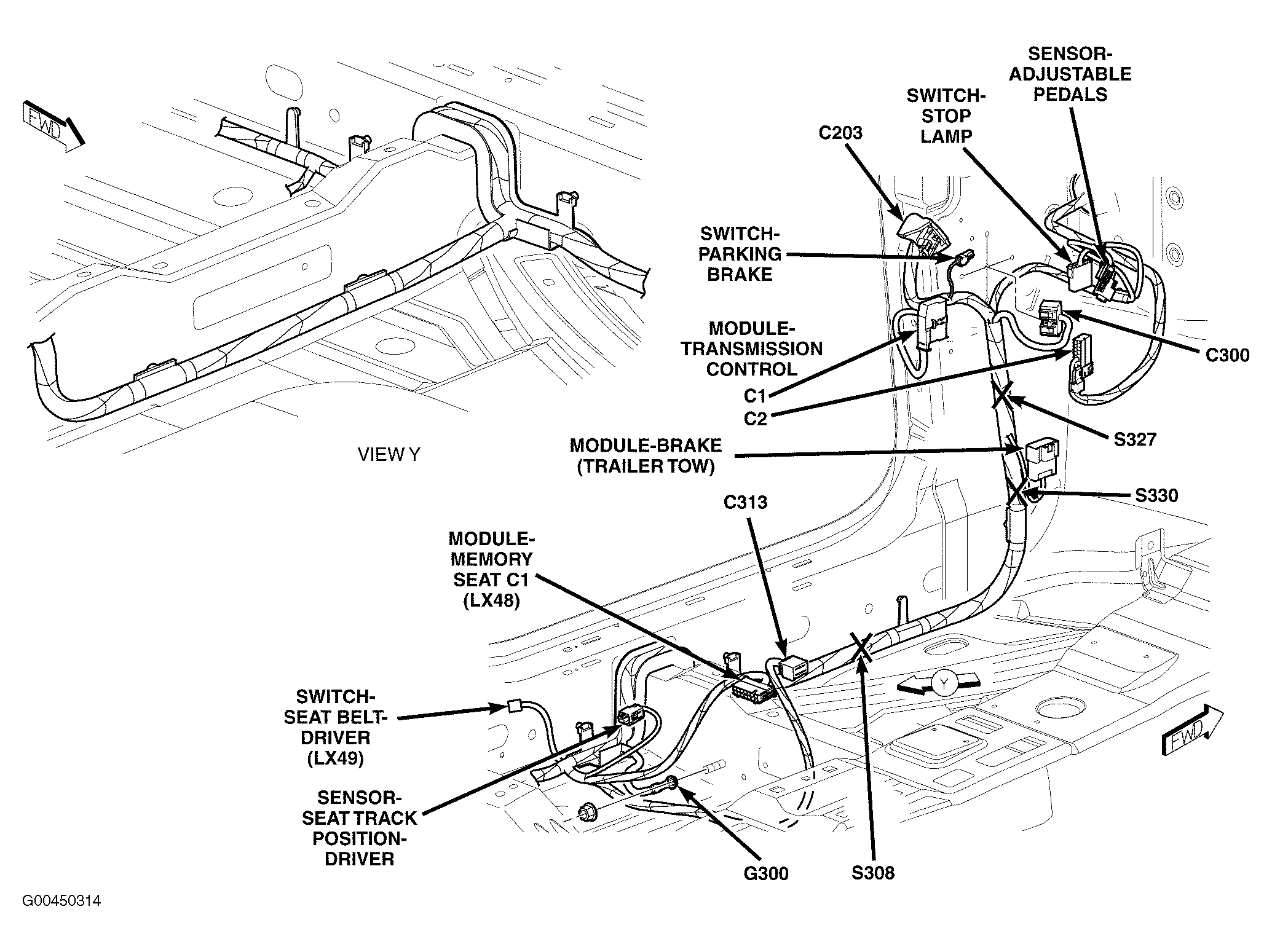

Fig 31: Left Side Of Passenger Compartment

G00450314

Courtesy of DAIMLERCHRYSLER CORP.

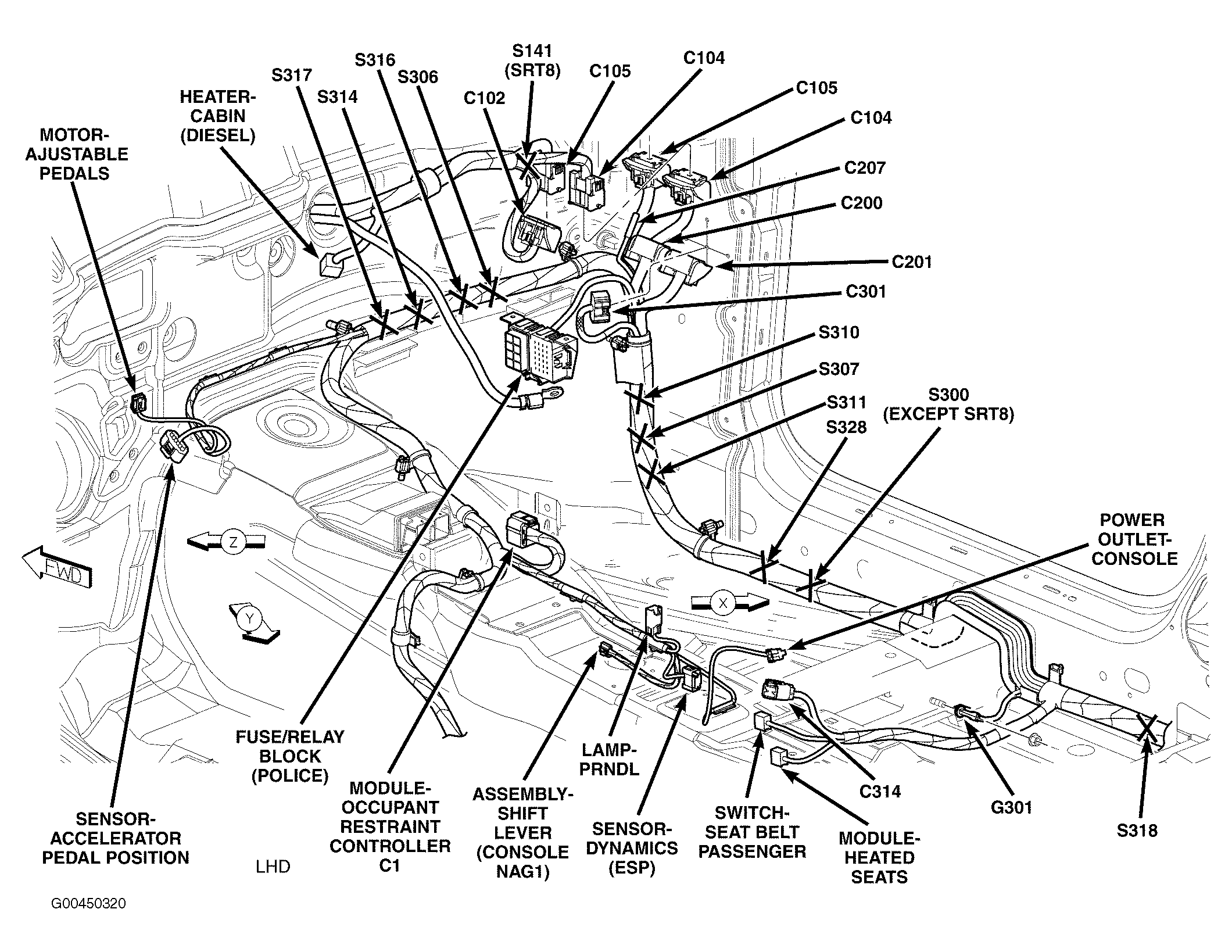

Fig 32: Right Front Of Passenger Compartment

G00450320

Courtesy of DAIMLERCHRYSLER CORP.

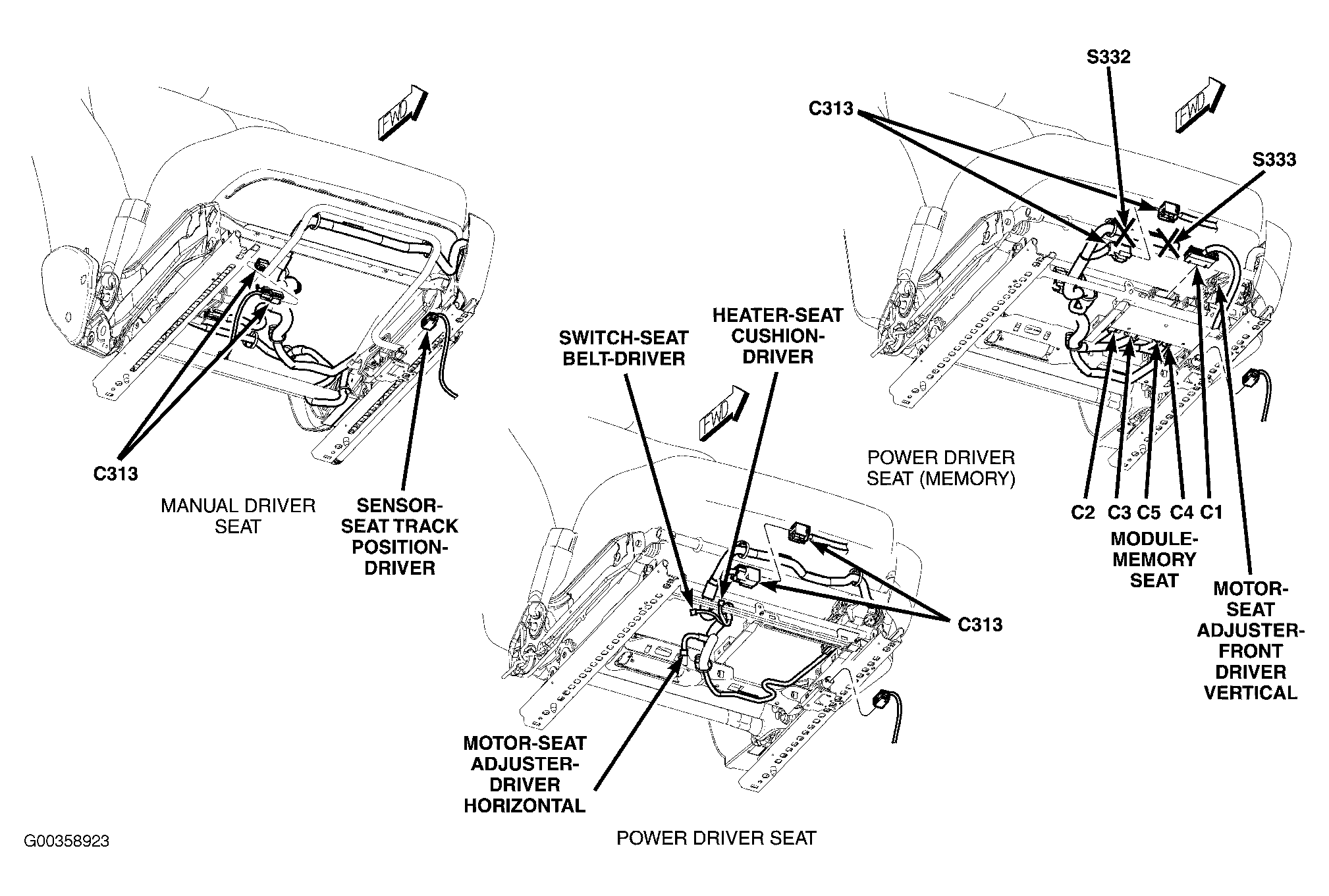

Fig 33: Driver Seat

G00358923

Courtesy of DAIMLERCHRYSLER CORP.

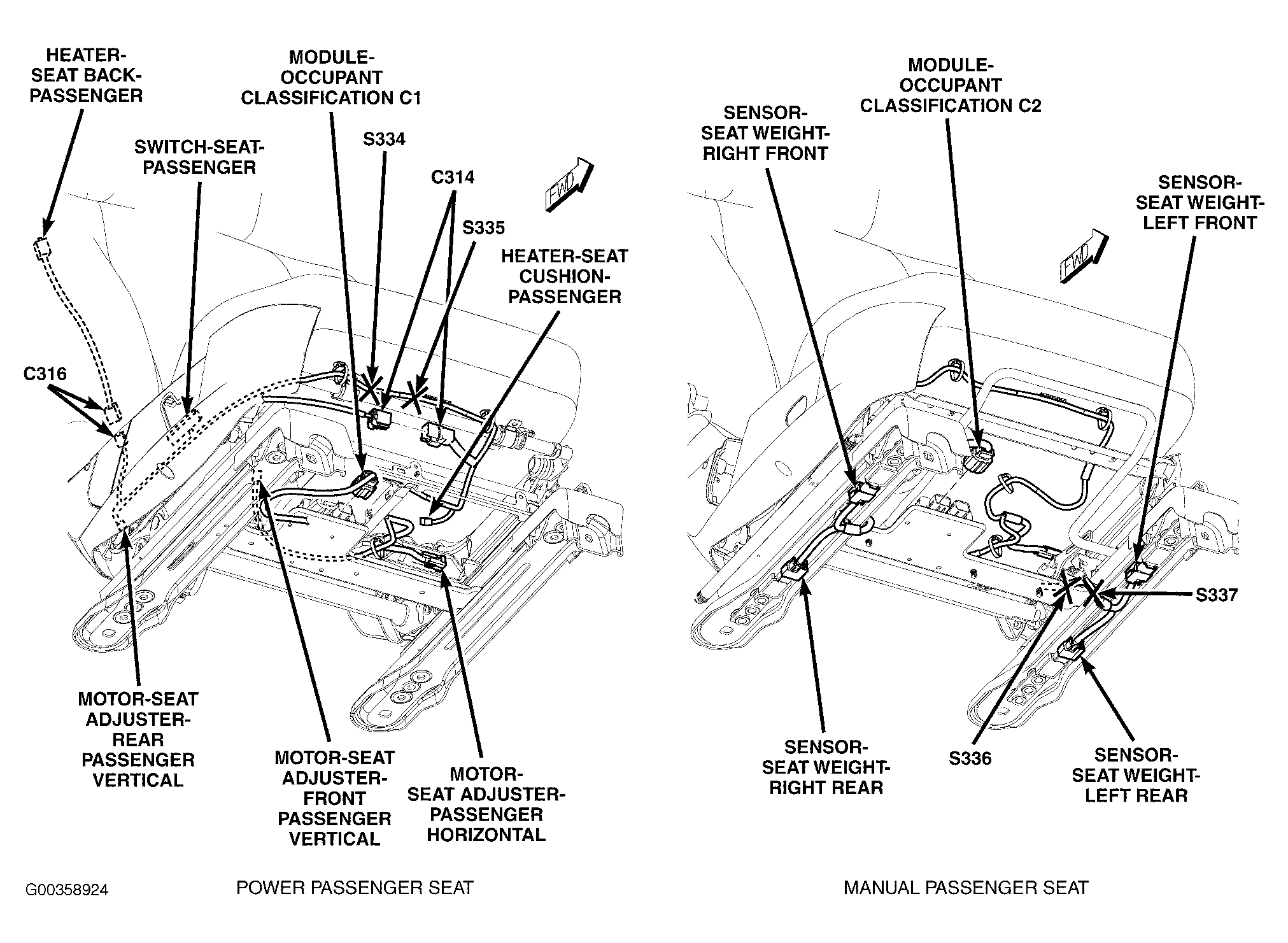

Fig 34: Passenger Seat

G00358924

Courtesy of DAIMLERCHRYSLER CORP.

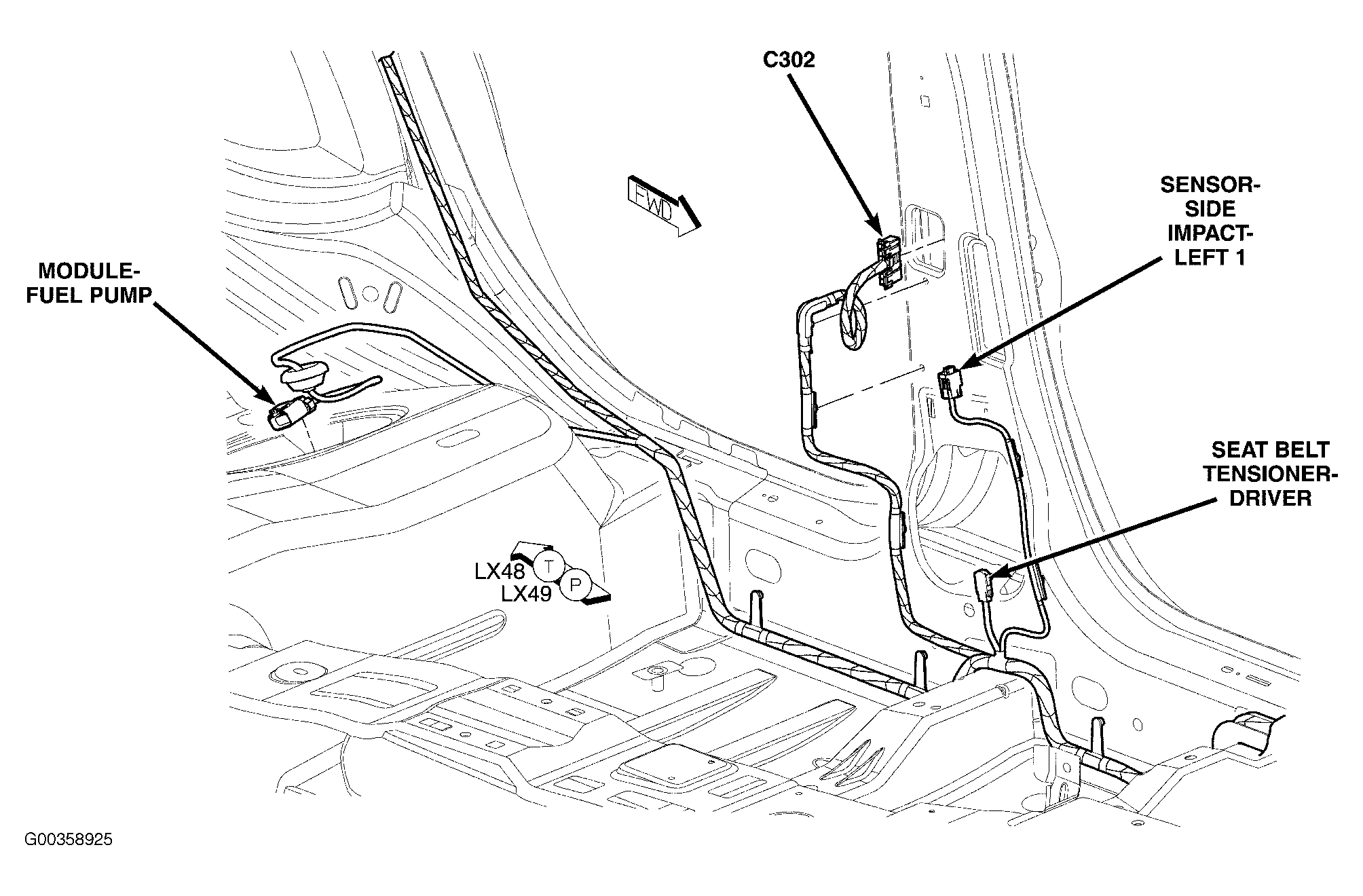

Fig 35: Left Side Of Passenger Compartment

G00358925

Courtesy of DAIMLERCHRYSLER CORP.

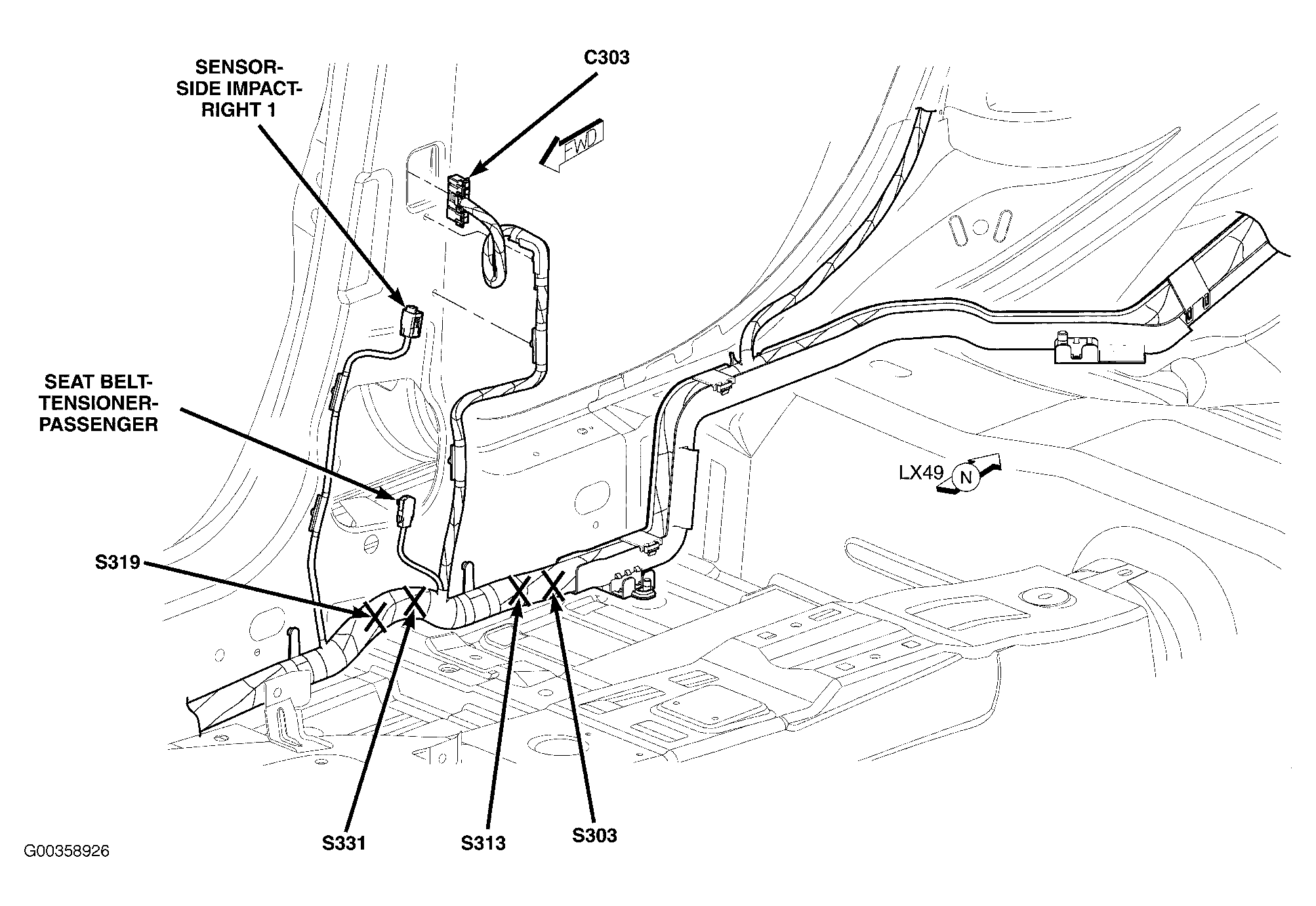

Fig 36: Right Side Of Passenger Compartment

G00358926

Courtesy of DAIMLERCHRYSLER CORP.

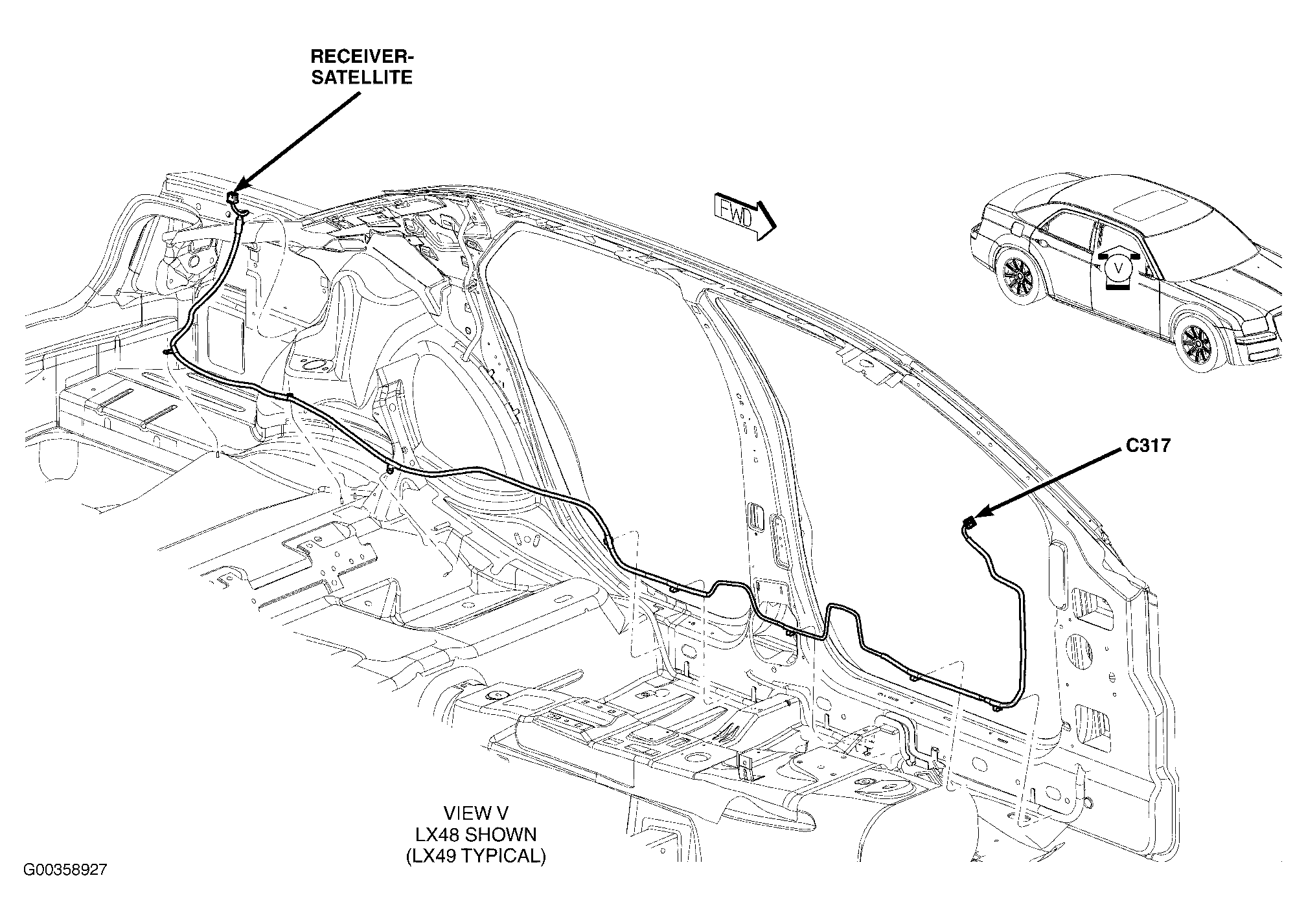

Fig 37: Left Side Of Vehicle

G00358927

Courtesy of DAIMLERCHRYSLER CORP.

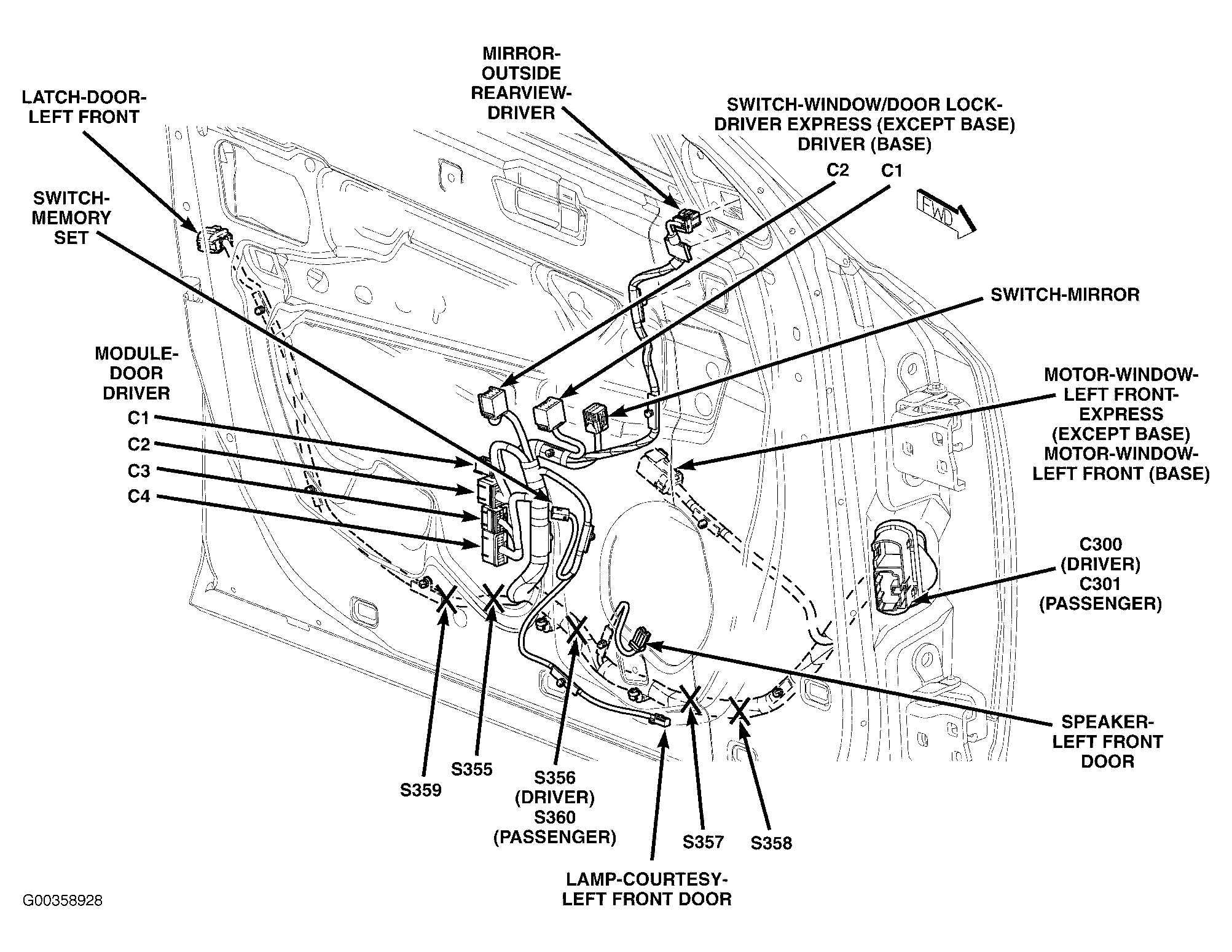

Fig 38: Driver Door (Right Front Door Similar)

G00358928

Courtesy of DAIMLERCHRYSLER CORP.

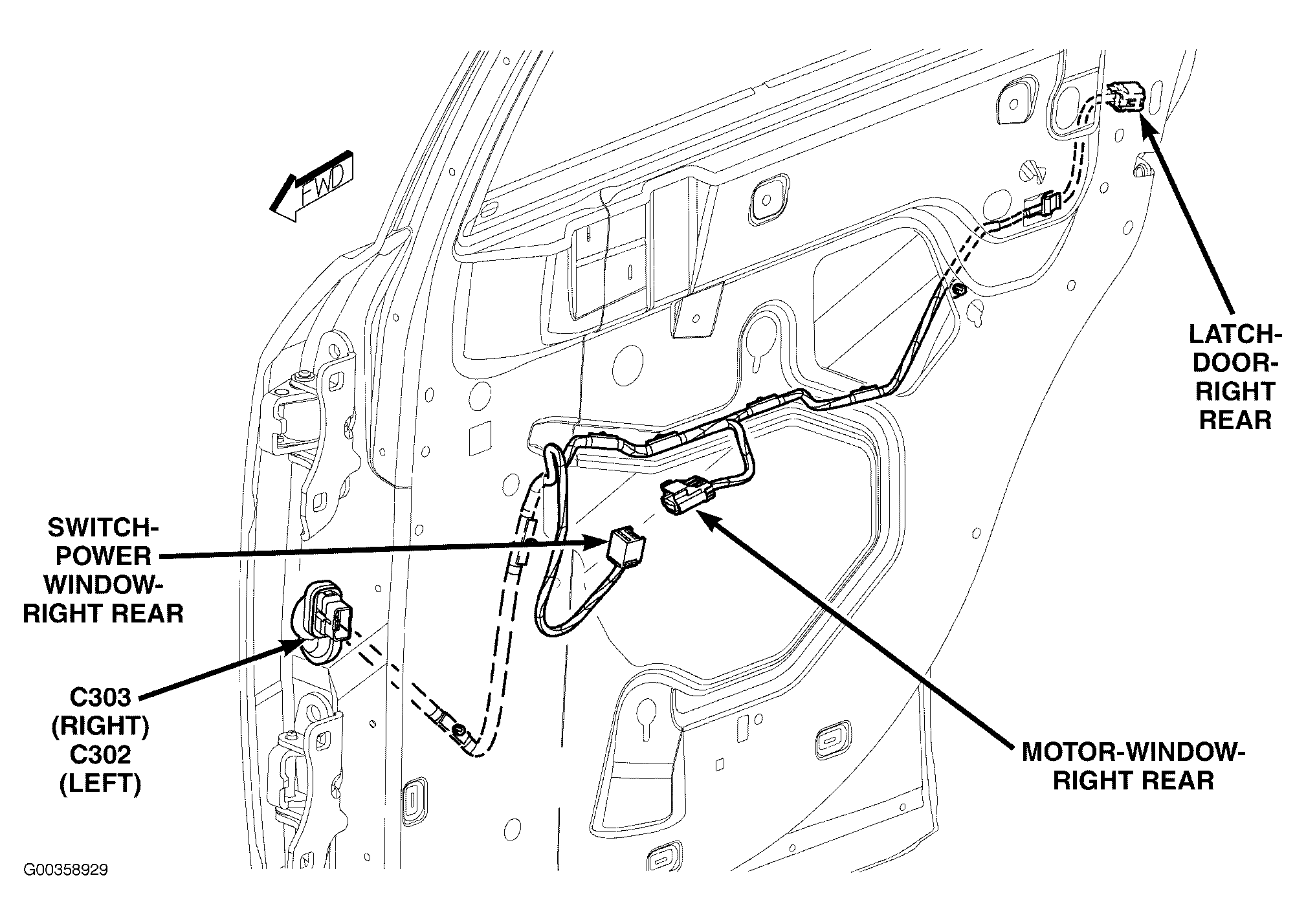

Fig 39: Left/Right Rear Door

G00358929

Courtesy of DAIMLERCHRYSLER CORP.

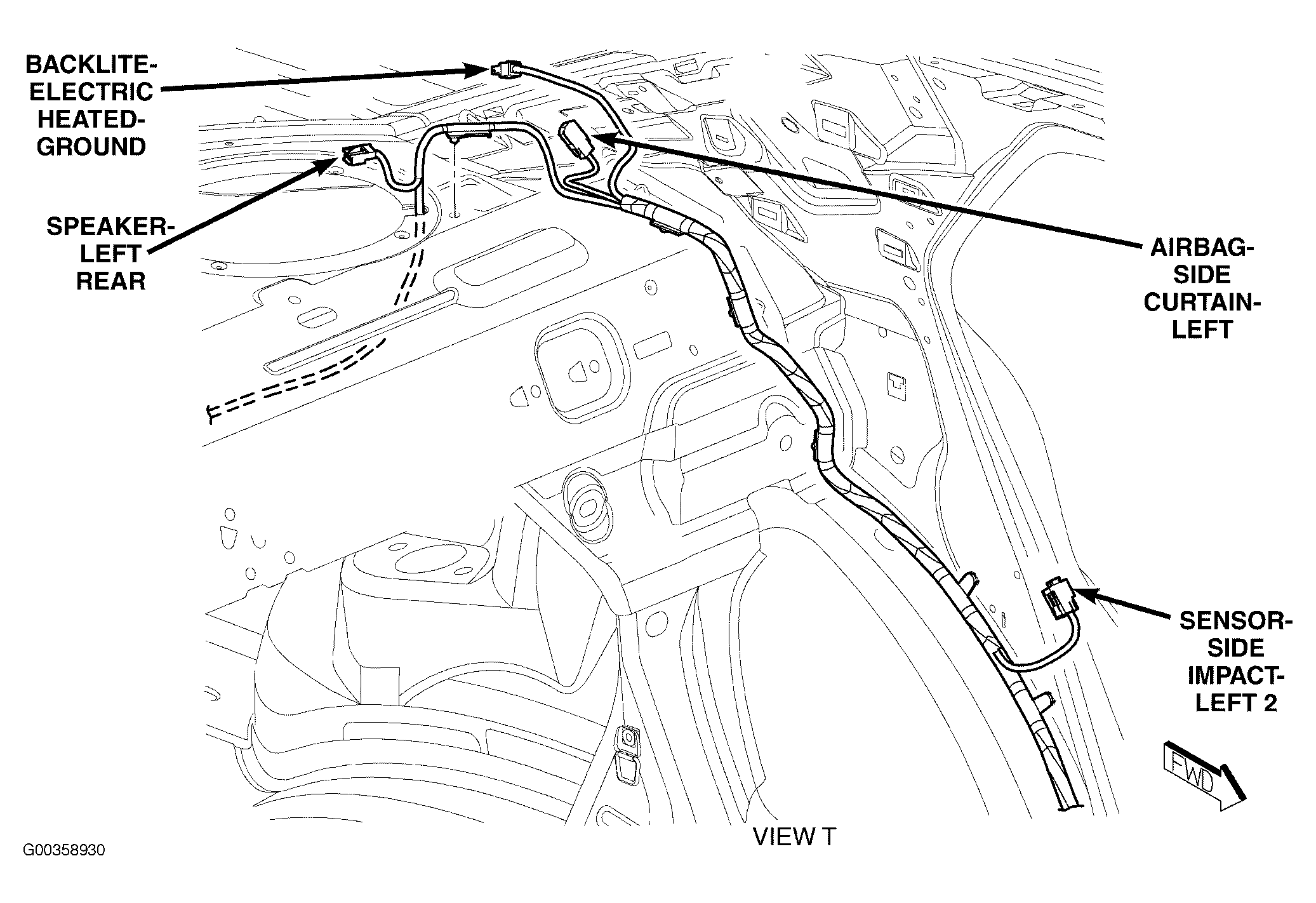

Fig 40: Left Rear Quarterpanel (Except Magnum)

G00358930

Courtesy of DAIMLERCHRYSLER CORP.

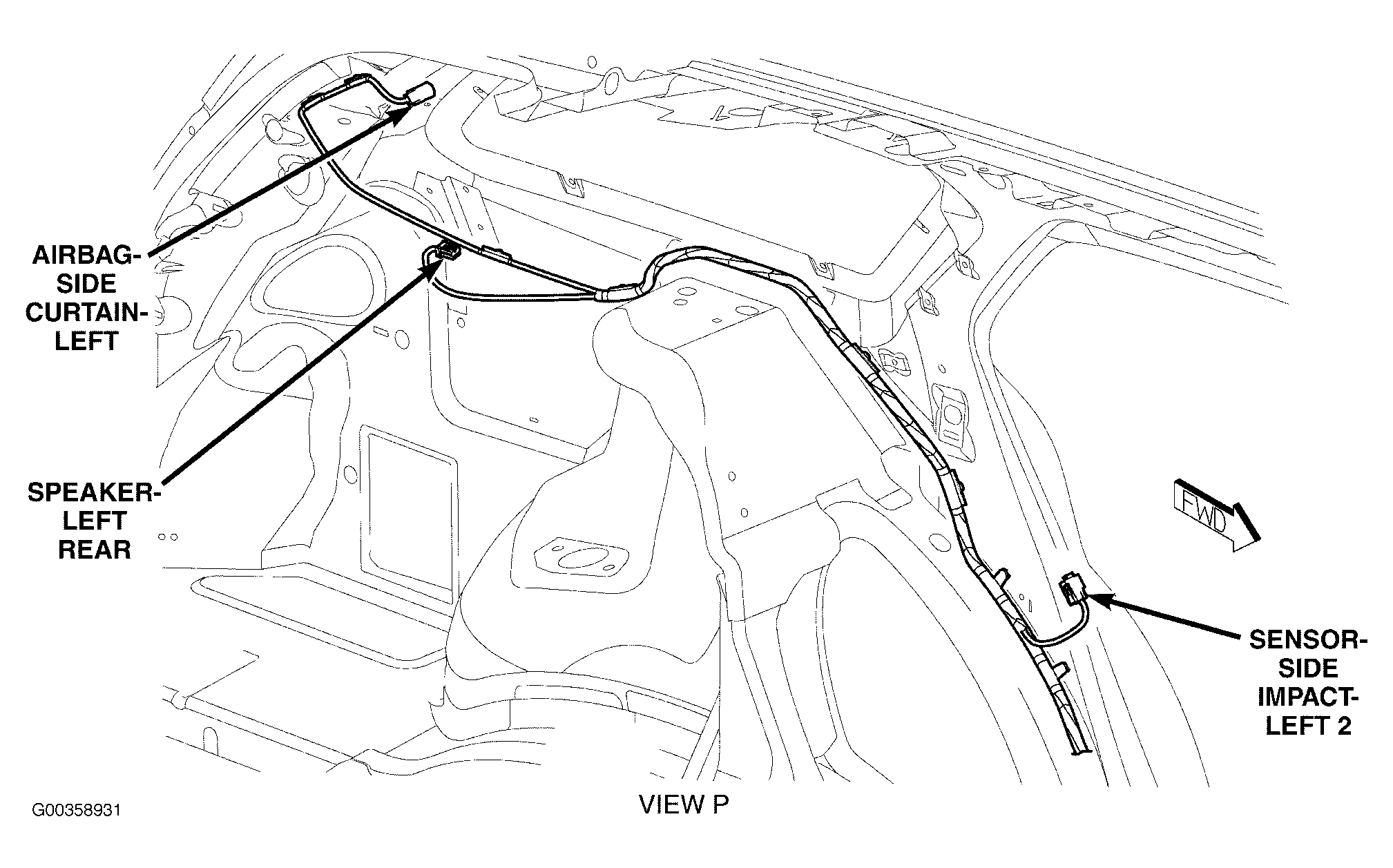

Fig 41: Left Rear Quarterpanel (Magnum)

G00358931

Courtesy of DAIMLERCHRYSLER CORP.

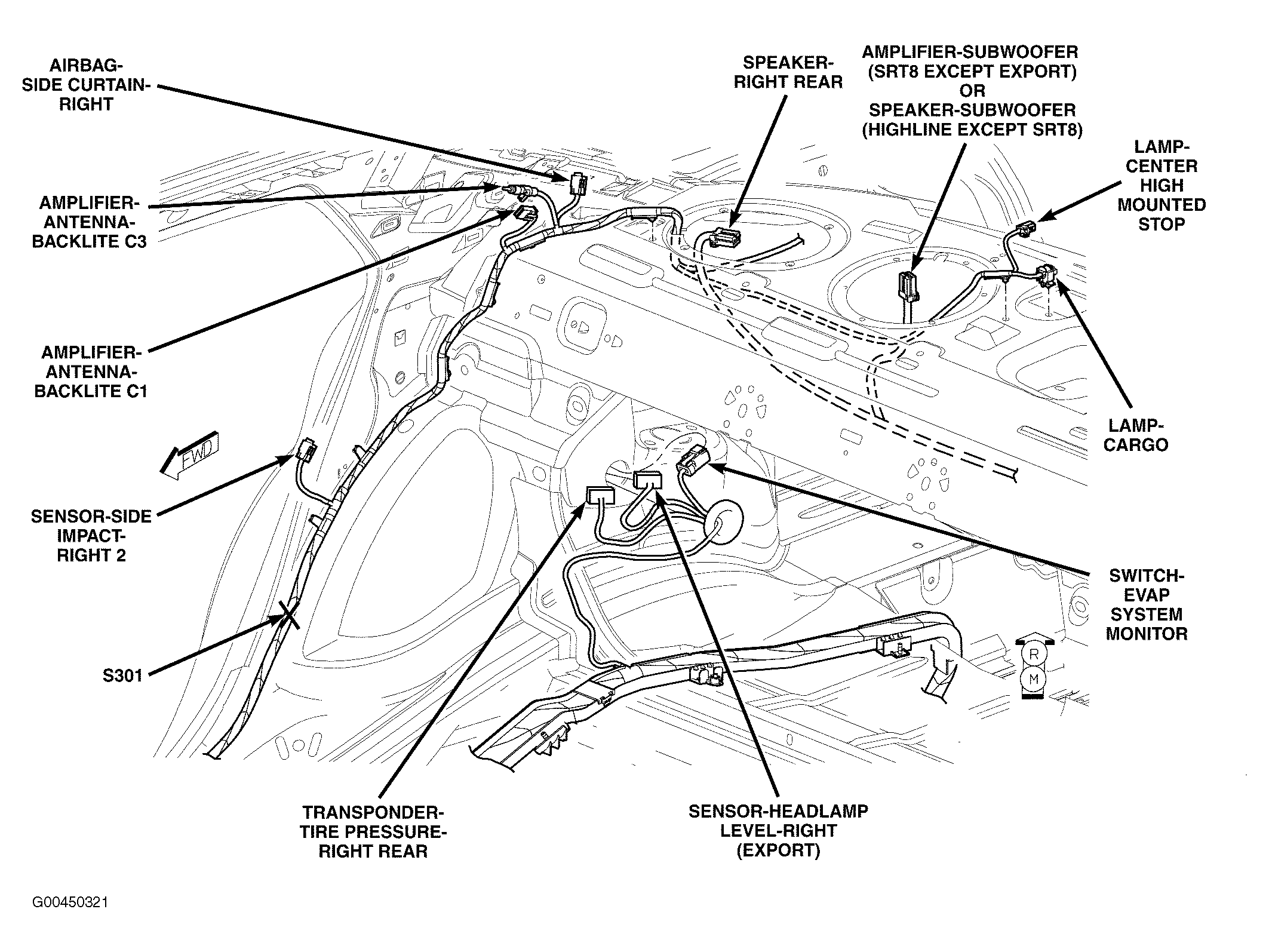

Fig 42: Right Rear Quarterpanel (Except Magnum)

G00450321

Courtesy of DAIMLERCHRYSLER CORP.

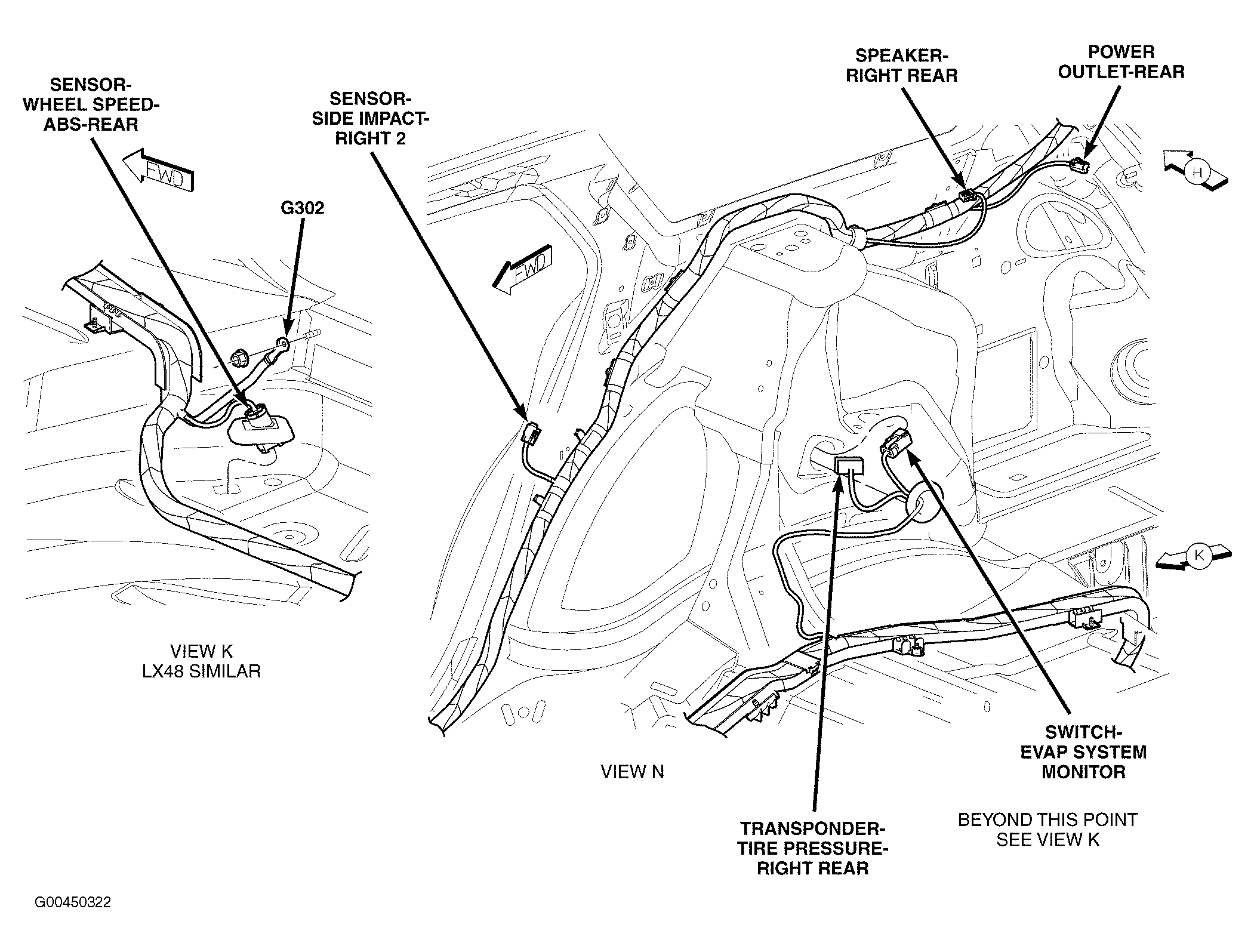

Fig 43: Right Rear Quarterpanel (Magnum)

G00450322

Courtesy of DAIMLERCHRYSLER CORP.

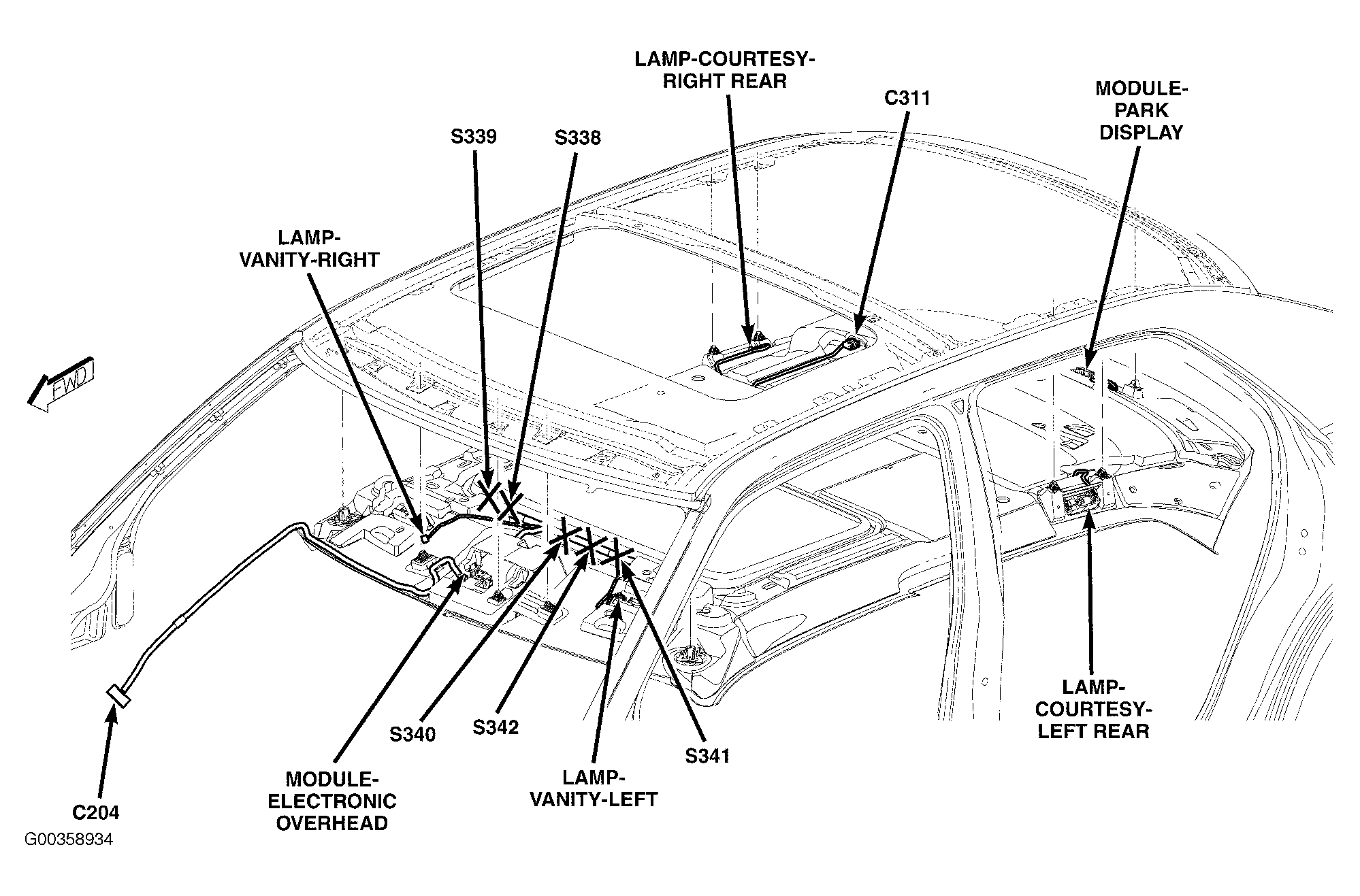

Fig 44: Headliner

G00358934

Courtesy of DAIMLERCHRYSLER CORP.

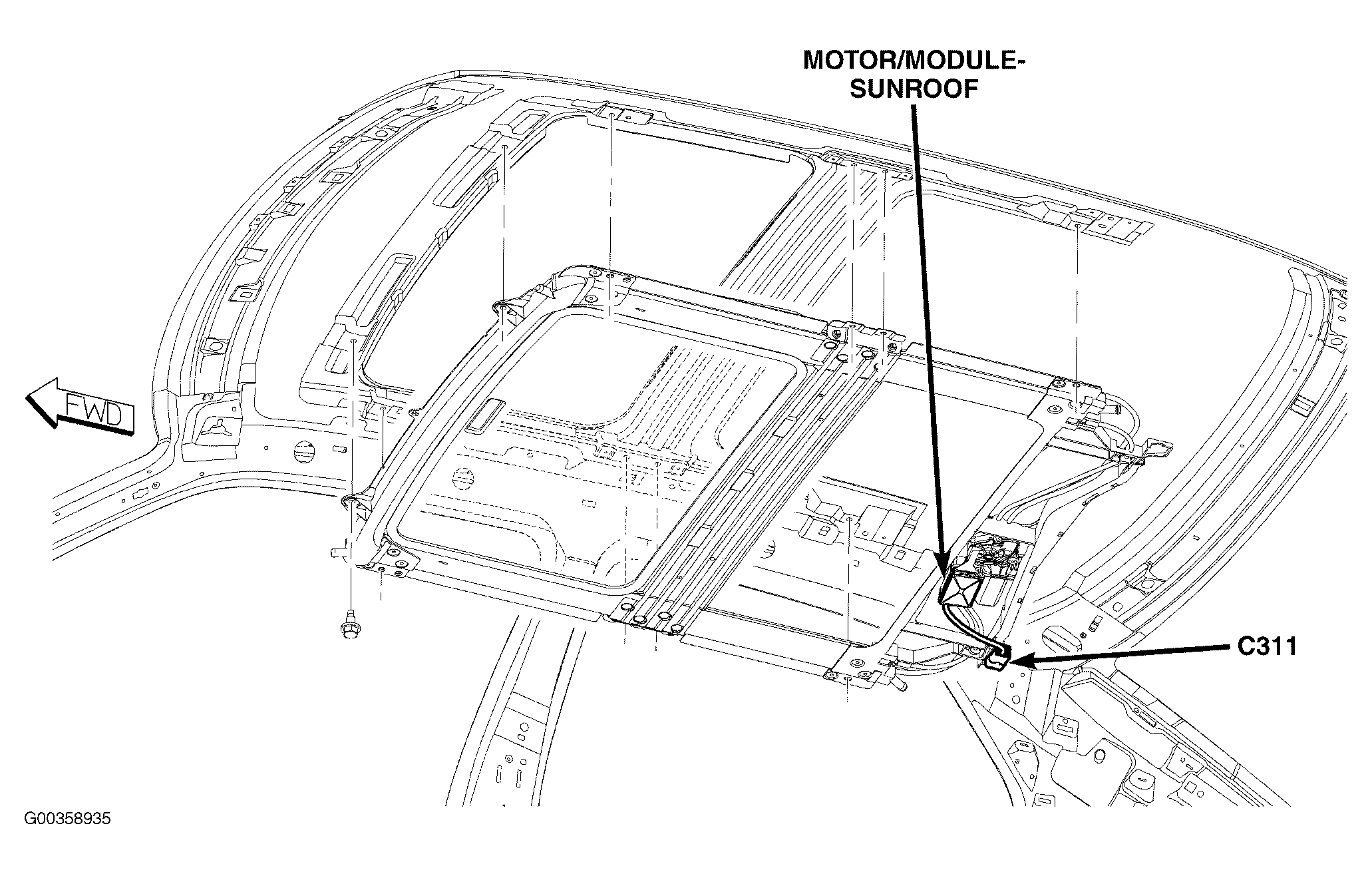

Fig 45: Headliner

G00358935

Courtesy of DAIMLERCHRYSLER CORP.

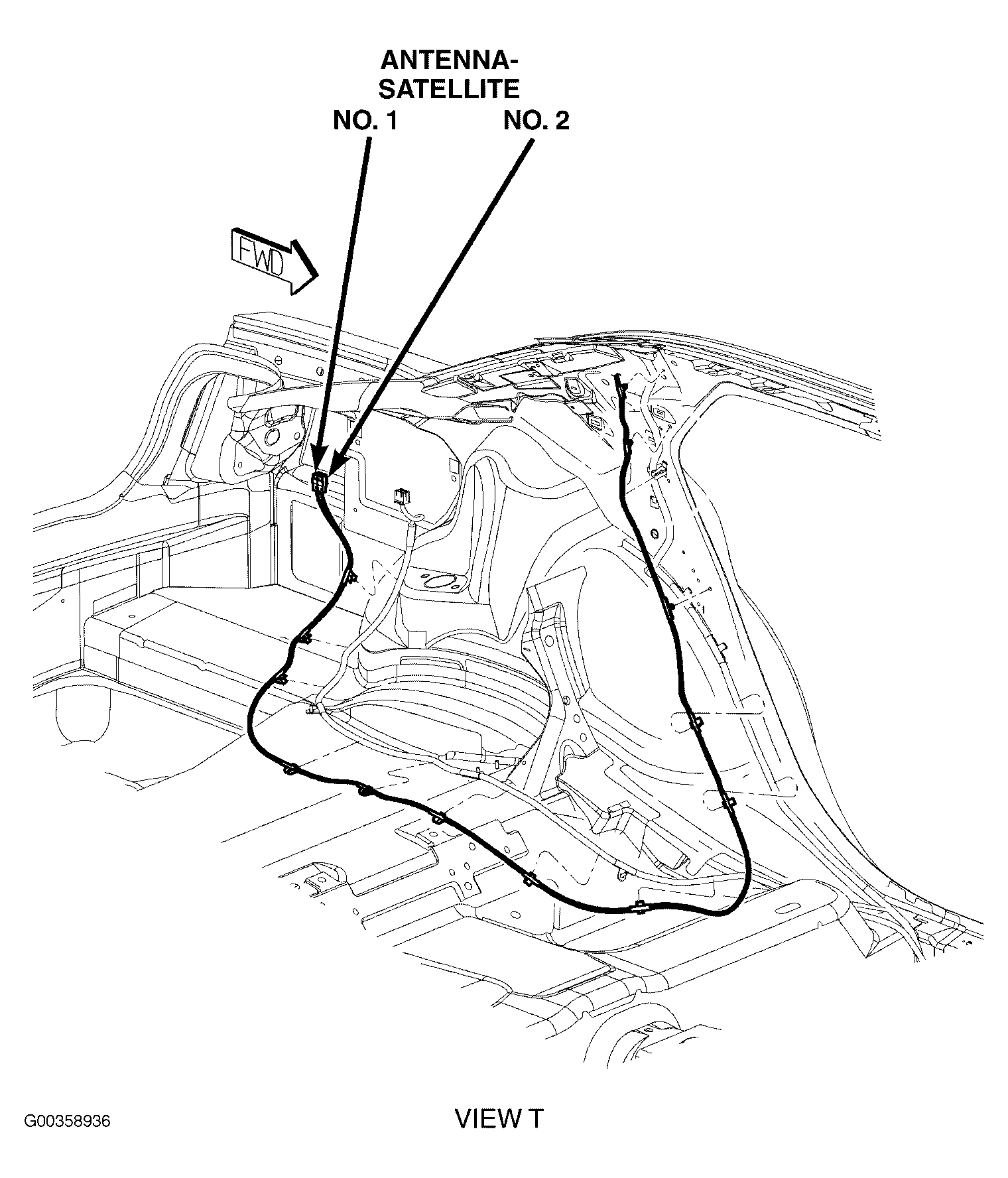

Fig 46: Left Rear Of Trunk (Except Magnum)

G00358936

Courtesy of DAIMLERCHRYSLER CORP.

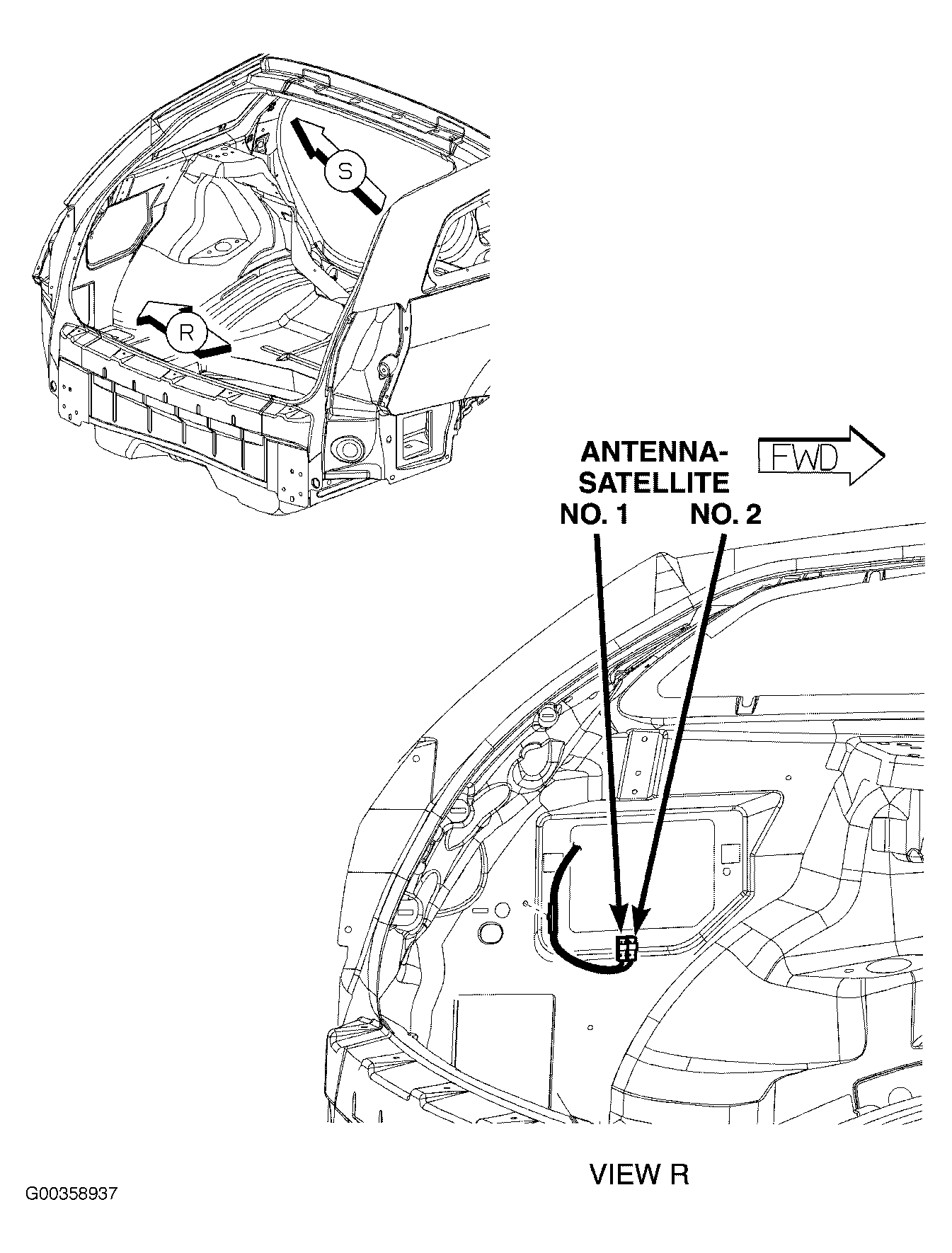

Fig 47: Left Rear Of Cargo Area (Magnum)

G00358937

Courtesy of DAIMLERCHRYSLER CORP.

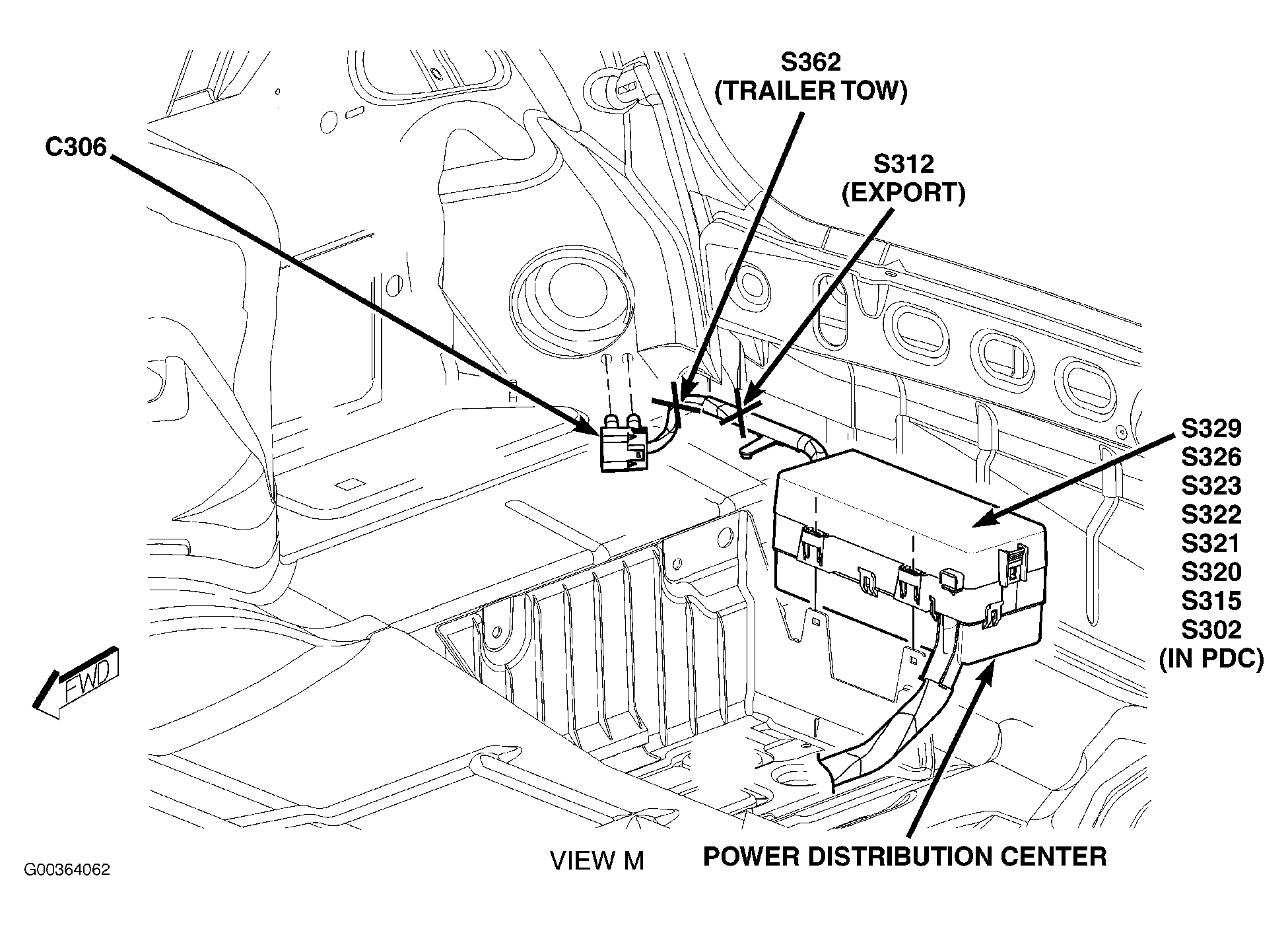

Fig 48: Right Rear Of Cargo Area (Magnum)

G00364062

Courtesy of DAIMLERCHRYSLER CORP.

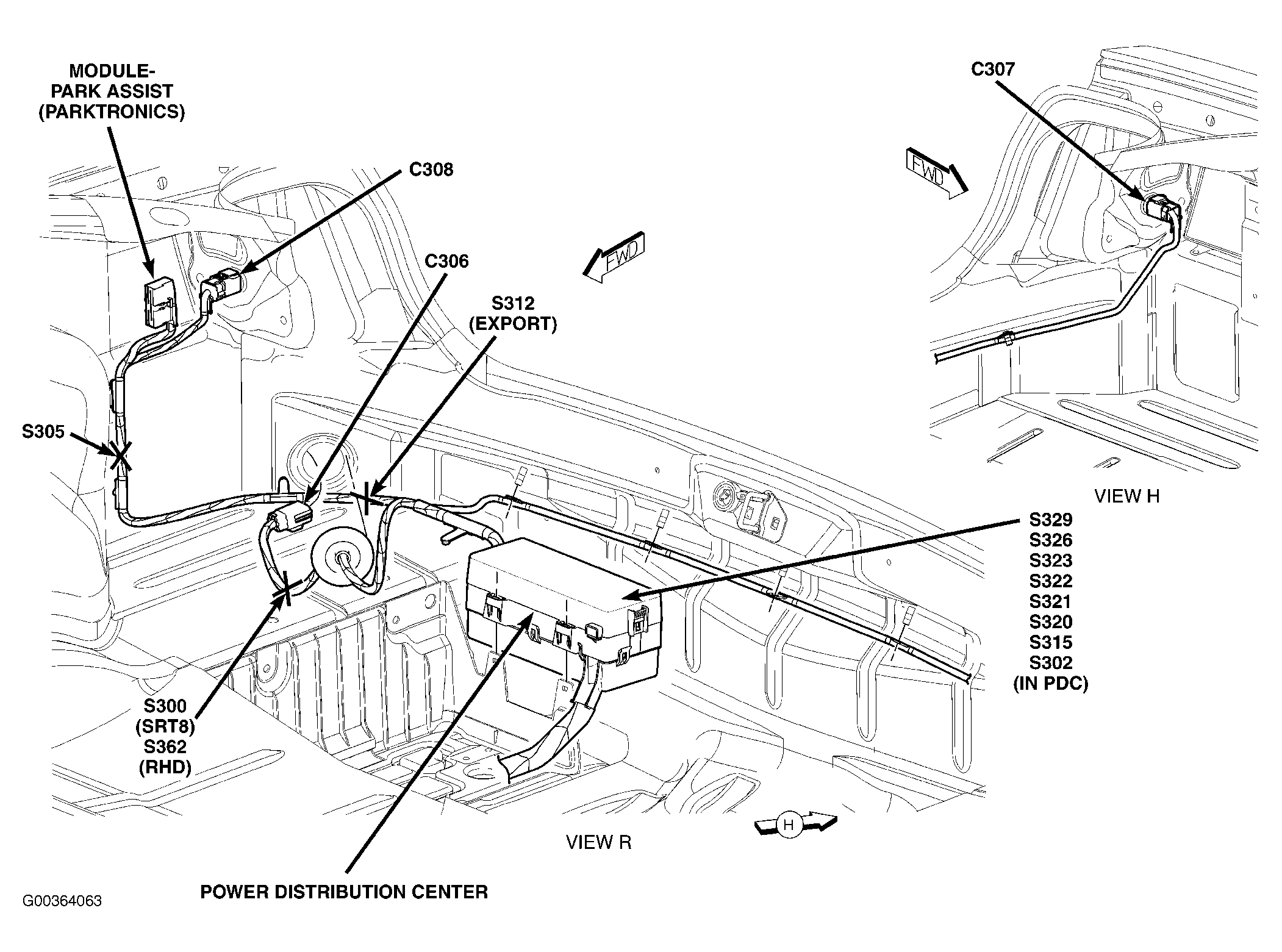

Fig 49: Trunk (Except Magnum)

G00364063

Courtesy of DAIMLERCHRYSLER CORP.

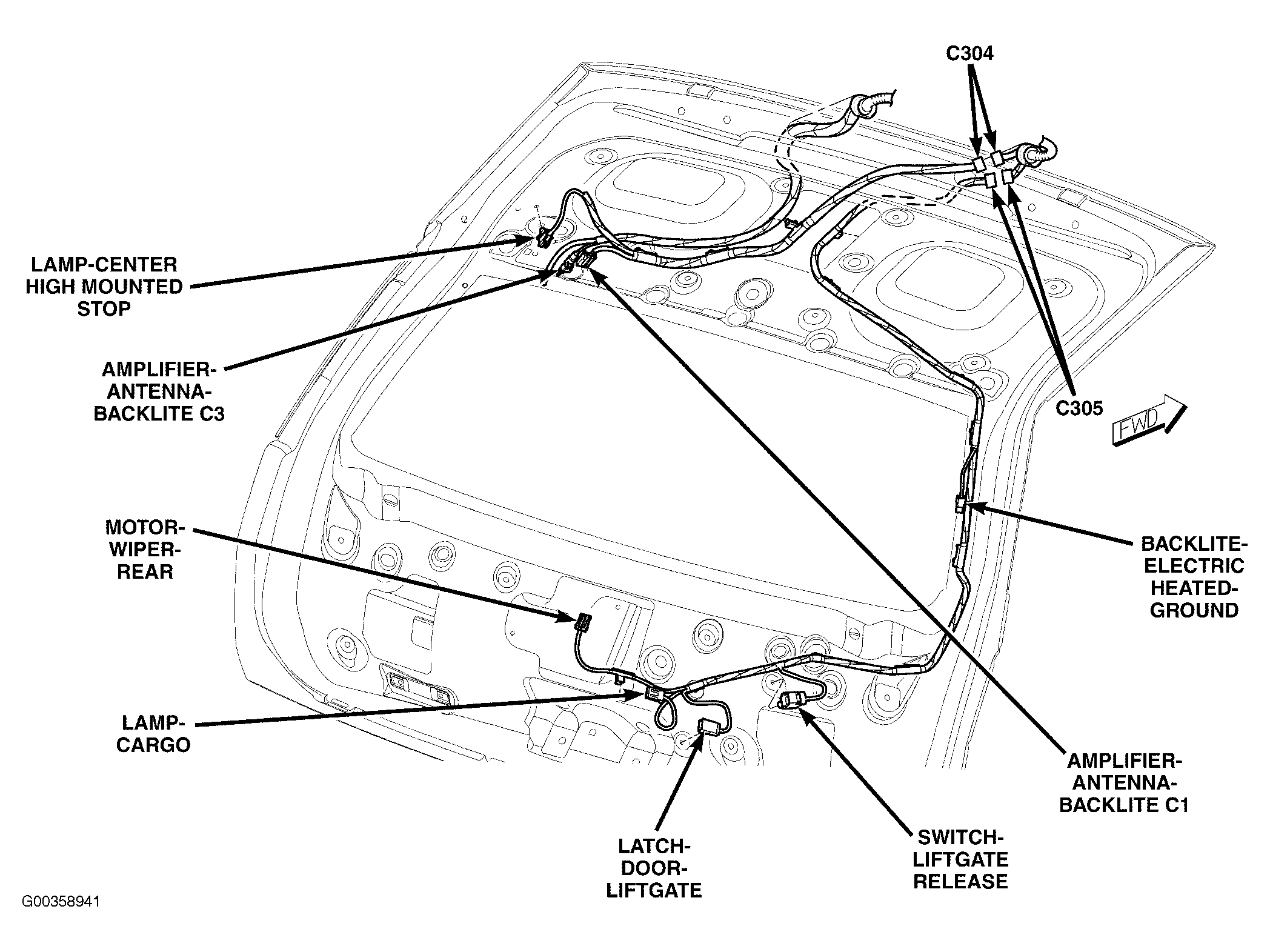

Fig 50: Liftgate (Magnum)

G00358941

Courtesy of DAIMLERCHRYSLER CORP.

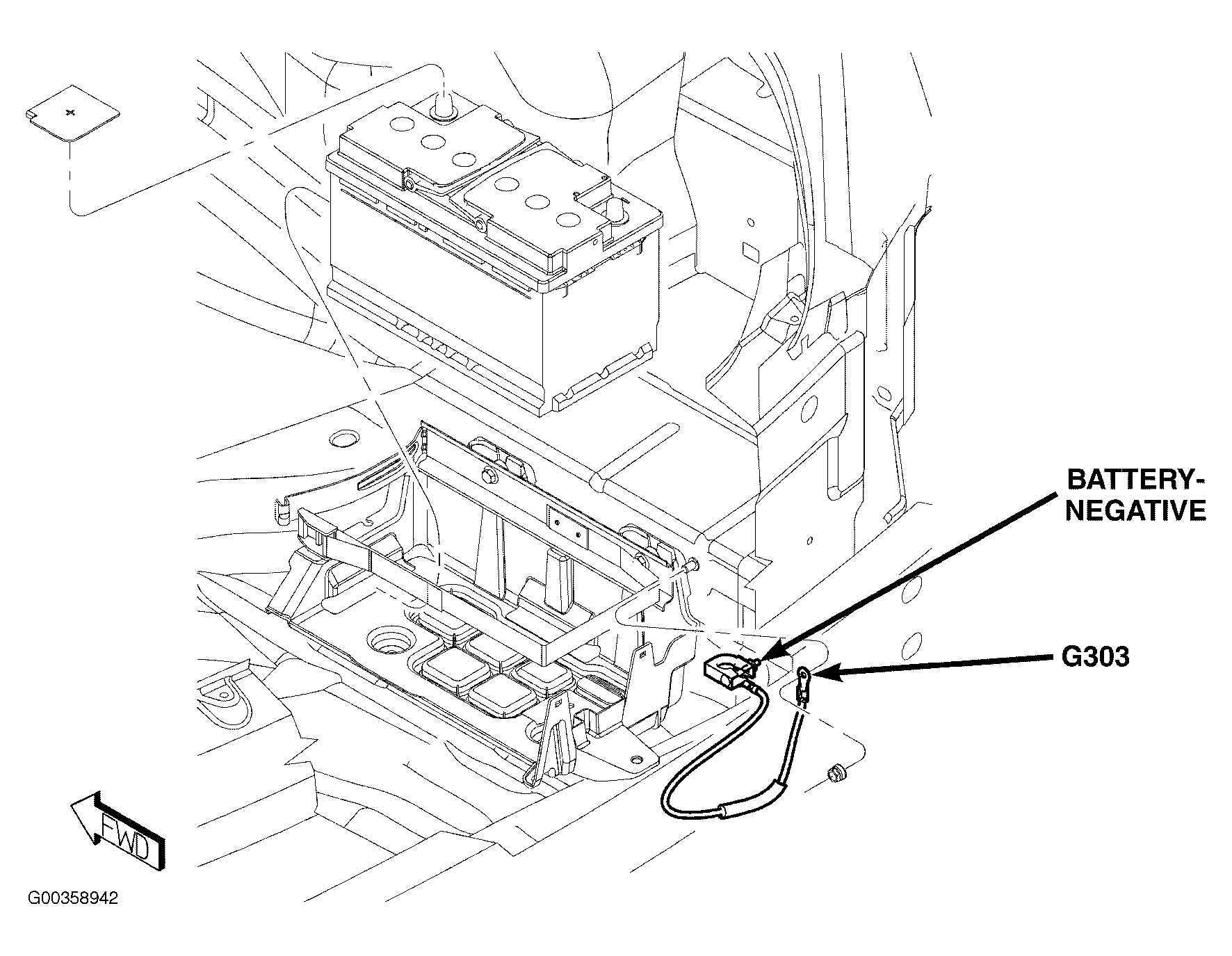

Fig 51: Trunk Battery

G00358942

Courtesy of DAIMLERCHRYSLER CORP.

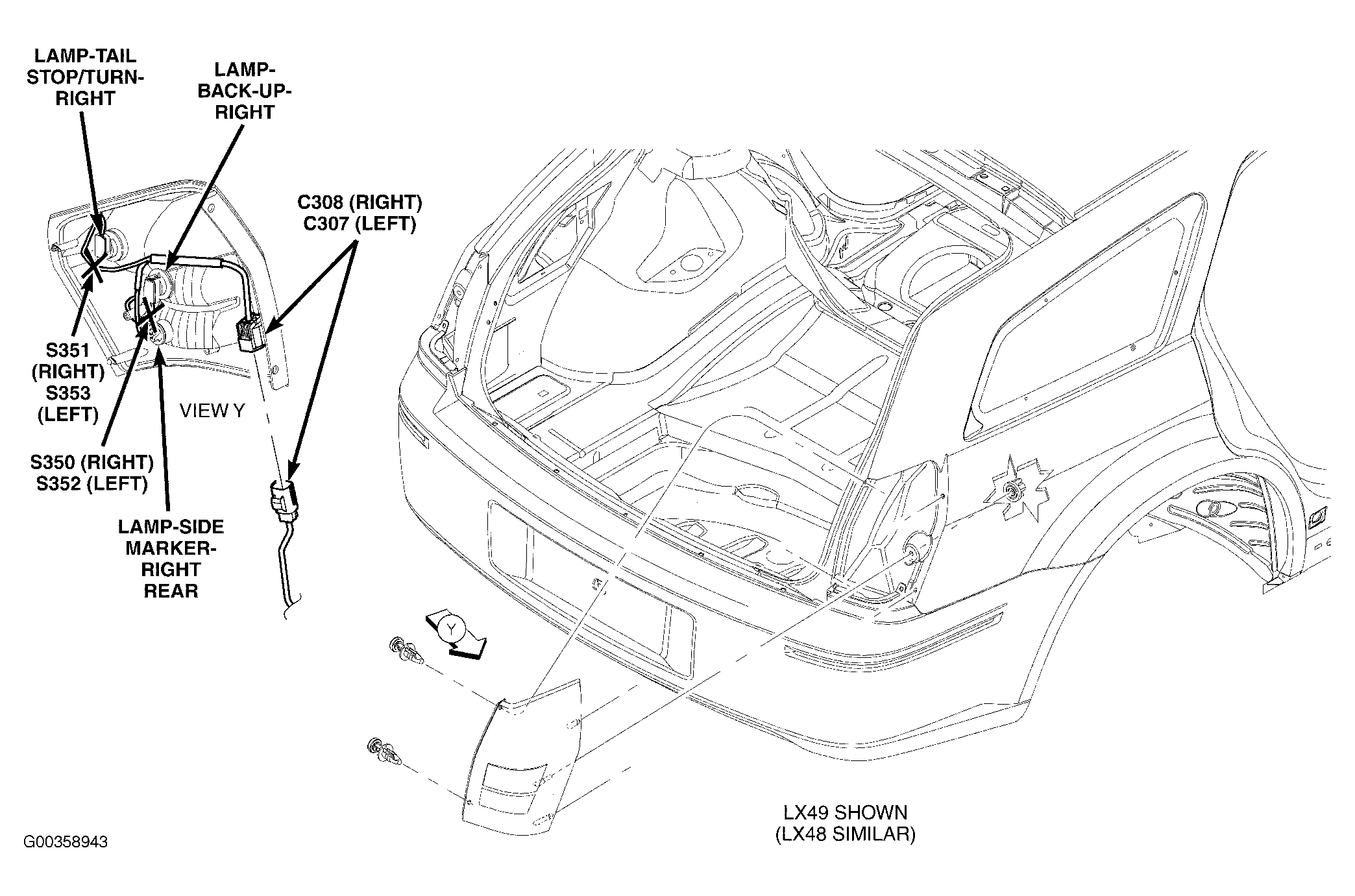

Fig 52: Rear Of Vehicle

G00358943

Courtesy of DAIMLERCHRYSLER CORP.

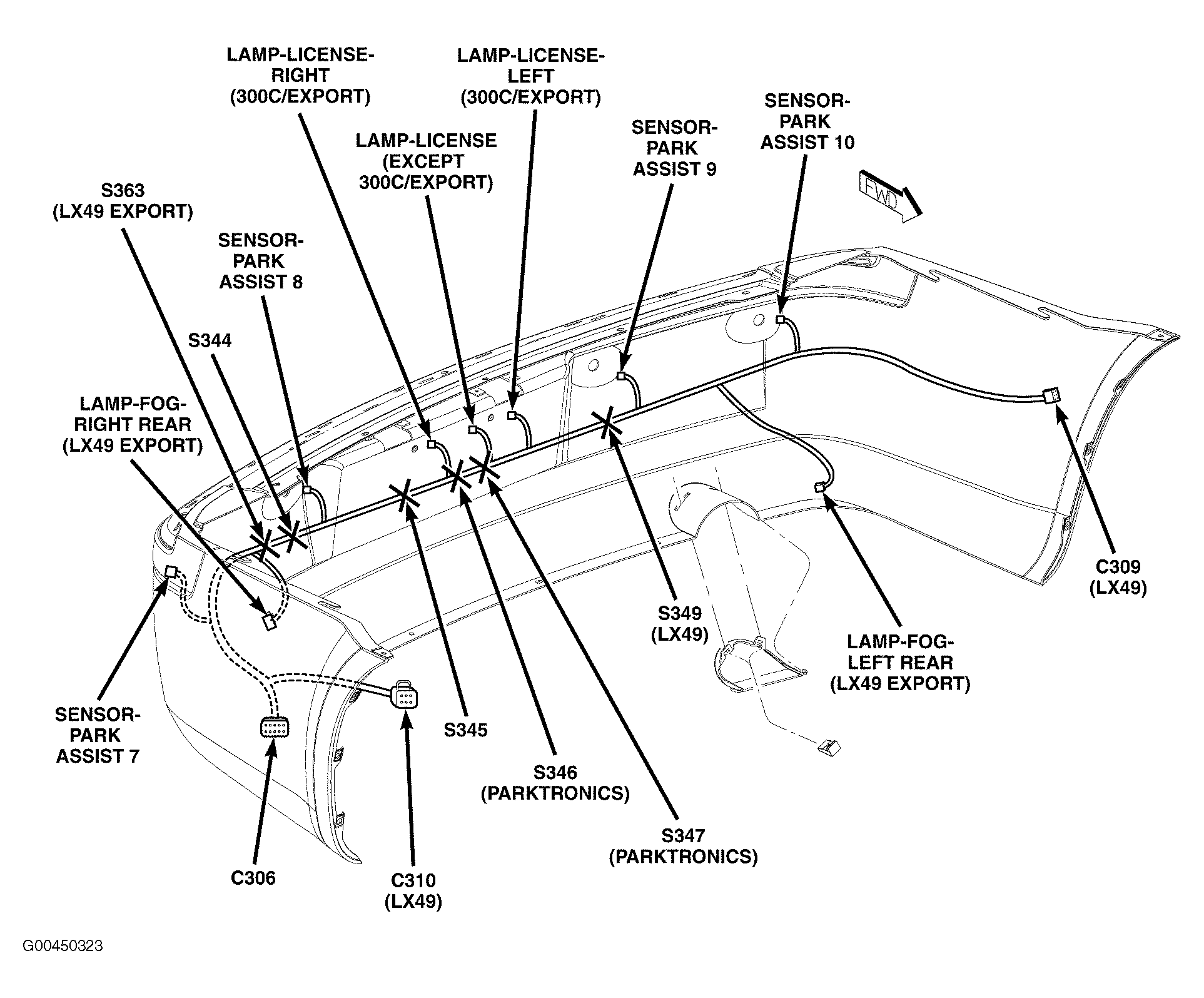

Fig 53: Rear Fascia

G00450323

Courtesy of DAIMLERCHRYSLER CORP.

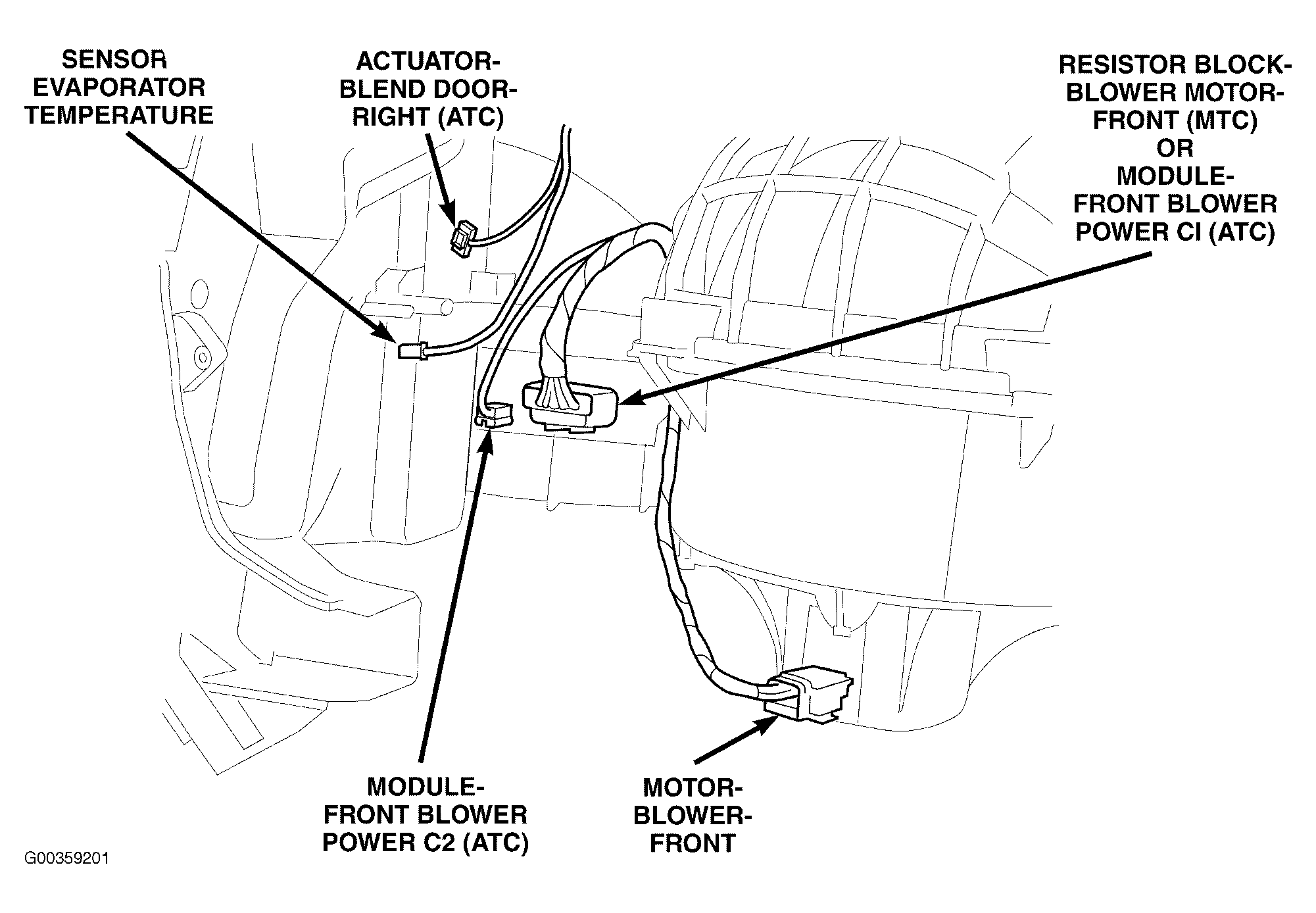

Fig 54: HVAC Unit

G00359201

Courtesy of DAIMLERCHRYSLER CORP.

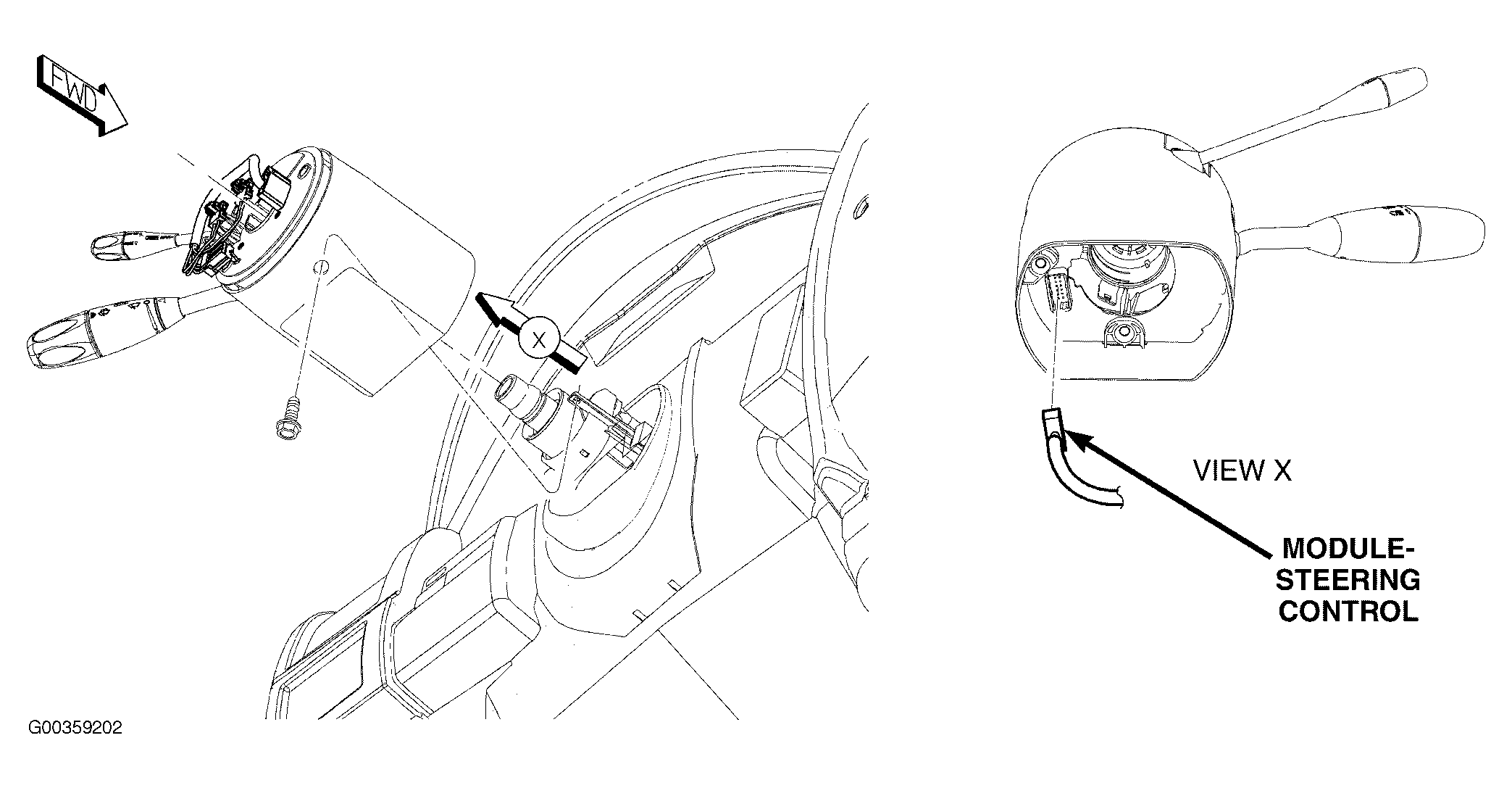

Fig 55: Steering Column

G00359202

Courtesy of DAIMLERCHRYSLER CORP.

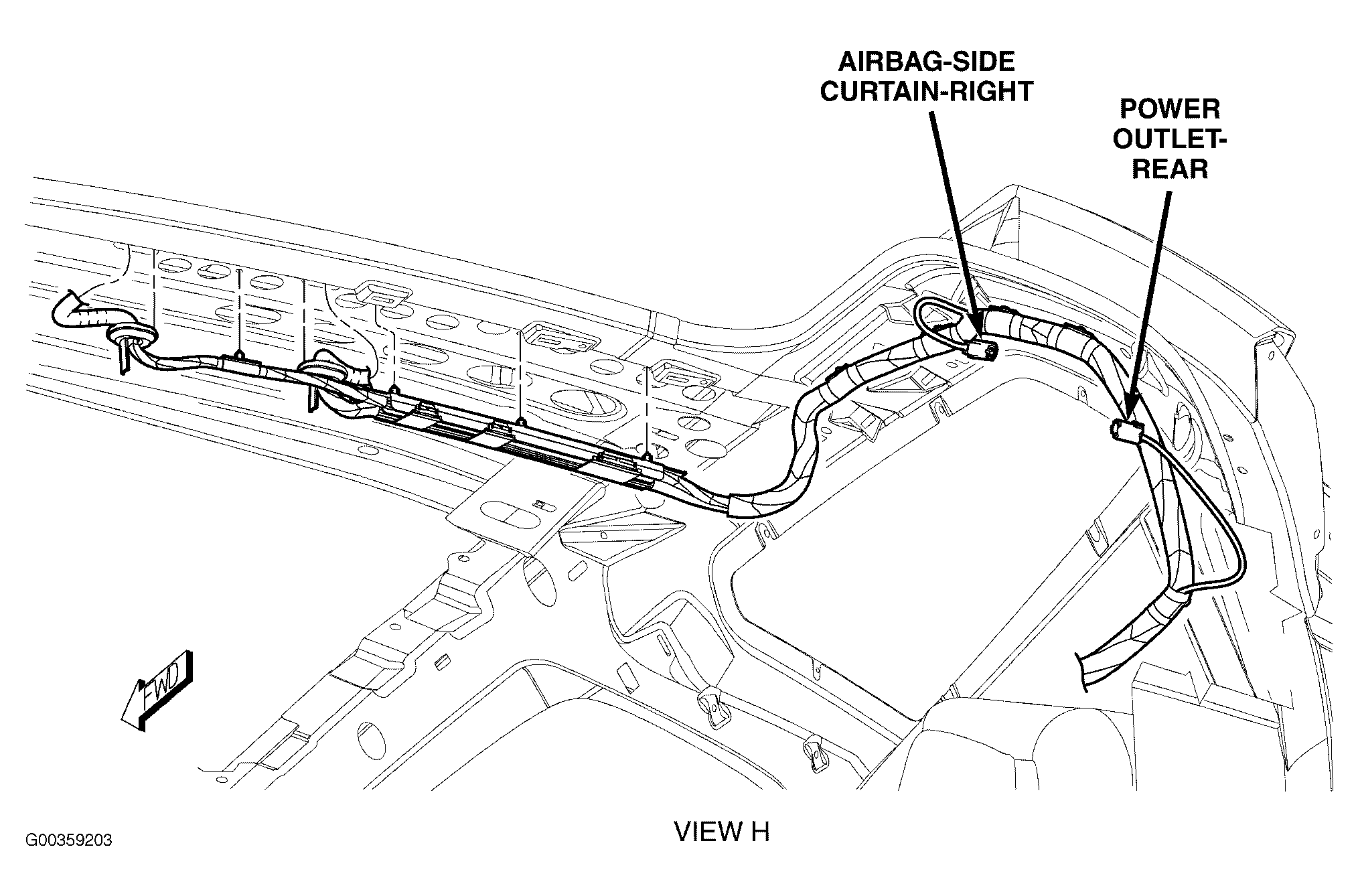

Fig 56: Rear Cargo Area

G00359203

Courtesy of DAIMLERCHRYSLER CORP.

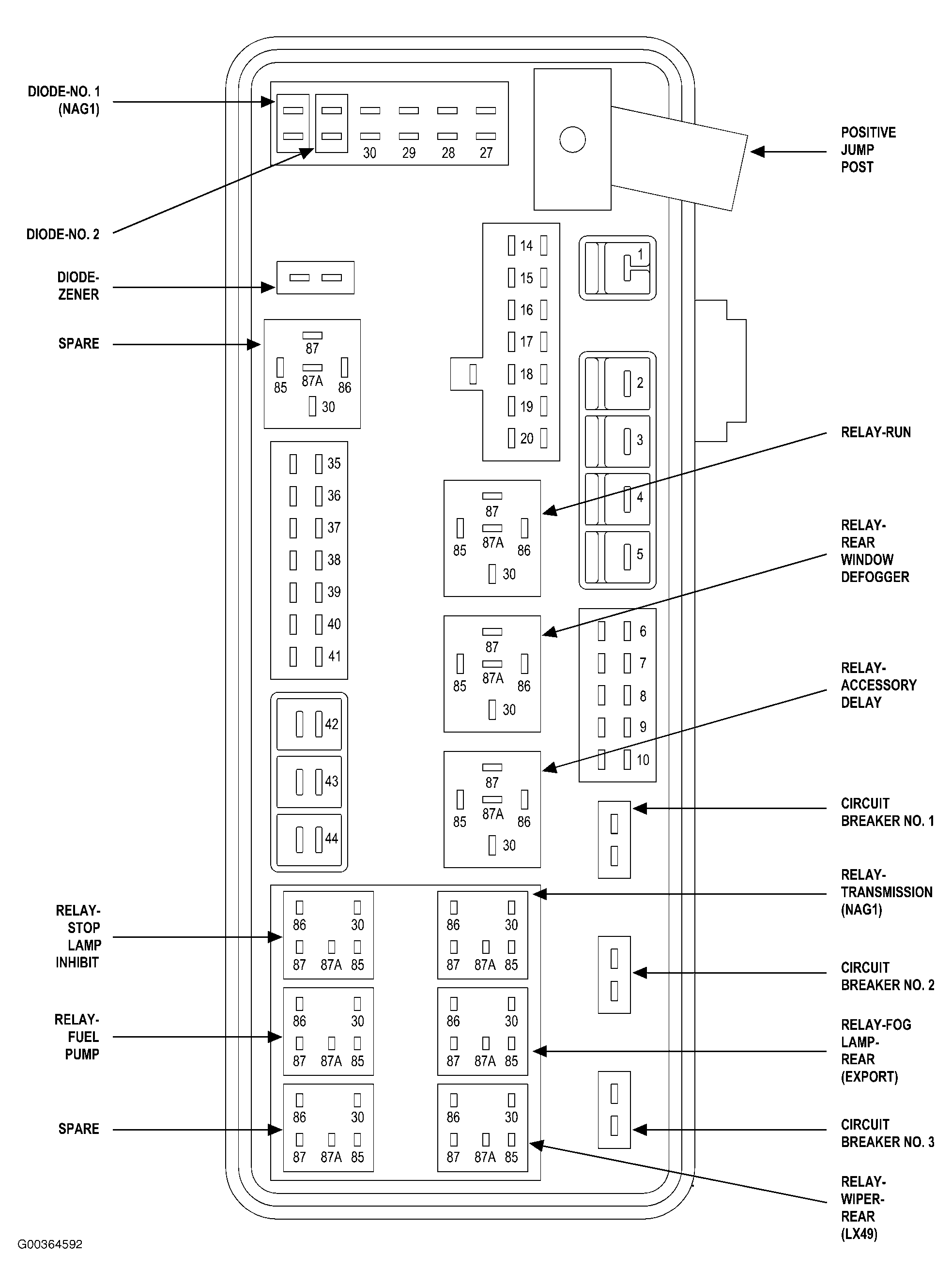

Fig 57: Power Distribution Center

G00364592

Courtesy of DAIMLERCHRYSLER CORP.

Fig 58: Right Side Of Engine Compartment

G00364054

Courtesy of DAIMLERCHRYSLER CORP.

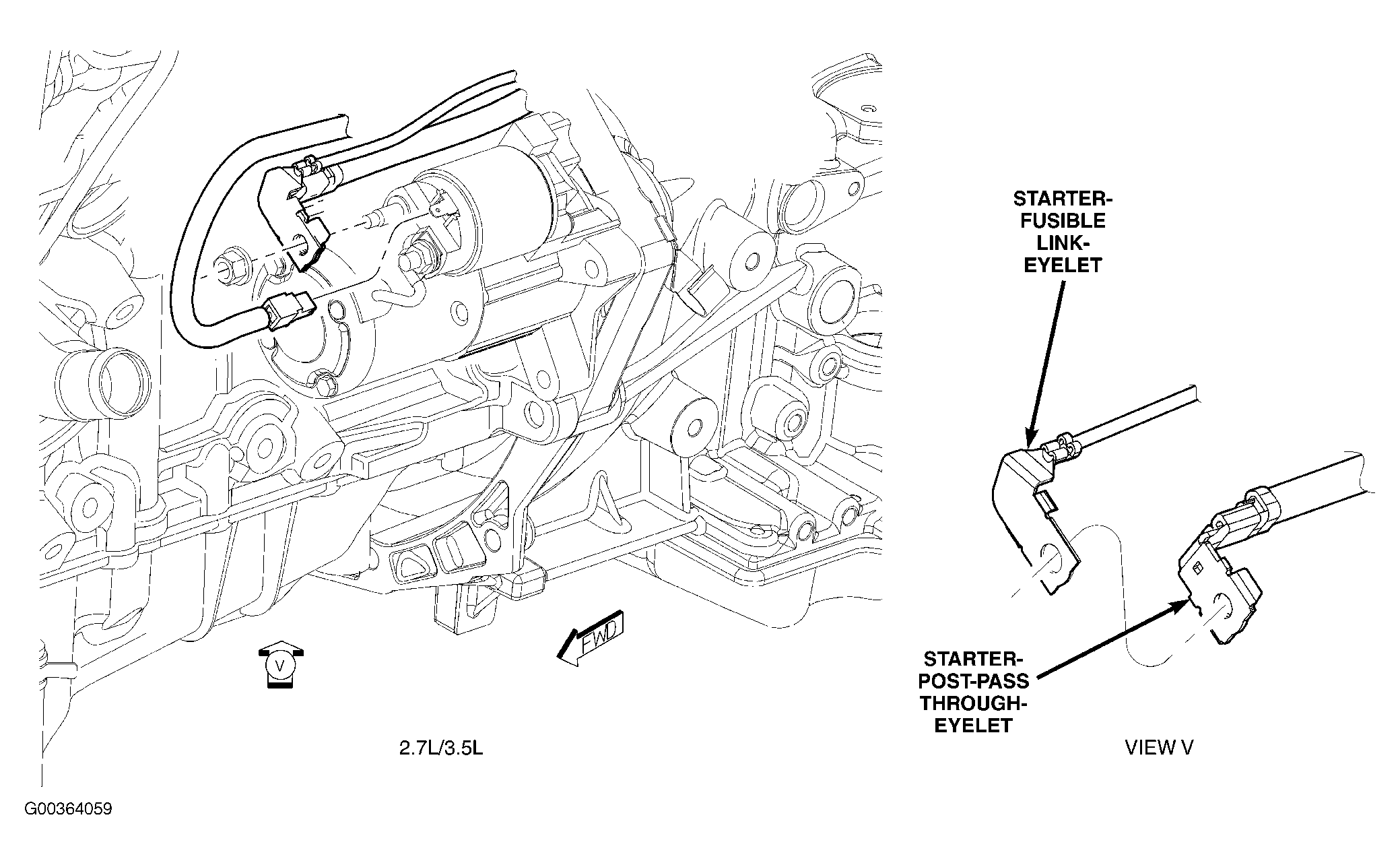

Fig 59: Left Side Of Engine

G00364059

Courtesy of DAIMLERCHRYSLER CORP.

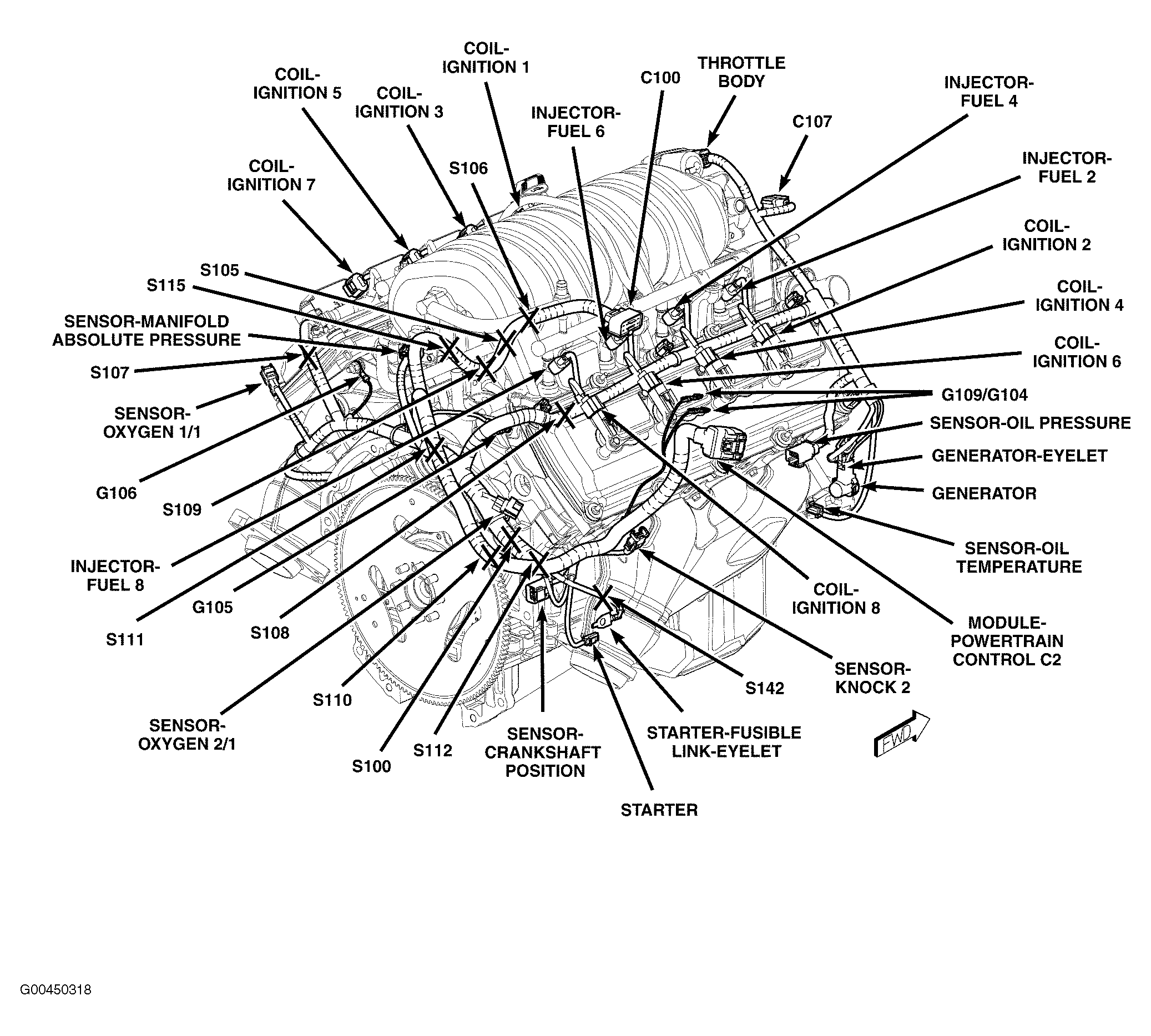

Fig 60: Right Rear Of Engine (6.1L)

G00450318

Courtesy of DAIMLERCHRYSLER CORP.

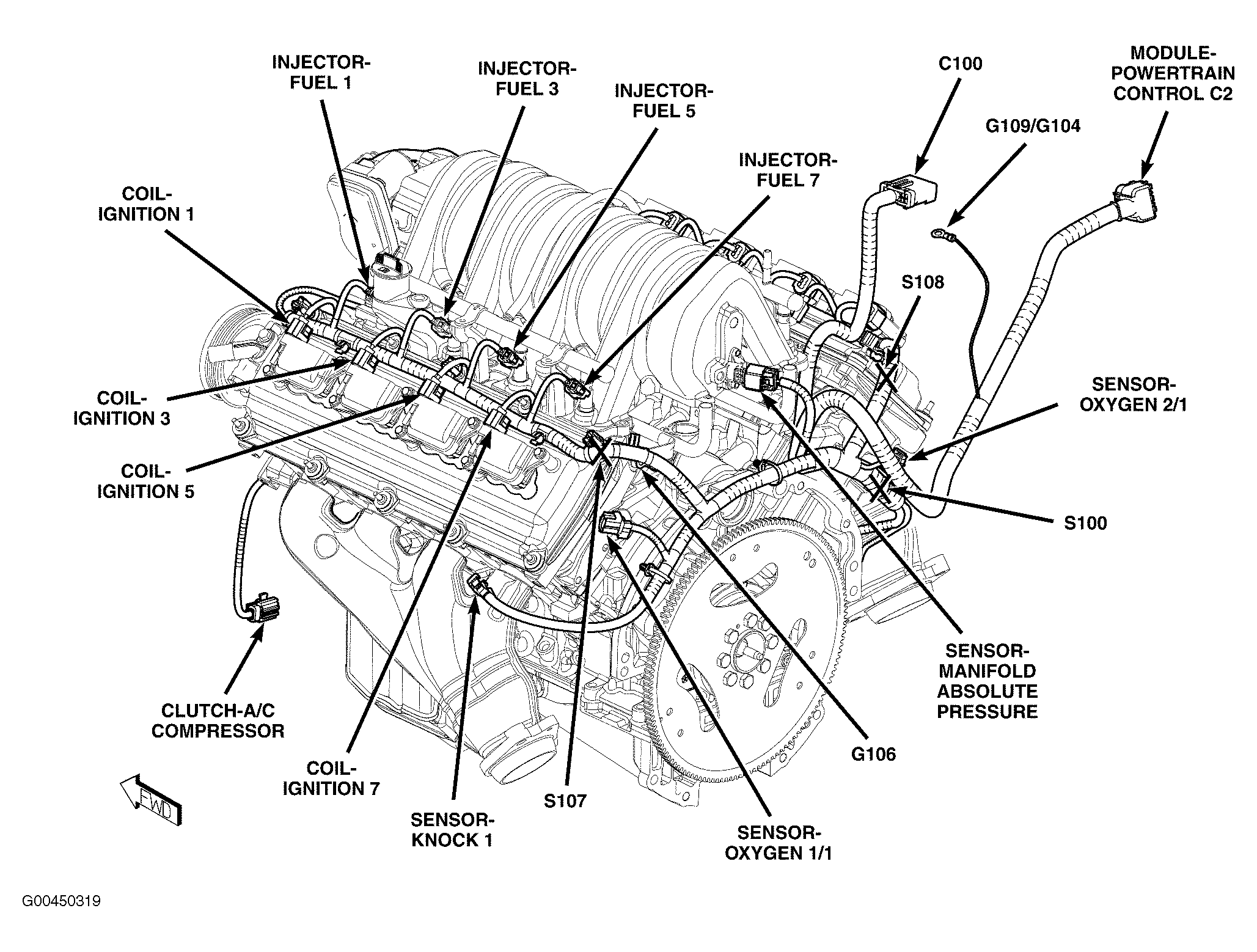

Fig 61: Left Rear Of Engine (6.1L)

G00450319

Courtesy of DAIMLERCHRYSLER CORP.

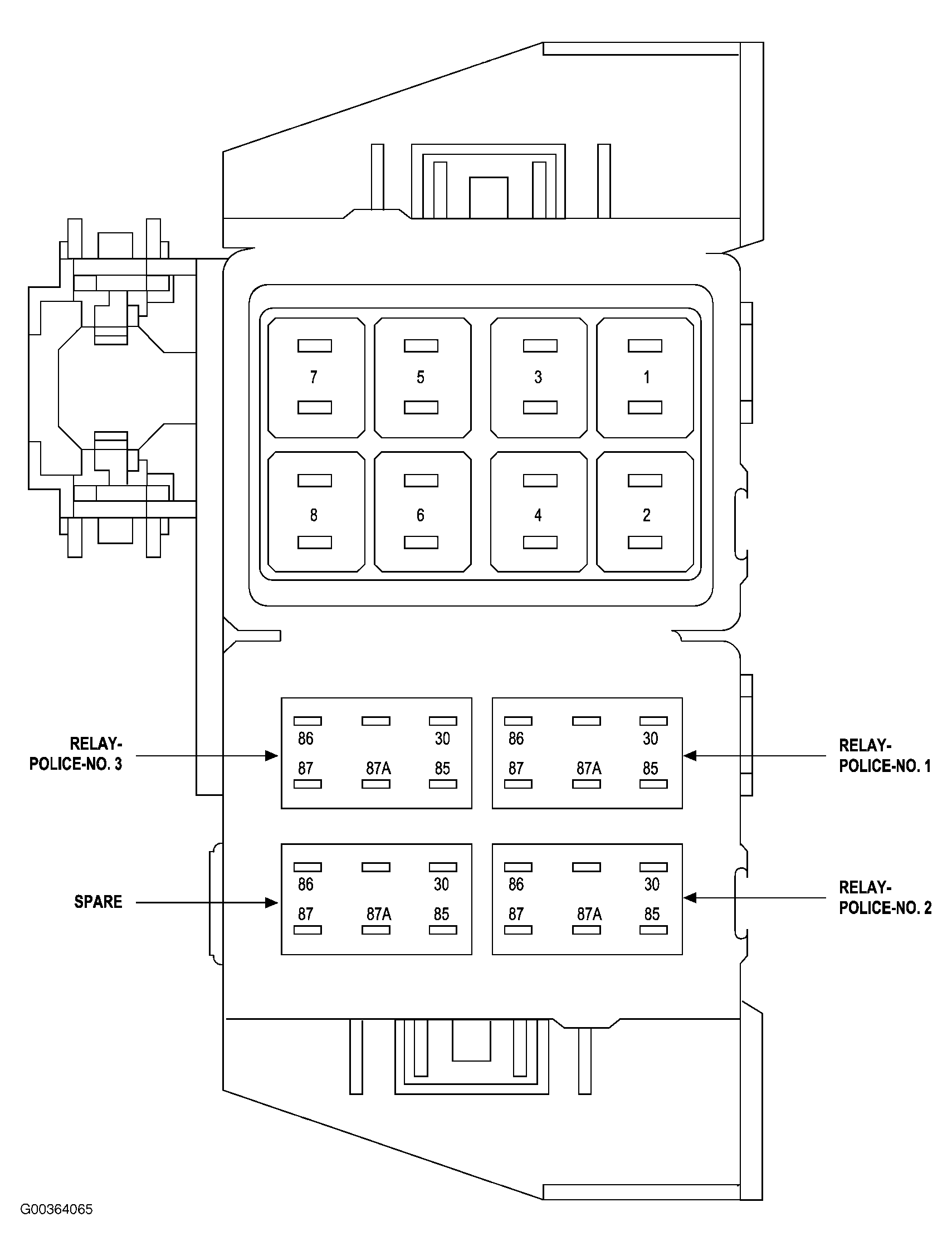

Fig 62: Police Fuse/Relay Block

G00364065

Courtesy of DAIMLERCHRYSLER CORP.

Fig 63: Right Tail Lamp Assembly (Left Similar)

G00450329

Courtesy of DAIMLERCHRYSLER CORP.

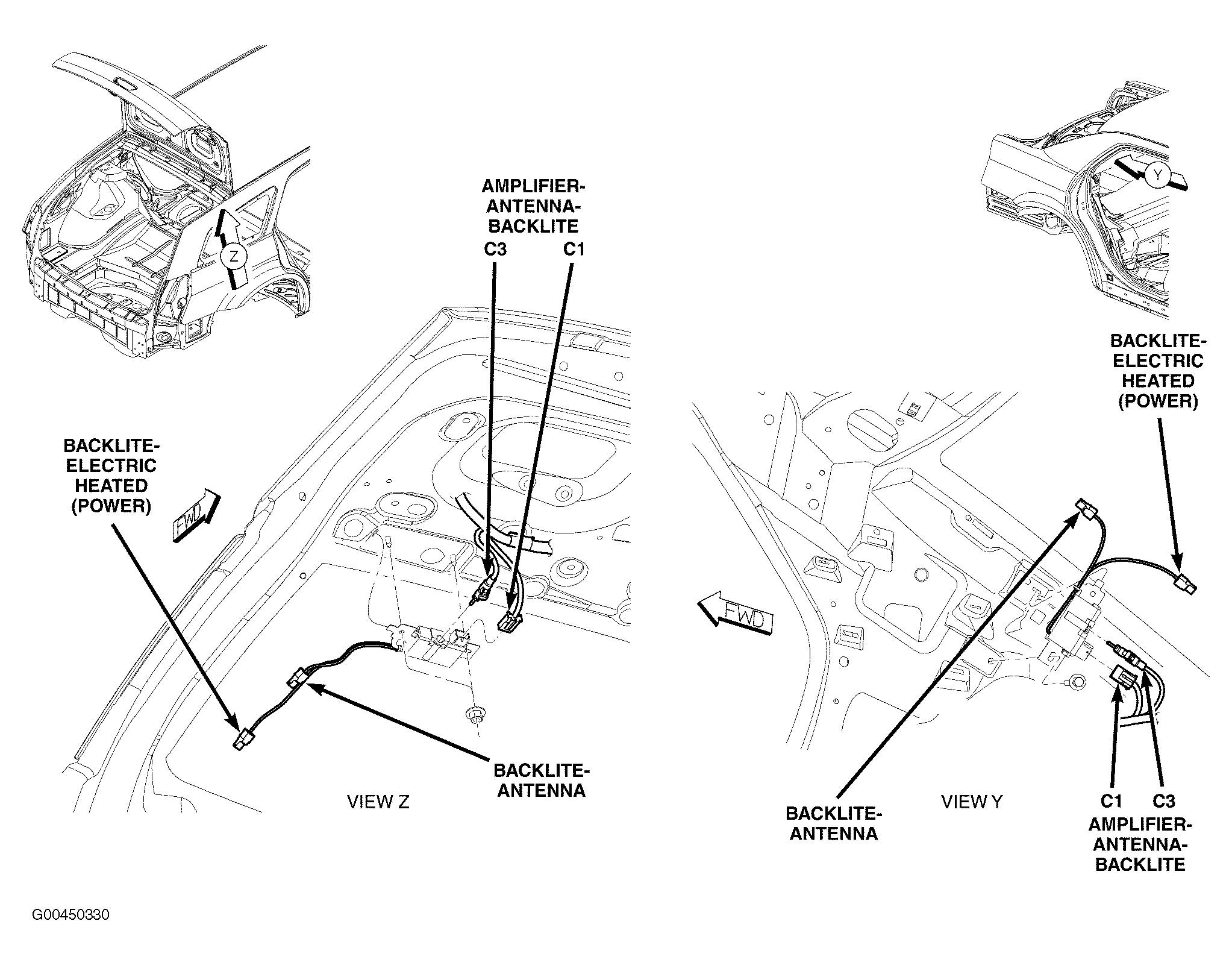

Fig 64: Vehicle Chassis

G00450330

Courtesy of DAIMLERCHRYSLER CORP.

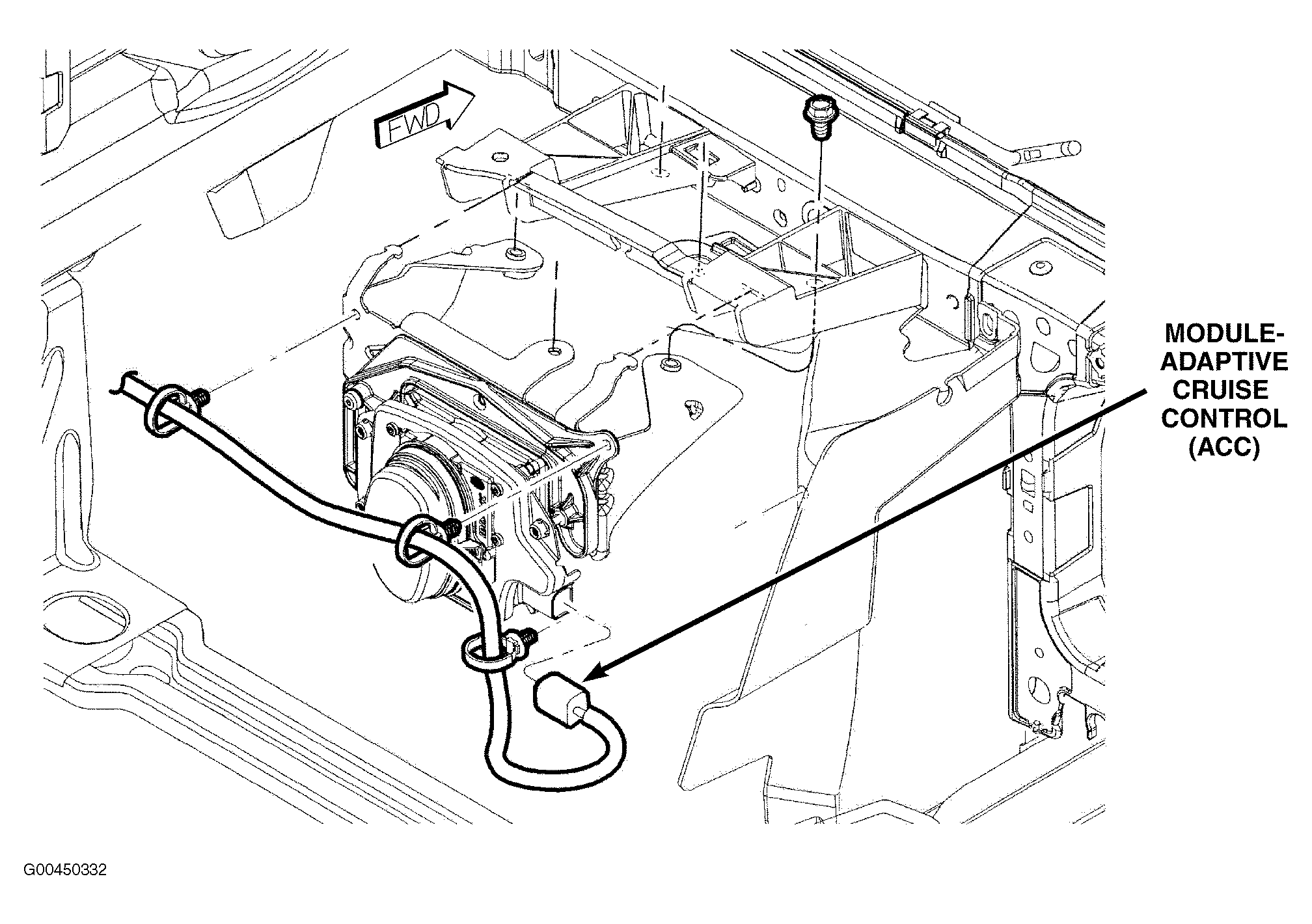

Fig 65: Front Of Vehicle

G00450332

Courtesy of DAIMLERCHRYSLER CORP.

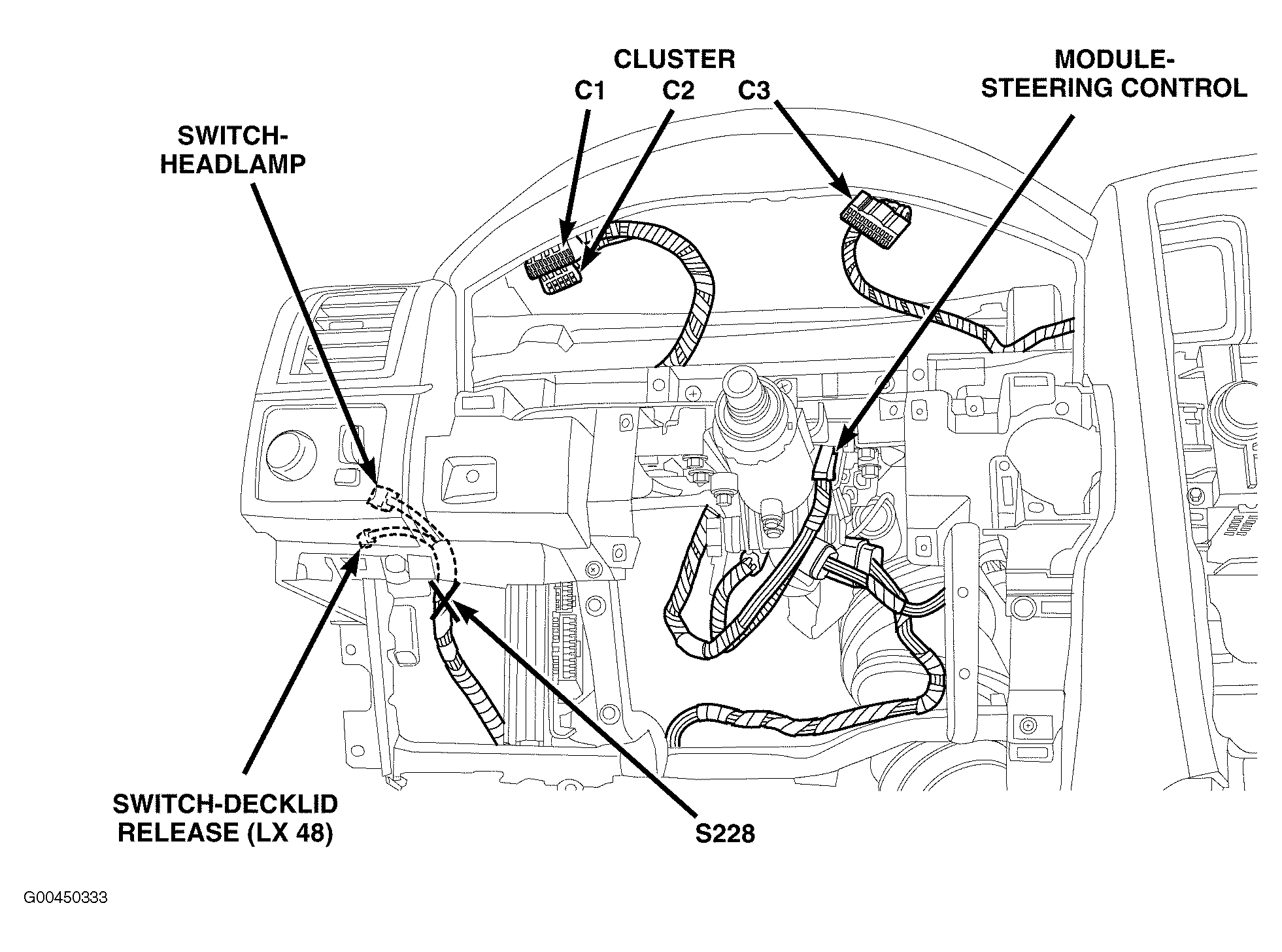

Fig 66: Dash

G00450333

Courtesy of DAIMLERCHRYSLER CORP.

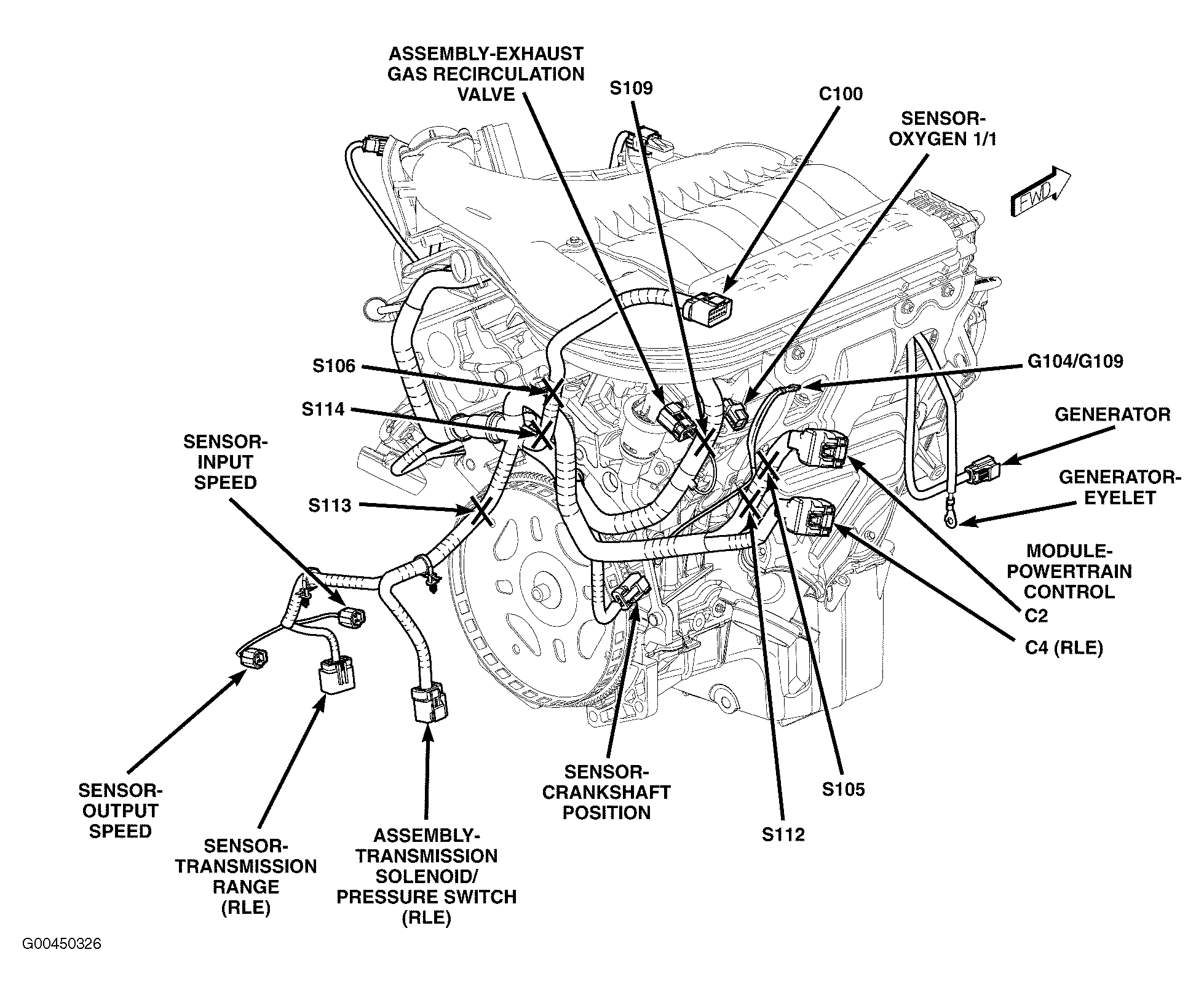

Fig 67: Engine Assembly (3.5L)

G00450326

Courtesy of DAIMLERCHRYSLER CORP.
