Pedal - Accelerator: Installation

Fig 1: Removing/Installing Pedal
GC0013117Courtesy of CHRYSLER LLC
  1. Install pedal assembly to mounting studs.
  2. Install nuts.
  3. Tighten mounting nuts to 34 N.m (25 ft. lbs.).

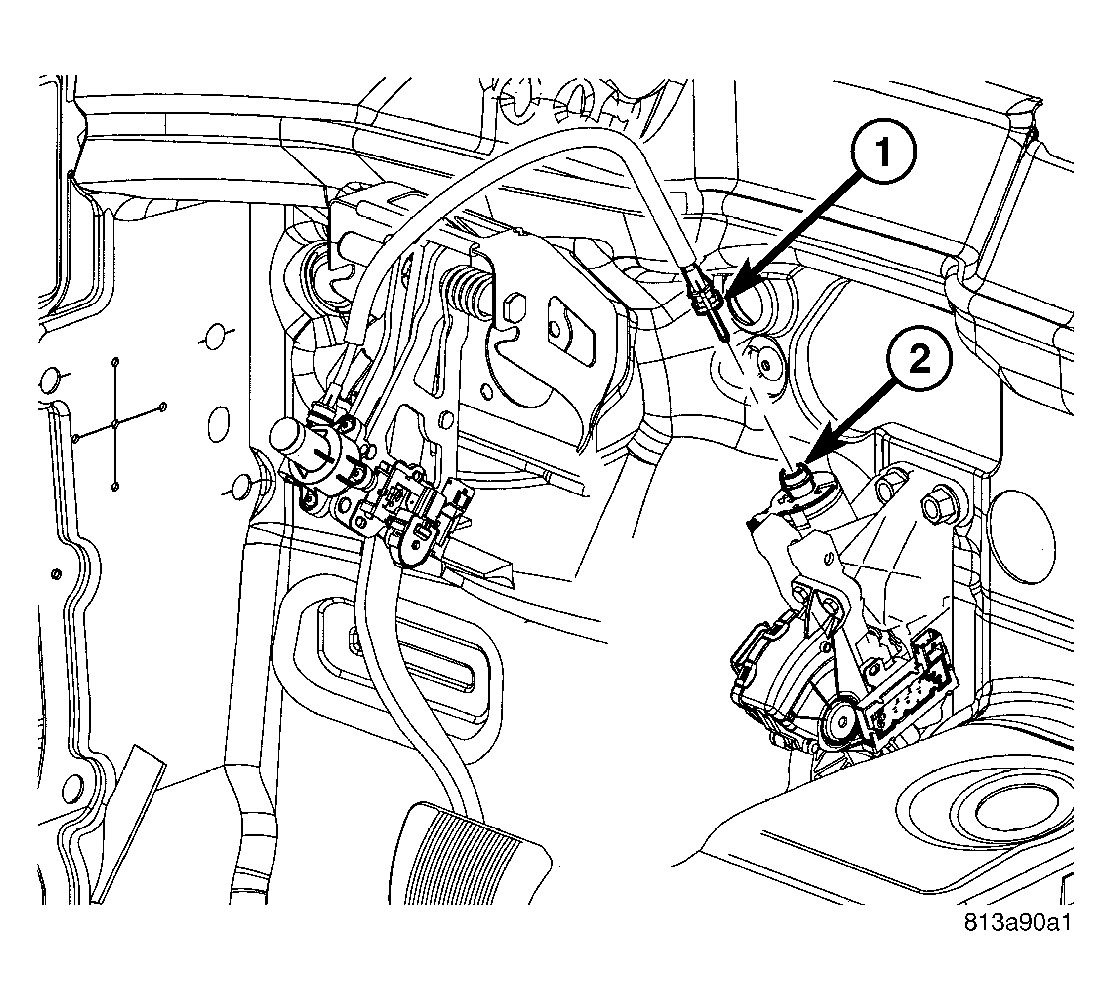

    Fig 2: Cable Attachment to Accelerator Module
    GC0014400Courtesy of CHRYSLER LLC
  4. Connect electrical connector to assembly, if equipped with adjustable pedals perform the Synchronization of brake pedal to accelerator pedal.
  5. Connect negative battery cable.
  6. Synchronize brake pedal to accelerator pedal, then connect adjuster cable (1) to adjuster motor (2). Refer to STANDARD PROCEDURE .
