Special Tools: Fuel

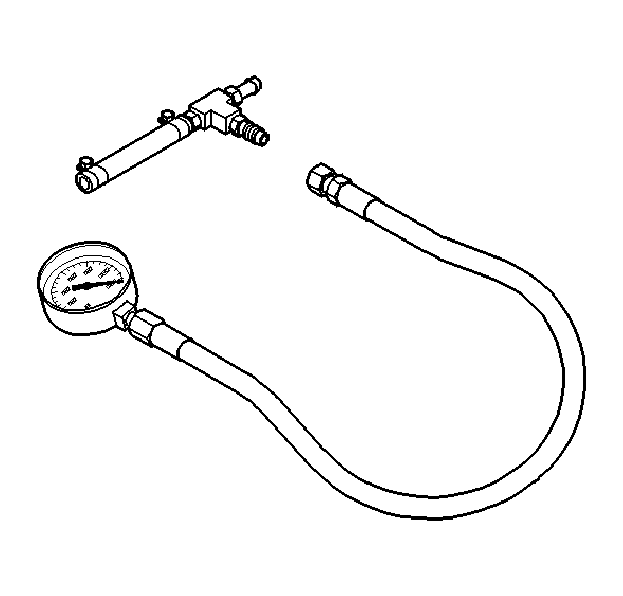

Fig 1: Test Kit, Fuel
GC0000435Courtesy of CHRYSLER LLC

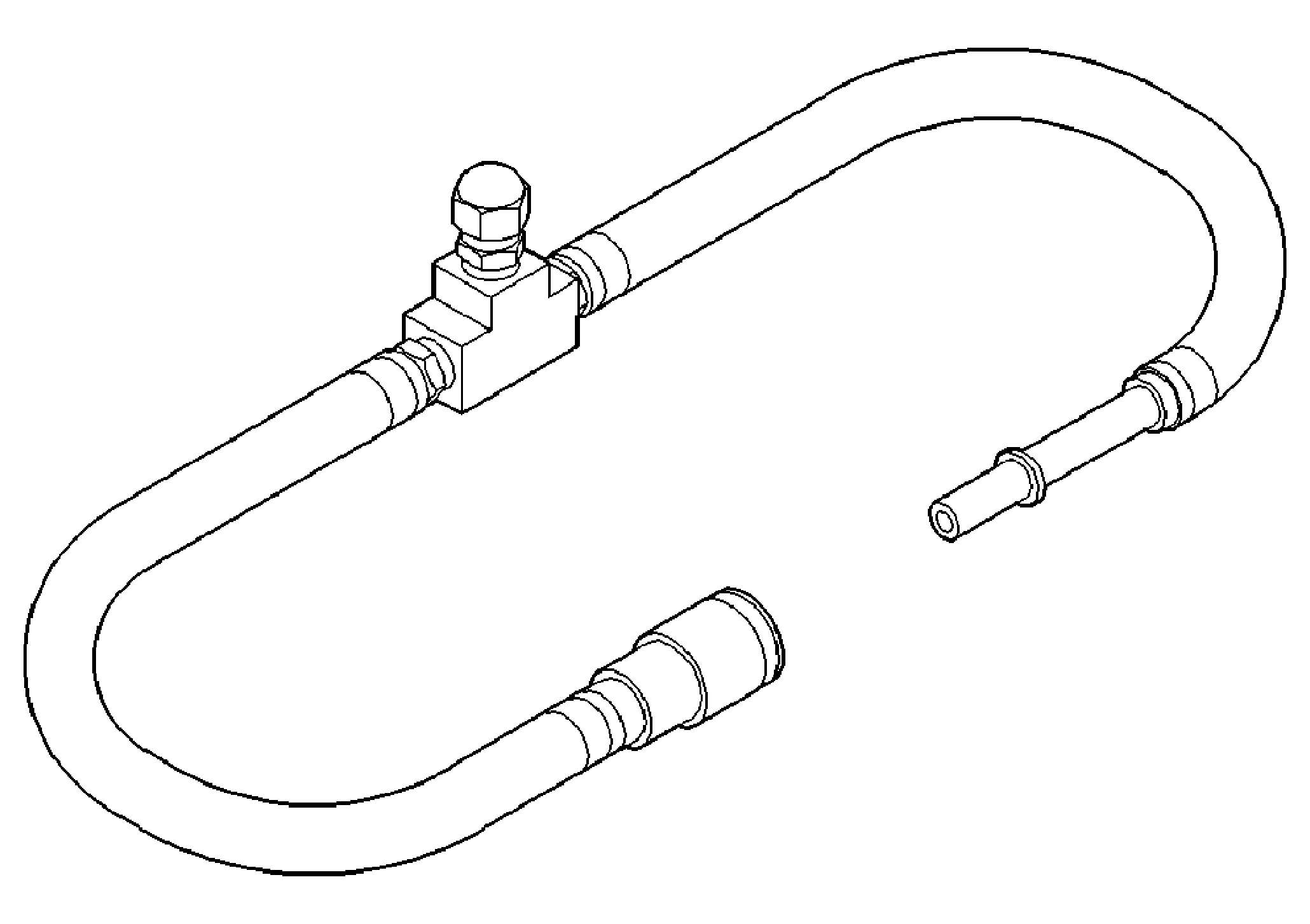

Fig 2: Adapters, Fuel Pressure Test-6539 and/or 6631
GC0000436Courtesy of CHRYSLER LLC

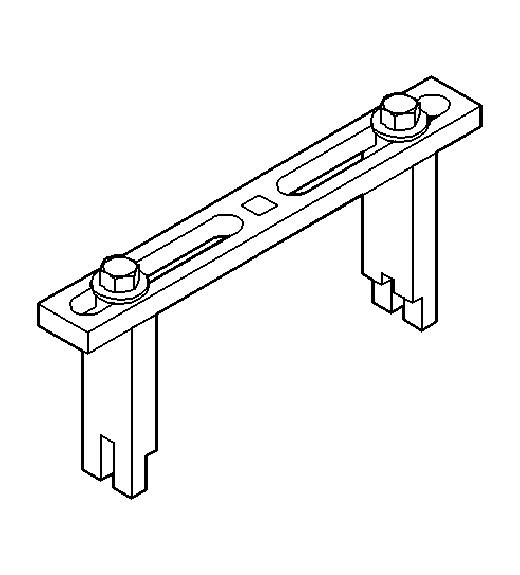

Fig 3: Spanner Wrench-6856
GC0000437Courtesy of CHRYSLER LLC

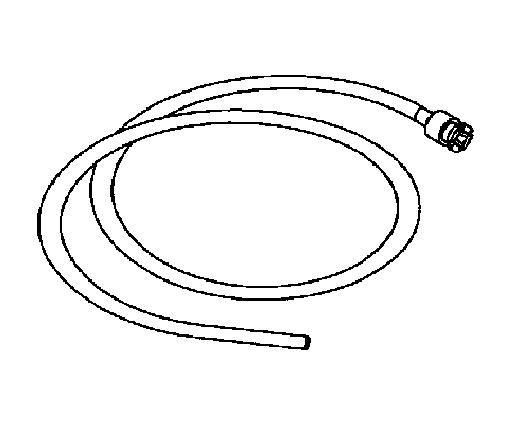

Fig 4: Fuel Line Adapter 1/4
GC0000439Courtesy of CHRYSLER LLC

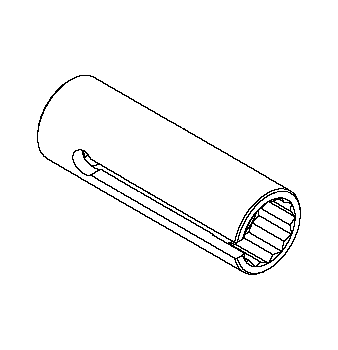

Fig 5: O2S (Oxygen Sensor) Removal/Installer-C4907
GC0000440Courtesy of CHRYSLER LLC

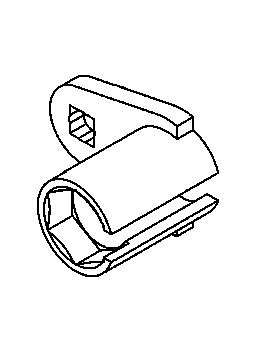

Fig 6: Oxygen Sensor Tool
GC0000434Courtesy of CHRYSLER LLC
