Throttle Body: Installation: 2.7L

CAUTION: Do not use spray (carb) cleaners on any part of the throttle body. Do not apply silicone lubricants to any part of the throttle body.

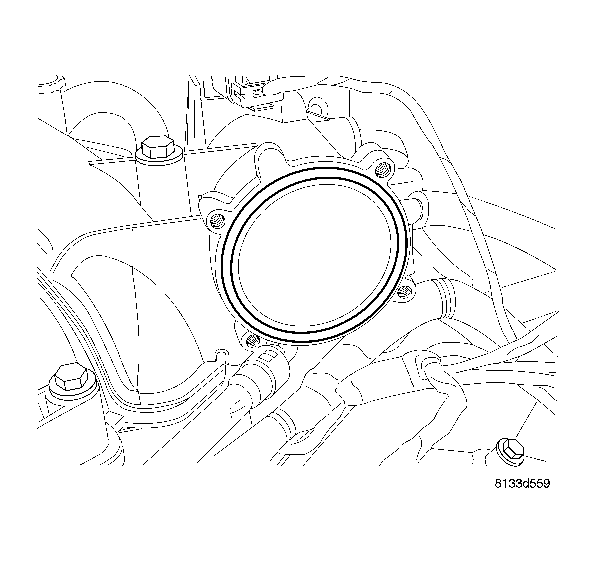

Fig 1: Throttle Body Removed

Courtesy of CHRYSLER LLC

Install throttle body gasket.

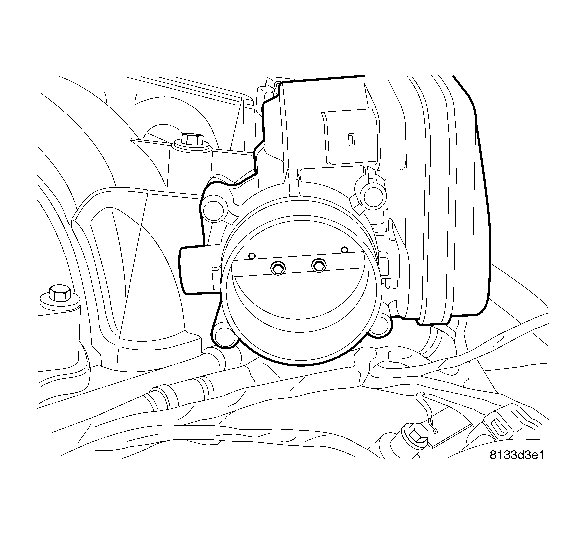

Fig 2: Throttle Body 2.7L
Courtesy of CHRYSLER LLC
Install throttle body and bolts.
Tighten bolts to 11.9 N.m (105 in. lbs.) torque.
Connect electrical connectors.
Connect vacuum hoses.

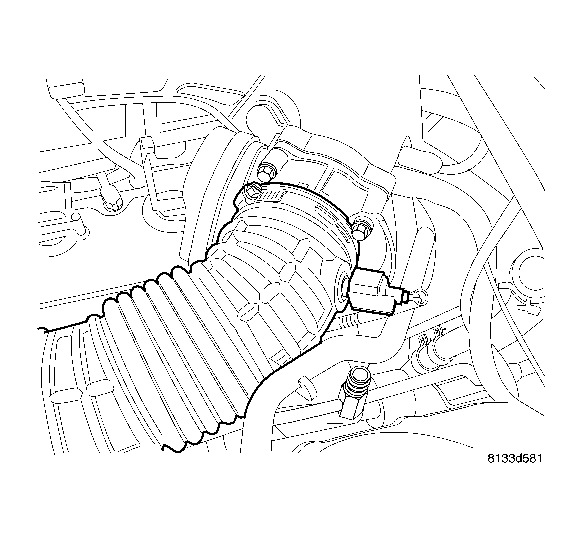

Fig 3: Inlet Hose
Courtesy of CHRYSLER LLC
Install inlet hose and tighten clamp.
Connect negative cable to battery.
A Scan Tool may be used to learn electrical parameters. Go to the Miscellaneous menu, and then select ETC Relearn. If the relearn is not preformed, a Diagnostic Trouble Code (DTC) will be set. If necessary, use a scan tool to erase any Diagnostic Trouble Codes (DTC's) from PCM.
