Throttle Body: Installation: 3.5L

CAUTION: Do not use spray (carb) cleaners on any part of the throttle body. Do not apply silicone lubricants to any part of the throttle body.

Fig 1: Throttle Body Removed

Courtesy of CHRYSLER LLC

Install throttle gasket.

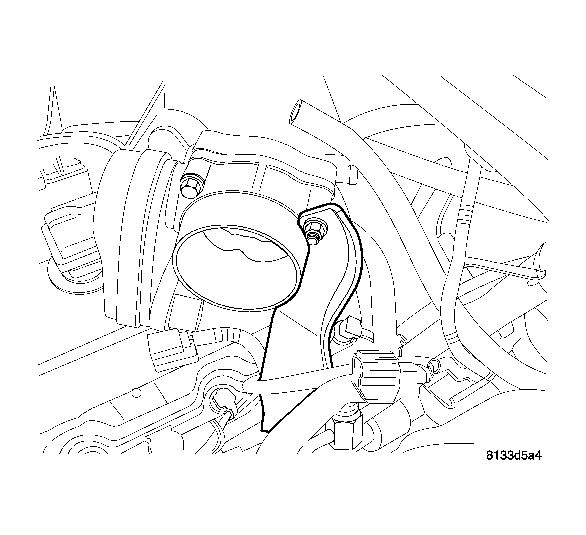

Fig 2: Throttle Body Bracket
Courtesy of CHRYSLER LLC
Install throttle body and bolts.
Tighten bolts to 11.9 N.m (105 in. lbs.) torque.
Install the throttle body support bracket to the bottom of the throttle body. Tighten the bolts to 27.1 N.m (20 ft. lbs.) torque.

Fig 3: Inlet Hose
Courtesy of CHRYSLER LLC
Install inlet hose and tighten clamp.
Connect negative cable to battery.
A Scan Tool may be used to learn electrical parameters. Go to the Miscellaneous menu, and then select ETC Relearn. If the relearn is not preformed, a Diagnostic Trouble Code (DTC) will be set. If necessary, use a scan tool to erase any Diagnostic Trouble Codes (DTC's) from PCM.
