P0521-Engine Oil Pressure Sensor Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

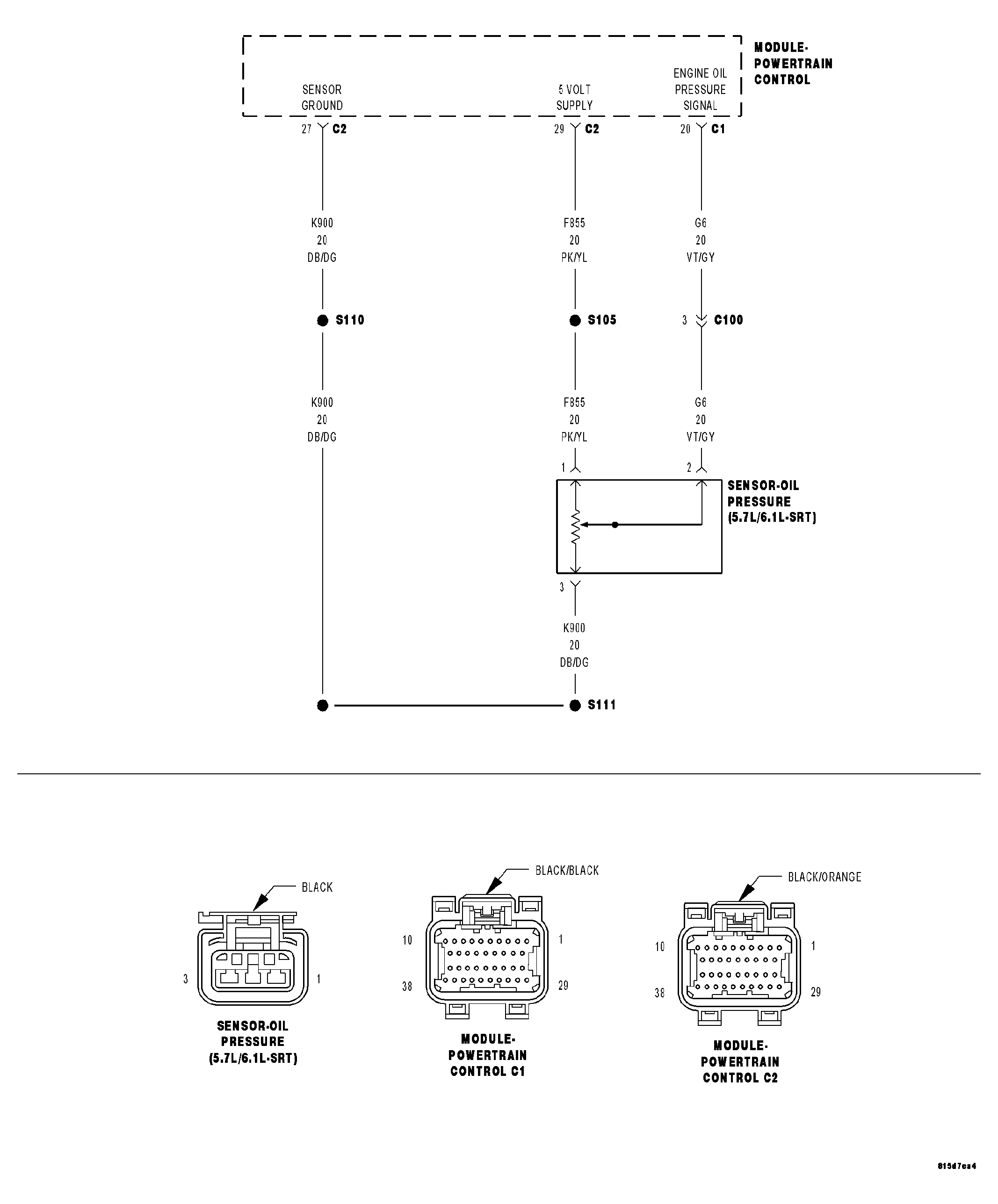

Fig 1: Engine Oil Pressure Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
