Diagnostic Test

  1. 1) DTC IS ACTIVE

    Turn the ignition on.

    With the scan tool, monitor the Brake Signal 1 and Brake Signal 2 states while pressing and releasing the brake pedal several times.

    Do the Brake Signal states change appropriately as the pedal is pressed and released?

    Yes

    1. Refer to *CHECKING FOR AN INTERMITTENT DTC .

    No

    1. Go to  2).
  2. 2) (B15) BRAKE SIGNAL 1 CIRCUIT

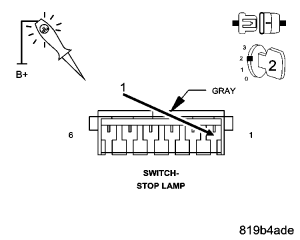

    Fig 1: Checking Brake Signal Circuit
    GC0052726Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Powertrain Control Module (PCM) connector.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Using a 12 volt test light connected to 12 volts, check the (B15) Brake Signal 1 circuit at the appropriate terminal of special tool #8815 while pressing and releasing the brake pedal several times.

    Does the test light change from illuminated to not illuminated as the brake pedal is pressed and released?

    Yes

    1. Go to  3).

    No

    1. Go to  4).
  3. 3) (B16) BRAKE SIGNAL 2 CIRCUIT

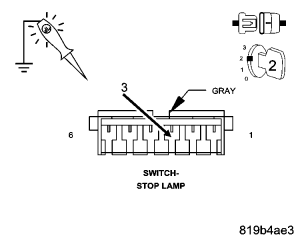

    Fig 2: Checking Brake Signal Circuit
    GC0052727Courtesy of CHRYSLER LLC

    Turn the ignition on.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Using a 12 volt test light connected to ground, check the (B16) Brake Signal 2 circuit at the appropriate terminal of special tool #8815 while pressing and releasing the brake pedal several times.

    Does the test light change from illuminated to not illuminated as the brake pedal is pressed and released?

    Yes

    1. Go to  11).

    No

    1. Go to  7).
  4. 4) (Z912) GROUND CIRCUIT OPEN OR HIGH RESISTANCE

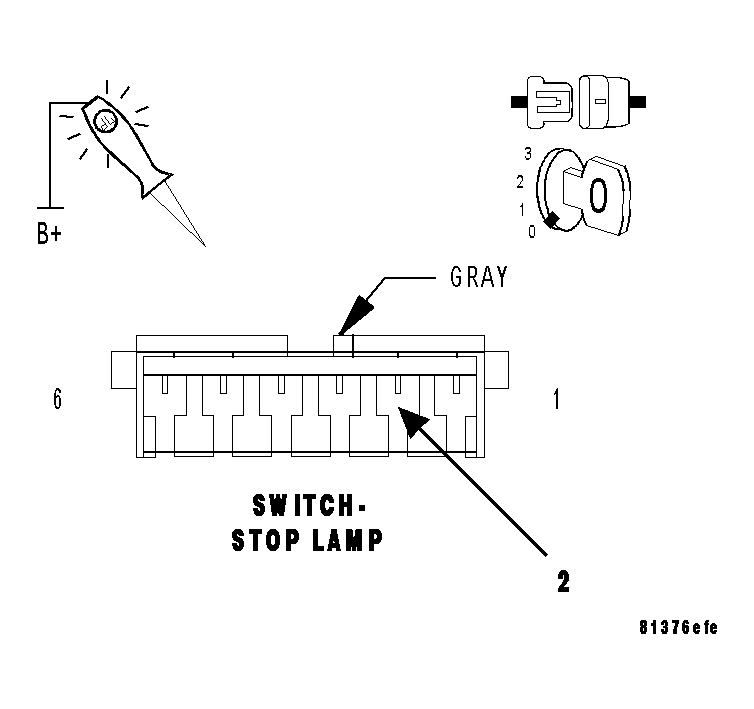

    Fig 3: Checking Stop Lamp Switch Ground Circuit
    GC0015056Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Stop Lamp Switch connector.

    Using a 12 volt test light connected to 12 volts, check the (Z912) Ground circuit in the Stop Lamp Switch harness connector.

    NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated and bright?

    Yes

    1. Go to  5).

    No

    1. Repair the (Z912) Ground circuit for an open circuit or high resistance.
    2. Perform *PCM VERIFICATION TEST .
  5. 5) (B15) BRAKE SIGNAL 1 CIRCUIT SHORTED TO GROUND

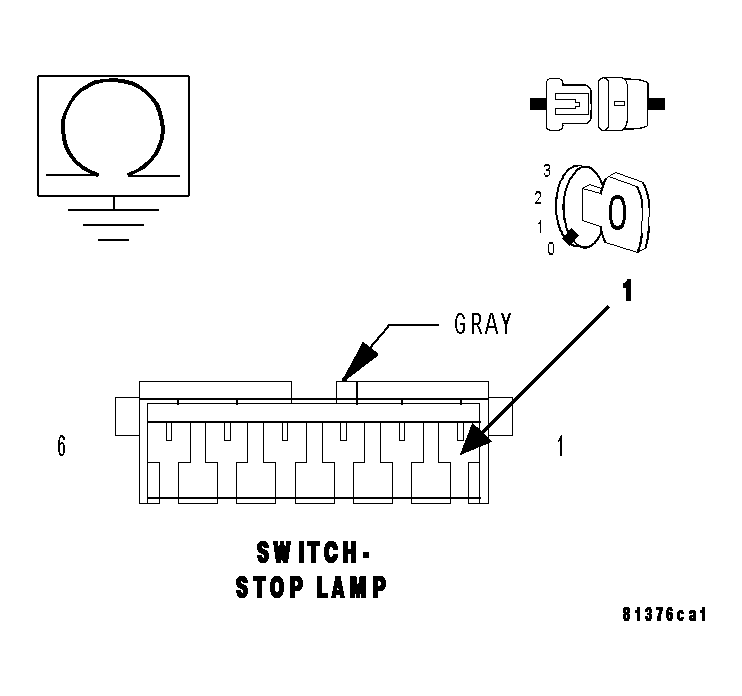

    Fig 4: Checking Stop Lamp Switch Signal Circuit For Short To Ground
    GC0015055Courtesy of CHRYSLER LLC

    Measure the resistance between ground and the (B15) Brake Signal 1 circuit in the Stop Lamp Switch harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to  6).

    No

    1. Repair the (B15) Brake Signal 1 circuit for a short to ground.
    2. Perform *PCM VERIFICATION TEST .
  6. 6) (B15) BRAKE SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

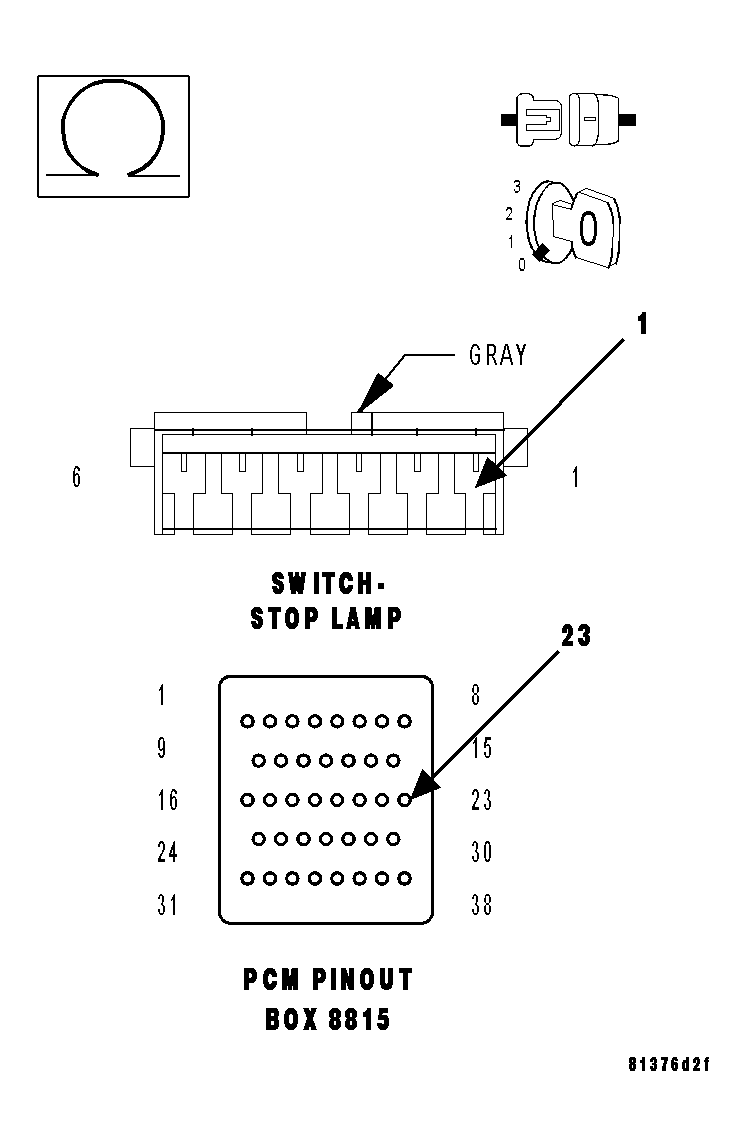

    Fig 5: Checking Stop Lamp Switch 1 Signal Circuit
    GC0015054Courtesy of CHRYSLER LLC
    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance of the (B15) Brake Signal 1 circuit between the Stop Lamp Switch harness connector and the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  10).

    No

    1. Repair the (B15) Brake Signal 1 circuit for an open circuit or high resistance.
    2. Perform *PCM VERIFICATION TEST .
  7. 7) (F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE

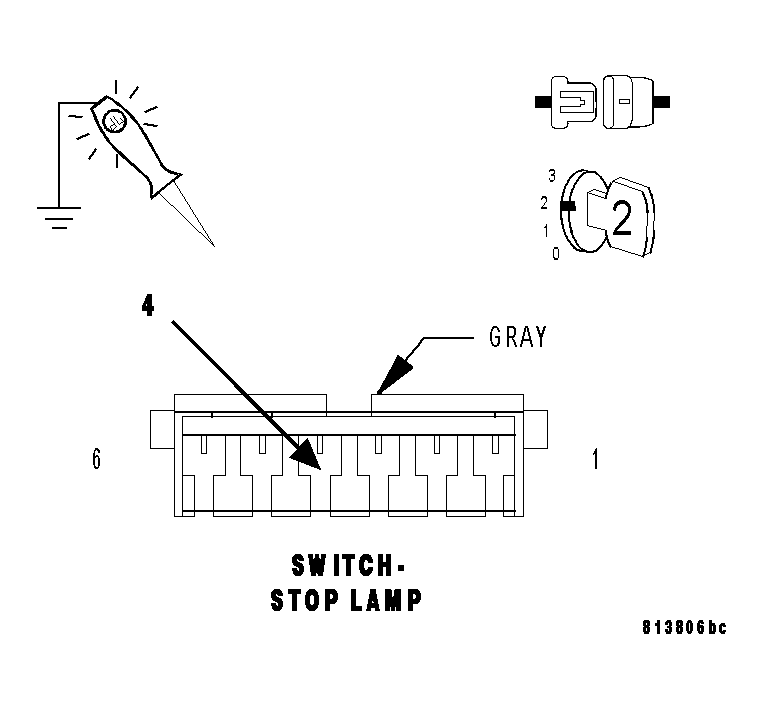

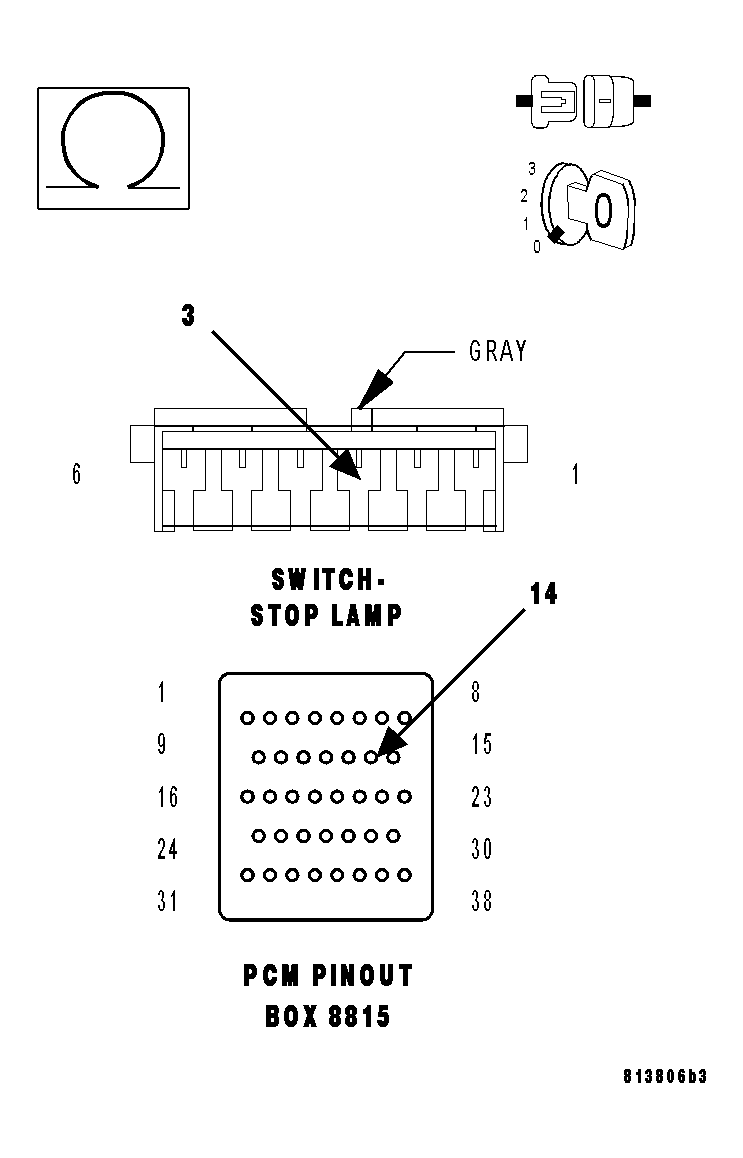

    Fig 6: Checking Stop Lamp Switch Supply Circuit
    GC0015059Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Stop Lamp Switch connector.

    Turn the ignition on.

    Using a 12 volt test light connected to ground, check the (F202) Fused Ignition Switch Output (Run-Start) circuit in the Stop Lamp Switch harness connector.

    NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated and bright?

    Yes

    1. Go to  8).

    No

    1. Repair the (F202) Fused Ignition Switch Output (Run-Start) circuit for an open circuit or high resistance.
    2. Perform *PCM VERIFICATION TEST .
  8. 8) (B16) BRAKE SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE

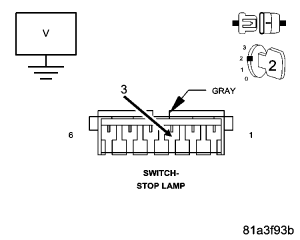

    Fig 7: Checking Brake Signal Circuit
    GC0052728Courtesy of CHRYSLER LLC

    Measure the voltage of the (B16) Brake Signal 2 circuit in the Stop Lamp Switch harness connector.

    Is there any voltage present?

    Yes

    1. Repair the (B16) Brake Signal 2 circuit for a short to voltage.
    2. Perform *PCM VERIFICATION TEST .

    No

    1. Go to  9).
  9. 9) (B16) BRAKE SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
    Fig 8: Checking Stop Lamp Switch 2 Signal Circuit
    GC0015057Courtesy of CHRYSLER LLC

    Turn the ignition off.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance of the (B16) Brake Signal 2 circuit between the Stop Lamp Switch harness connector and the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  10).

    No

    1. Repair the (B16) Brake Signal 2 circuit for an open circuit or high resistance.
    2. Perform *PCM VERIFICATION TEST .
  10. 10) STOP LAMP SWITCH

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch and the Powertrain Control Module (PCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform *PCM VERIFICATION TEST .

    No

    1. Replace the Stop Lamp Switch in accordance with the Service Information.
    2. Perform *PCM VERIFICATION TEST .
  11. 11) POWERTRAIN CONTROL MODULE (PCM)

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch and the Powertrain Control Module (PCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform *PCM VERIFICATION TEST .

    No

    1. Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
    2. Perform *PCM VERIFICATION TEST .
