Circuit Schematic

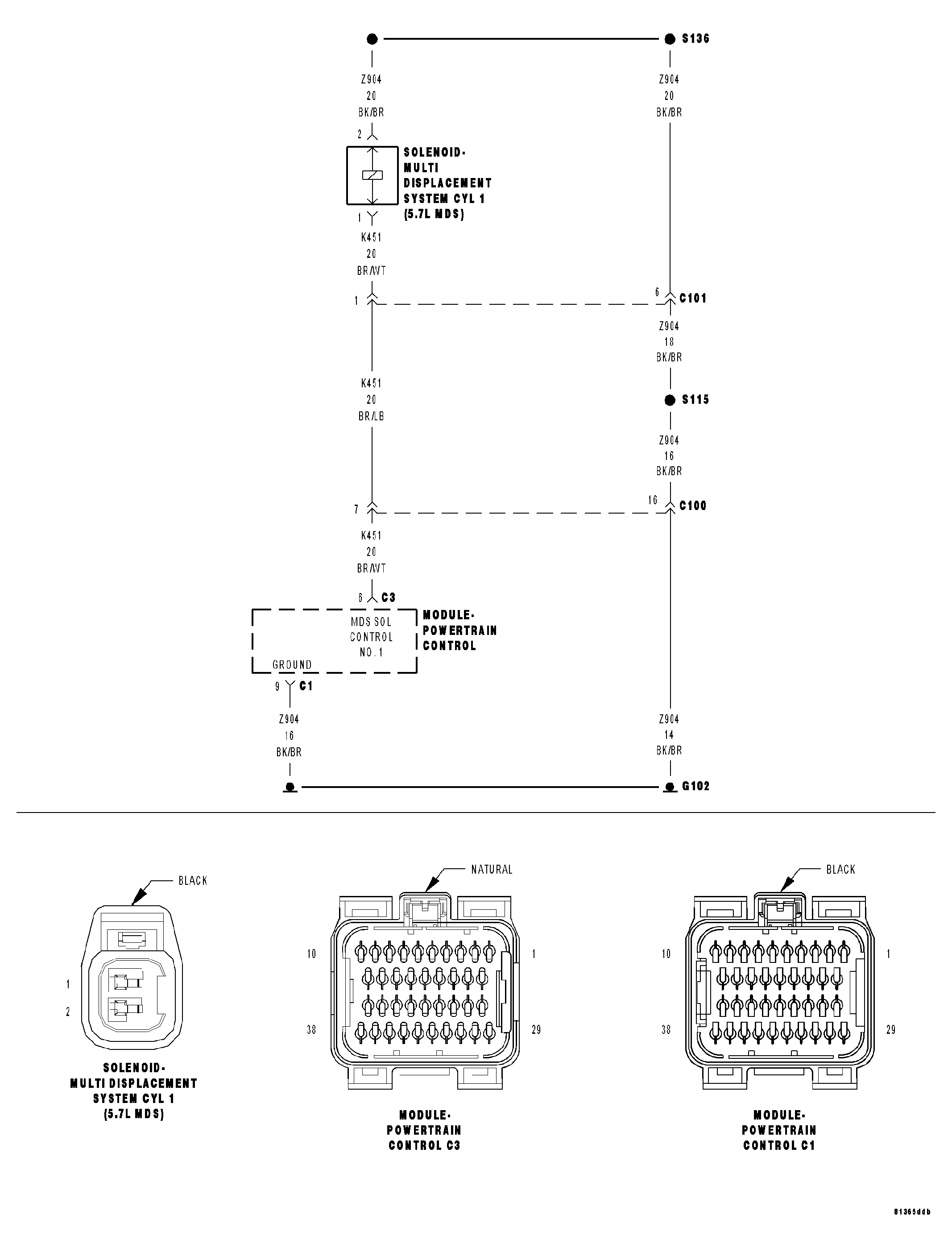

Fig 1: Multi Displacement System Cylinder 1 Solenoid Circuit Schematic

Courtesy of CHRYSLER LLC

When all criteria has been met, power is supplied to each MDS Solenoid when the engine is making a transition from 8 cylinder mode to 4 cylinder mode. By actuating the solenoid, oil pressure is raised to the pair of lifters that coincide with each particular solenoid. The oil pressure pushes in the locking pins that allows the lifter to collapse, decoupling the valves and camshaft.
