Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P2098 To P2175
>>
P2107-Electronic Throttle Control Module Processor
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

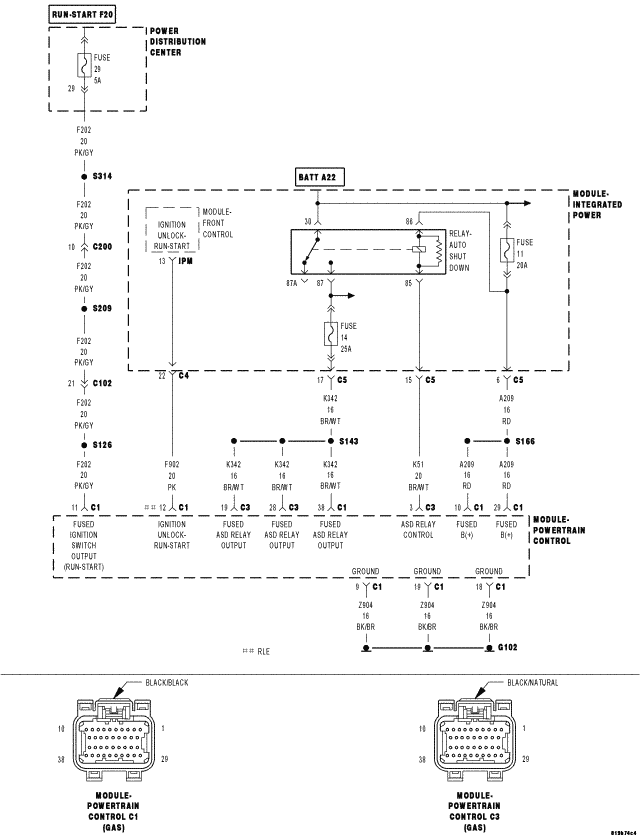

Fig 1: Serial Communication Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
