Solenoid - EVAP/Purge: Installation

The solenoid attaches to a bracket near the air cleaner. The solenoid will not operate unless it is installed correctly.

The top of the solenoid has TOP printed on it. The solenoid will not operate unless it is installed correctly.

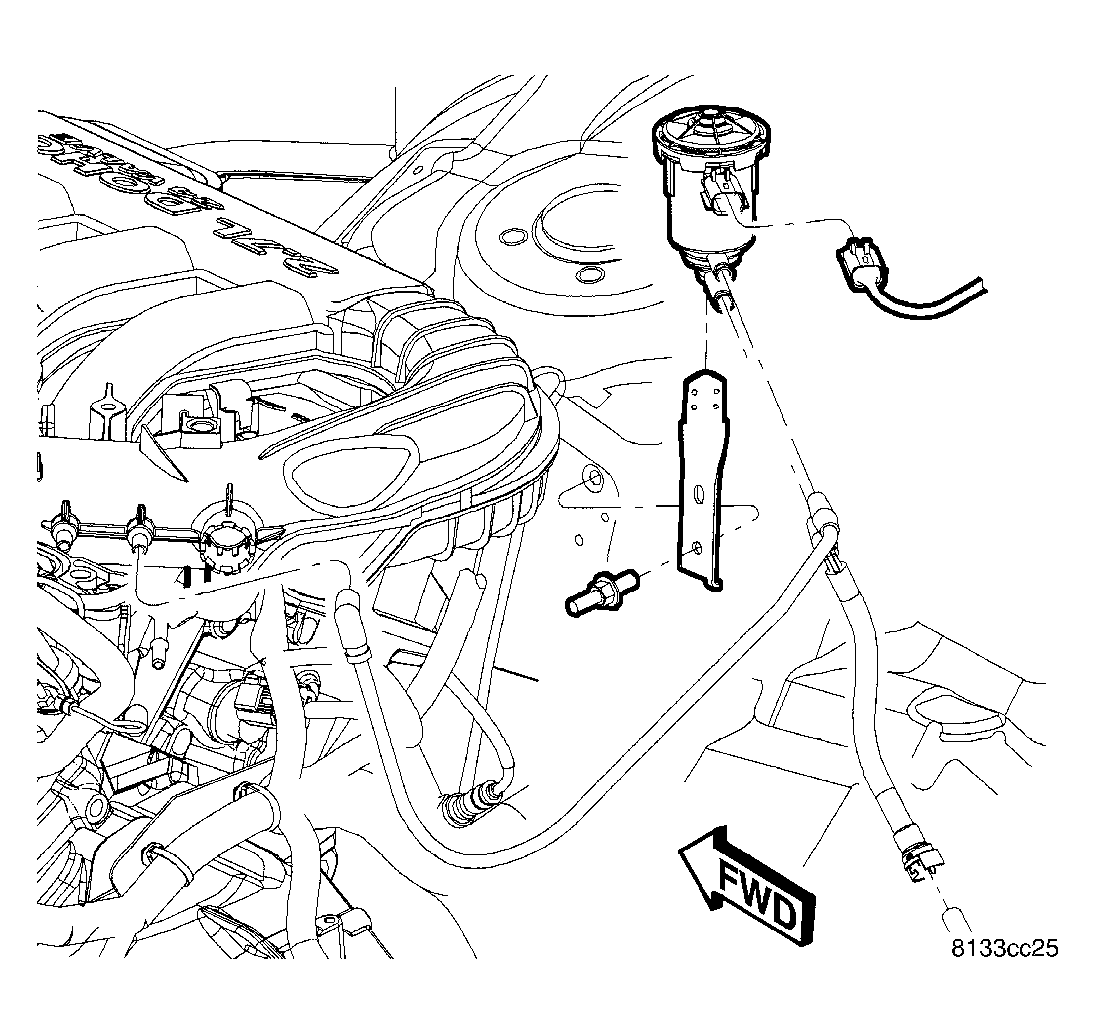

Fig 1: Locating Proportional Purge Solenoid - 2.7L/3.5L

Courtesy of CHRYSLER LLC

1. Location for 2.7 and 3.5L engines.

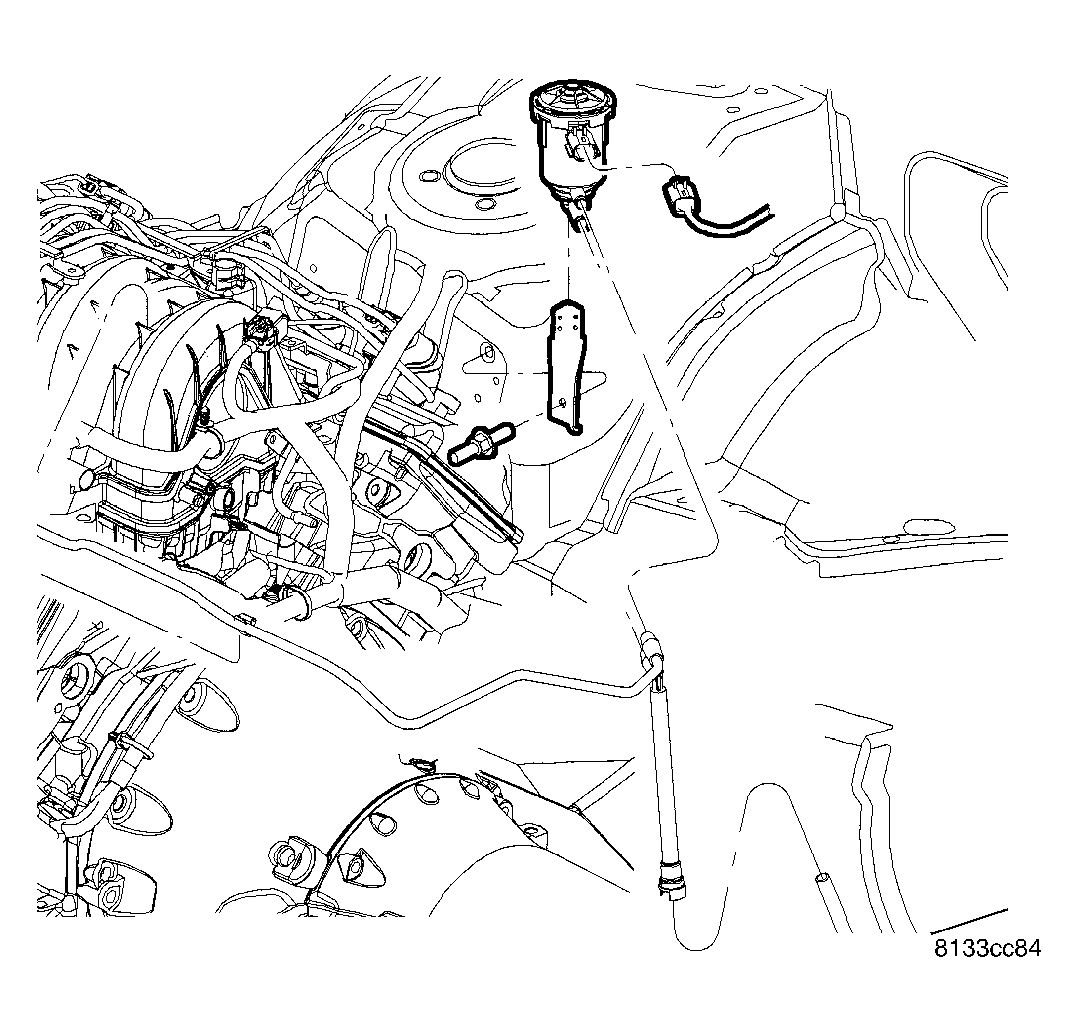

   Fig 2: Locating Proportional Purge Solenoid - 5.7L

   Courtesy of CHRYSLER LLC
2. Location for 5.7L engine.
3. Install solenoid on bracket.
4. Connect vacuum tube to solenoid.
5. Connect electrical connector to solenoid.
