Module-Steering Column Control: Assembly

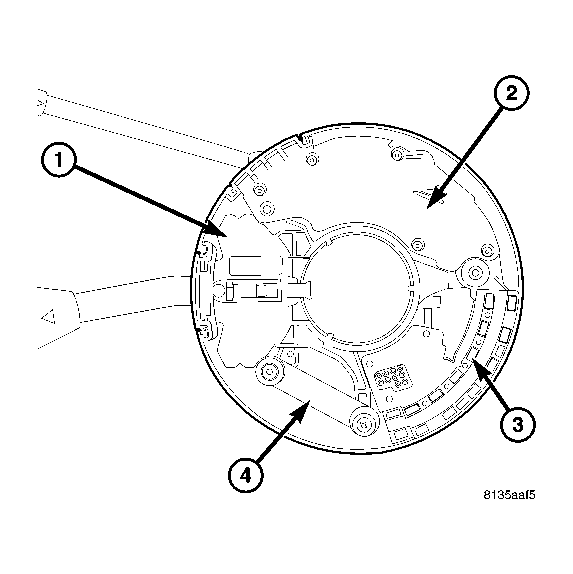

Fig 1: Multi-Function From Circuit Board

Courtesy of CHRYSLER LLC

WARNING: To service any component of the SCCM, the entire assembly must be removed from the column. This must be done due to the clockspring passing through the assembly and into the self docking connector. Failure to remove the assembly could damage the pins of the clockspring and prevent the airbag system from operating properly.

Position the Steering Control Module (SCM) onto the multi-function switch.

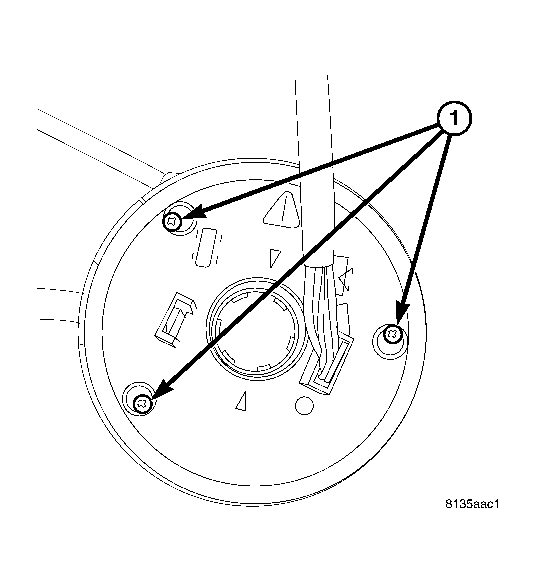

Fig 2: Multi-Function Switch Rear
Courtesy of CHRYSLER LLC
Install the multi-function switch and SCM in the SCCM shroud and tighten the three screws (1) from the bottom.

Fig 3: Speed Control from SCCM
Courtesy of CHRYSLER LLC
Install the speed control switch (1).

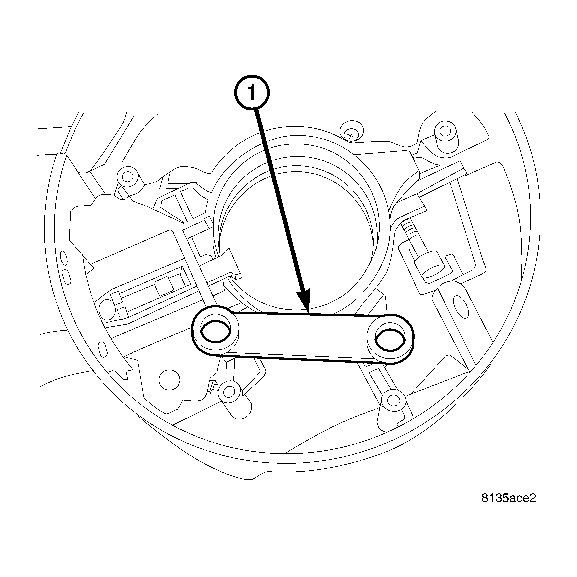

Fig 4: Installing Strut
Courtesy of CHRYSLER LLC
If equipped with manual telescoping column , install the strut (1).

Fig 5: Identifying SCCM Components
Courtesy of CHRYSLER LLC
If equipped with electronic telescoping column , install the electric tilt lever and switch (3).

Fig 6: Steering Angle Sensor Screw
Courtesy of CHRYSLER LLC
If equipped with ESP , install the steering angle sensor (3) and screw located at the six o'clock position.

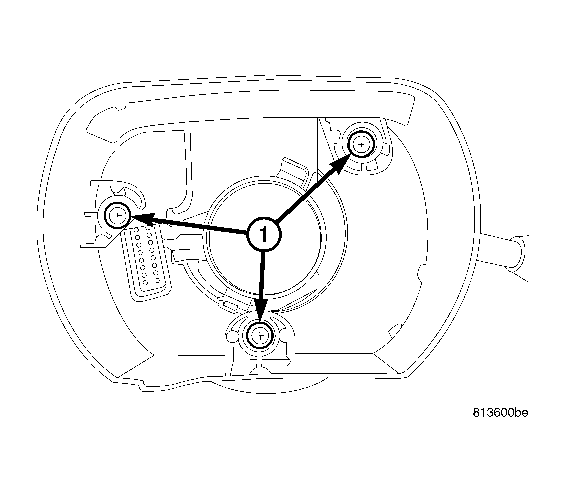

Fig 7: Clockspring Screws
Courtesy of CHRYSLER LLC
Install the clockspring and screws (1) leaving one out so it will not unwind.
Install the SCCM on the steering column. See INSTALLATION and tighten the one clockspring screw (1) that was left loose.
