Slider Package-Steering Column: Installation

Fig 1: Slider Sled Removal/Installation

Courtesy of CHRYSLER LLC

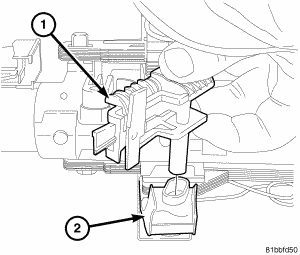

Position the slider sled (1) as shown and insert it into the lever arm (2).

Fig 2: Slider Bar Removal/Installation
Courtesy of CHRYSLER LLC

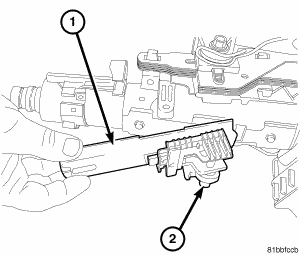

Insert the slider bar (1) through the slider sled (2) as shown.

Fig 3: Retainer Pins - Slider Installation
Courtesy of CHRYSLER LLC

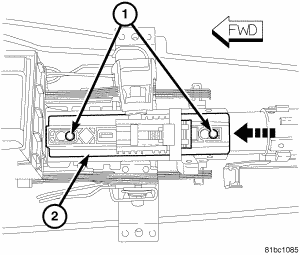

Place the slider bar onto the column by aligning the large holes in the mounting slots with the casting pins (1) on the column, then slide the slider bar (2) into mounted position.

Fig 4: Latch Tilt Lever To Column
Courtesy of CHRYSLER LLC
Position the tilt and telescoping adjustment handle (2) over the column adjustment pin (on slider sled) and rotate the locking tab (3) rearward as shown latching the handle to the column. Make sure the tab snaps into locked position.

Fig 5: Reinforcement I/P Steering Column
Courtesy of CHRYSLER LLC
Install the steering column opening reinforcement (1).
Install the steering column opening cover. Refer to INSTALLATION .
Test the steering column tilt and telescoping operation.
