Power Steering System

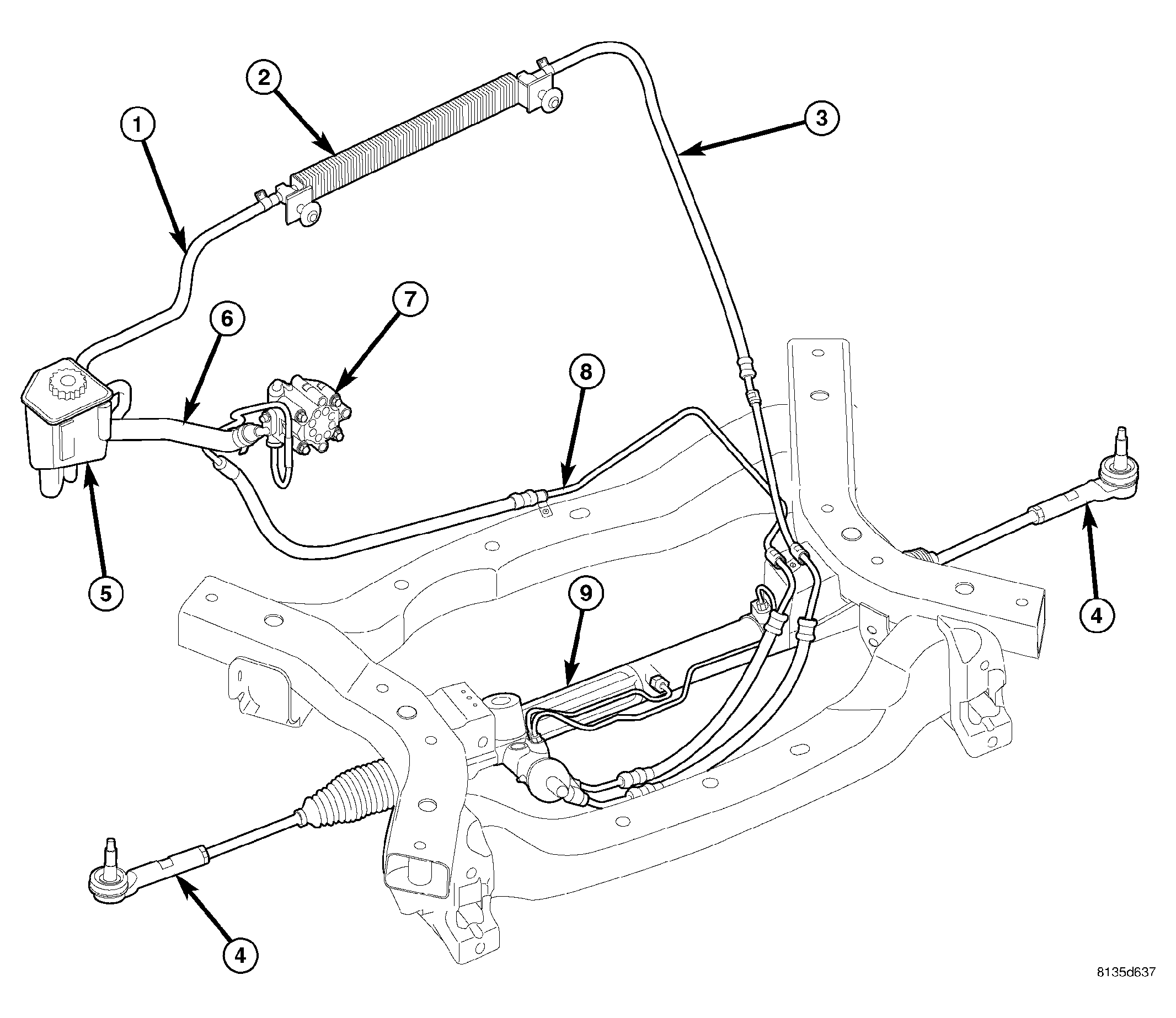

Fig 1: RWD Power Steering System

Courtesy of CHRYSLER LLC

RWD Power steering systems consist of:

1. Steering column
2. Rack and pinion steering gear (9)
3. Belt driven hydraulic steering pump (7)
4. Pump pressure (8), return (1&3) and supply (6) hoses
5. Oil Cooler (2)
6. Remote Reservoir (5)
7. Inner & Outer tie rod ends (4)

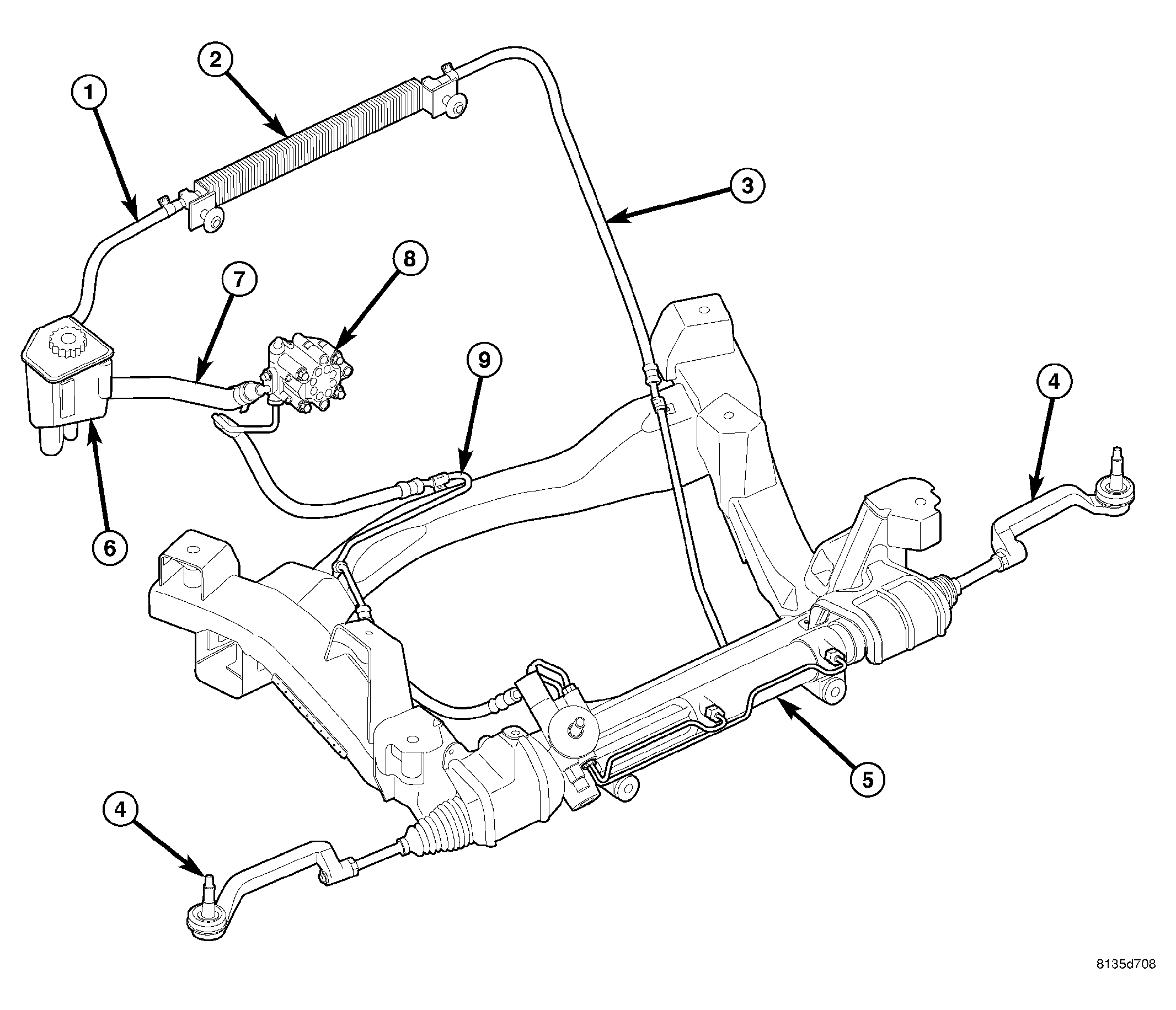

Fig 2: AWD Power Steering System

Courtesy of CHRYSLER LLC

AWD Power steering systems consist of:

1. Steering column
2. Rack and pinion steering gear (5)
3. Belt driven hydraulic steering pump (8)
4. Pump pressure (9), return (1&3) and supply (7) hoses
5. Oil Cooler (2)
6. Remote Reservoir (6)
7. Inner & Outer tie rod ends (4)
