Fluid Cooler: Description

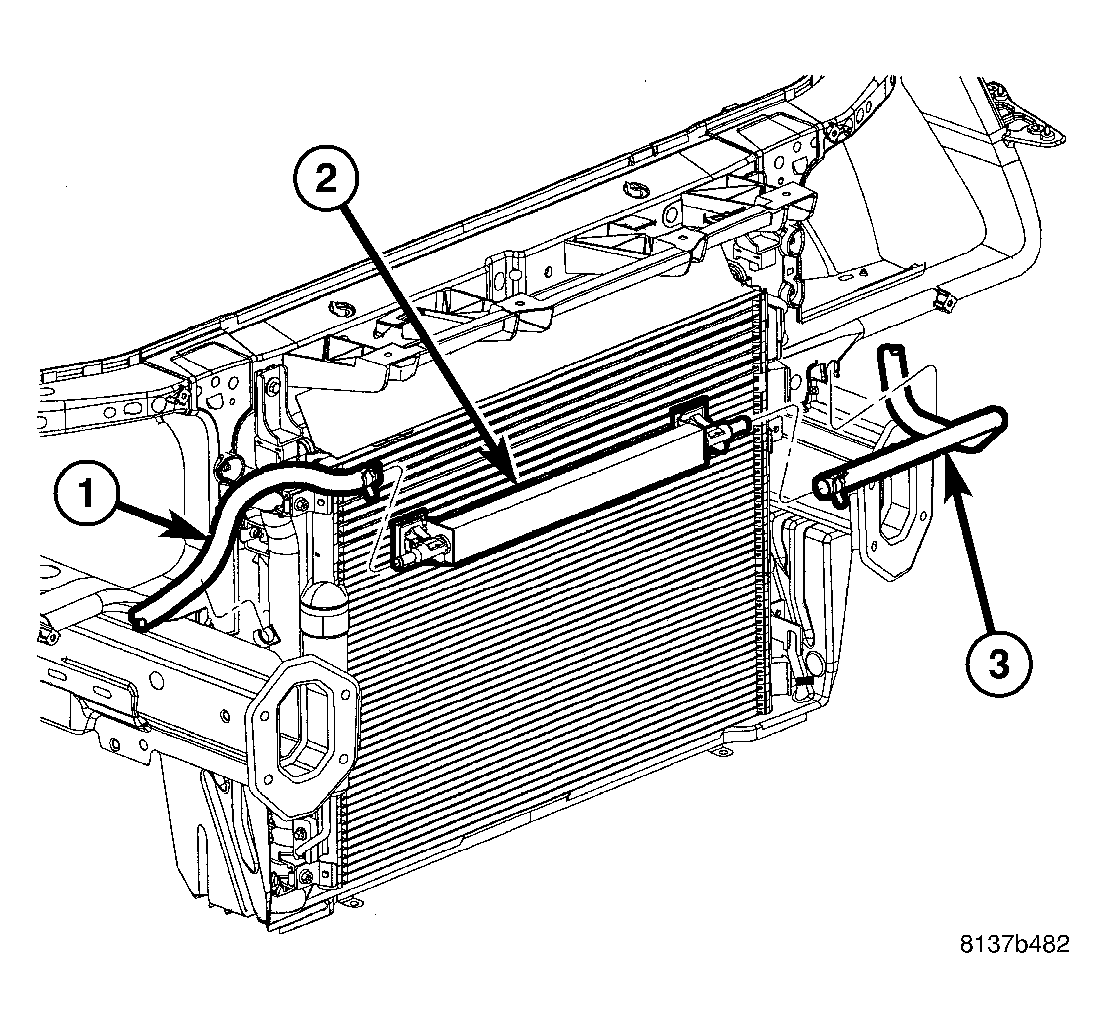

Fig 1: Fluid Cooler & Hoses

Courtesy of CHRYSLER LLC

This vehicle uses a fluid-to-air type power steering fluid cooler (2) with external cooling fins. The cooler mounts to clips attached to the front of the cooling module.

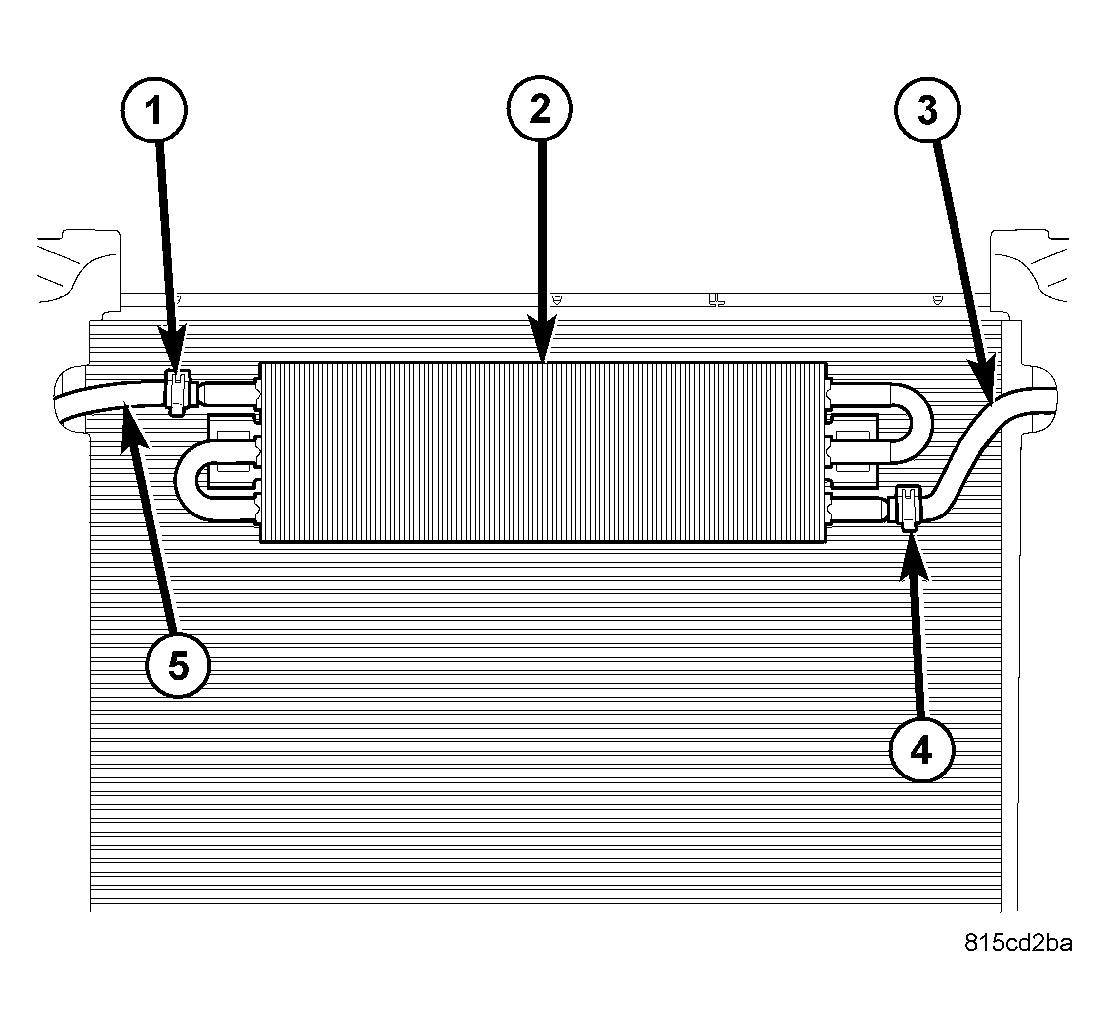

Fig 2: SRT8 Fluid Cooler And Hoses

Courtesy of CHRYSLER LLC

Unlike the standard power steering fluid cooler which makes one pass across the cooling module, the SRT8 (and Police Package) cooler (2) makes three passes across the front of the cooling module.
