Steering System: Pump: Reservoir: Installation
Courtesy of CHRYSLER LLC

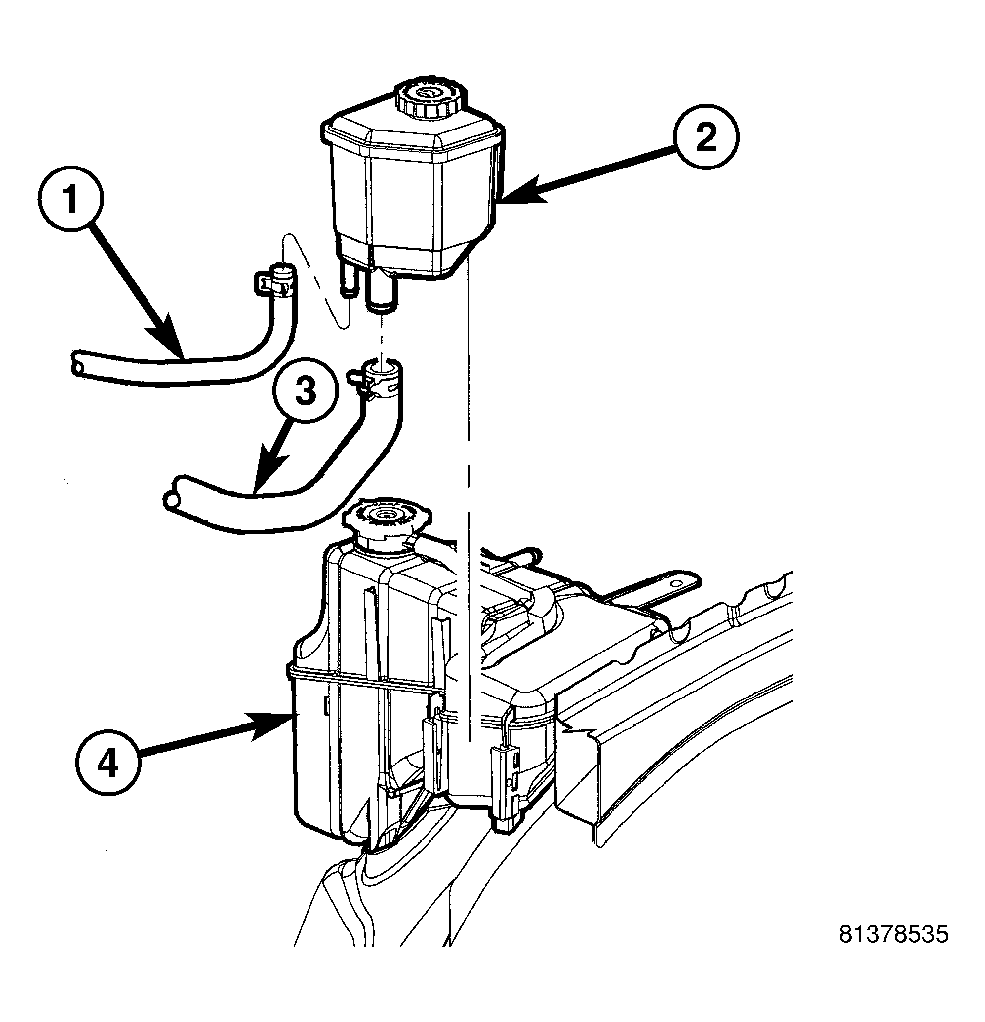

- Install reservoir (2) on coolant bottle (4) by sliding it into guide and allowing it to lock into place.
- Install return hose (1) on reservoir hose fitting. Install clamp securing hose in place.
- Install supply hose (3) on reservoir hose fitting. Install clamp securing hose in place.
- Install air cleaner housing and inlet tube. Refer to INSTALLATION
.
Courtesy of CHRYSLER LLC
- Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to STANDARD PROCEDURE
.
- Fill and bleed power steering system. See STANDARD PROCEDURE .
