Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Heater Control Module | Behind center of dash. See Figure. |
| Body Control Module | In control module box. See Figure. |

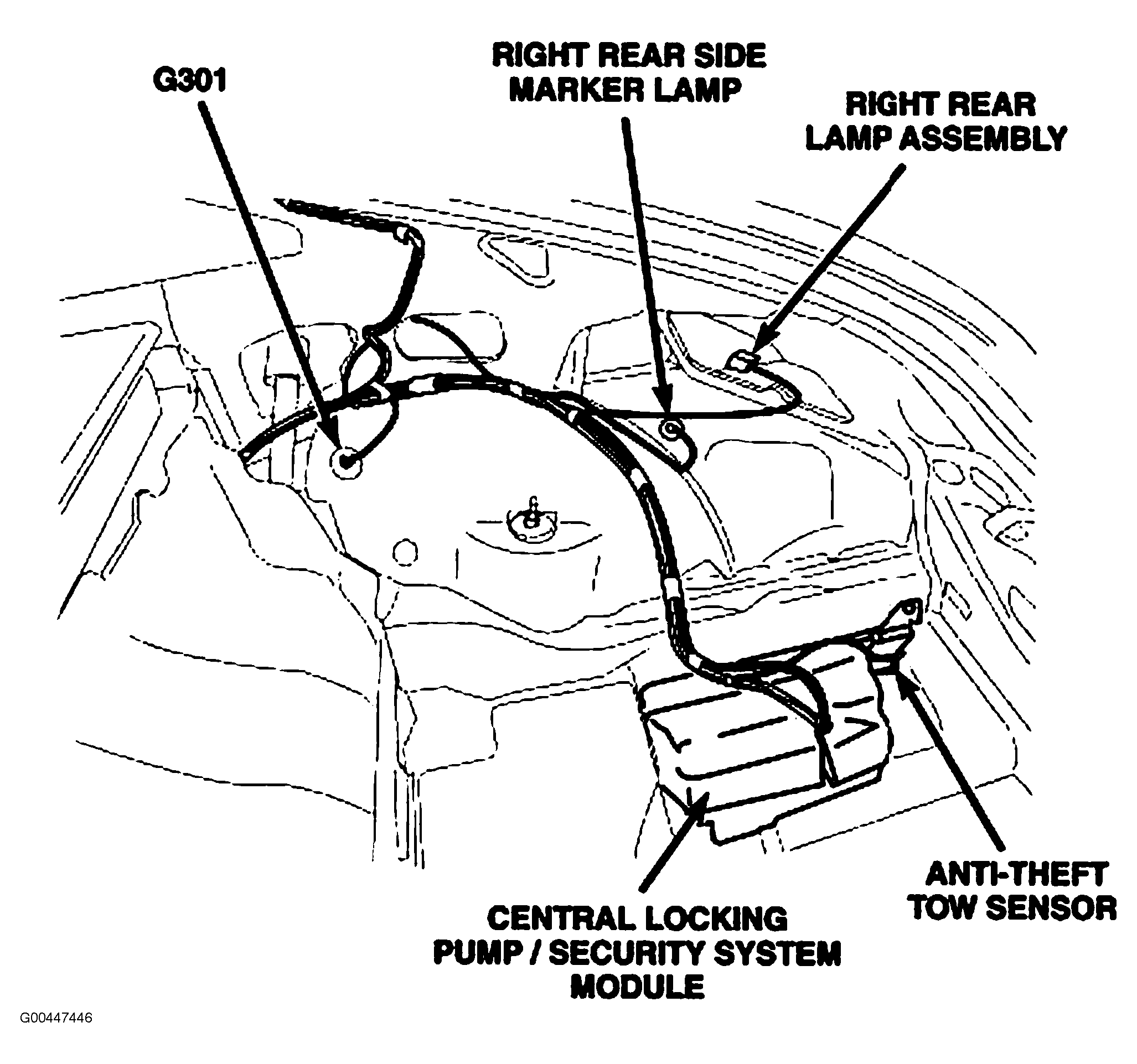

| Central Locking Pump/Security System Module | At right rear of trunk. See Figure. |

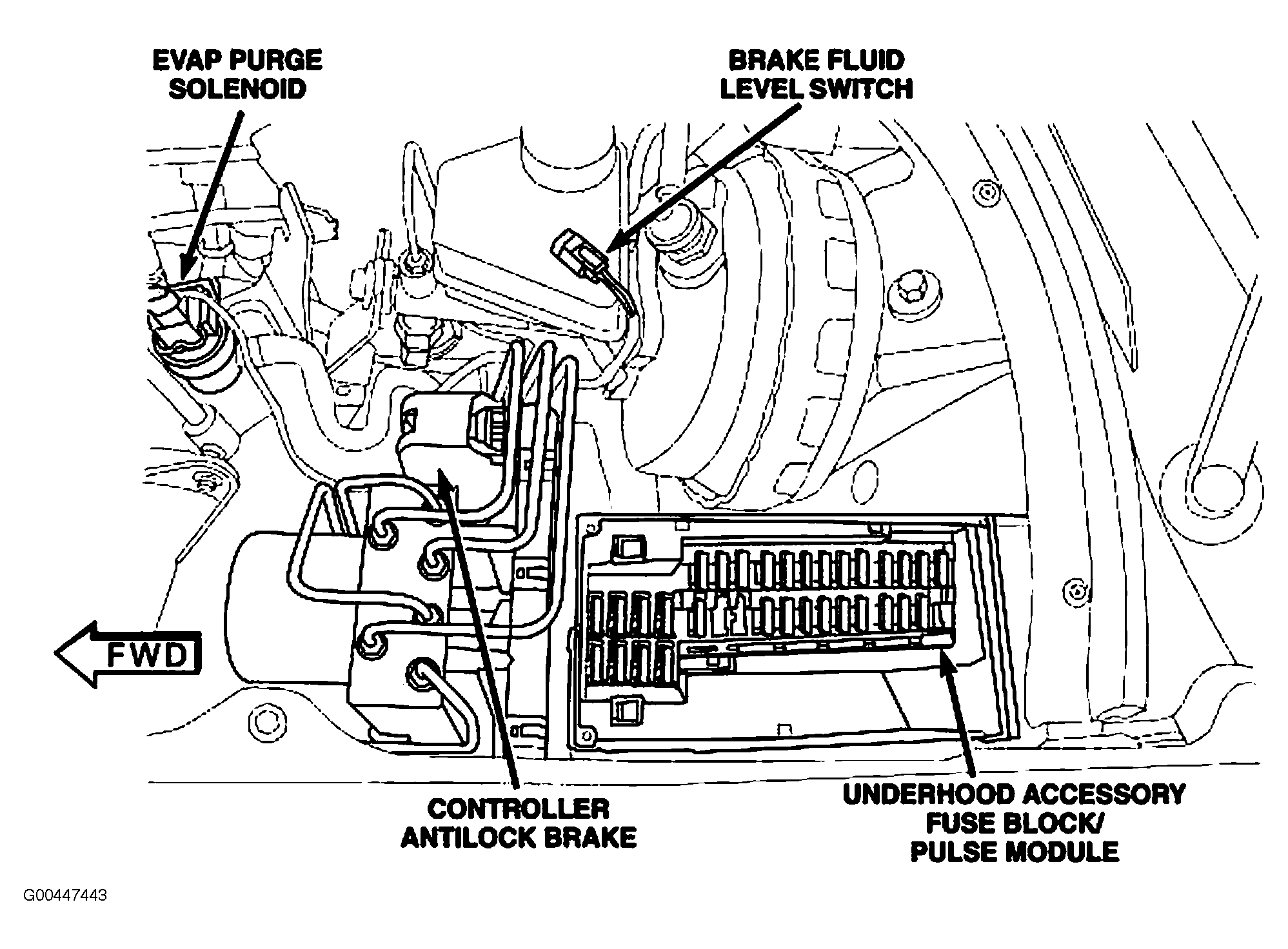

| Controller Antilock Brake | At left rear of engine compartment. See Figure. |
| Heated Seat Module | Center of dash. |
| Illumination Control Module | Behind left side of dash. |
| Occupant Restraint Controller | Under center console. See Figure. |

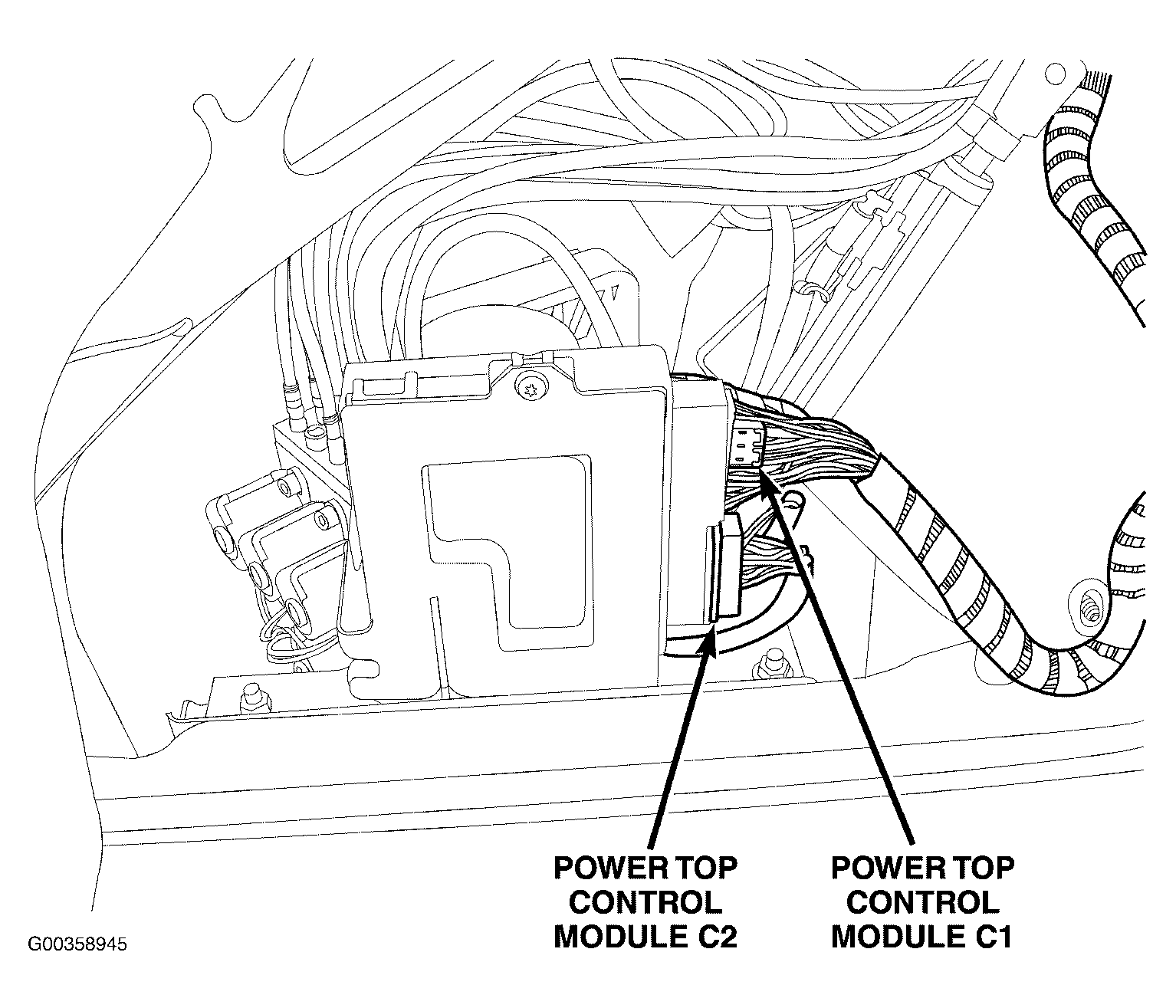

| Power Top Control Module | At rear of trunk. See Figure. |
| Powertrain Control Module | In control module box. See Figure. |
| Pulse Module | Side of underhood accessory fuse block. See Figure. |
| Radiator Fan Control Module | At left front of engine compartment. See Figure. |
| Relay Control Module | In control module box. See Figure. |
| Sentry Key Remote Entry Module | Behind left side of dash. See Figure. |

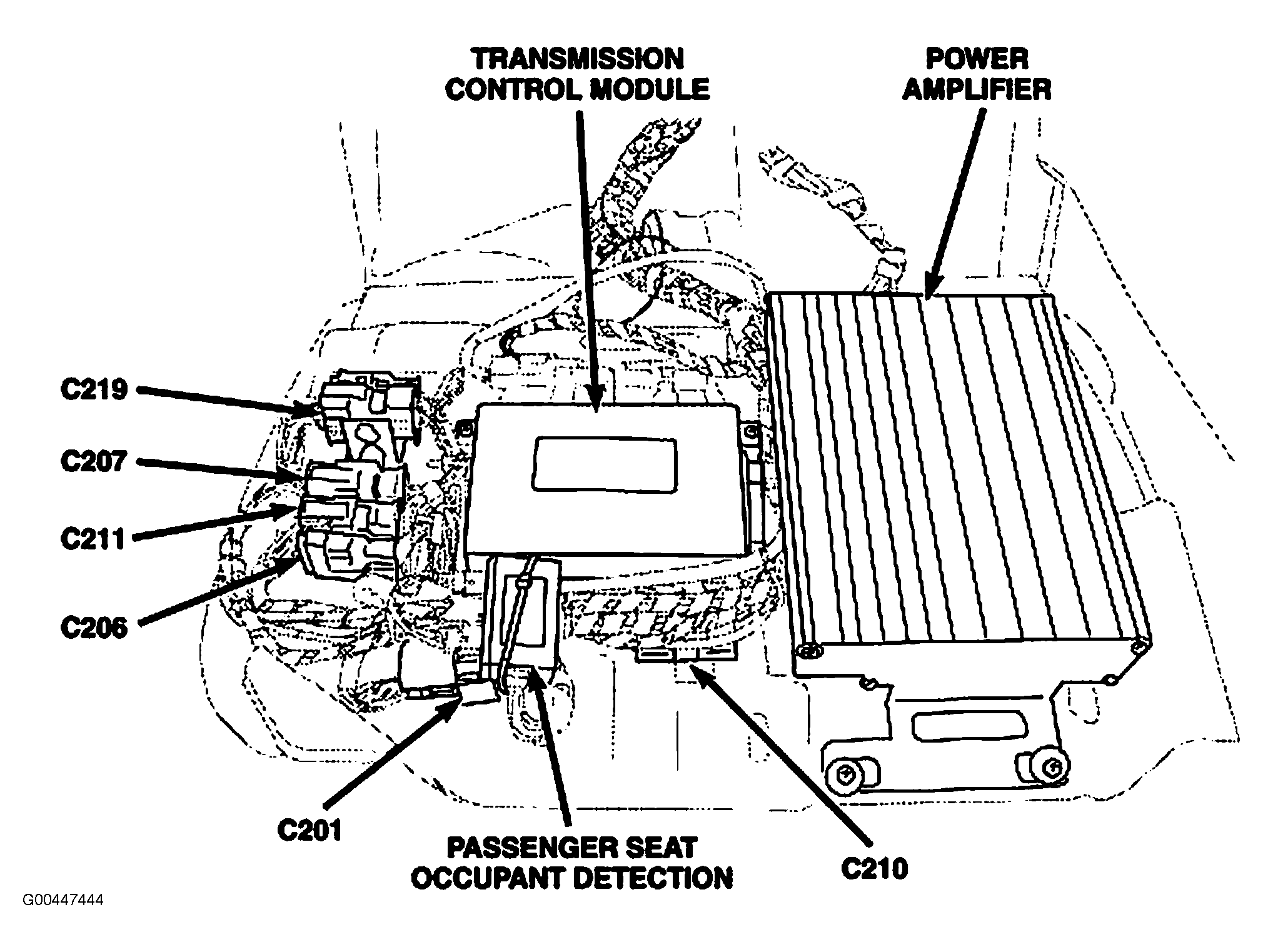

| Transmission Control Module | Behind passenger footwell. See Figure. |
