Fuel Delivery System

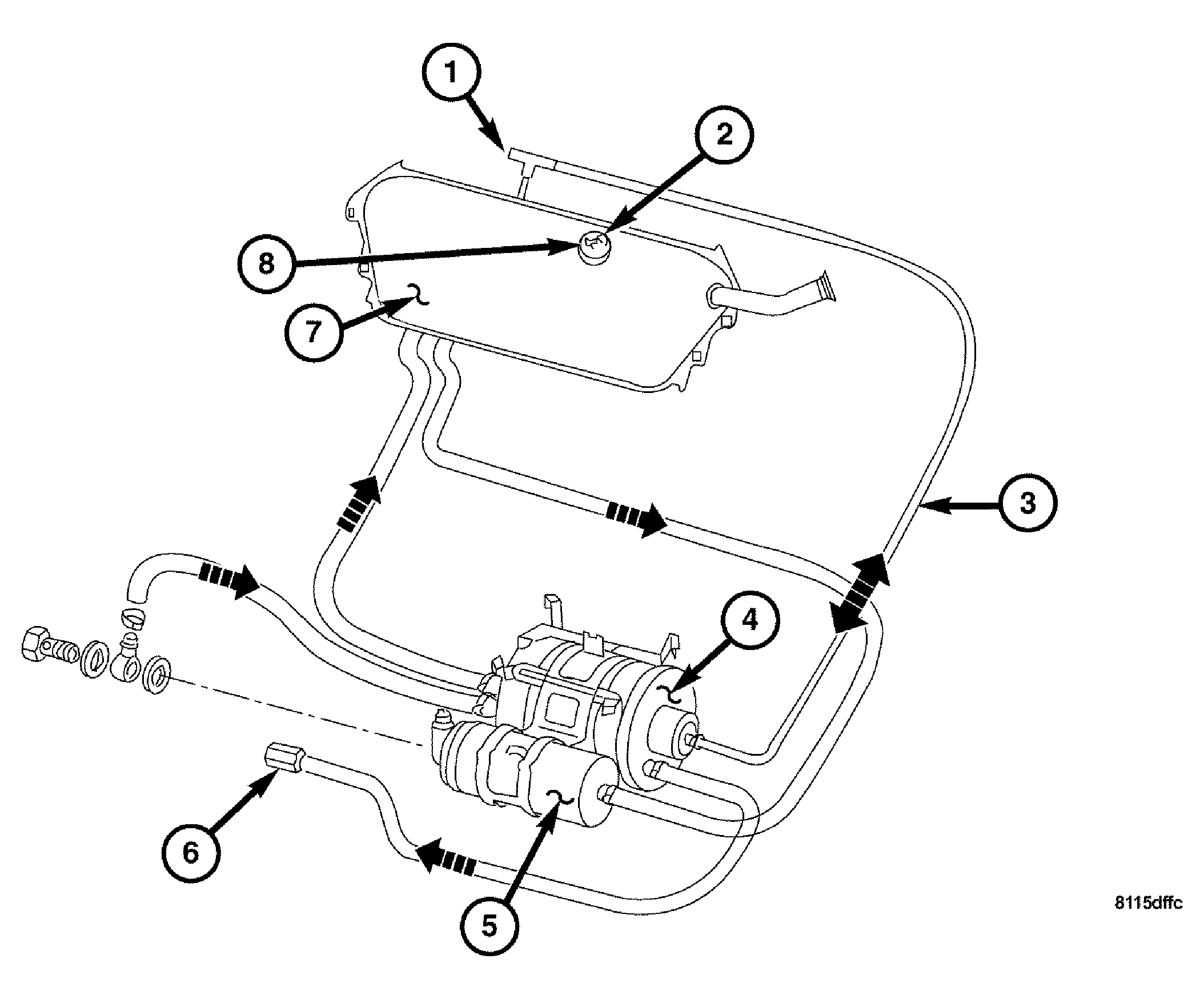

Fig 1: Identifying Fuel Deliver System Components

Courtesy of CHRYSLER LLC

The Fuel Tank (7) is located in the cargo area behind a metal partition.

The fuel delivery system consists of the following items:

• Fuel Injector Rail
• Fuel Tank Filler Tube Cap
• Fuel Tank/Filler Vent Tube Assembly
• Fuel Tubes/Lines/Hoses (3)
• In-line Electric Fuel Pump (5)
• In-line Fuel Filter/Pressure Regulator (4)
• In-tank Fuel Strainer
