Fuel Pressure Release Procedure

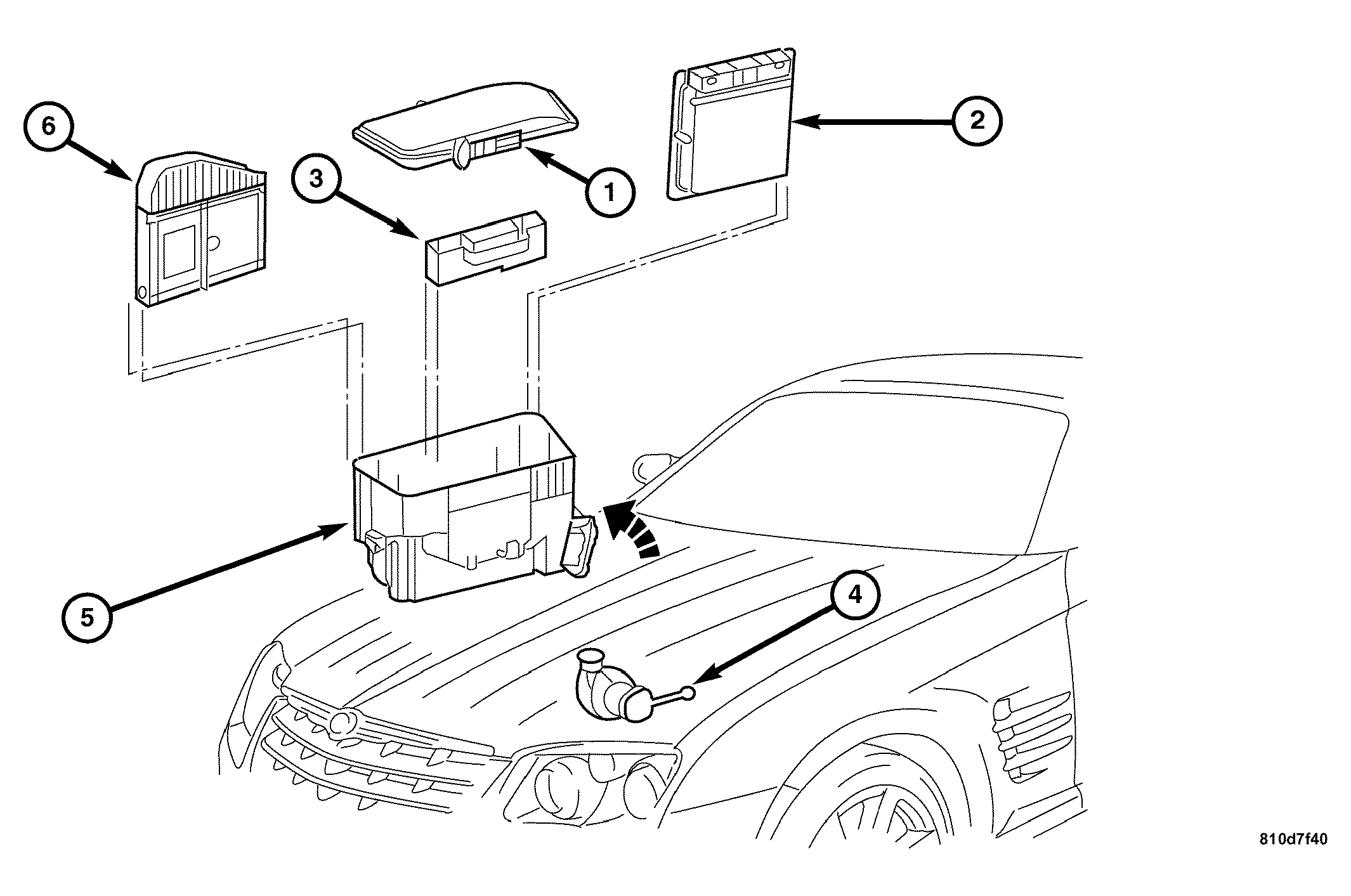

| 1 - CONTROL MODULE BOX COVER |
| 2 - POWERTRAIN CONTROL MODULE |
| 3 - RELAY CONTROL MODULE |
| 4 - CONTROL MODULE BOX COOLING FAN |
| 5 - CONTROL MODULE BOX |
| 6 - BODY CONTROL MODULE |
- Remove the fuel filler cap from the fuel filler neck.
- Remove the fuel pump fuse from the relay control module (3) located next to the PCM.
- Start and run engine until it stalls.
- Attempt restarting engine until it will no longer run.
- Turn ignition key to OFF position.
- Return the fuel pump fuse to the relay control module.
- One or more Diagnostic Trouble Codes may have been stored in PCM memory due to fuel pump fuse removal. The scan tool must be used to erase any DTCs.
