Fuel Level Sending Unit/Sensor

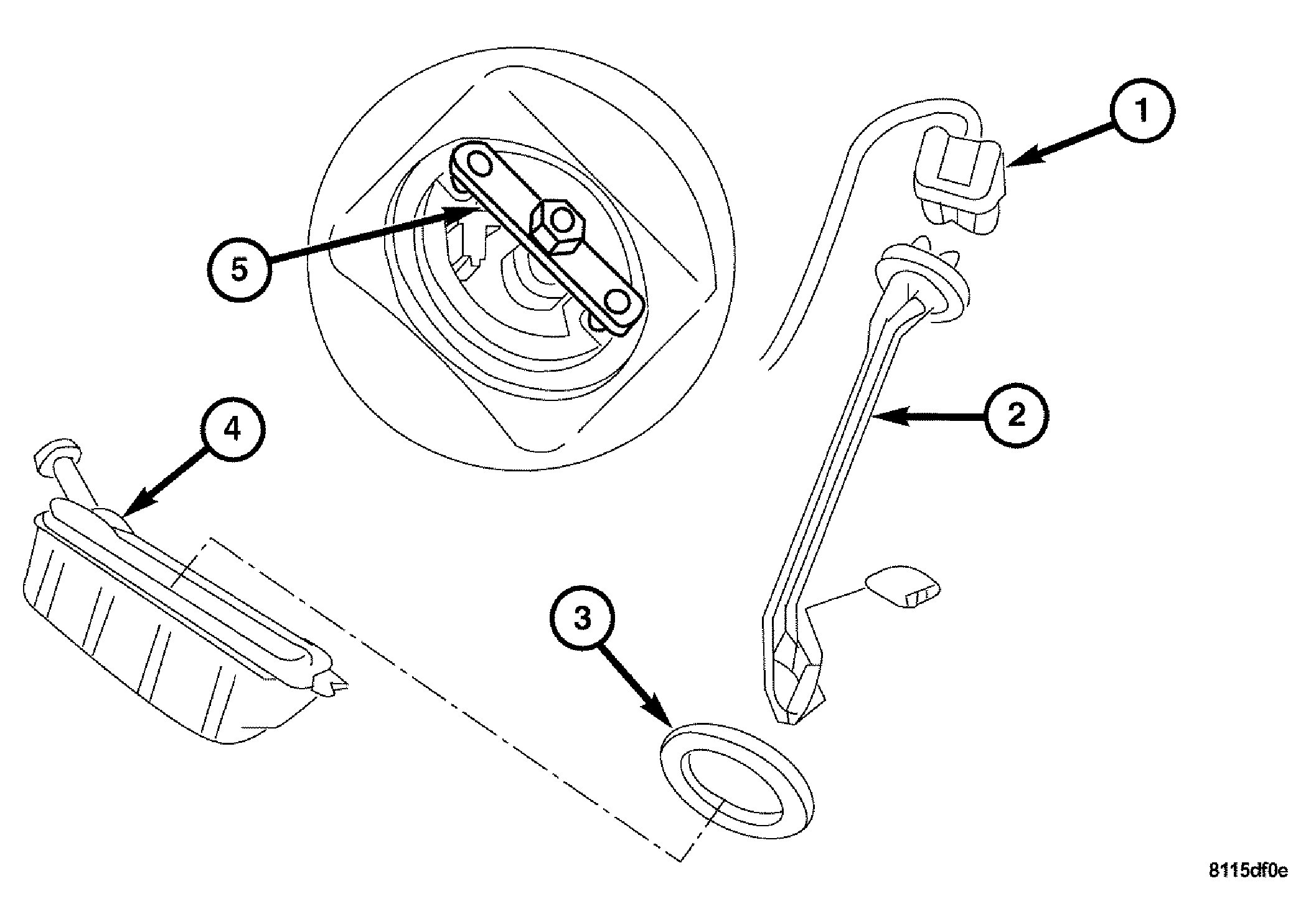

Fig 1: Identifying Fuel Level Sending Unit/Sensor

Courtesy of CHRYSLER LLC

1 - ELECTRICAL HARNESS CONNECTOR

2 - FUEL LEVEL SENDING UNIT

3 - SEAL

4 - FUEL TANK

5 - SPECIAL TOOL 9240

The Fuel Level Sending Unit (2) is combined with a Fuel Tank Pressure Sensor and is mounted at the top of the Fuel Tank (4) extending downward inside. The sending unit is a lever-type sensor with sliding contacts (potentiometer).
