P0040-1/1 And 2/1 O2 Sensor Harness Connectors Reversed: Notes

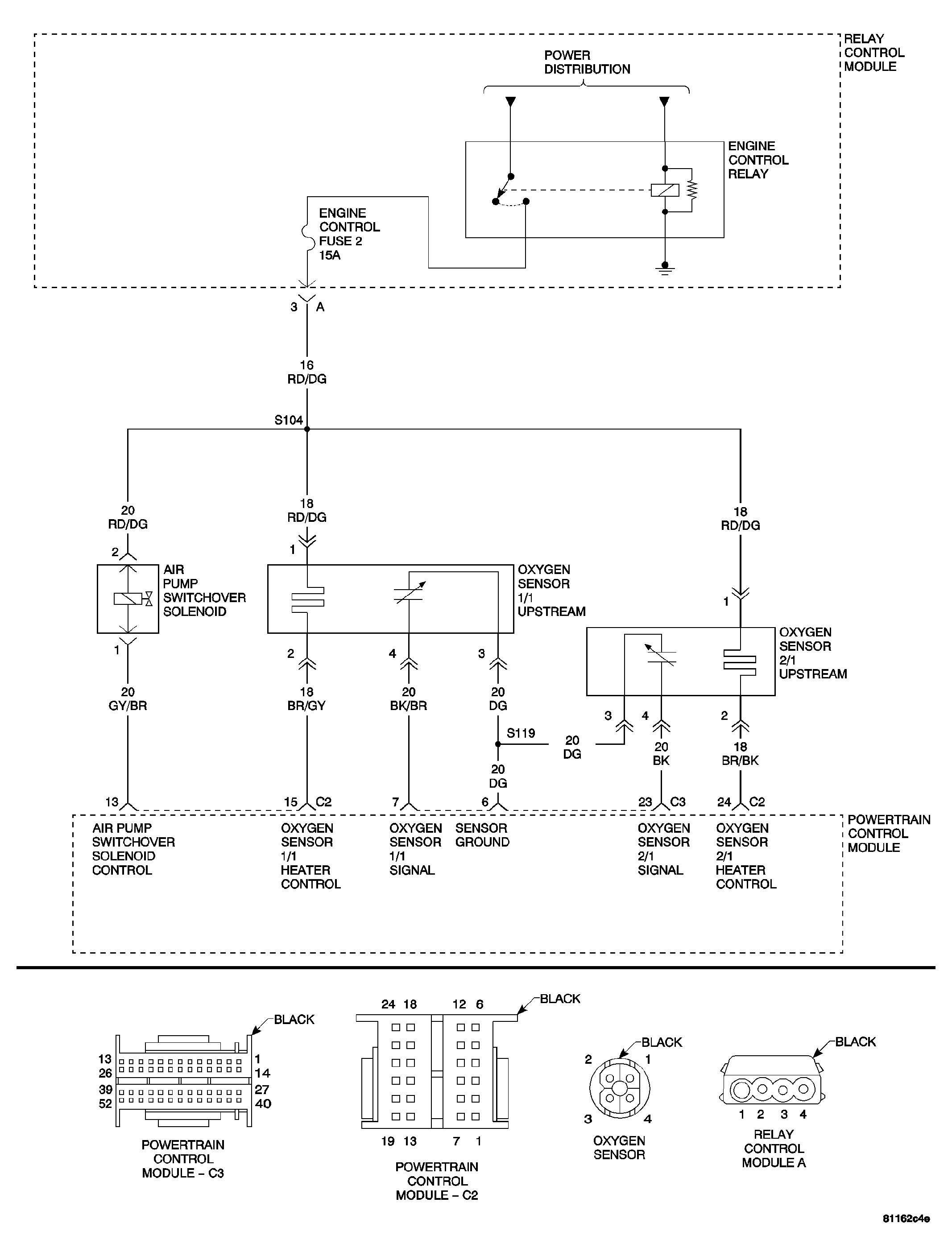

Fig 1: Upstream O2 Sensors & Air Pump Switchover Solenoid Circuit Schematic
GC0034033Courtesy of CHRYSLER LLC
