P0174-Fuel System 2/1 Lean Control Below Limit (At Load): Notes

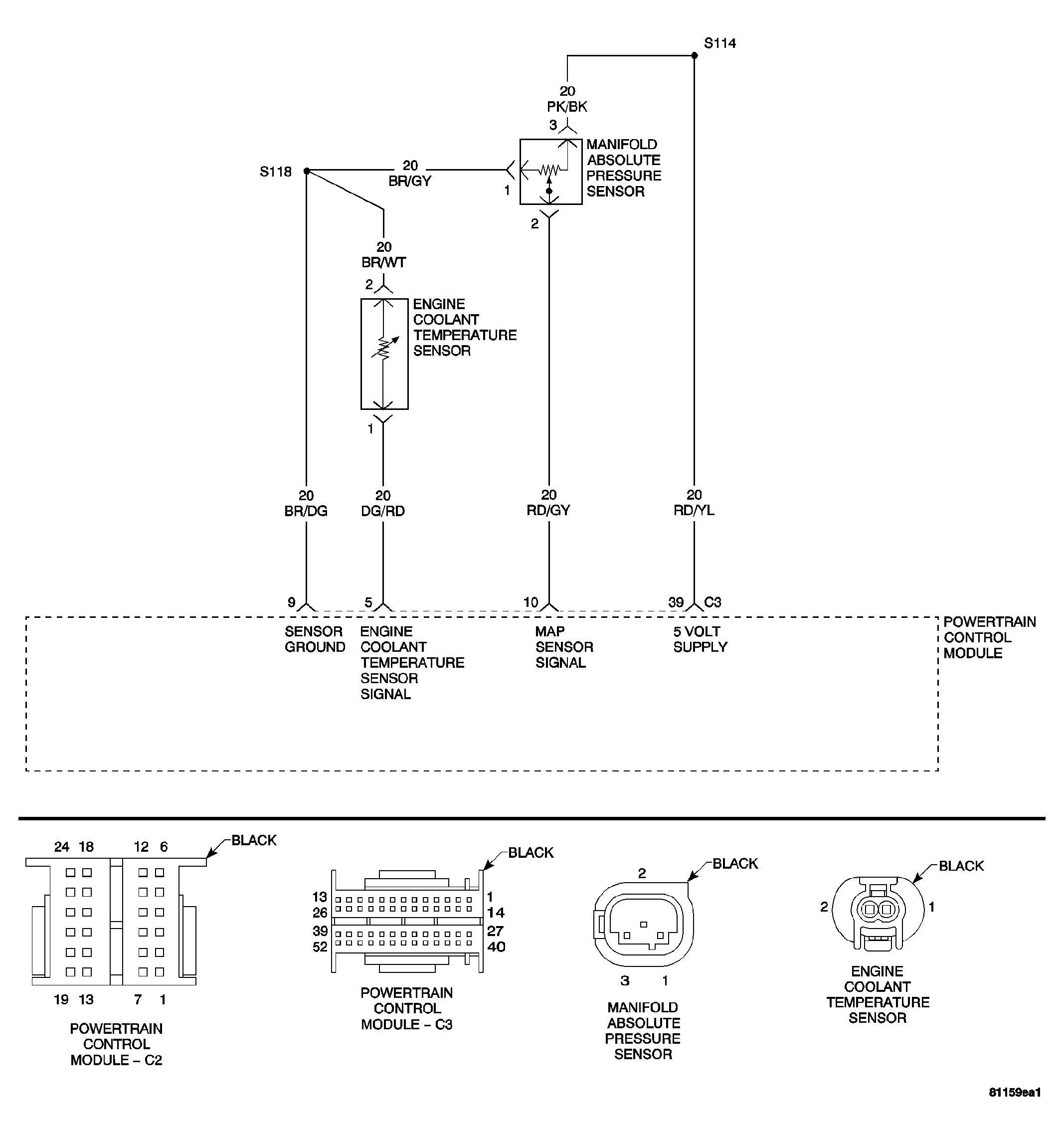

Fig 1: Engine Coolant Temperature & Manifold Absolute Pressure Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : With the engine running in closed loop mode, the ambient/battery temperature above -7°C (20°F), altitude below 2590m (8500 ft). and fuel level greater than 15%.
2. Set Condition  : If the PCM multiplies short term compensation by long term adaptive and a certain percentage is exceeded for two trips, the MIL illuminates and a trouble code is stored.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
