P0330-Knock Sensor 2 Circuit Low: Notes

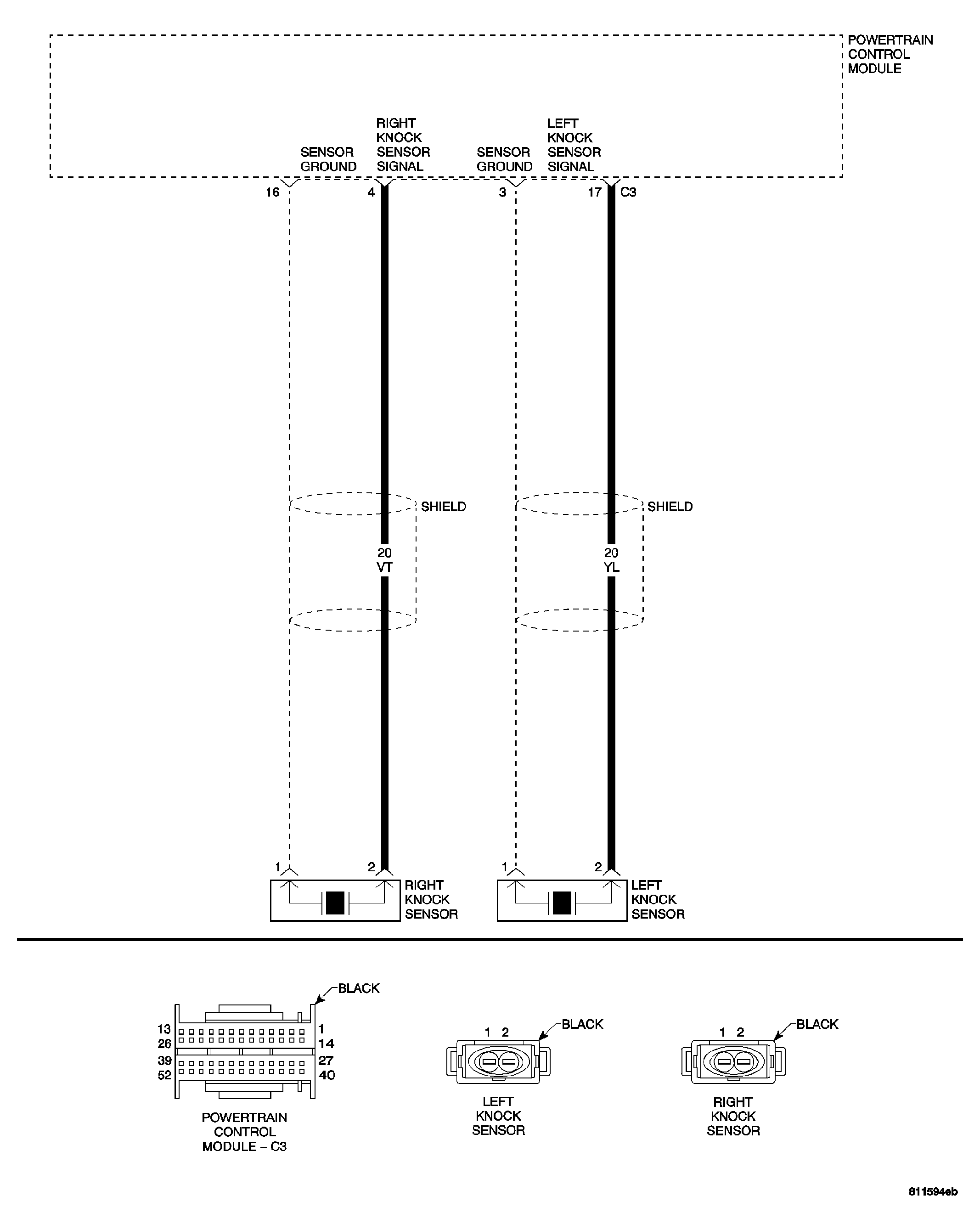

Fig 1: Knock Sensors Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : With the Engine at operating temperature, engine speed greater than 2000 RPM, load greater than 40%, and Anti-Knock control not active.
2. Set Condition  : Knock Sensor voltage is less than 0.10 volts.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
